Adjustable long hinge for swing gates M18 galvanised steel
Leave feedback on the product
Adjustable long hinge M18 galvanised steel for swing gates. Length 180 mm, bolt 130 mm, ear width 36 mm. M18 thread, weight 0.52 kg. Permissible load for pair of hinges 80 kg for 2 m gate leaf. Anti-corrosion coating.
Product code: 001-343
Product features
[PIM] zawiasy #113
- Thread type M18
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable long hinge for swing gates M18 galvanised steel
Adjustable long hinge M18 is a durable hardware element designed for mounting swing gates. Thanks to the M18 threaded bolt and adjusting nut, it enables precise correction of gate leaf positioning — both immediately after installation and during operation, e.g. when the structure sags under its own weight or undergoes thermal deformations during winter.
Steel construction with galvanised coating guarantees high corrosion resistance and weather resistance, making this hinge an ideal solution for outdoor applications. The hinge ear is made from black (raw) steel, whilst the bolt and nuts are galvanised. The permissible load for pair of hinges on a gate leaf 2 m long is 80 kg, which allows for safe hanging of standard gate leaves.
Advantages of adjustable hinge
- Post-installation adjustment — nut enables tightening or loosening of hinge at any time during operation
- Corrosion resistance — galvanised coating protects against rust and atmospheric conditions
- High mechanical strength — solid steel construction resistant to damage and wear
- Thermal deformation compensation — possibility to correct gate positioning after metal contraction in winter
- Aesthetic appearance — neat finish matching metal and steel gates

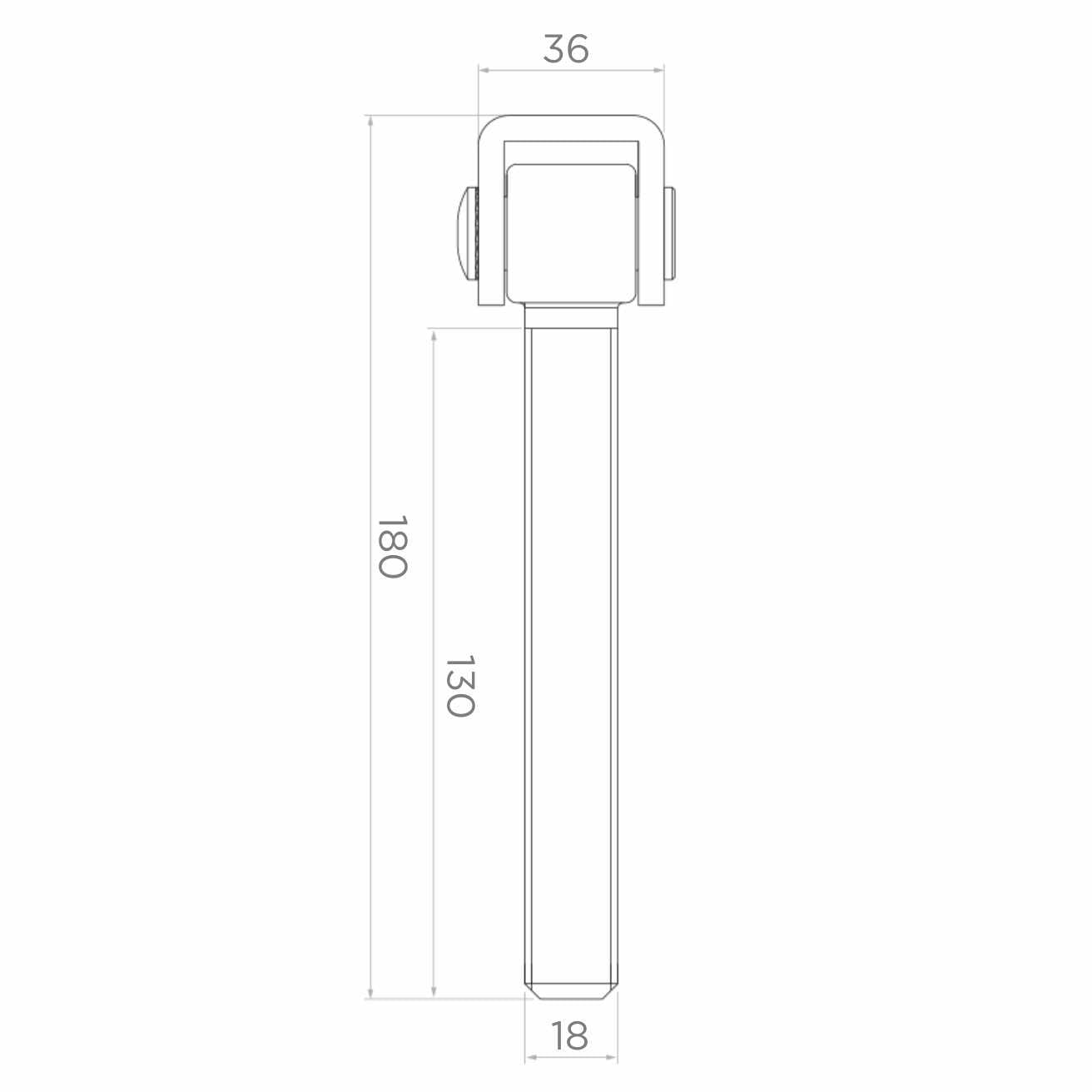

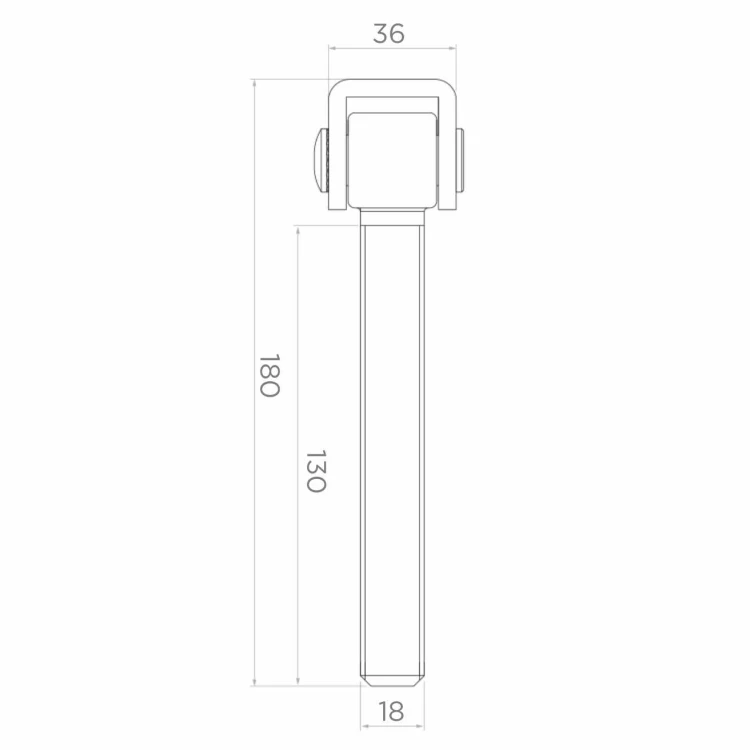

Technical data
- Material: steel
- Anti-corrosion protection: galvanised (ear from black steel)
- Thread: M18
- Overall length: 180 mm
- Bolt length: 130 mm
- Ear width: 36 mm
- Thread diameter: 18 mm
- Weight: 0.52 kg
- Permissible load for pair of hinges (2 m leaf): 80 kg
- EAN: 5901289675796

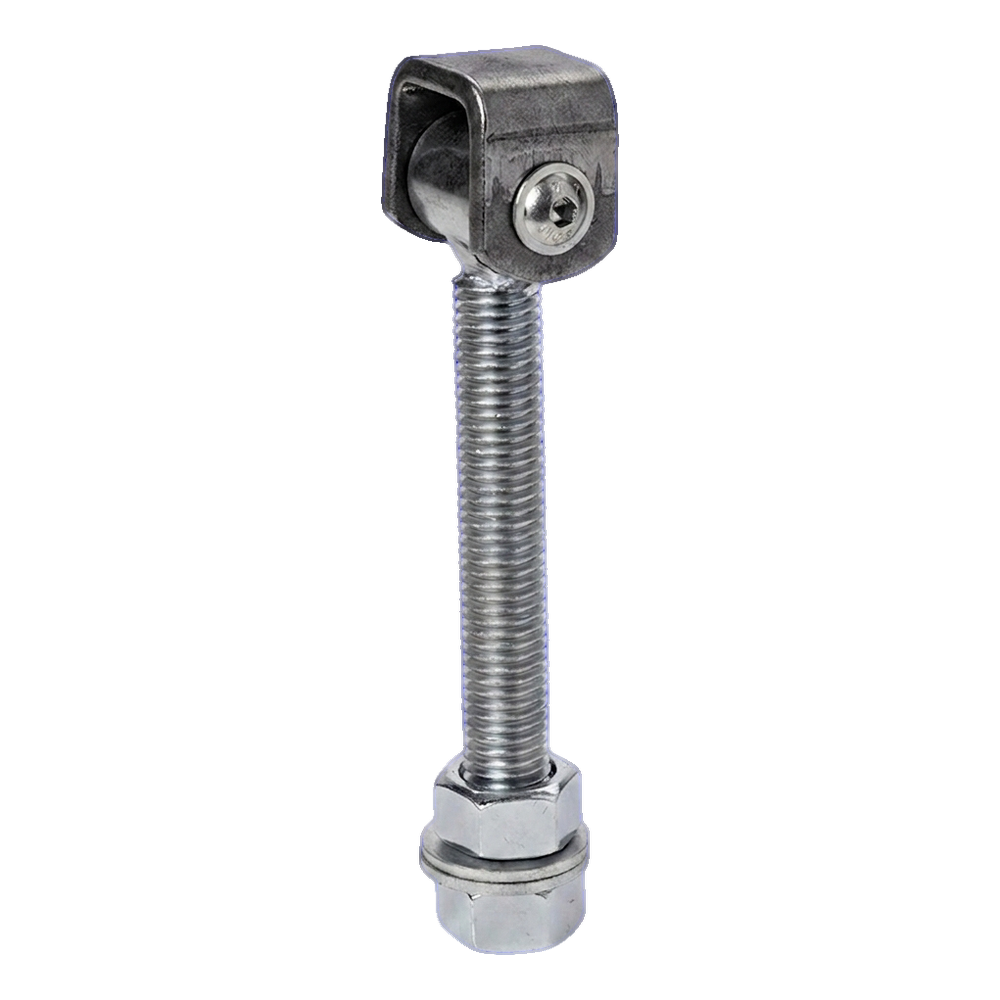

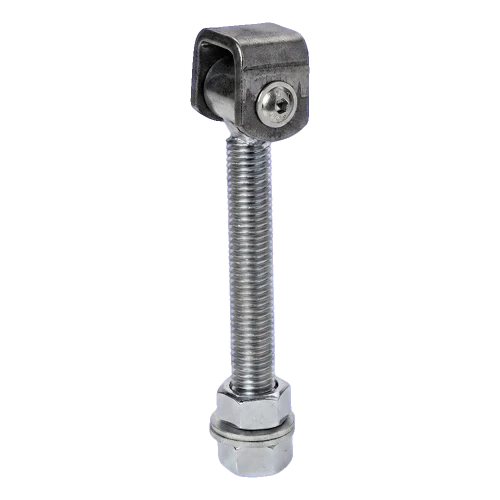

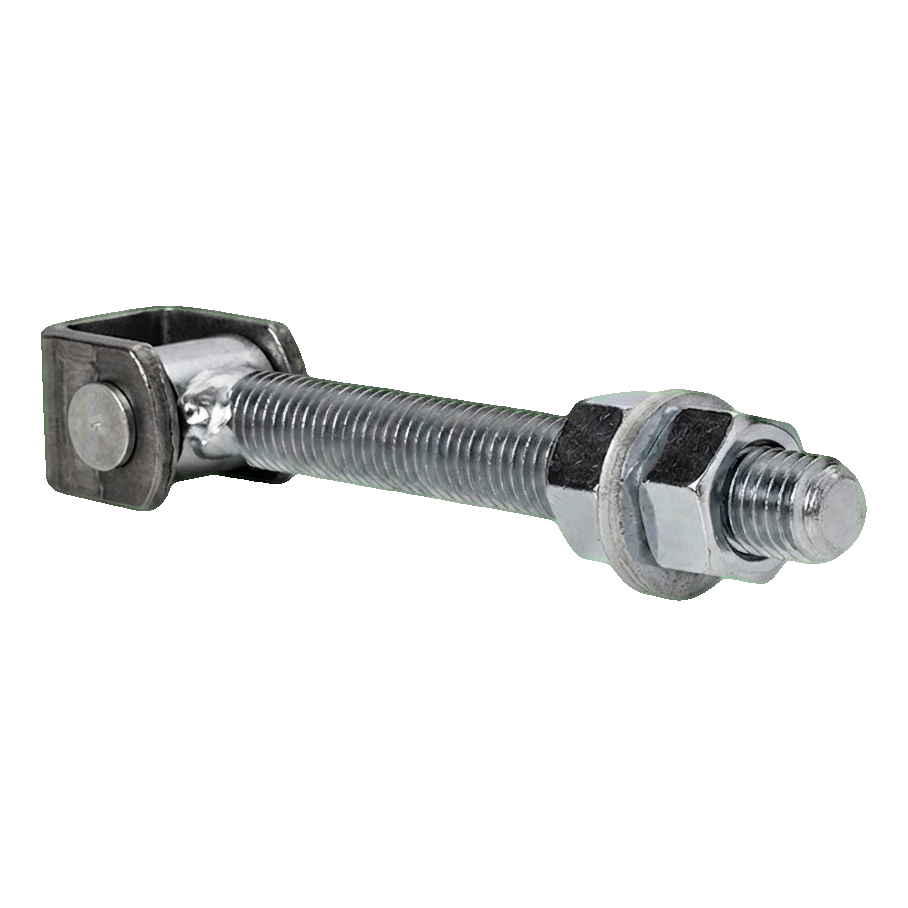

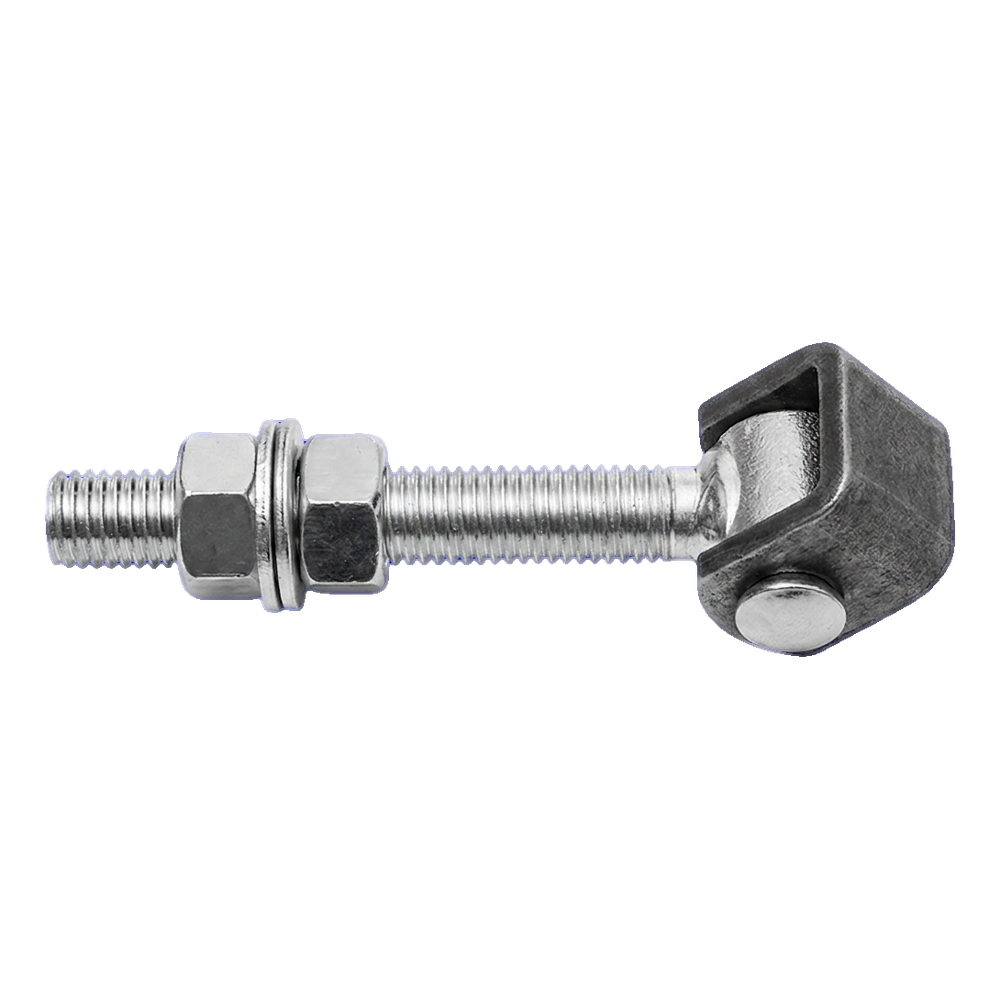

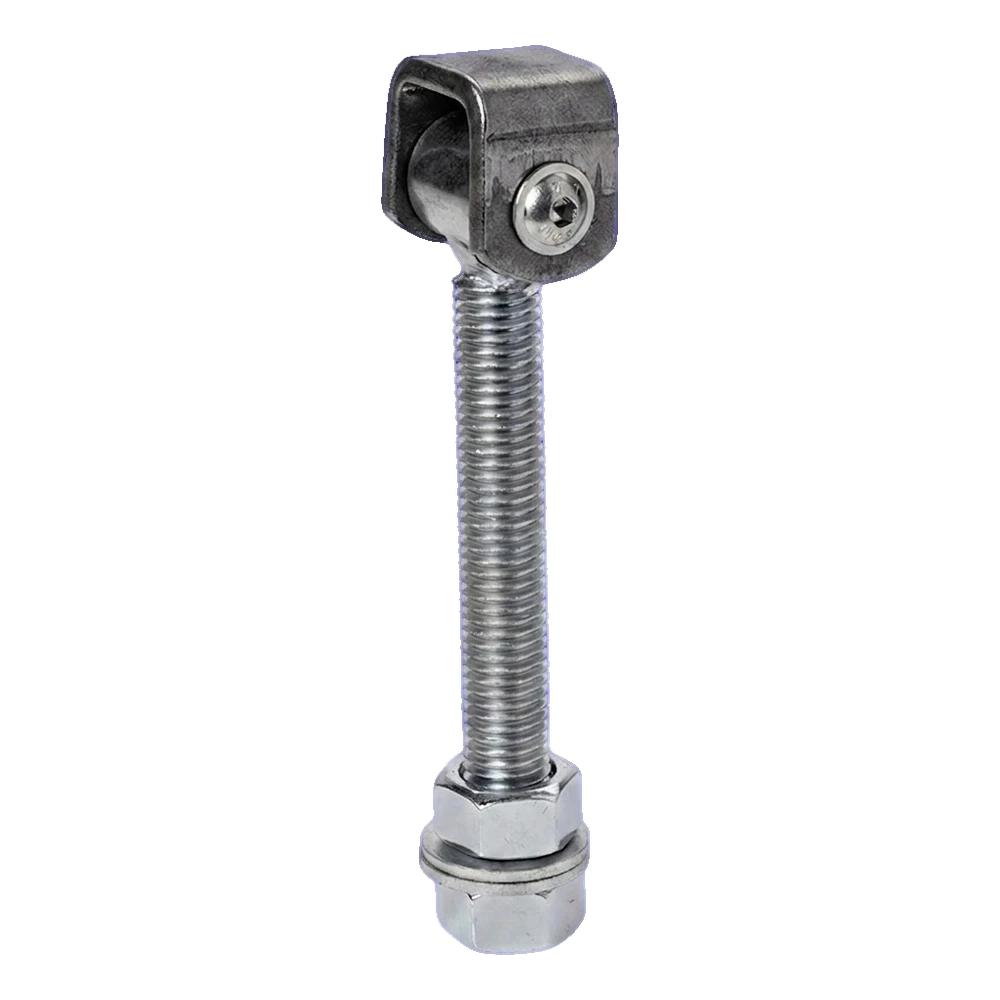

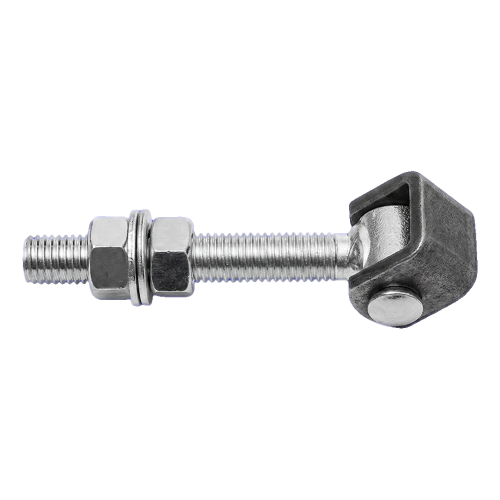

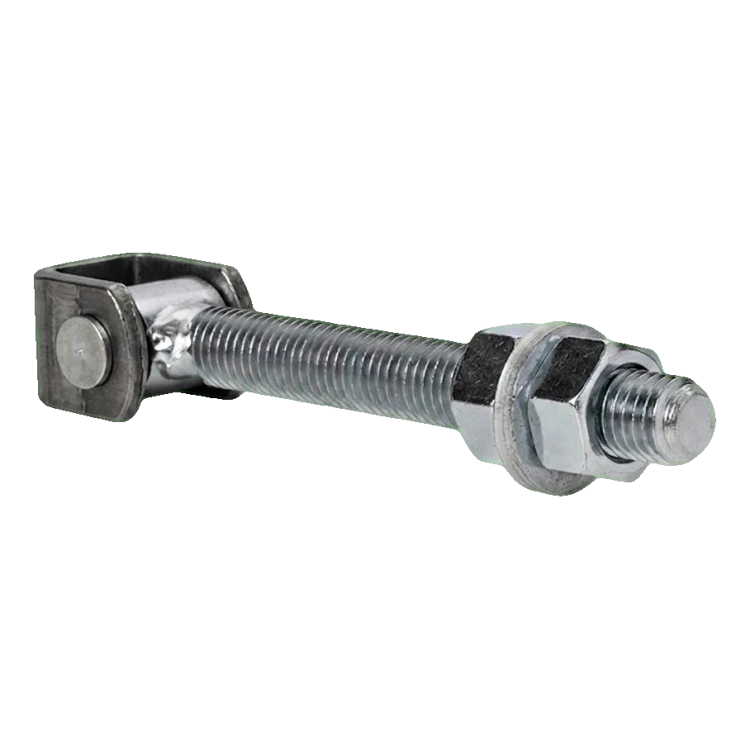

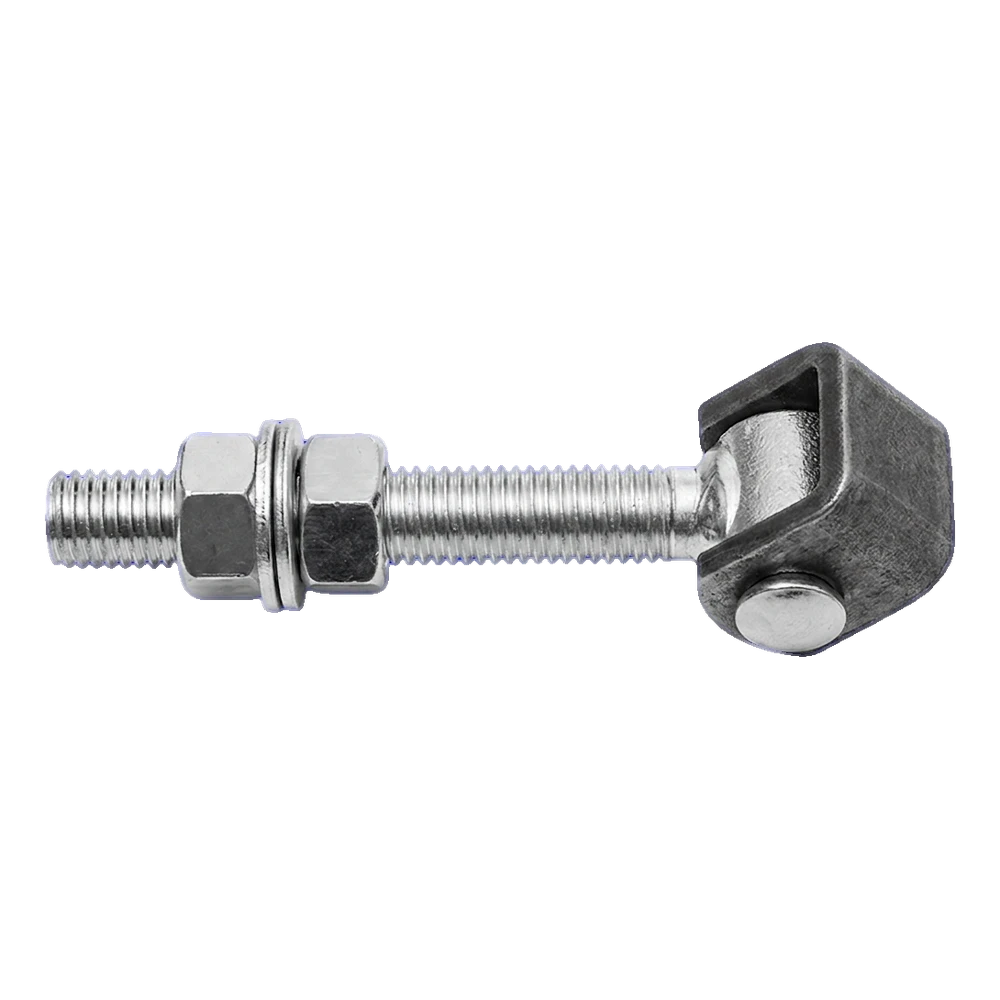

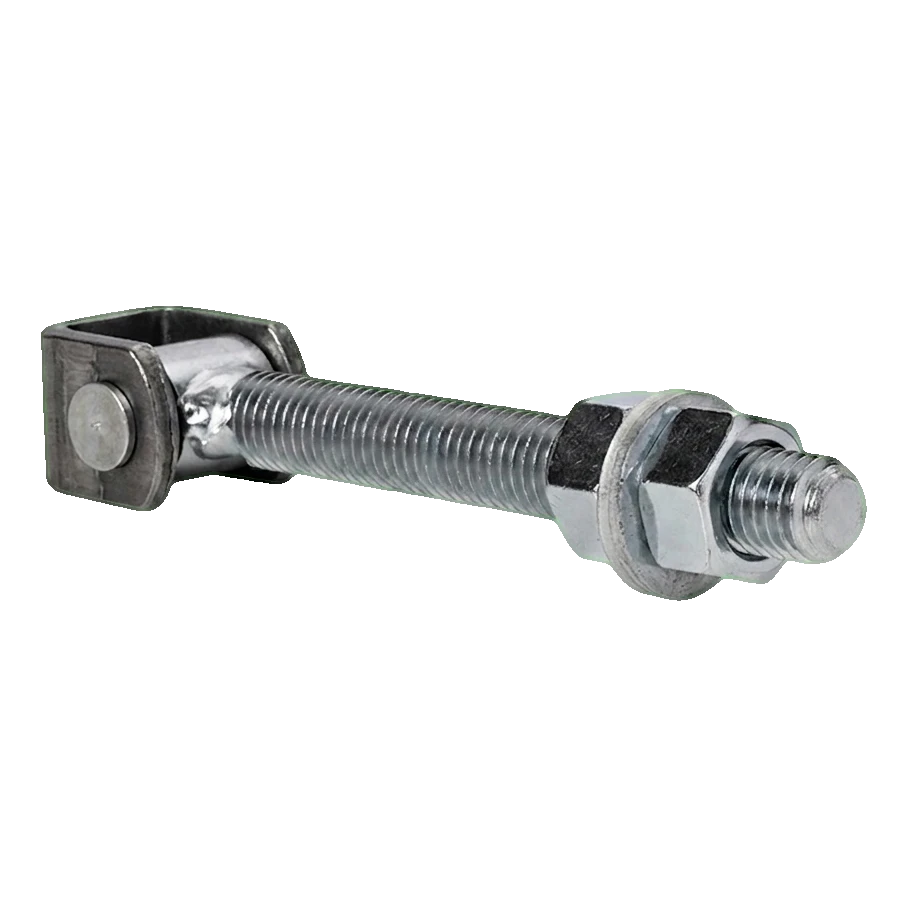

Product photos from different perspectives
