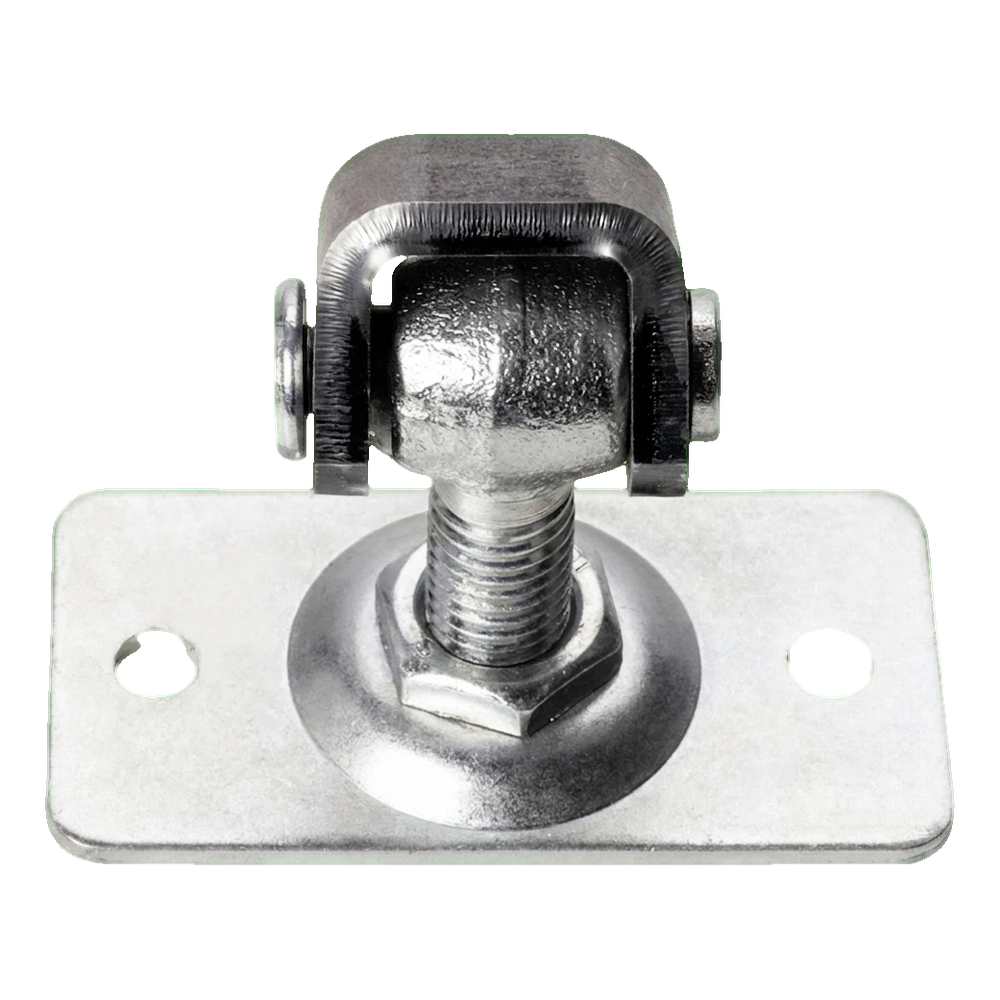

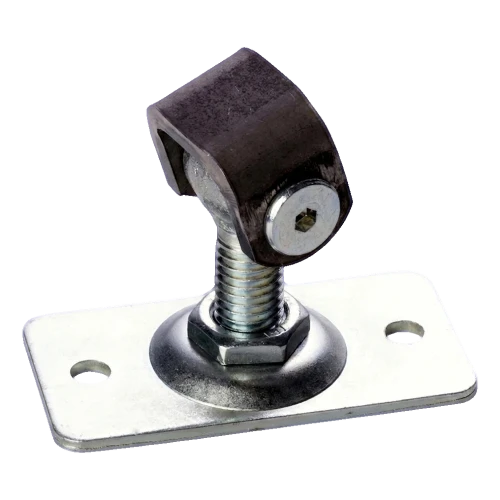

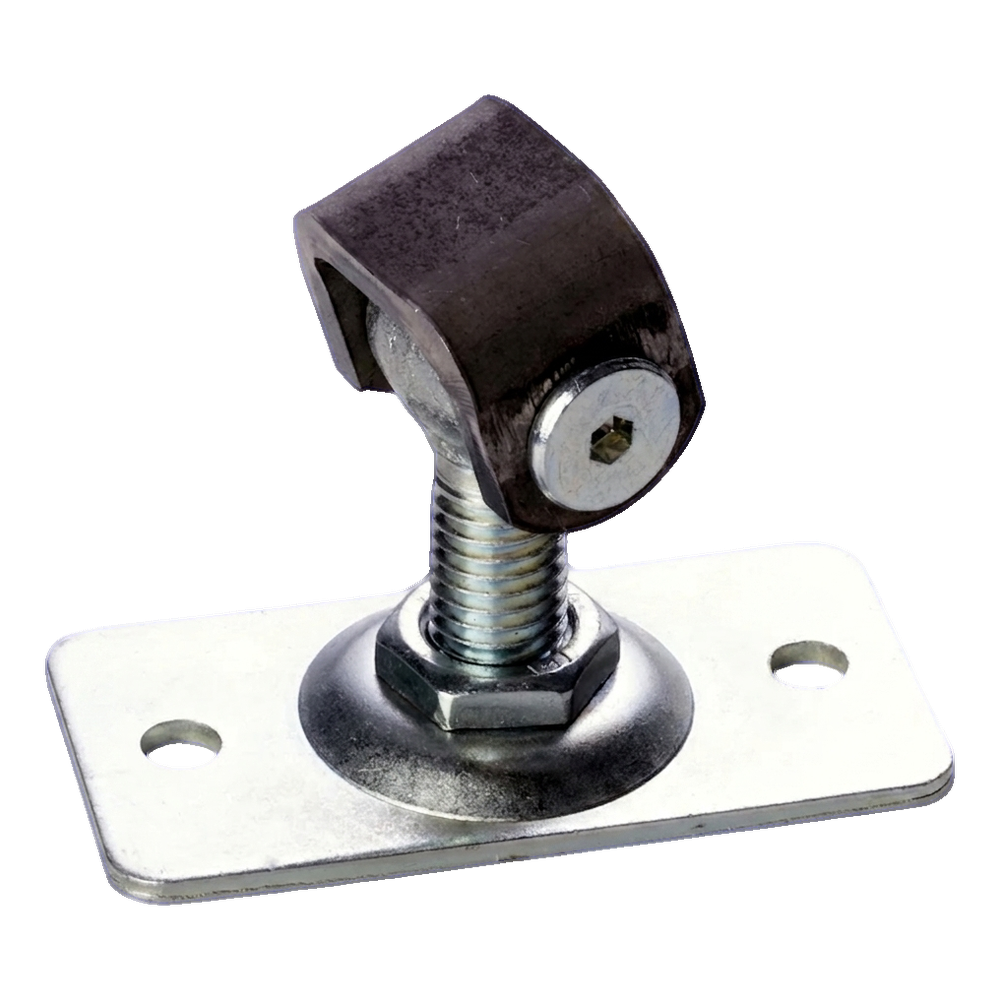

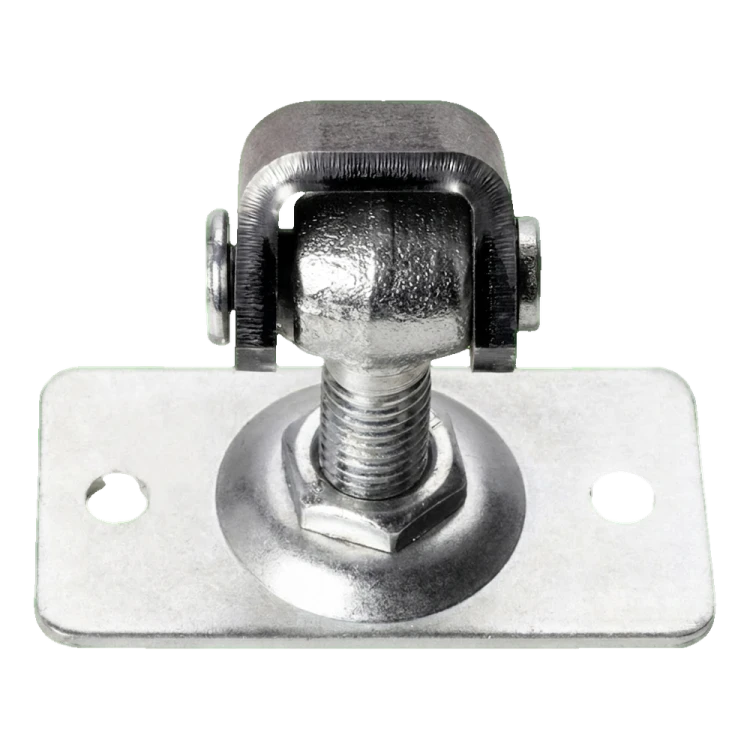

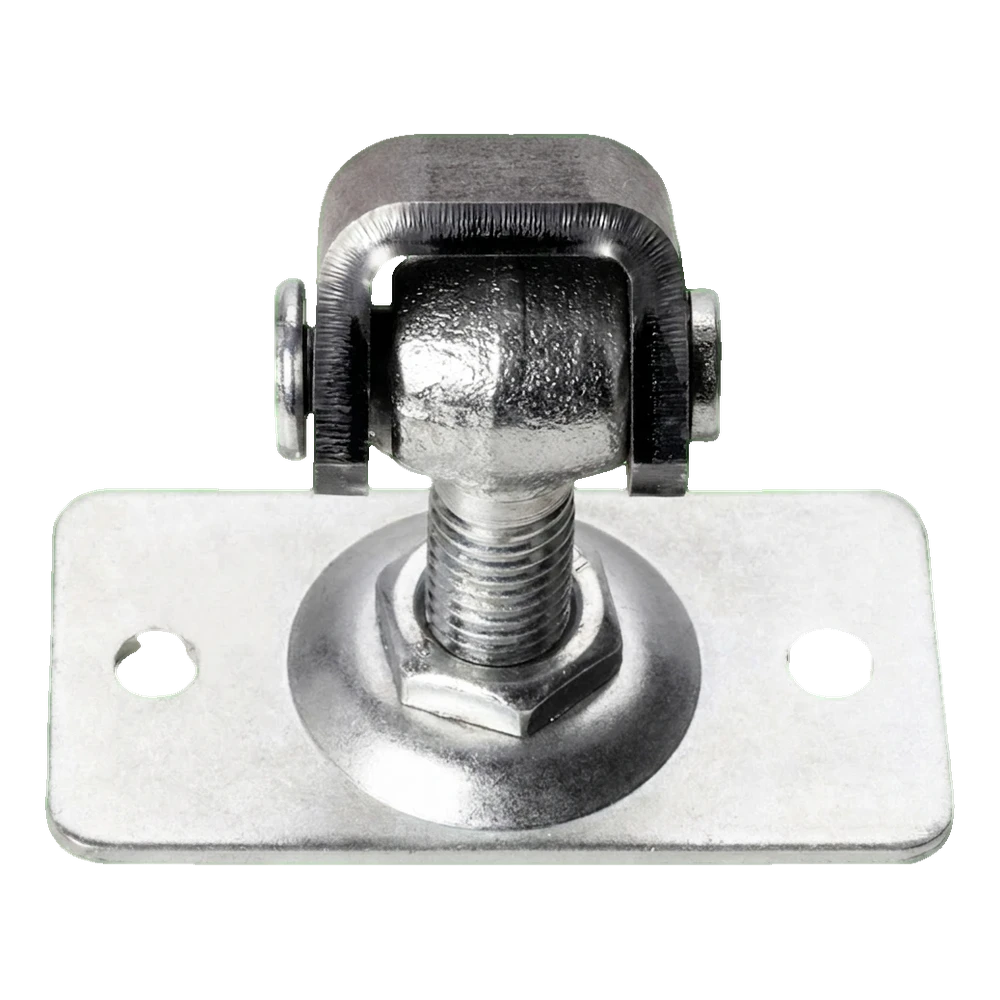

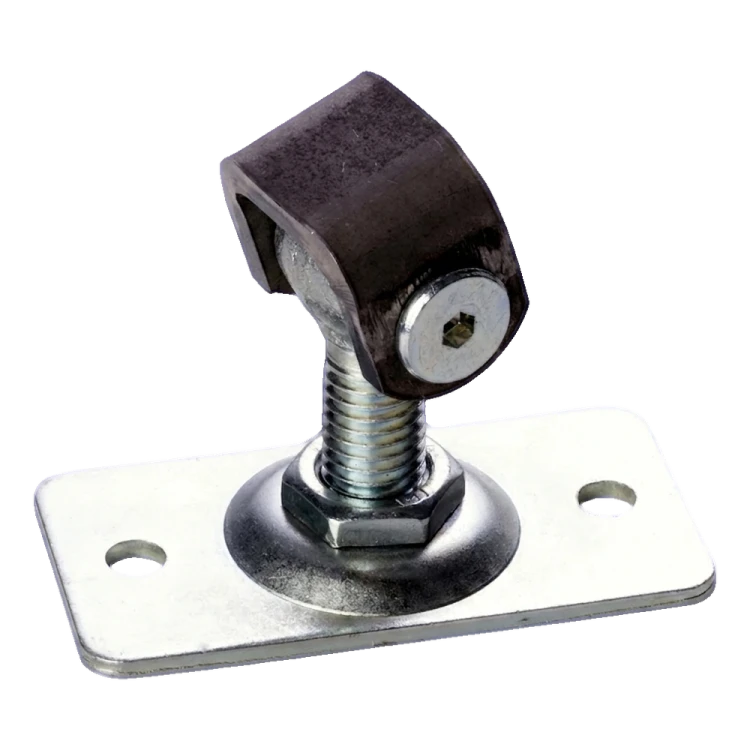

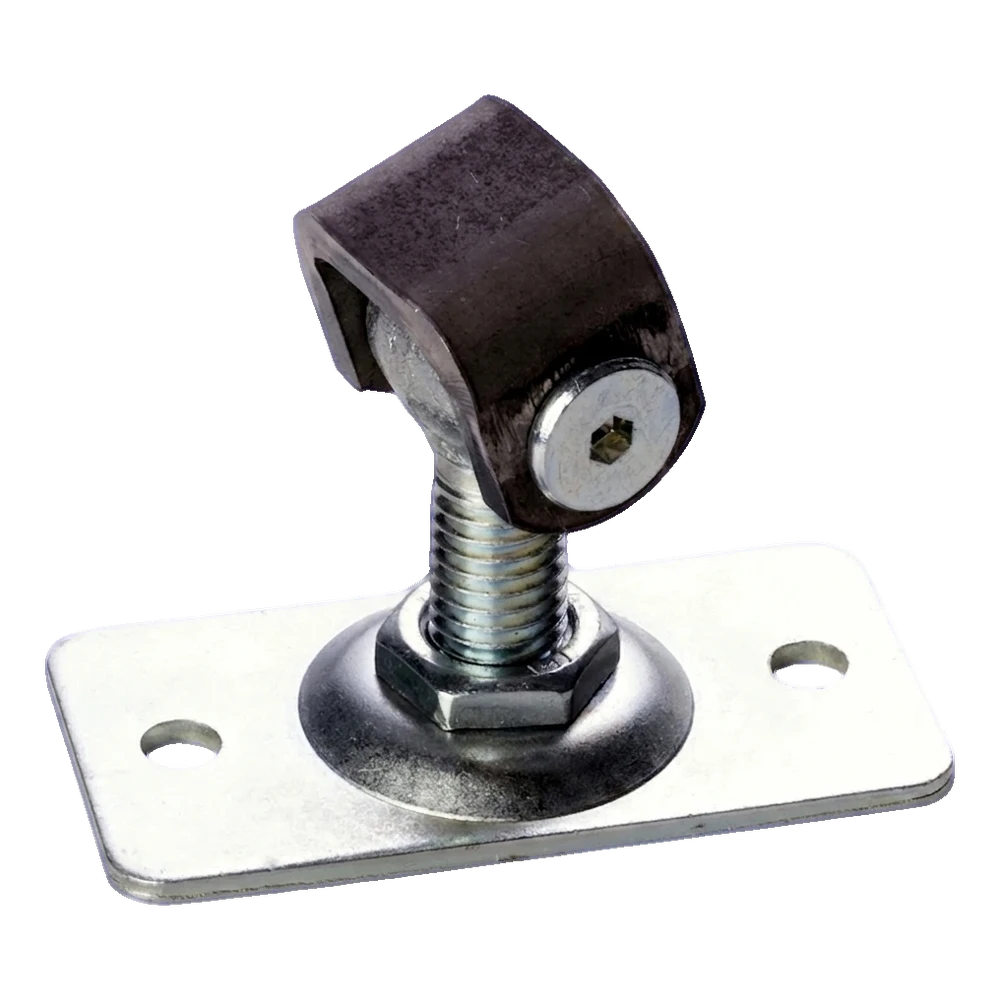

Adjustable gate hinge with rectangular plate M12 75×38 mm galvanised steel
Leave feedback on the product
Adjustable M12 hinge with rectangular plate 75×38 mm, galvanised steel. Adjustment range 38-55 mm, M12 thread, plate thickness 2.5 mm. Mounting holes 2×⌀7 mm, spacing 56 mm. Weight 0.16 kg. For light gates and wickets.
Product code: 001-407
Product features
[PIM] zawiasy #113
- Thread type M12
- Mounting Method With Plate
- Material Steel
Description
Adjustable gate hinge with rectangular plate M12 75×38 mm galvanised steel
Adjustable M12 hinge with rectangular plate 75×38 mm is a robust hardware element designed for mounting light gates and wickets. Thanks to its adjustable construction with M12 screw, it allows precise positioning of the leaf — both during installation and during operation, e.g. after sagging of the structure or in response to temperature changes.
The rectangular plate with four mounting holes ensures stable and secure attachment to the post or frame. The M12 threaded screw enables smooth adjustment of extension within the range of 38–55 mm, giving the installer full control over gate positioning relative to the post. The hinge eye rotates freely on the pin axis, ensuring smooth operation of the leaf.
Screw and plate are galvanised, which guarantees high corrosion resistance and allows trouble-free outdoor use. The hinge eye is made from mild steel, providing high mechanical strength and wear resistance.

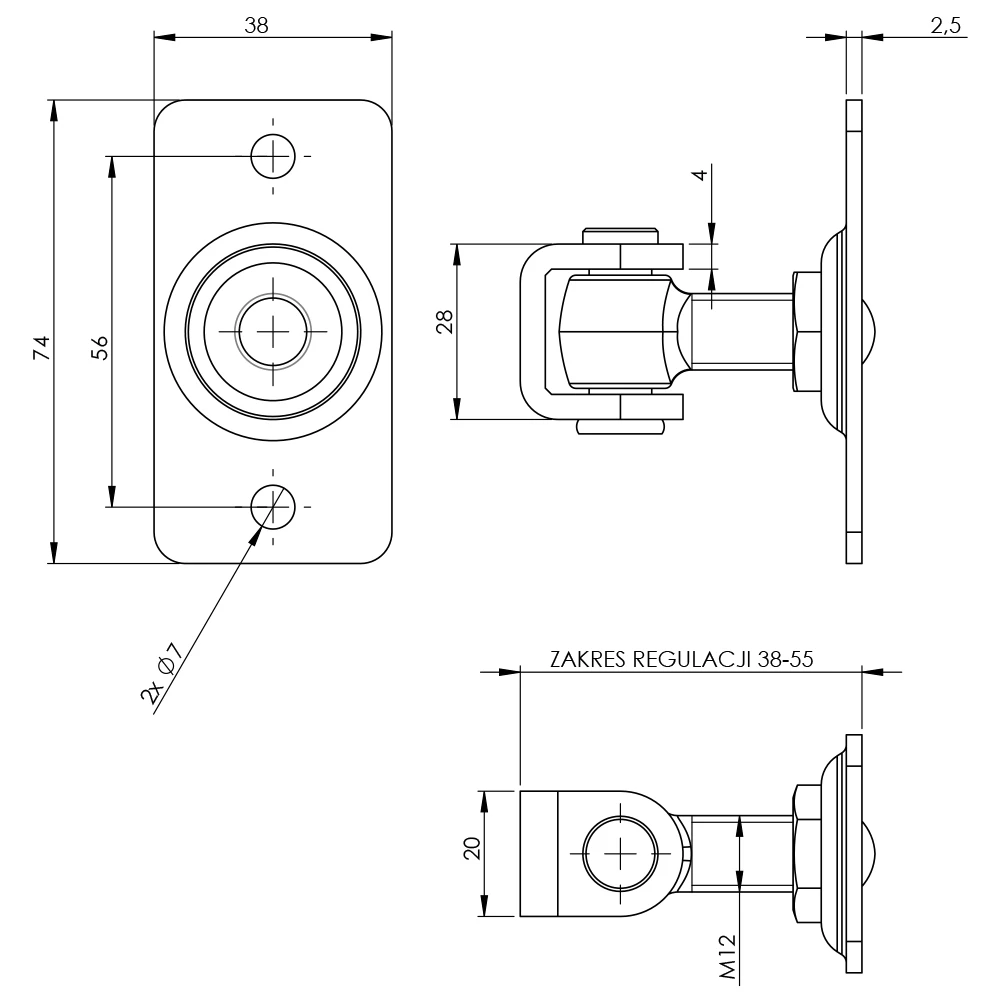

Dimensions and technical data
- Screw thread: M12
- Plate dimensions: 74 × 38 mm
- Plate thickness: 2.5 mm
- Mounting holes: 2× ⌀7 mm, spacing 56 mm
- Eye (bracket) width: 28 mm
- Eye plate thickness: 4 mm
- Adjustment range: 38–55 mm
- Material: steel — screw and plate galvanised, eye in mild steel
- Weight: 0.16 kg
- Application: light gates and wickets
Installer benefits
- Post-installation adjustment — ability to correct gate positioning without hinge removal, saving time during servicing and warranty work
- Galvanised surface of screw and plate ensures outdoor durability — no need for additional painting
- High mechanical resistance — robust steel construction withstands loads typical for garden and entrance gates
- Temperature compensation — in winter, when metal contracts due to frost, simply loosen or tighten the hinge to restore proper gate operation
