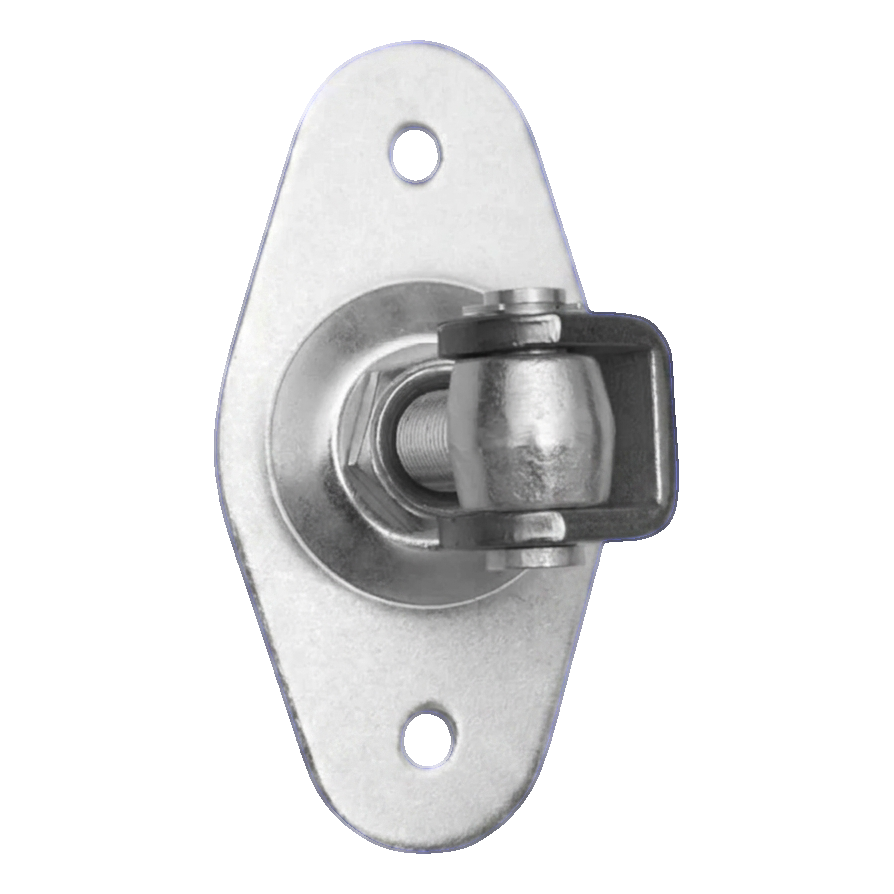

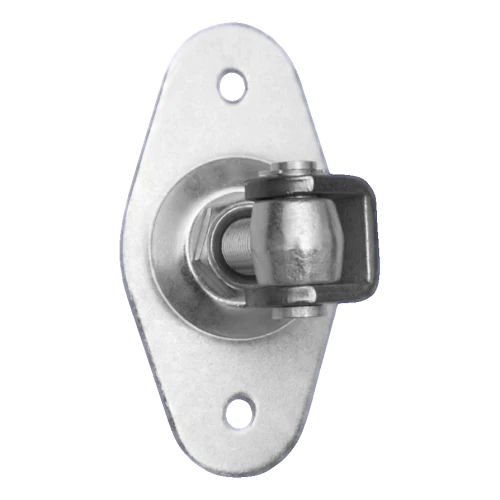

Adjustable gate hinge with oval nameplate M20 160×85 mm – galvanised steel
0
Description
Adjustable gate hinge with oval nameplate M20 160×85 mm – galvanised steel
Adjustable hinge with oval nameplate M20 is a robust ironmongery component designed for mounting swing gates and wickets. The steel construction with galvanised coating guarantees years of corrosion resistance, making the hinge excellent for external applications – even in harsh weather conditions.
The construction based on M20 bolt enables smooth pressure adjustment at any time after installation completion. This is particularly important for compensating gate leaf sagging or dimensional changes caused by extreme temperatures – in winter metal contracts, whilst in summer it expands. Simply tighten or loosen the nut to restore correct leaf positioning without dismantling.
Key advantages
- Post-installation adjustment – sag and temperature change compensation without dismantling
- Hot-dip galvanising – durable anti-corrosion protection for years of external operation
- Quick installation – oval nameplate with two mounting holes ensures easy attachment to post
- High load capacity – permissible load for pair of hinges on 2 m length leaf is 105 kg
- Solid construction – steel with high resistance to mechanical damage and dynamic loads
Technical parameters
- Material: steel
- Anti-corrosion protection: galvanised (black lug)
- Thread: M20
- Nameplate dimension: 160 × 84 mm
- Lug width: 40 mm
- Total length (reach): 92 mm
- Bolt length: 48 mm
- Pin diameter: 20 mm
- Weight: 0.7 kg
- Permissible load for pair of hinges (2 m leaf): 105 kg
- EAN: 5901431941410
The hinge performs excellently in daily work of installation teams – quick mounting on post using two bolts and possibility of later adjustment reduce completion time and eliminate the need for repeat service visits to customers.
Technical data
| Thread type | M20 |
| Mounting Method | With Plate |
| Material | Steel |
