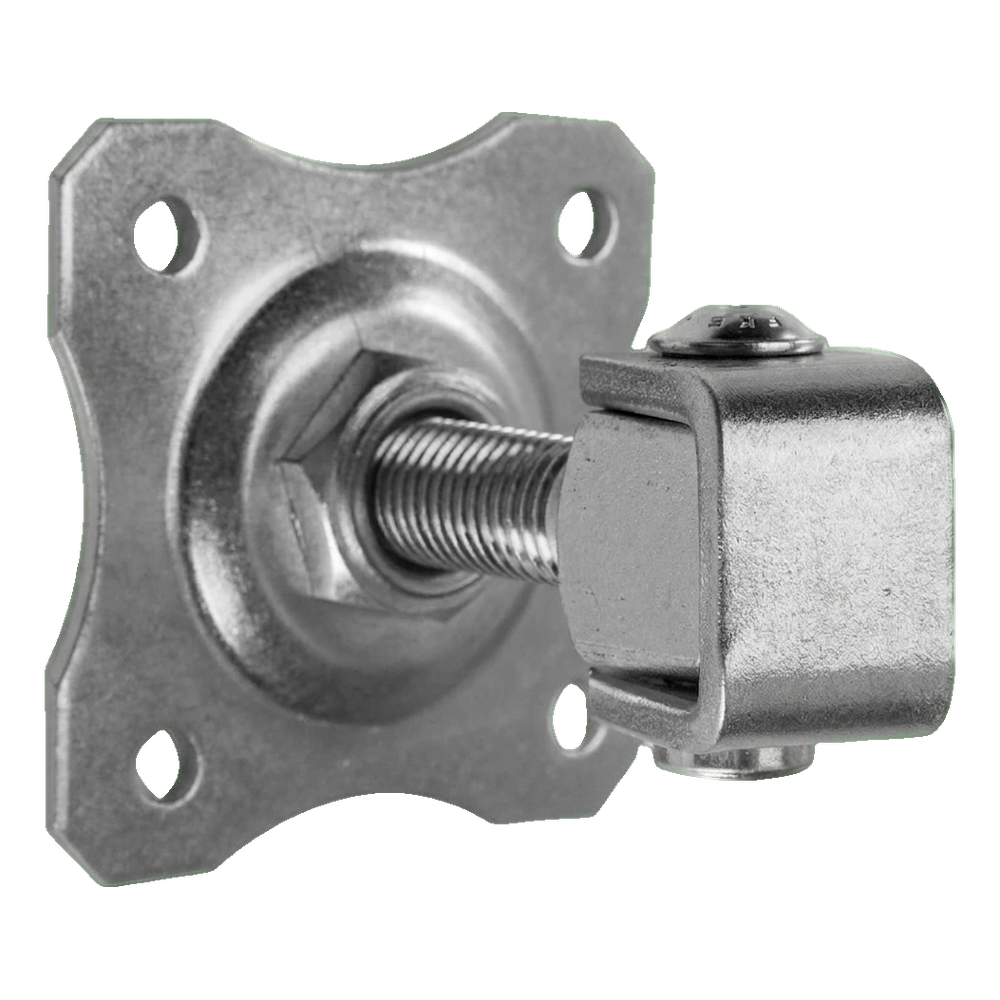

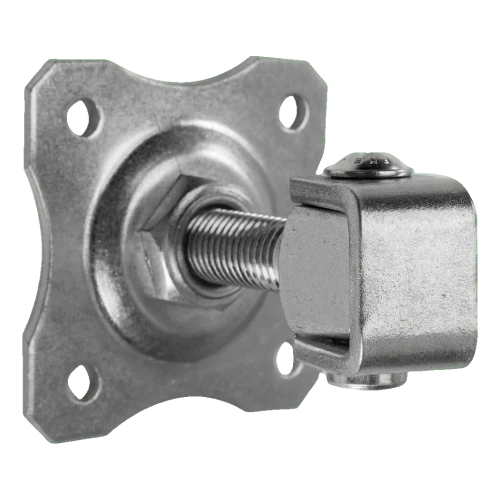

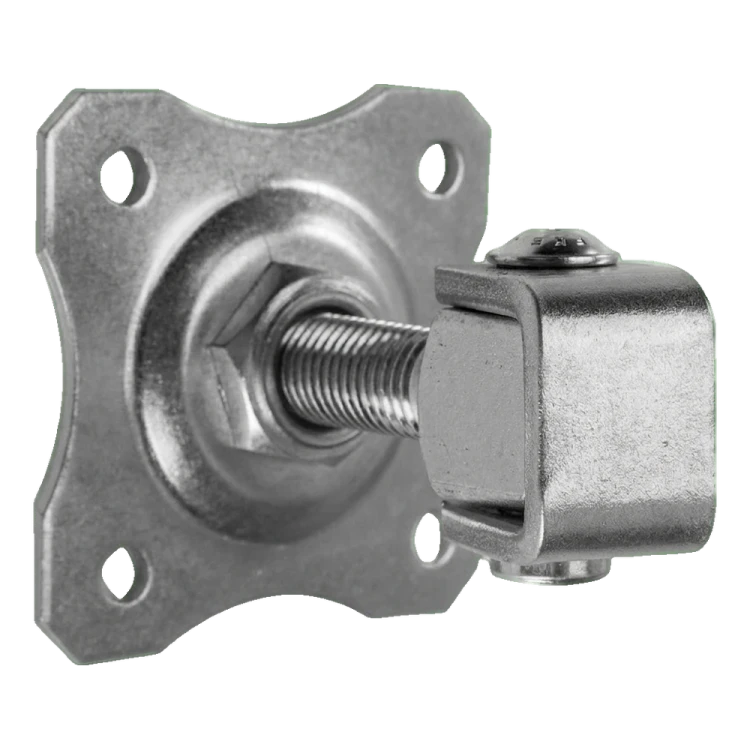

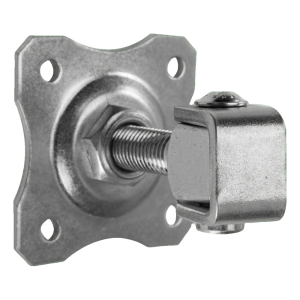

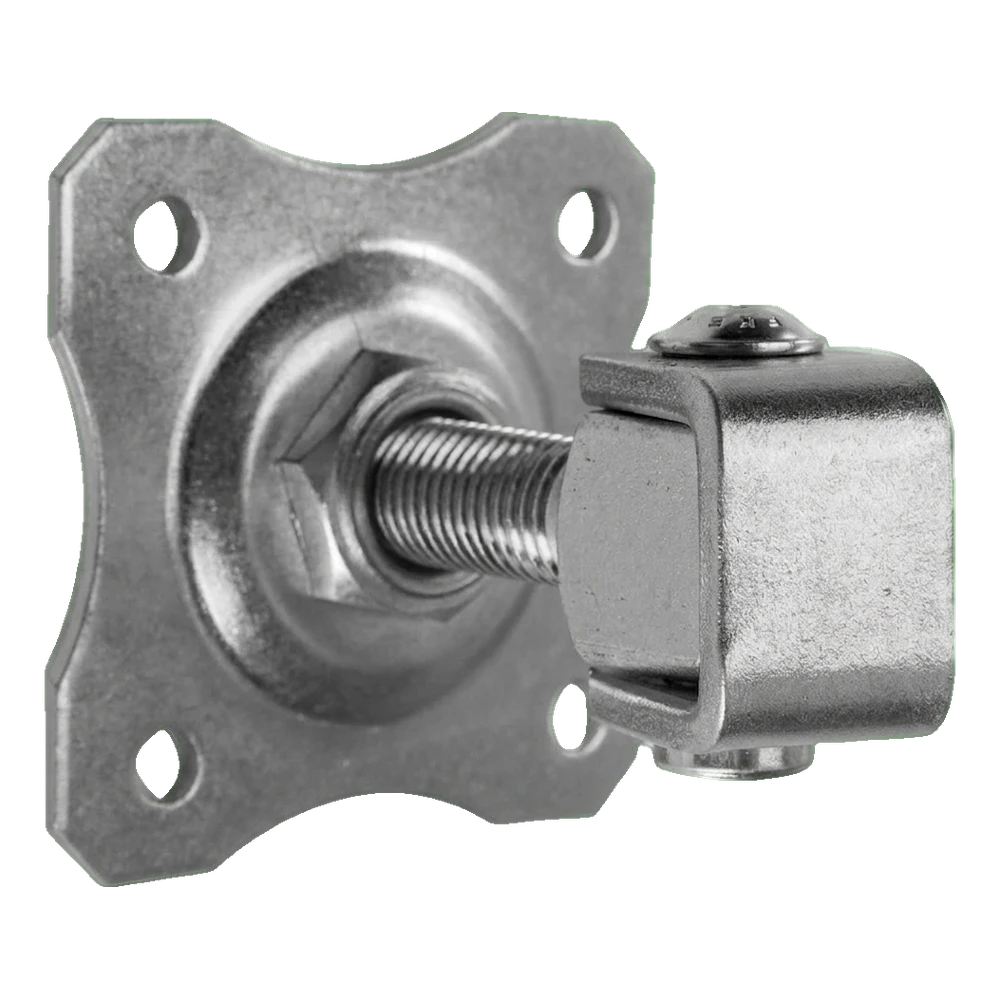

Adjustable gate hinge with decorative plate M20 100×100 mm galvanised
Leave feedback on the product
Adjustable gate hinge with decorative plate M20, galvanised steel. Plate 100×100 mm, sheet thickness 4 mm. M20 thread with adjustment nut. Lug width 36 mm, total length 88 mm, thread length 43 mm. Pair load capacity 105 kg on 2 m gate leaf. Weight 0.64 kg.
Product code: 001-410
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method With Plate
- Material Steel
Description
Adjustable gate hinge with decorative plate M20 100×100 mm galvanised
Steel adjustable hinge with decorative plate M20 designed for mounting swing gates and wicket gates. Thanks to the M20 thread with adjustment nut, it enables precise gate leaf adjustment at any time — both during initial installation and during operation, e.g. in case of structural sagging or thermal metal deformations during winter.
The plate measuring 100 × 100 mm with sheet thickness of 4 mm is equipped with four mounting holes, ensuring stable and durable attachment to the post. The product is galvanised — designed for outdoor use, providing high, long-term corrosion protection even in harsh weather conditions.
Installer benefits
- Post-installation adjustment — the nut on the M20 thread allows tightening or loosening the hinge without dismounting, eliminating the need for re-drilling and reducing service time
- Galvanised coating — high resistance to corrosion and wear, ideal for outdoor applications on fences and gates
- Durable steel construction — resistance to mechanical damage and heavy loads
- Aesthetic decorative plate — decorative plate shape gives the gate a professional appearance
The permissible load of a hinge pair on a gate leaf 2 m long is 105 kg, allowing their use with typical swing gates and wicket gates in residential construction and property fencing.
Technical parameters
- Material: steel
- Anti-corrosion protection: galvanising (galvanised lug)
- Thread: M20
- Plate dimensions: 100 × 100 mm
- Plate sheet thickness: 4 mm
- Lug width: 36 mm
- Total length: 88 mm
- Thread length: 43 mm
- Hinge pair load capacity (2 m gate leaf): 105 kg
- Weight: 0.64 kg
- EAN: 5901289675949
