Adjustable VARIO T-hook 120mm (4-4-4) width 50mm grade 1.4016
product unavailable
add to wish list
Description

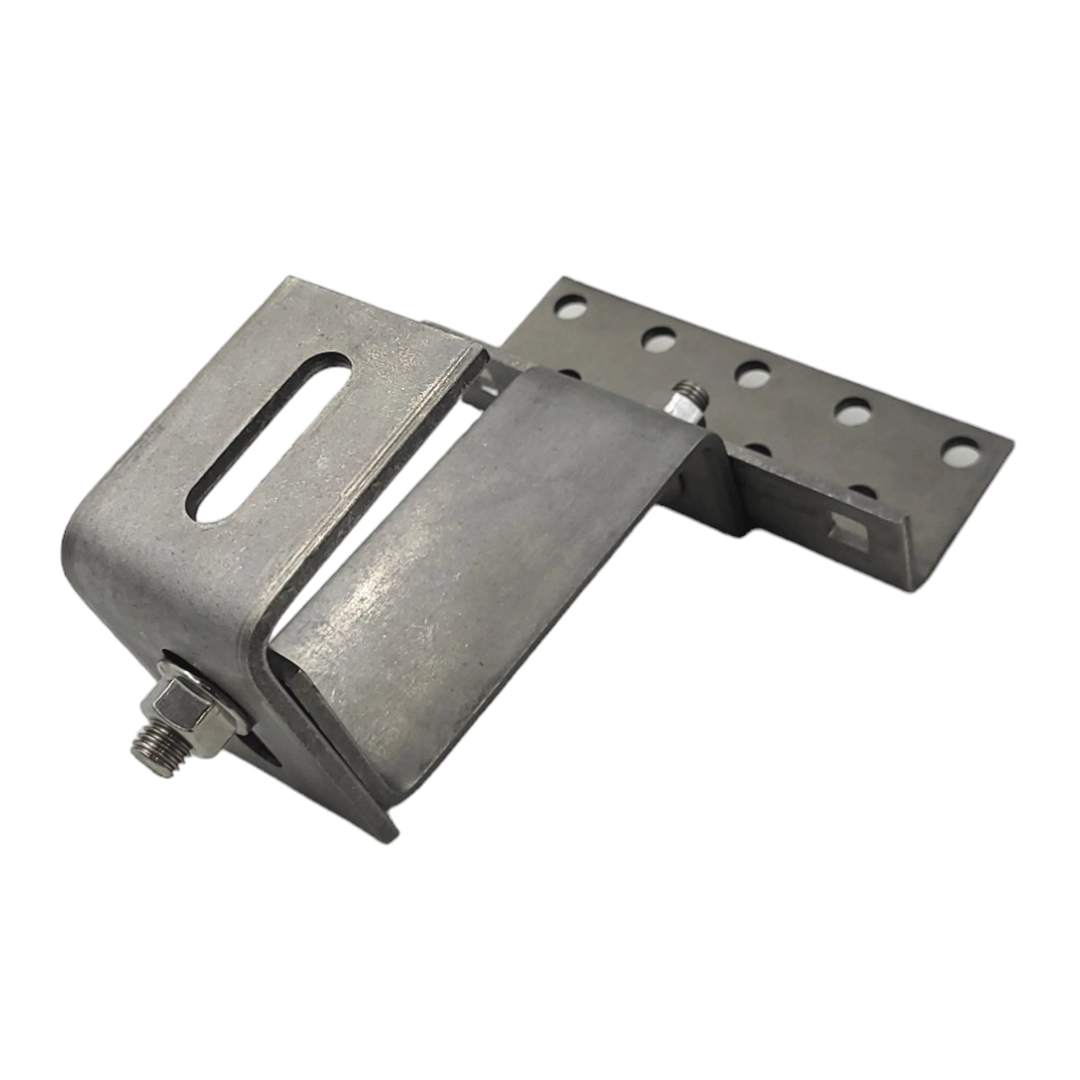

T-Hook 120 mm (4-4-4) width 50 grade 1.4016 adjustable VARIO
Vario Roof Hook type 4-4-4 Adjustable with widened Z-profile, stainless steel H17/1.4016, with dimensions 145x50x4/4mm/4mm with M10 hole for rail mounting in photovoltaic systems.
Roof Bracket for mounting rails of photovoltaic panels on roofs covered with ceramic and concrete tiles. Guarantees proper stability of the entire structure.
Enables connection of profiles to roof covering. Vario Bracket is mounted to the lower channel of the rail using a bolt. Used where standard roof hooks (without adjustment) are too short.
The stainless steel from which the product is made is resistant to weather conditions and will not lose its properties for many years.
- The wide and adjustable bracket is made of 4 mm and 5 mm thick sheet metal, and the Z-profile from 30x5 mm flat bar.

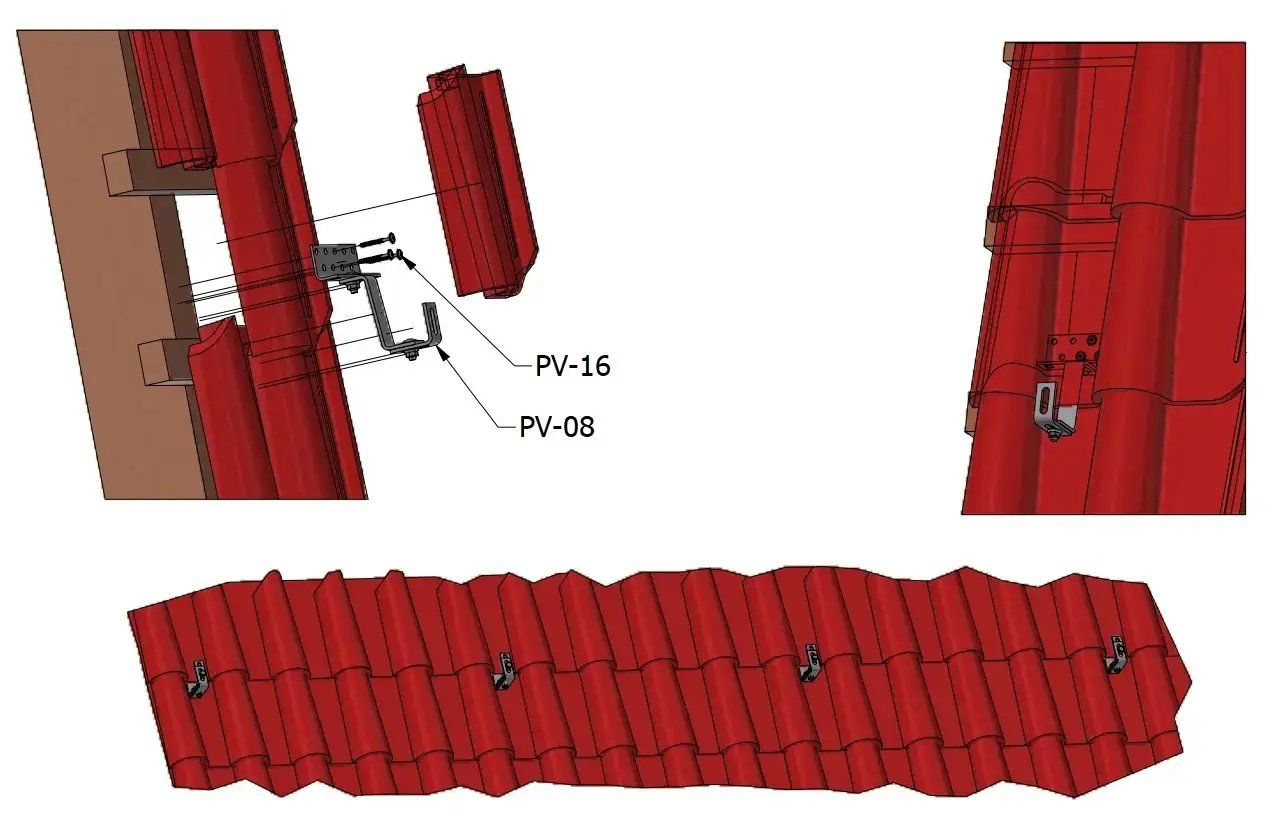

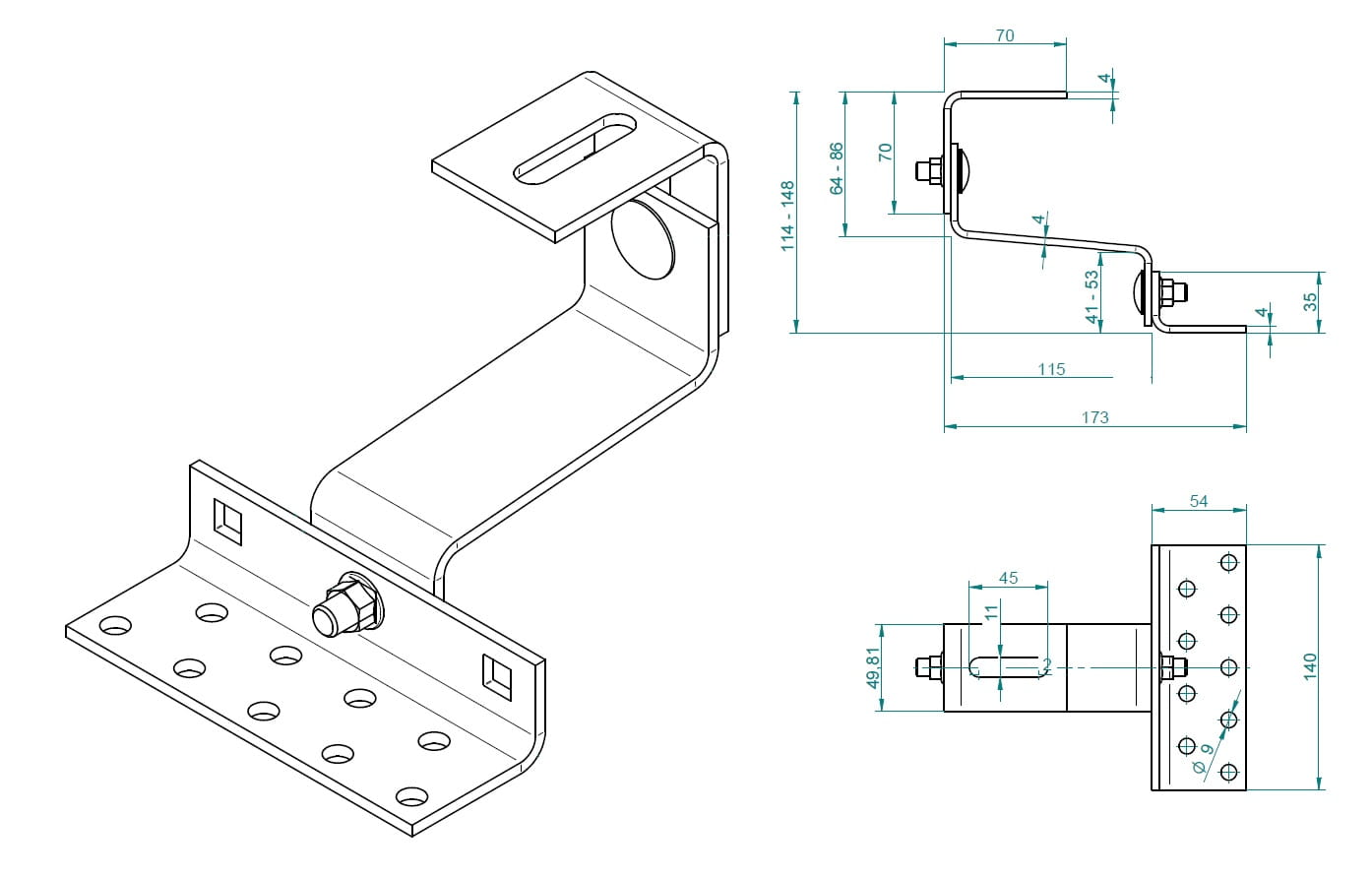

- The mounting method and exact dimensions of the hook are shown in the graphics above.
- H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Stainless steel 1.4016 (H17) grade 430 |
| Length of Z element [mm] | 120 |
| Width of Z element [mm] | 50 |
| Z-section element thickness [mm] | 4 |
| Width of adjustable angle bracket [mm] | 30 |
| Thickness of adjustable angle bracket [mm] | 4 |
| Width of wide angle bar [mm] | 142 |
| Wide angle thickness [mm] | 4 |
| Profile mounting method [mm] | From above |
| Additional reinforcement | No |
| Type | VARIO roof hook |
| Adjustment | Yes |
| Steel Grade | H17 |
