ASSA ABLOY self-closing gate closer with CAM-MOTION sliding rail, left, silver
Leave feedback on the product
ASSA ABLOY self-closing gate closer with CAM-MOTION sliding rail, left version (DIN L), silver colour. Net weight 2.7 kg. Rail mounting hole spacing 284 mm, body (vertical) 352 mm. Intended for: garden gates. EAN 8022342689165.
Product code: 001-942
Description

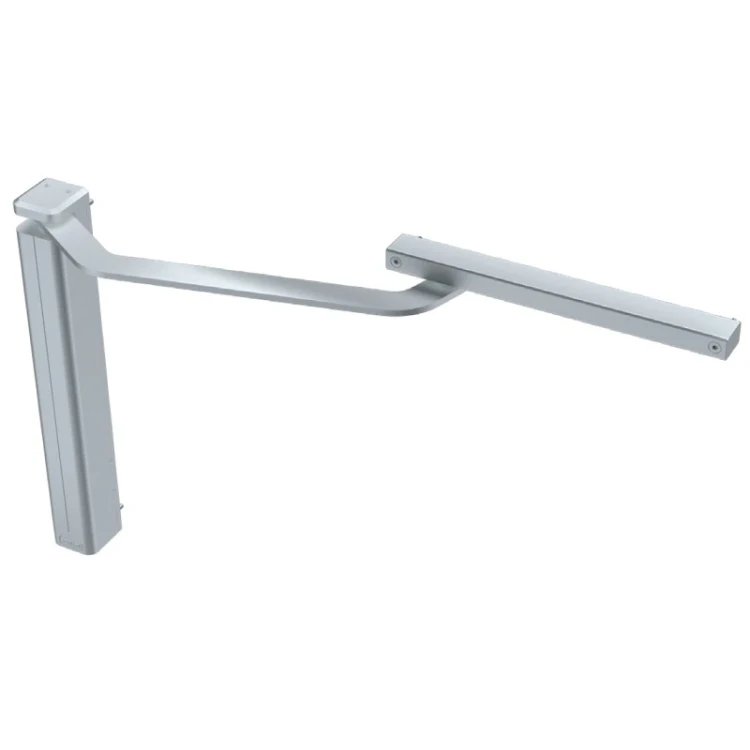

ASSA ABLOY self-closing gate closer with CAM-MOTION sliding rail, left, silver
ASSA ABLOY self-closing gate closer with CAM-MOTION sliding rail technology is a professional solution that ensures controlled closing of garden gates. The left (DIN L) version in silver blends perfectly with modern fencing systems. CAM-MOTION technology guarantees smooth and quiet operation throughout the product's entire life cycle, and its compact design requires no additional installation space — the sliding rail runs directly along the top edge of the gate.
The self-closer is designed for installation on garden gates and ensures the leaf closes automatically after every use. Thanks to the sliding rail, installation is simple and neat — with no protruding arms typical of classic self-closers. This device from ASSA ABLOY — a world leader in access control systems — guarantees the highest quality workmanship and reliability.
Left and right versions — how to choose?

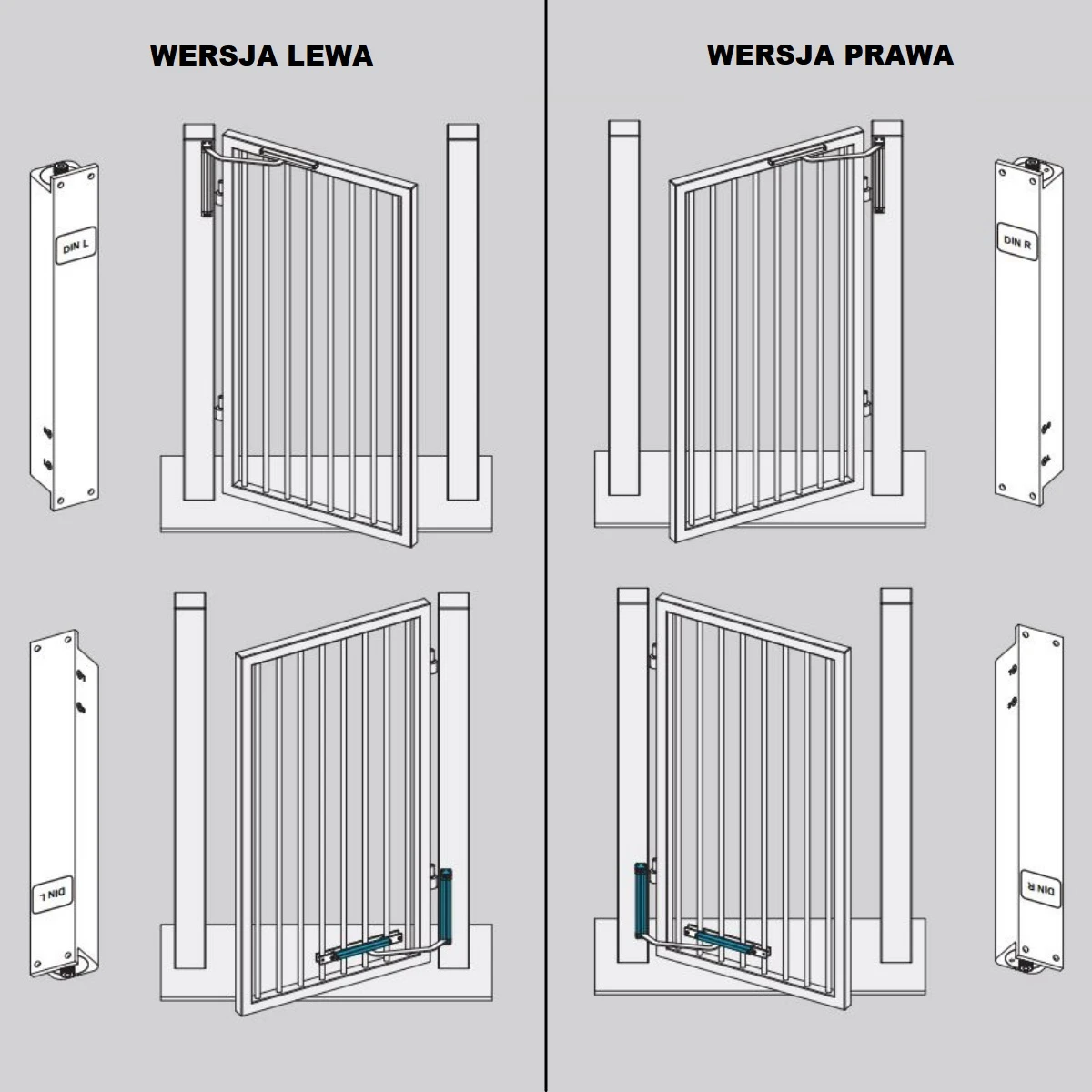

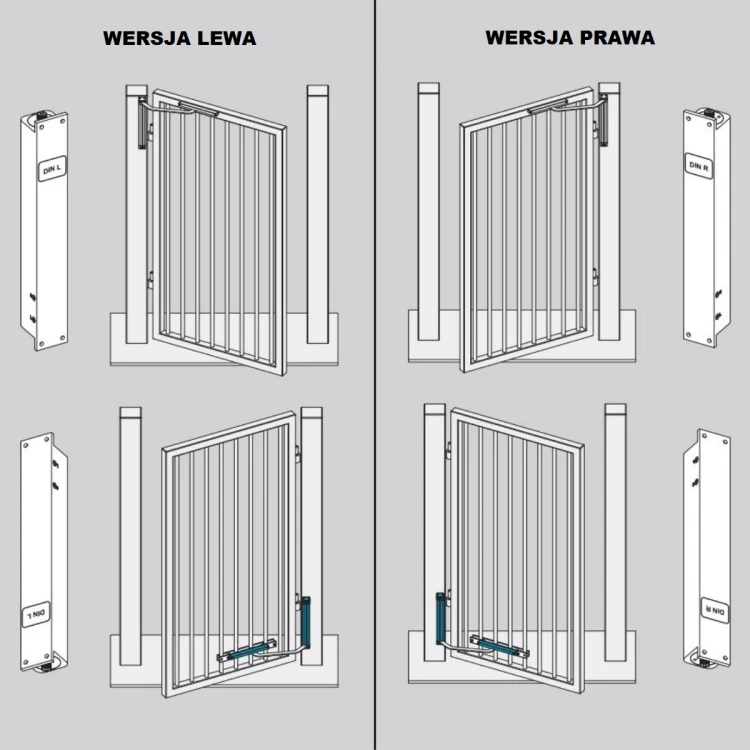

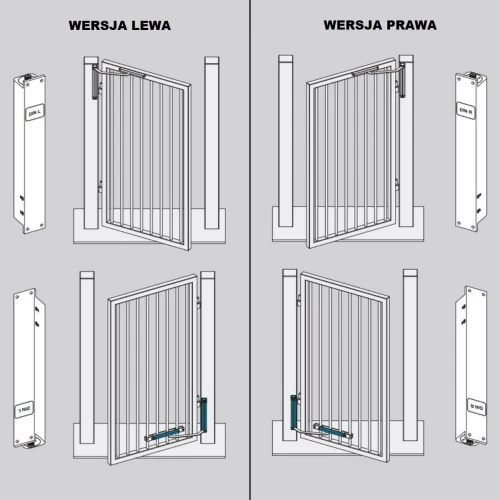

The self-closer is available in a left (DIN L) and right (DIN R) version. The choice of version depends on which side the gate hinges are on — you should select the variant matching the direction the leaf opens. The diagram below shows both mounting configurations along with a view of the self-closer body with DIN markings.

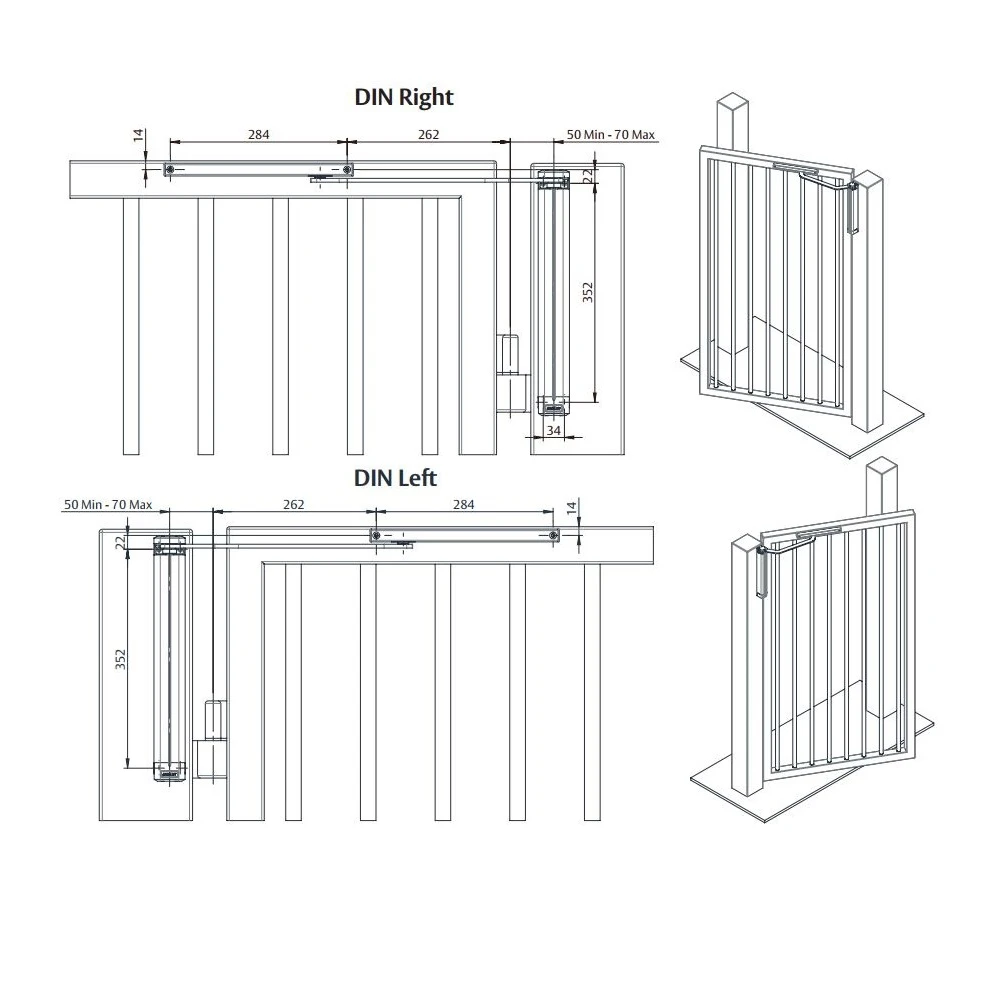

Mounting dimensions and installation diagram
Precise mounting dimensions allow for quick and error-free installation of the self-closer, in both the DIN Right and DIN Left versions. The self-closer body is mounted on the gate post, while the sliding rail is fitted along the top edge of the gate leaf.
Key mounting dimensions:
- Sliding rail mounting hole spacing: 284 mm
- Distance of rail from hinge axis: 262 mm
- Distance of body from hinge axis: 50–70 mm (adjustable)
- Vertical offset of rail from top edge of gate: 14 mm
- Vertical offset of body from top edge of post: 22 mm
- Body mounting hole spacing (vertical): 352 mm
- Width of self-closer body: 34 mm
Technical parameters
- Manufacturer: ASSA ABLOY
- Technology: CAM-MOTION with sliding rail
- Version: left (DIN L)
- Colour: silver
- Net weight: 2.7 kg
- EAN: 8022342689165
- Intended for: garden gates
- Sales unit: piece
Benefits for the installer:
- Adjustable distance of the body from the hinge axis (50–70 mm) — flexible fit for various gates
- Easy version identification — DIN L / DIN R marking on the body eliminates the risk of error
- Neat installation — the sliding rail is hidden along the top edge of the leaf, with no protruding elements
- CAM-MOTION technology — smooth closing with no jerking, increased mechanism durability
- Reputable manufacturer — ASSA ABLOY guarantees the availability of spare parts and technical support
