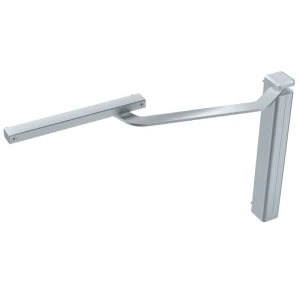

ASSA ABLOY gate closer with sliding rail CAM-MOTION – right-hand, silver
0
Description
ASSA ABLOY gate closer with sliding rail CAM-MOTION – right-hand, silver
ASSA ABLOY gate closer with sliding rail using CAM-MOTION technology is a professional solution providing controlled, smooth closing of garden gates. The right-hand version (DIN R) in silver is mounted vertically on the fence post, while the sliding rail runs horizontally along the gate leaf — this means the mechanism does not protrude above the structure and maintains an aesthetic, discreet appearance.
CAM-MOTION technology guarantees low opening resistance while ensuring reliable closing force. This is especially important for residential, driveway and garden gates, where ease of use and reliable operation throughout the year — regardless of weather conditions — are essential.
Mounting versions DIN L / DIN R

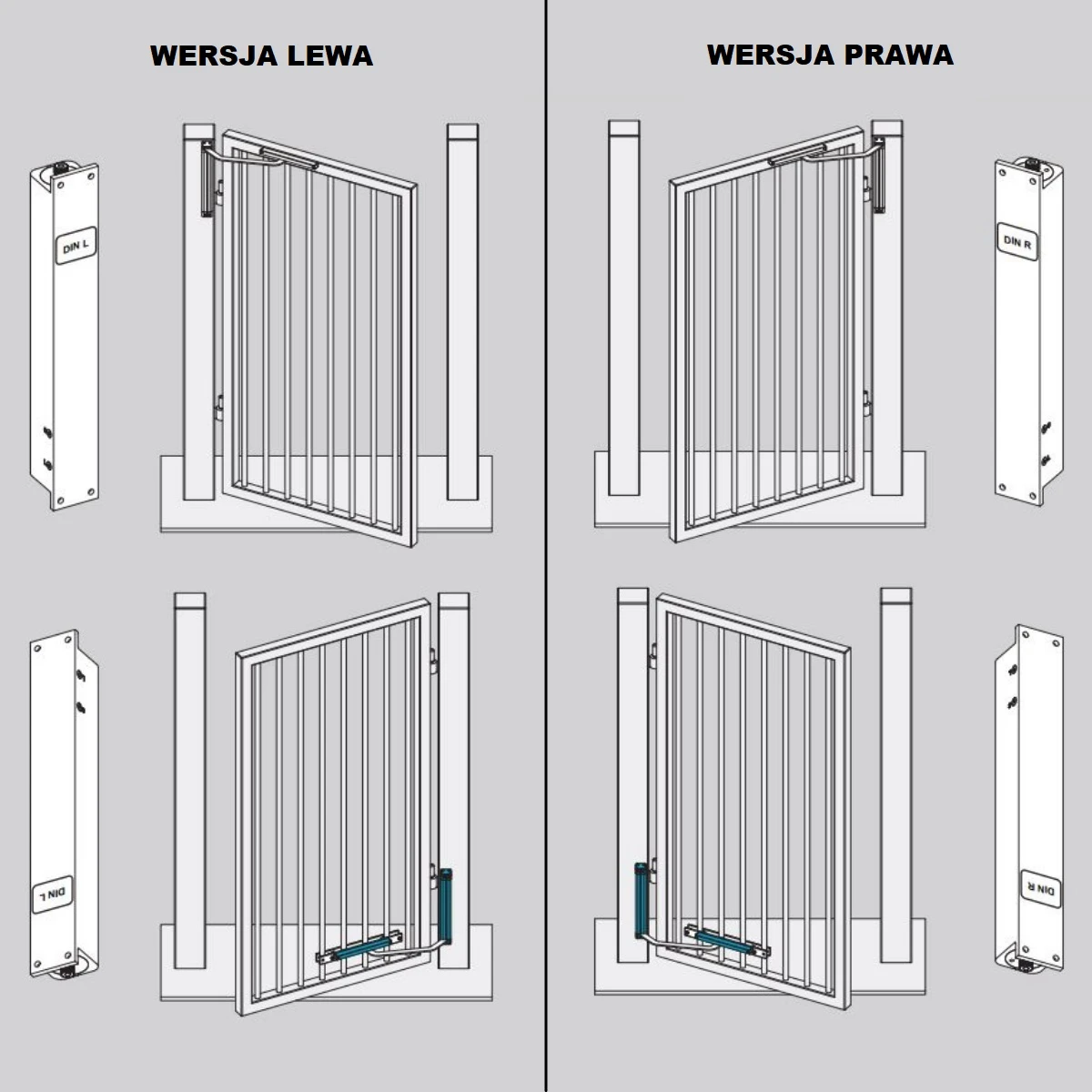

The gate closer is available in a left-hand version (DIN L) and a right-hand version (DIN R). This product is the right-hand version (DIN R). The choice of version depends on which side the gate hinges are on — the closer body is always mounted on the hinge side on the post, and the sliding rail on the gate leaf. The diagrams below show how to identify the correct mounting version.
Mounting dimensions

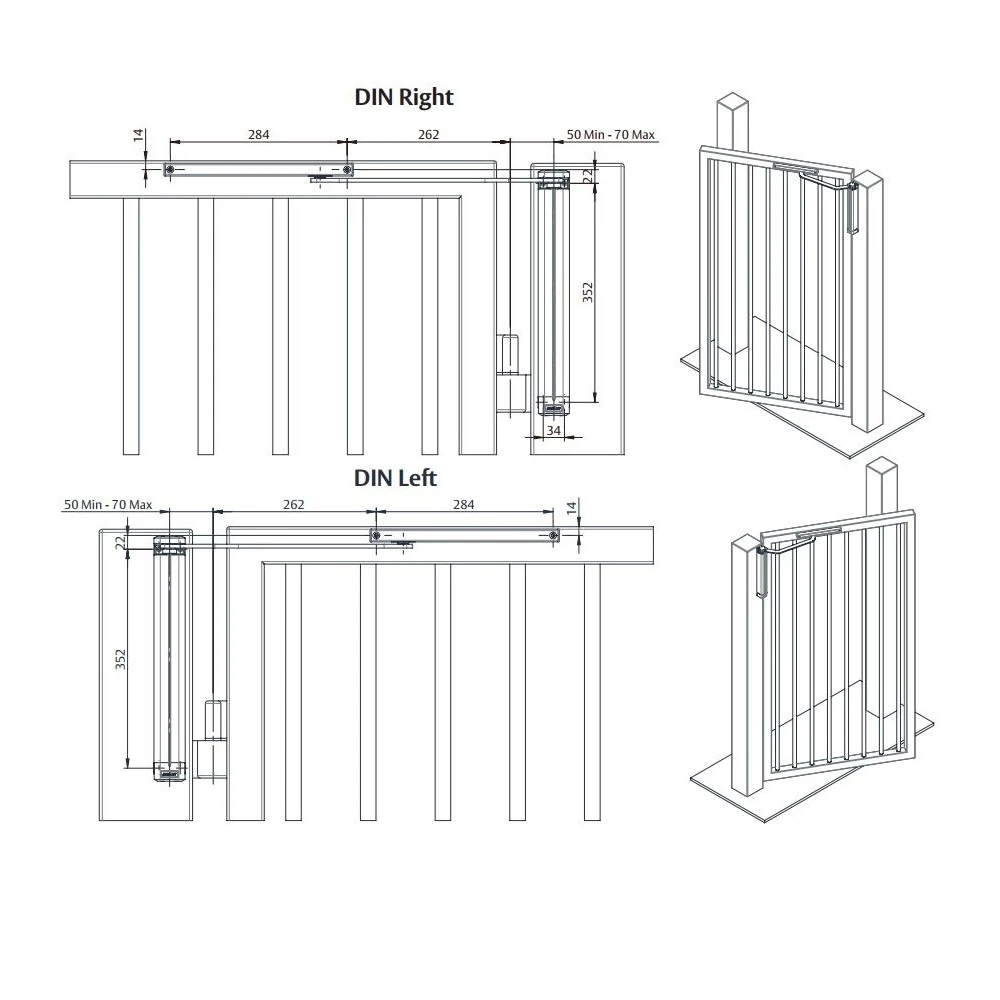

The technical drawing below shows the key mounting dimensions for both versions (DIN Right and DIN Left). Precise hole positioning allows for quick and repeatable installation without the need for additional measurements on site.
- Sliding rail mounting hole spacing: 284 mm
- Distance from hinge axis to first rail hole: 262 mm
- Distance from top edge of frame to rail axis: 14 mm
- Distance from hinge axis to body axis: 50–70 mm (adjustable)
- Vertical spacing of body mounting holes: 352 mm
- Distance from top edge of body to top hole: 22 mm
- Body width (horizontal hole spacing): 34 mm
Technical specification
- Manufacturer: ASSA ABLOY
- Technology: CAM-MOTION
- Rail type: sliding
- Mounting version: right-hand (DIN R)
- Colour: silver
- Net weight: 2.7 kg
- EAN: 8022342689172
- Sales unit: pc.
The ASSA ABLOY CAM-MOTION gate closer is a reliable addition to fencing systems — it ensures automatic and quiet gate closing, increasing the safety and comfort of using the property.
