8-Roller Running Trolley for Rail Sliding Gates 6V.140
Description
8-Roller Running Carriage for Sliding Gate Guide Rail
The 8-roller running carriage is a robust drive component designed for self-supporting rail-guided sliding gates. Eight steel rollers mounted on bearings ensure smooth and quiet gate travel even under heavy loads. The solid construction provides resistance to mechanical damage and years of reliable, trouble-free operation — a solution that eliminates warranty claims and reduces servicing time.
Construction and Installation

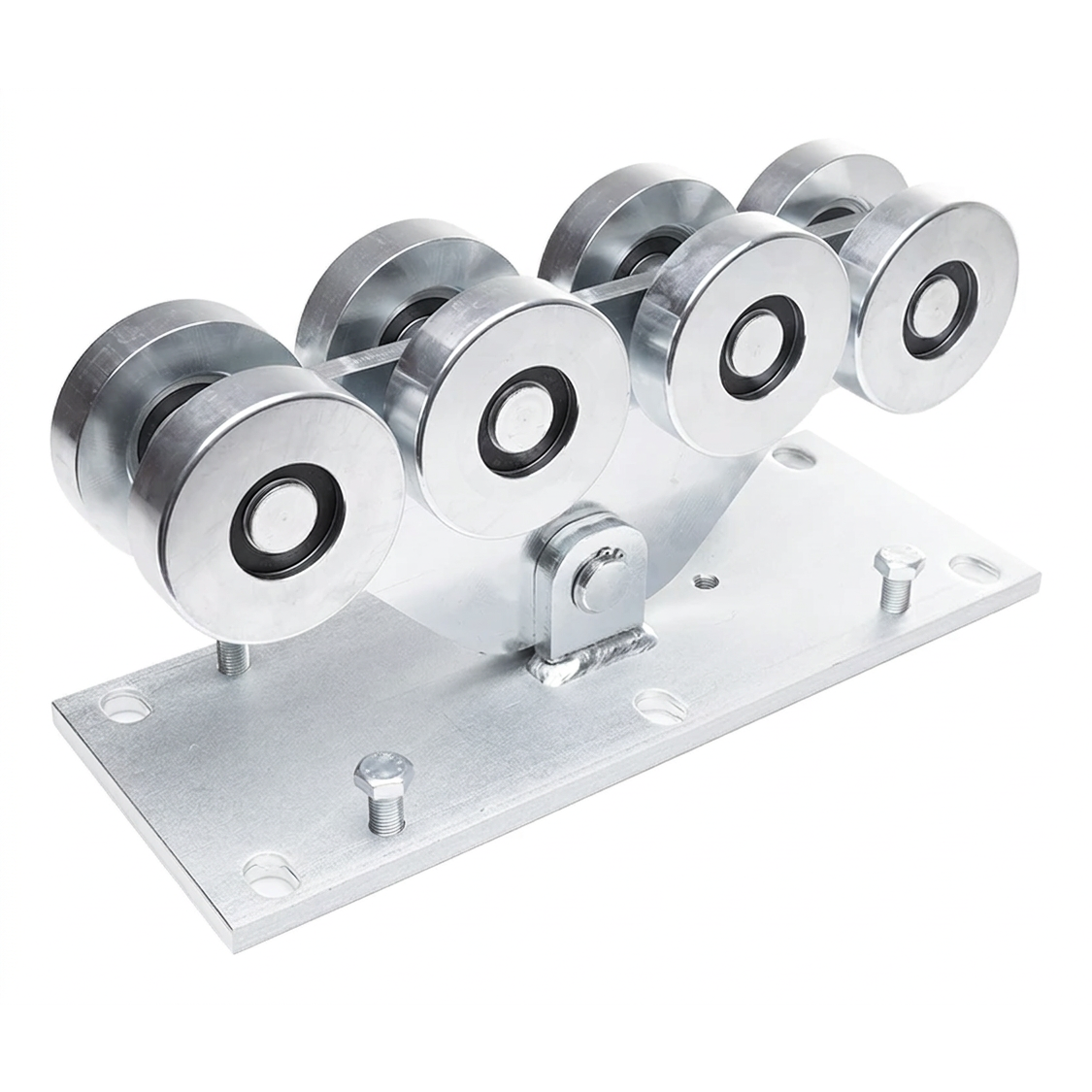

The carriage consists of a heavy-duty mounting plate with pre-drilled holes for fast and secure fixing to the foundation. Mounted on the plate are 8 running rollers arranged in two rows of four, ensuring an even distribution of load along the entire length of the guide rail. The roller arrangement grips the rail from both sides — from above and laterally — keeping the gate stably guided and preventing it from jumping off the track even in strong winds. The carriage is compatible with the 6V.140 guide rail.

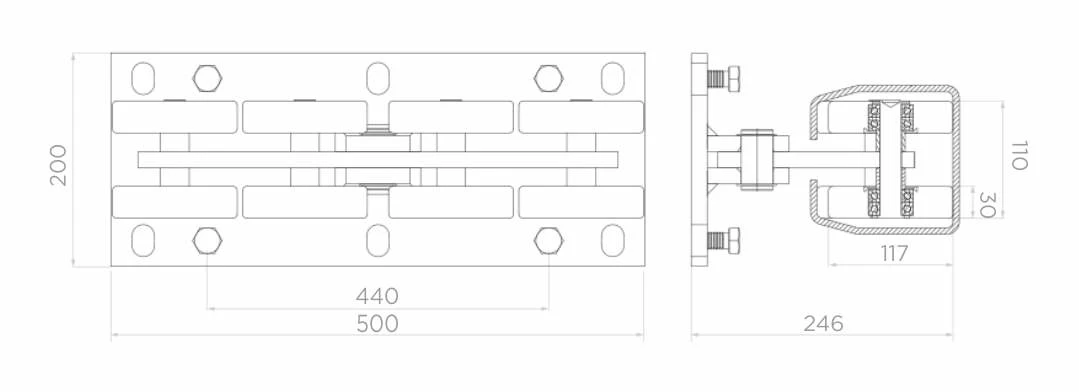

Dimensions and Technical Specifications
- Number of rollers: 8 (2 rows of 4 rollers)
- Mounting plate length: 500 mm
- Mounting hole spacing (length): 440 mm
- Mounting plate width: 200 mm
- Overall height (H): 246 mm
- Guide rail width: 117 mm
- Guide rail height: 110 mm
- Rail slot width: 30 mm
- Compatibility: 6V.140 rail
- Weight: 38.76 kg
- EAN: 8028390645160
Benefits for the Installer
- High load capacity — the heavy-duty construction and 8 rollers allow heavy industrial gates to be supported
- Easy installation — pre-drilled holes in the mounting plate speed up fixing to the foundation
- Durability and reliability — resistance to mechanical damage means fewer warranty claims and lower servicing costs
- Quiet operation — bearing-mounted rollers deliver smooth and silent gate movement
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 140x140x6 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 8 |
| Trolley Construction | Fixed |
| Running System Type | Rolling system |
