3-wheel trolley for suspended sliding gates for 60x60 profile 2 steel wheels 1 plastic
Description

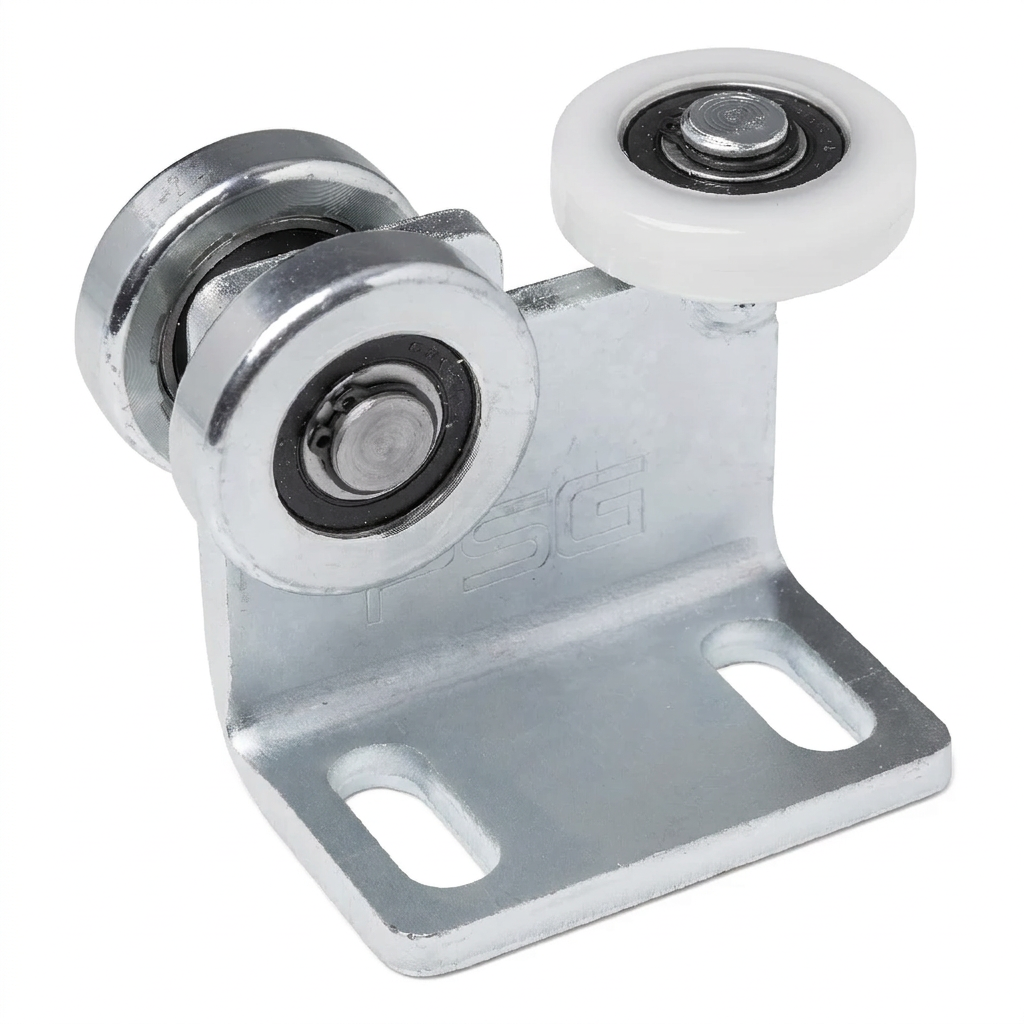

3-Roller Trolley for Suspended Sliding Gates – 60x60 mm Profile, 200 kg
The 3-roller trolley for suspended sliding gates is a precision-engineered running component designed for suspended gate systems operating on a 60×60 mm profile. Fitted with two steel rollers and one plastic roller, it ensures smooth and quiet operation of the entrance gate at a maximum load capacity of 200 kg.
The trolley body is built on a robust galvanised steel angle bracket, ensuring high corrosion resistance and long-lasting performance in variable weather conditions. The ball-bearing-mounted rollers minimise rolling resistance, resulting in effortless and reliable gate leaf movement — even under heavy loads.
Design and Operating Principle
The trolley comprises three rollers with a diameter of 51 mm — two vertical steel rollers guide the gate along the lower flange of the support profile, while the third horizontal plastic roller stabilises the gate leaf laterally, eliminating side deflection and vibration. This arrangement provides reliable three-point guidance within the 60×60 mm profile.
The mounting base with slotted holes allows adjustment of the trolley position relative to the gate leaf, facilitating precise alignment during installation and subsequent correction during use.

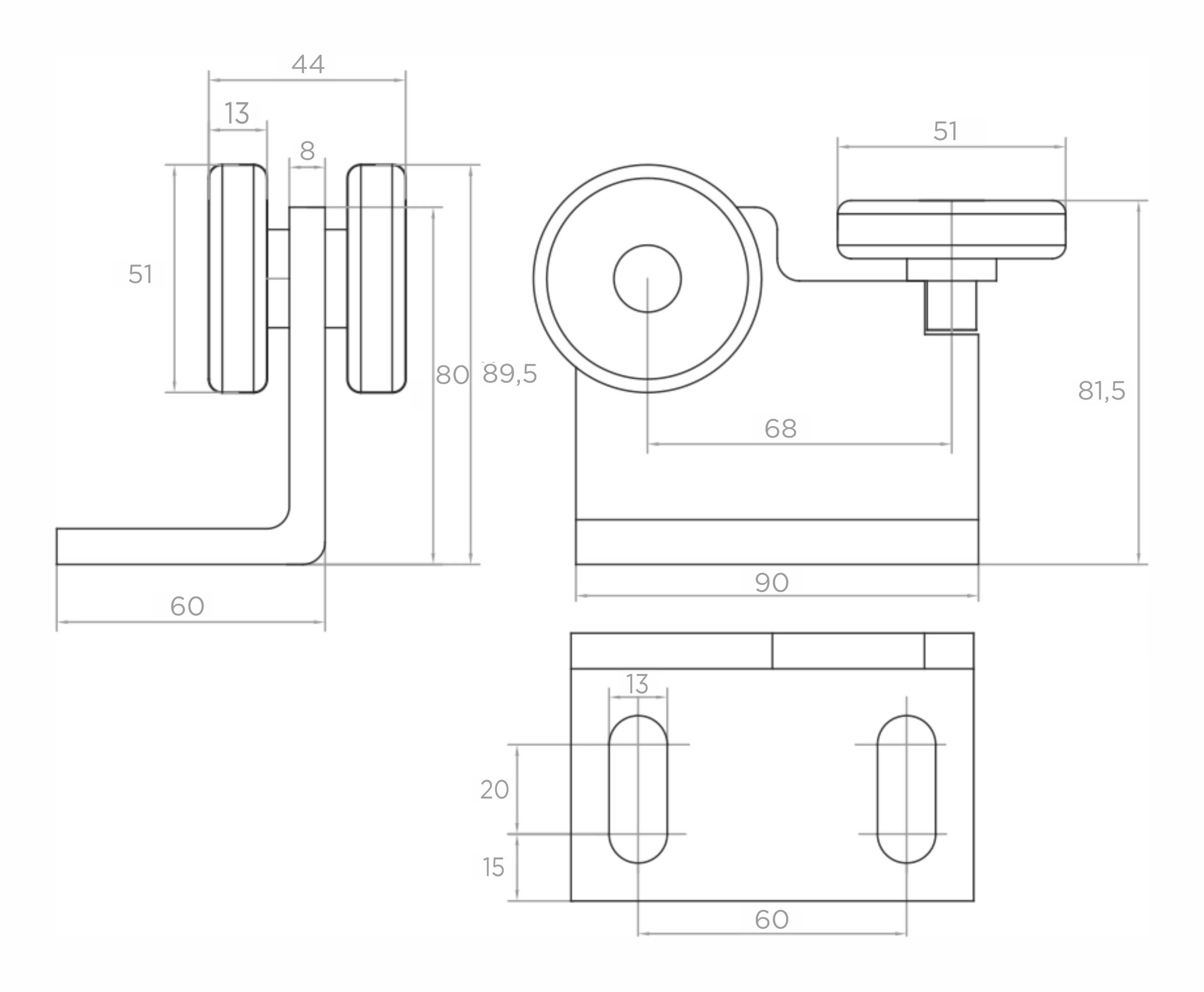

Dimensions and Mounting Data
- Overall trolley height: 89.5 mm
- Height to vertical roller axis: 80 mm
- Height to top edge of horizontal roller: 81.5 mm
- Roller diameter (steel and plastic): 51 mm
- Overall width of vertical rollers: 44 mm
- Width of single roller: 13 mm
- Roller axis spacing (vertical – horizontal): 68 mm
- Angle bracket wall thickness: 8 mm
- Mounting base dimensions: 90 × 60 mm
- Slotted holes: width 13 mm, length 20 mm
- Mounting hole spacing: 60 mm
- Distance from hole axis to base edge: 15 mm
Technical Specifications
- Maximum load capacity: 200 kg
- Guide profile: 60×60 mm
- Rollers: 2 steel + 1 plastic
- Angle bracket material: galvanised steel
- Bearing type: ball bearings
- Weight: 1.075 kg
- Packaging volume: 810 cm³
- EAN: 5903313204552
The trolley is supplied ready to install — it is bolted through the slotted holes in the base directly onto the gate leaf structure. The elongated slot design allows position adjustment of several millimetres, which is essential for levelling the gate after installation.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 200 |
| Rail Size | 60x60x4 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 3 |
| Running System Type | Suspended system |
