3-roller trolley for suspended gates for 60x60 mm profile 2 steel rollers + 1 plastic roller
Leave feedback on the product

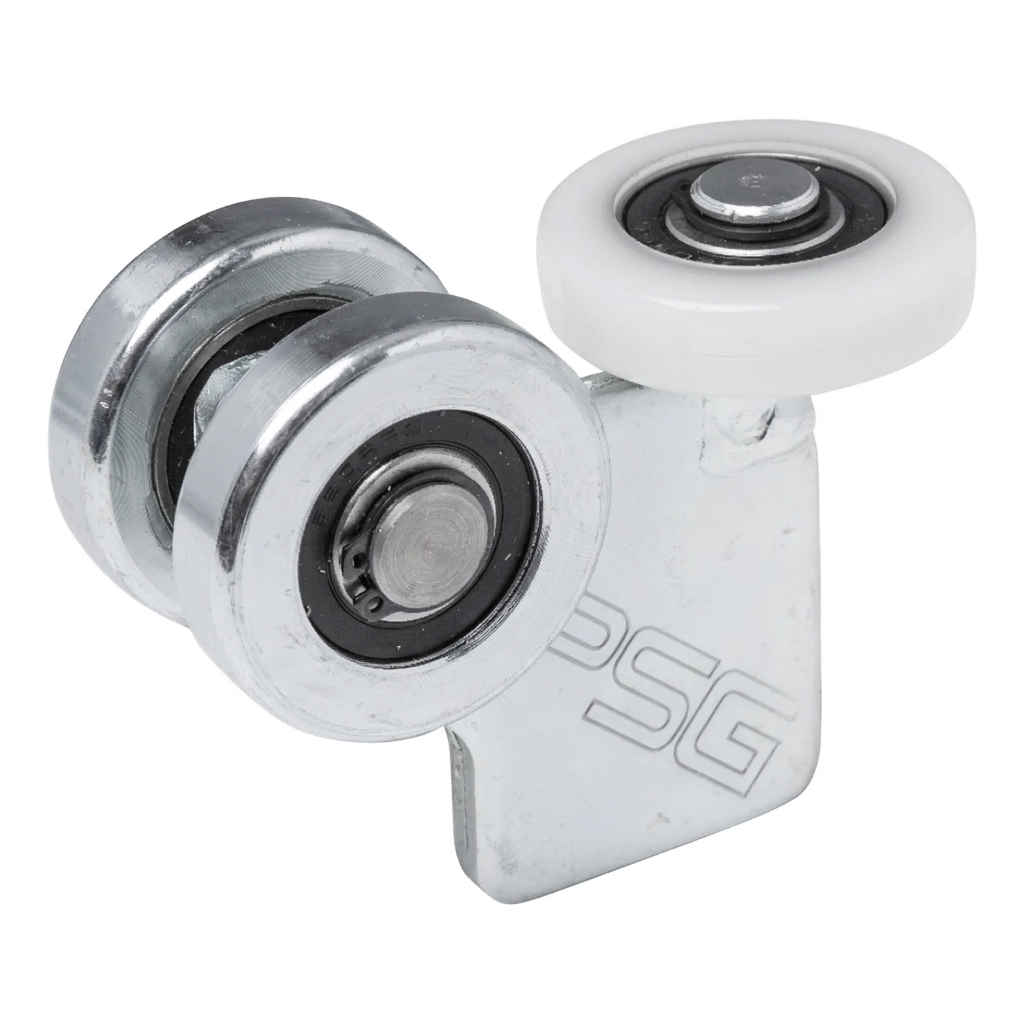

3-wheel trolley for suspended gates with 60×60 mm profile, load capacity 200 kg. Two steel load-bearing rollers (Ø51 mm) and one plastic guide roller; metal components made of hot-dip galvanised steel.
Product code: 000-328
Product features
[PIM] wozki #111
- Rail Size 60x60x4
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 3
- Trolley Construction Fixed
- Max. load capacity [kg] 200
- Running System Type Suspended system
Description
3-Roller Trolley for Suspended Sliding Gates – 60×60 mm Profile, 200 kg
3-roller trolley for suspended sliding gates — a precision-engineered running component designed for use with a 60×60 mm guide profile. The construction, based on two steel load-bearing rollers and one plastic guide roller, ensures smooth and quiet gate operation, even under intensive use.
Durability and Weather Resistance
All metal components of the trolley are manufactured from electro-galvanised steel, providing effective corrosion protection and significantly extending the service life of the component. The load-bearing rollers are mounted on ball bearings, which minimise rolling resistance and guarantee years of reliable, trouble-free operation. The third roller — the guide roller — is made from plastic, providing additional stabilisation of the gate within the track and dampening vibrations, eliminating unwanted noise during leaf movement.
The maximum load capacity of the trolley is 200 kg, making it suitable for use with both lightweight (garden/boundary) gates and heavier industrial structures. The compact design facilitates installation and replacement without the need to dismantle the entire gate.

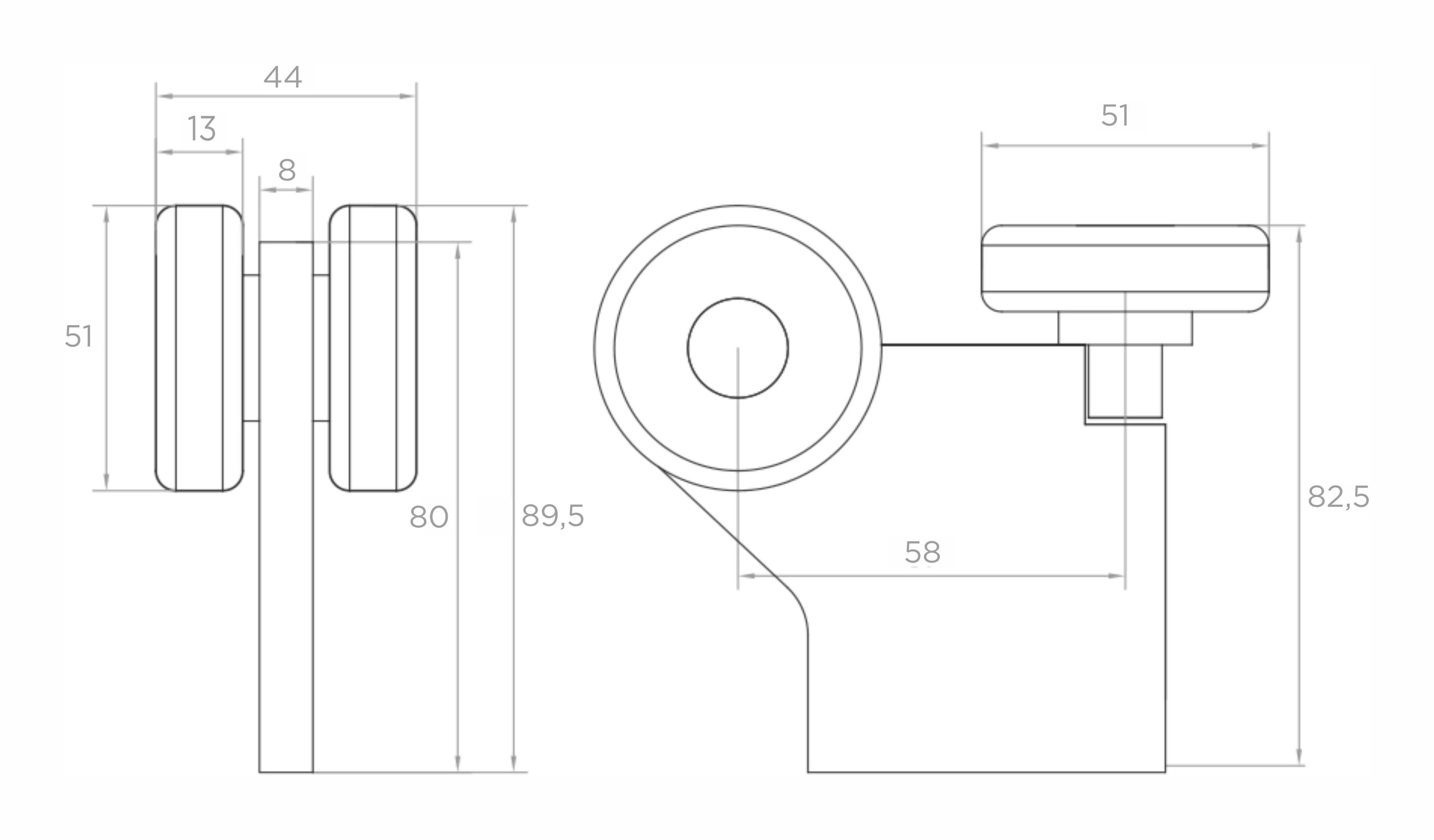

Dimensions and Technical Specifications
- Type: 3-roller trolley for suspended sliding gates
- Guide profile: 60×60 mm
- Load-bearing rollers (steel): 2 pcs – diameter 51 mm, width 13 mm
- Guide roller (plastic): 1 pc – diameter 51 mm
- Overall width of load-bearing rollers: 44 mm
- Carrier plate thickness: 8 mm
- Roller axle spacing (load-bearing – guide): 58 mm
- Overall height (from top of rollers to lower edge of plate): 89.5 mm
- Mounting height from roller axle to plate edge: 80 mm
- Height from guide roller to lower edge of plate: 82.5 mm
- Maximum load capacity: 200 kg
- Material of metal components: electro-galvanised steel
- Weight: 0.745 kg
- Packaging volume: 554.4 cm³
- EAN: 5903313200219
The trolley is fully ready for installation and constitutes a reliable component of suspended sliding gate systems. Thanks to its universal design, it is equally well suited as a replacement part in existing installations and in new projects — wherever smooth operation, high load capacity and corrosion resistance are required.
