3-roller trolley for sliding gates for 50x50 profile 2 steel rollers + 1 plastic roller
Leave feedback on the product

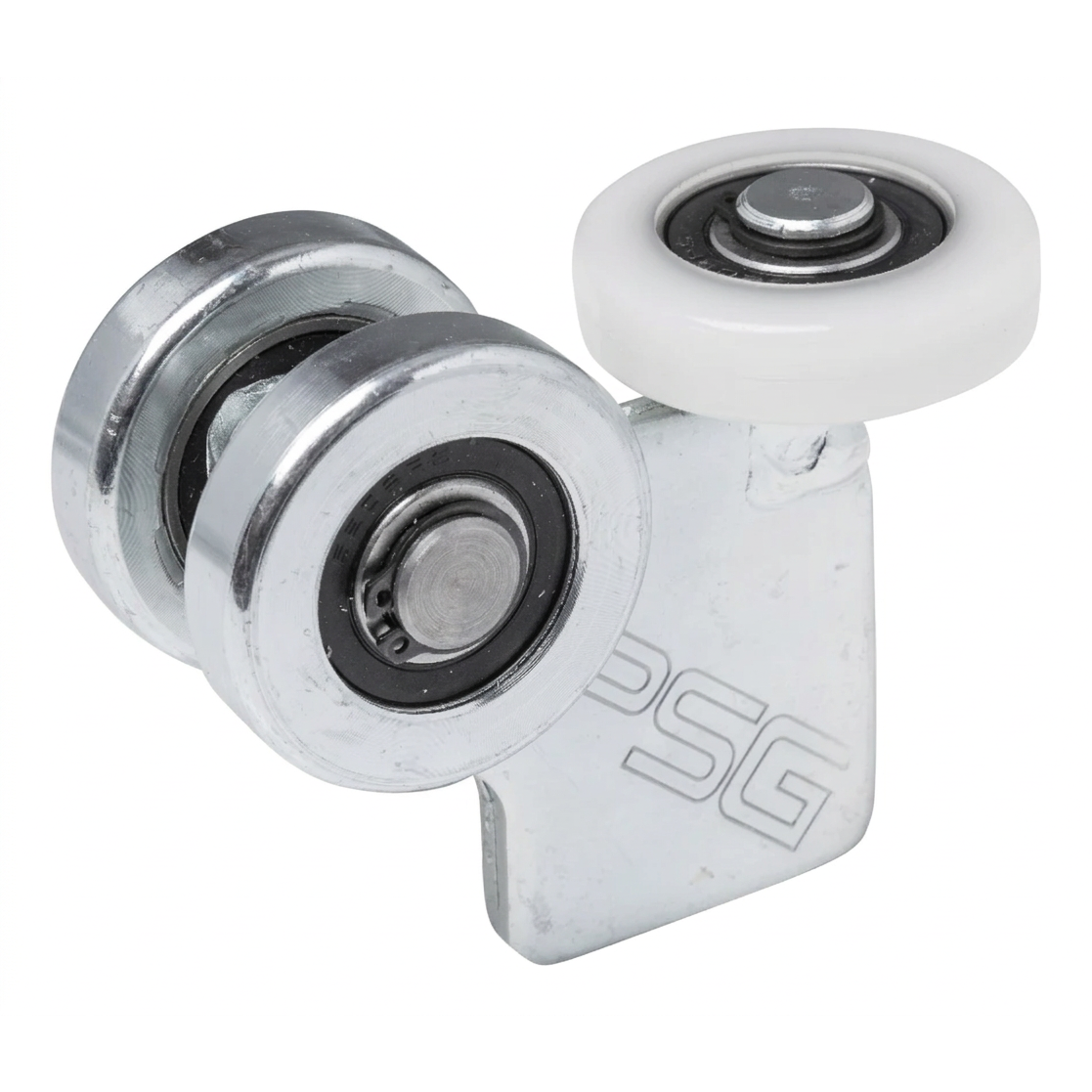

3-wheel trolley for suspended gates on 50×50 mm profile, galvanised steel body, steel ball-bearing rollers and plastic roller.
Product code: 000-322
Product features
[PIM] wozki #111
- Rail Size 50x50
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 3
- Trolley Construction Fixed
- Max. load capacity [kg] 150
- Running System Type Suspended system
Description
3-Roller Carriage for Suspended Sliding Gates – 50×50 mm Profile, 150 kg
A high-quality 3-roller carriage designed for suspended sliding gates, compatible with a 50×50 mm load-bearing profile. The precisely engineered construction features two steel rollers and one plastic roller, ensuring smooth, quiet and trouble-free guidance of the gate leaf. This reliable running component significantly speeds up installation and guarantees years of comfortable use of your entrance gate.
Construction and Materials
The carriage body is made from electro-galvanised steel, providing excellent corrosion resistance and long-lasting protection against adverse weather conditions. The two load-bearing rollers are steel, mounted on ball bearings, which minimises rolling resistance and ensures quiet operation. The third roller — a side guide roller made from plastic — serves a guiding function, additionally dampening vibrations whilst protecting the profile from scratches.
The maximum load capacity of the carriage is 150 kg, making it suitable for use with the majority of popular suspended sliding gates found in residential and light industrial construction.

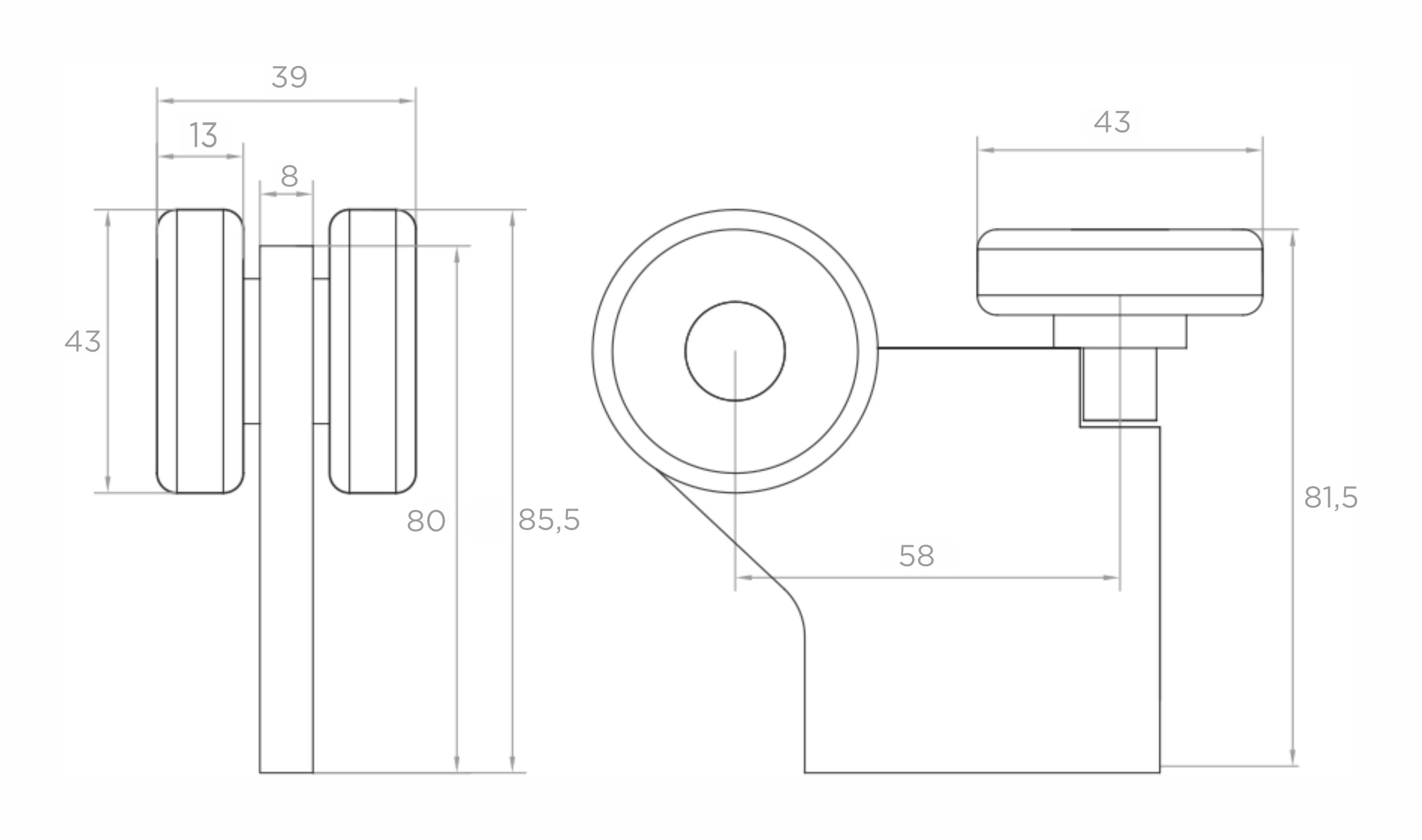

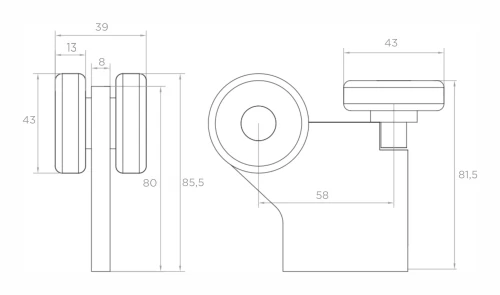

Dimensions
- Total height (to vertical rollers): 85.5 mm
- Total height (to horizontal roller): 81.5 mm
- Height of load-bearing plate: 80 mm
- Total width (vertical rollers): 39 mm
- Diameter of vertical rollers (steel): 43 mm
- Diameter of horizontal roller (plastic): 43 mm
- Width of single vertical roller: 13 mm
- Thickness of load-bearing plate: 8 mm
- Roller axle spacing (vertical–horizontal): 58 mm
Technical Specifications
- Type: 3-roller carriage for suspended sliding gates
- Compatible profile: 50×50 mm
- Rollers: 2 steel + 1 plastic
- Body material: galvanised steel
- Maximum load capacity: 150 kg
- Weight: 0.62 kg
- Volume: 346.5 cm³
- EAN: 5901289679411
Thanks to its compact dimensions and well-considered geometry, the carriage is easy to seat within the guide profile. The use of ball bearings in the steel rollers minimises maintenance requirements, whilst the galvanised surface eliminates the need for additional anti-corrosion treatment. This is a robust component that professional installation teams can rely on for every project.
