3-roller trolley for sliding gates for 50x50 mm profile, 2 steel rollers and 1 plastic
Description

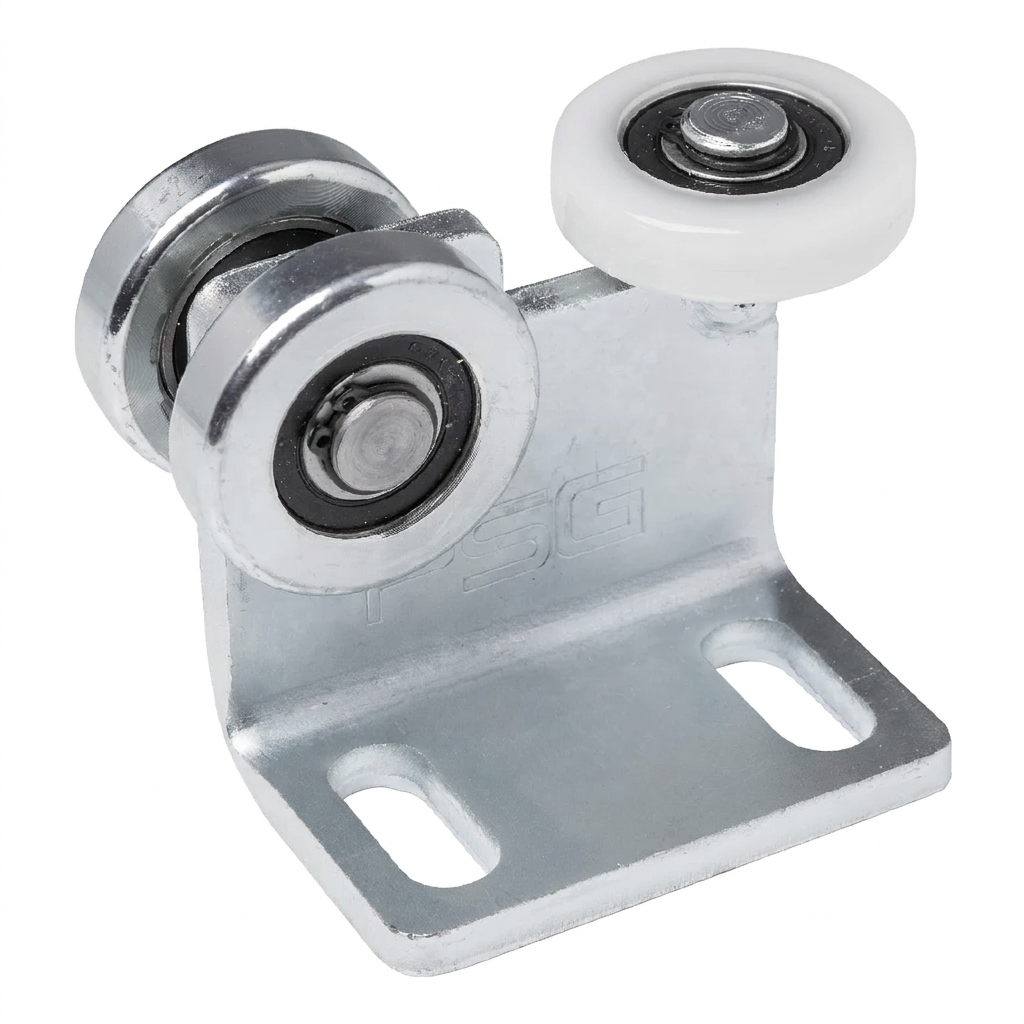

3-Roller Carriage for Suspended Sliding Gates – 50x50 mm Profile, 150 kg
A precision-engineered 3-roller carriage designed for suspended sliding gates, compatible with a 50×50 mm load-bearing profile. The construction features two steel rollers and one plastic roller, ensuring smooth, quiet operation of the entrance gate at a maximum load capacity of 150 kg.
The steel components are protected with a zinc coating, guaranteeing high corrosion resistance and long-lasting performance in variable weather conditions — including heavy rainfall and high-humidity environments. The bearing-mounted rollers minimise rolling resistance, resulting in effortless and trouble-free gate leaf movement.
Construction Features
- Type: 3-roller carriage for suspended sliding gates
- Compatibility: 50×50 mm load-bearing profile
- Load-bearing rollers (vertical): 2 pieces – steel, bearing-mounted
- Guide roller (horizontal): 1 piece – plastic
- Roller diameter: 43 mm
- Single roller width: 13 mm
- Maximum load capacity: 150 kg
- Bracket material: galvanised steel
- Bracket plate thickness: 8 mm
- Weight: 0.93 kg
- EAN: 5903313205429

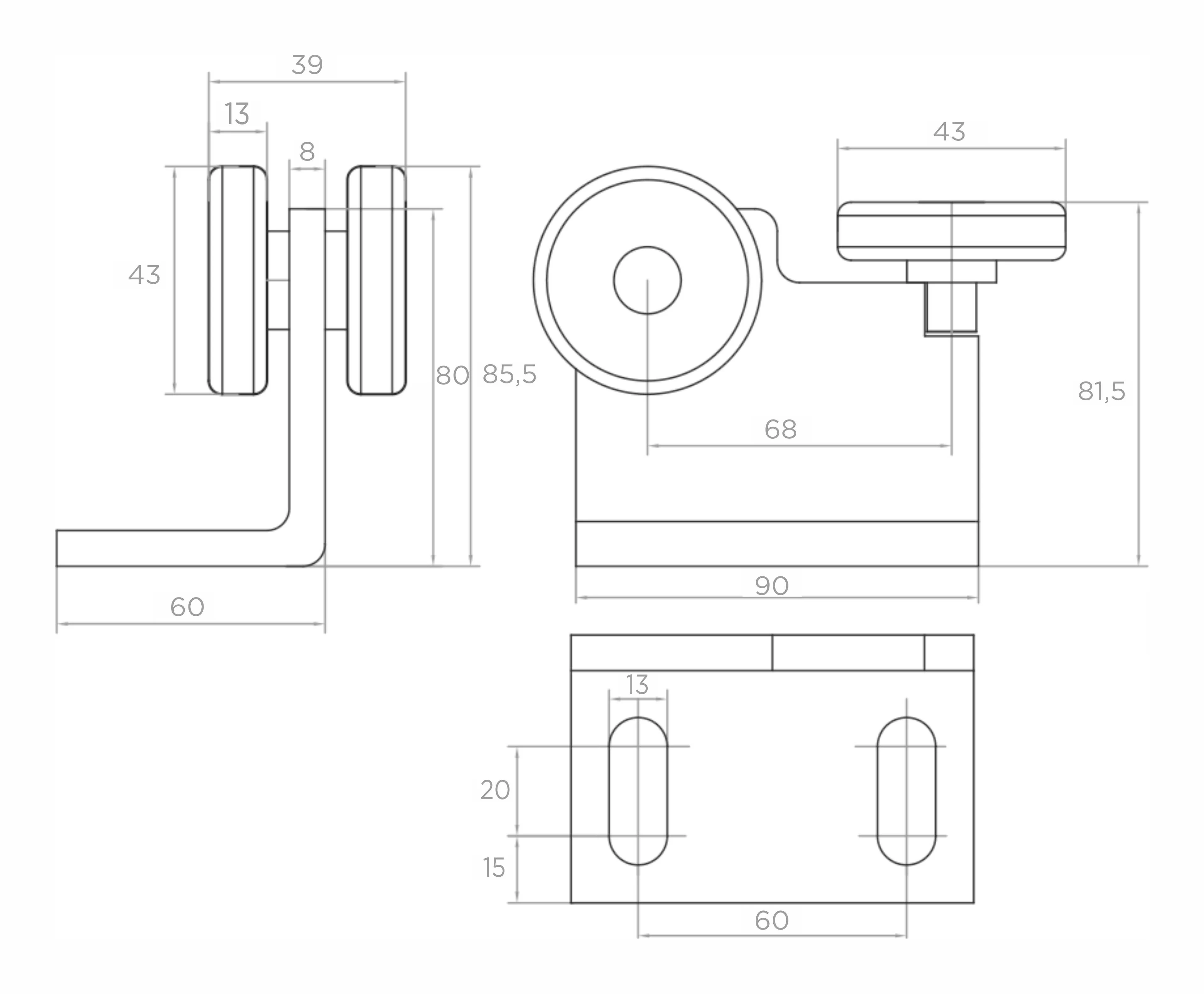

Overall and Installation Dimensions
- Total height: 85.5 mm
- Height to load-bearing roller axis: 80 mm
- Height to guide roller: 81.5 mm
- Roller assembly width: 39 mm
- Mounting base length: 90 mm
- Mounting base width: 60 mm
- Roller axis spacing (vertical – horizontal): 68 mm
- Mounting holes: 2× oval (slotted), width 13 mm, length 20 mm
- Mounting hole spacing: 60 mm
- Distance of holes from edge: 15 mm
The oval mounting holes in the base allow for precise position adjustment of the carriage relative to the load-bearing rail, greatly simplifying gate alignment during installation. The robust 8 mm steel bracket plate ensures rigidity and secure fixing even under intensive use.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 50x50 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 3 |
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 150 |
| Running System Type | Suspended system |
