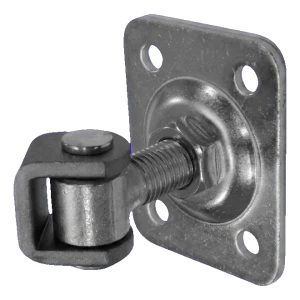

PSG adjustable gate hinge M16 with rectangular plate 75×55 mm
PSG adjustable gate hinge M16 with steel rectangular plate 75×55 mm, plate thickness 3 mm. Circlip protection, weight 0.34 kg. For gates and swing gates with the possibility of position adjustment after installation.
001-388 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M16 – 180° opening angle with brass bushings
PSG adjustable hinge M16 made of steel, 180° opening angle. Galvanised M16 spindle, ear and connector made of black steel, brass bushings. Mounting plate 100×60×8 mm, total length 171 mm. Maximum load per pair 350 kg. Weight 0.76 kg. For gates and wickets.
001-379 Availability: In stock (large quantity)
Delivered within: 10 Business days

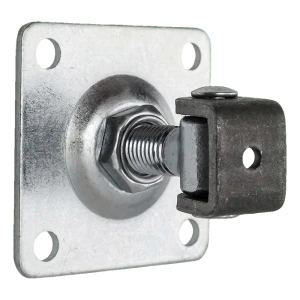

PSG adjustable gate hinge M18 with 80×80 mm galvanised plate
PSG adjustable hinge M18 made of steel, 80×80 mm galvanised plate with black ear. Plate thickness 4 mm, projection 80 mm, M18 screw length 40 mm. Weight 0.52 kg. For swing gates and wickets, pair load capacity 80 kg.
001-366 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M20 galvanised for welding – 30 mm bore
PSG adjustable gate hinge M20 made from galvanised steel, M20 thread. Length 130 mm, bore diameter 30 mm, weight 0.635 kg. Permissible load for a pair is 100 kg on a 2 m gate leaf. For welding installation.
001-383 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M20 L150 mm galvanised steel (circlip)
PSG adjustable gate hinge M20 galvanised steel with circlip. Length 150 mm, bolt 110 mm, eye 36 mm. M20 thread, weight 0.6 kg. Load capacity up to 105 kg per pair. For external gates and garden gates.
001-351 Availability: In stock (large quantity)
Delivered within: 10 Business days

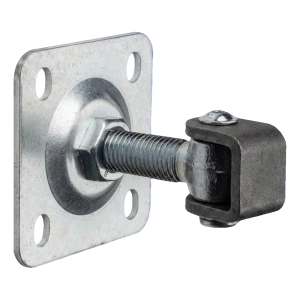

PSG adjustable gate hinge M20 with 100×100 mm plate galvanised – black eye
PSG adjustable gate hinge M20 with steel plate 100×100 mm, 4 mm thickness. M20 thread with adjustment nut. Galvanised with black eye. Hole spacing 70×70 mm. For swing gates. Weight 0.8 kg.
001-373 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M20 with 100×100 mm plate – AISI 304 stainless steel
PSG adjustable gate hinge M20 with 100×100 mm plate, AISI 304 stainless steel. Adjustment 46-68 mm, M20 thread, 4×ø11.5 mm mounting holes with 75 mm spacing. Bracket dimensions 36×30×27 mm, ø14 mm pin. Weight 0.742 kg. For swing gates.
001-223 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M20 with brass washers – 180° opening angle
PSG adjustable gate hinge M20 with brass washers. 180° opening angle, pair load capacity up to 450 kg. Pin galvanised steel, lug black steel. Dimensions 175×120×60 mm, M20 thread. For steel and wooden gates.
001-382 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge M24 with brass bushings - 180° opening angle
Adjustable gate hinge PSG M24 with brass bushings. 180° opening angle, load capacity per pair up to 700 kg. Galvanised steel pin, black steel ear and connector. Dimensions 180x120x60 mm, weight 1.4 kg.
001-381 Availability: In stock (large quantity)
Delivered within: 10 Business days

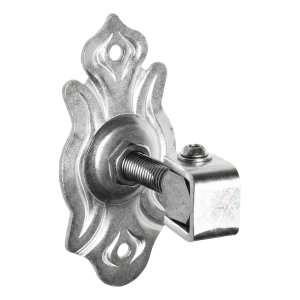

PSG adjustable gate hinge with decorative plate M16 155×80 mm galvanised
PSG adjustable hinge with steel decorative plate, galvanised. M16 thread, plate 155×80×4 mm, lug 36 mm. Adjustment with M16 screw. Weight 0.505 kg. Load capacity of pair up to 65 kg on 2 m leaf. For gates and wickets.
001-354 Availability: In stock (large quantity)
Delivered within: 10 Business days

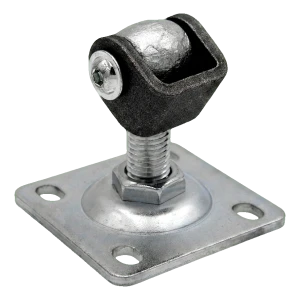

PSG adjustable gate hinge with M16 plate galvanised 75×75 mm
PSG adjustable gate hinge with M16 plate galvanised steel construction. Plate dimensions 75×75×3 mm, lug width 36 mm, total height 78 mm. M16 thread, weight 0.4 kg. For gates and garden wickets, pair load capacity up to 65 kg for 2 m leaf.
001-369 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable gate hinge with rectangular plate M16 120×75 mm galvanised
PSG adjustable gate hinge steel M16, rectangular plate 120×75 mm, galvanised. Total length 78 mm, bolt 40 mm, eye 35 mm. Permissible load for pair of hinges 65 kg on 2 m wing. For swing gates and garden gates.
001-385 Availability: In stock (large quantity)
Delivered within: 10 Business days

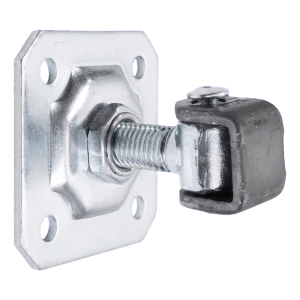

PSG adjustable hinge for leaf gates M20 with mounting plate 100×100×4 mm
PSG M20 adjustable hinge with mounting plate 100×100×4 mm. Galvanised steel, black knuckle. M20 thread with adjustment nut. Load capacity of pair 105 kg for 2m leaf. For steel and masonry leaf gates.
001-335 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable hinge for rivet nut M12 – galvanised steel for gates and entrances
PSG adjustable hinge for rivet nut M12, galvanised steel. Total length 56 mm, lug 25×20×4 mm, weight 0.11 kg. Ball joint with post-installation adjustment. For gates and external entrances.
001-531 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable hinge for swing gate M24 galvanised steel
Adjustable hinge for gate PSG M24 galvanised steel. M24 thread, 150 mm length, 75 mm bolt, 65 mm pin. 50 mm wide eye, 35 mm clearance. Weight 0.91 kg. Permissible load for pair of hinges 150 kg with 2 m leaf. For welding into swing gate construction.
001-386 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable hinge for welding M12 galvanised with black ear
Adjustable hinge PSG M12 for welding, galvanised steel with black ear. Height 78 mm, ear width 36 mm, bolt length 36 mm. Load capacity per pair up to 65 kg on 2 m leaf. For gates and garden gates.
001-359 Availability: In stock (large quantity)
Delivered within: 10 Business days
PSG adjustable hinge M20 galvanised steel for gates and garden gates
Adjustable hinge M20 PSG galvanised steel with black eye. M20 thread, 88 mm length, 43 mm eye width. Load capacity of hinge pair up to 105 kg for 2 m leaf. For gates and garden gates.
001-413 Availability: In stock (large quantity)
Delivered within: 10 Business days

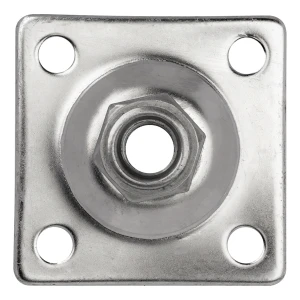

PSG adjustable hinge plate M16 80×80 mm – AISI 304 stainless steel
Adjustable hinge plate M16 PSG made from AISI 304 stainless steel. Dimensions 80×80 mm, sheet thickness 4 mm. M16 thread, 4 mounting holes ø10.5 mm. Raw surface finish. For entrance gates and garden gates.
001-225 Availability: In stock (large quantity)
Delivered within: 10 Business days
