Double thread bolt (twin thread screw) - M10x200
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.125 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

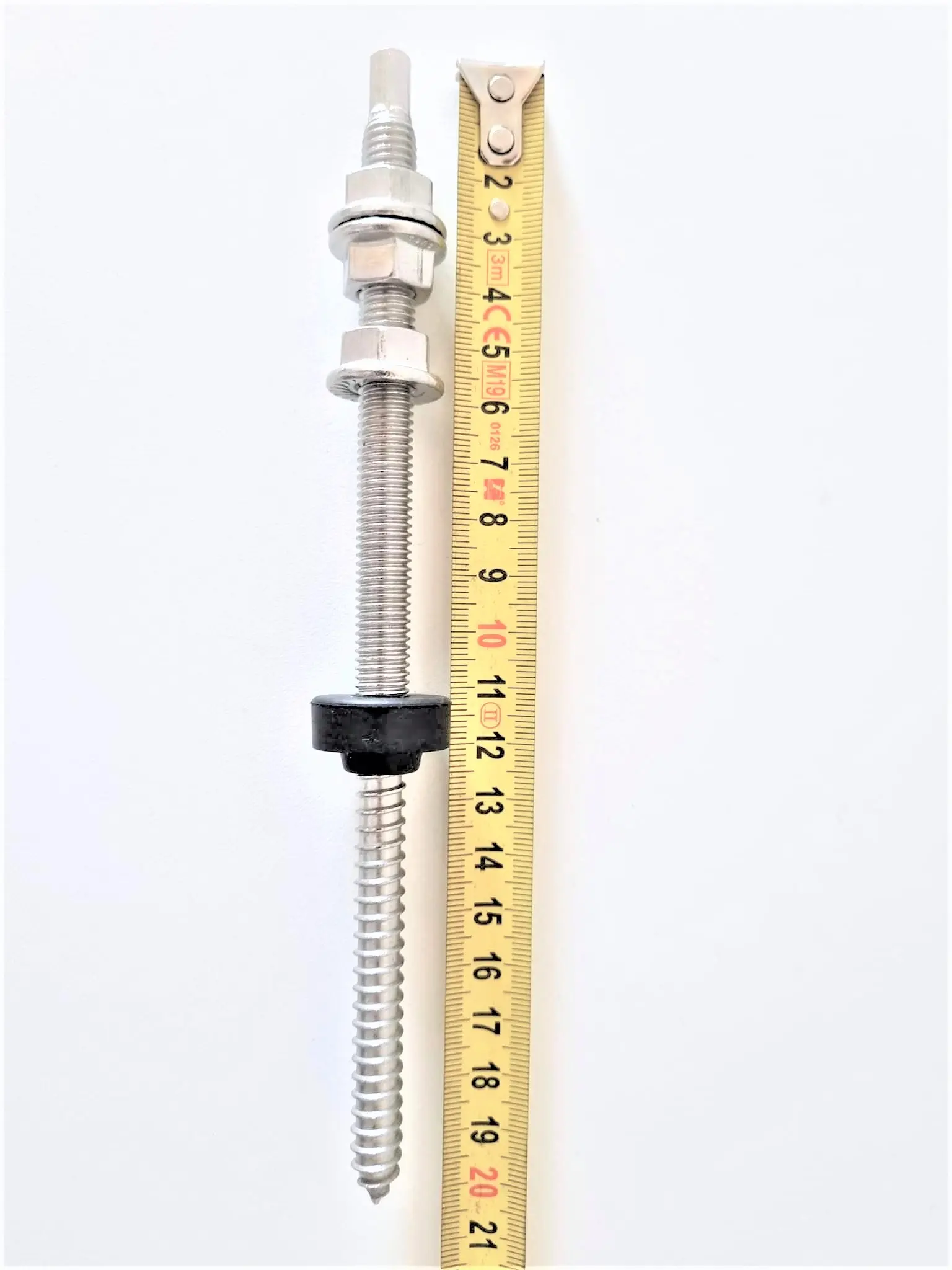

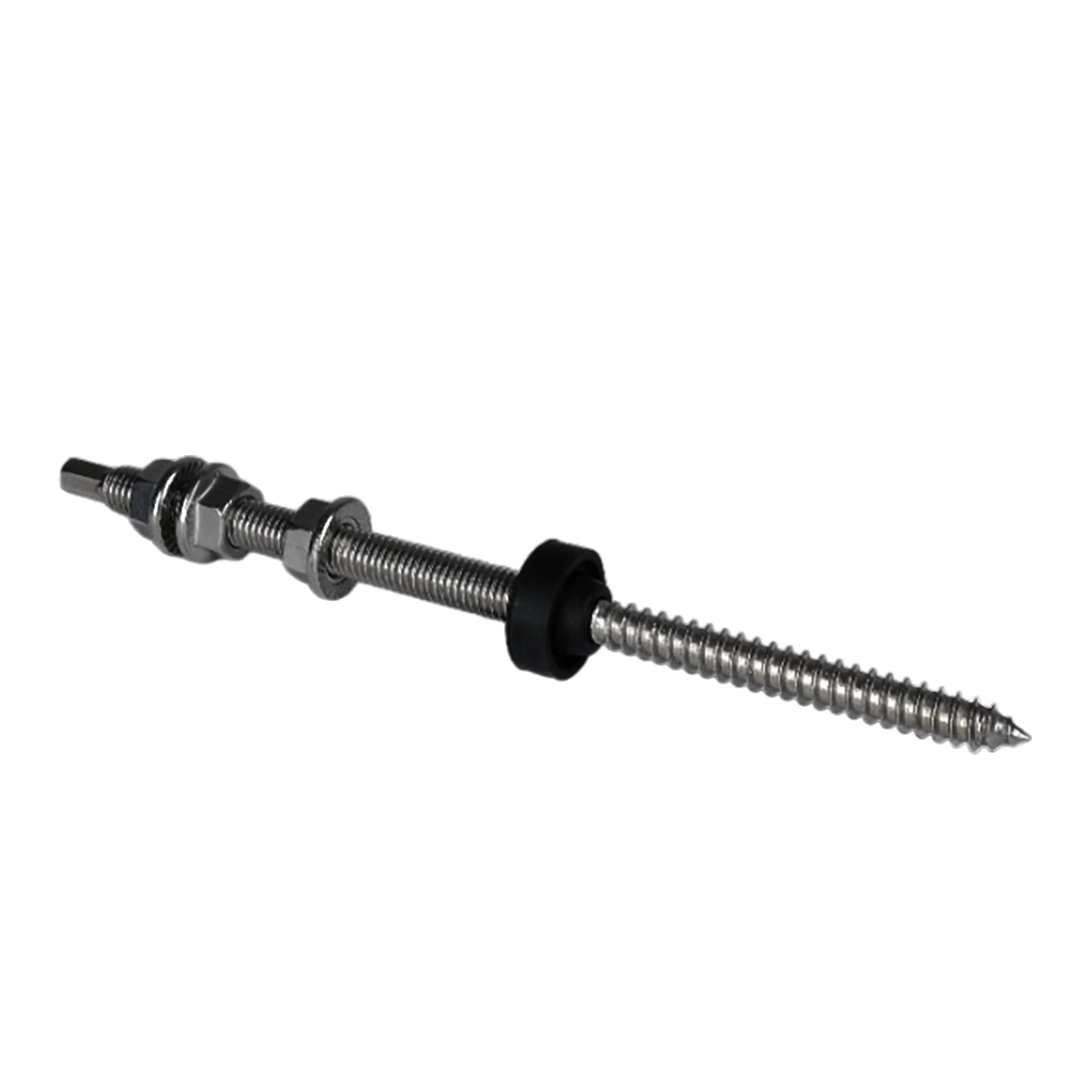

Double Thread Bolt (twin thread screw) - M10x200
Double Thread Bolt (twin thread screw) A2 stainless steel 1.4301 M10x200mm, to the adapter and triangle of the photovoltaic system.

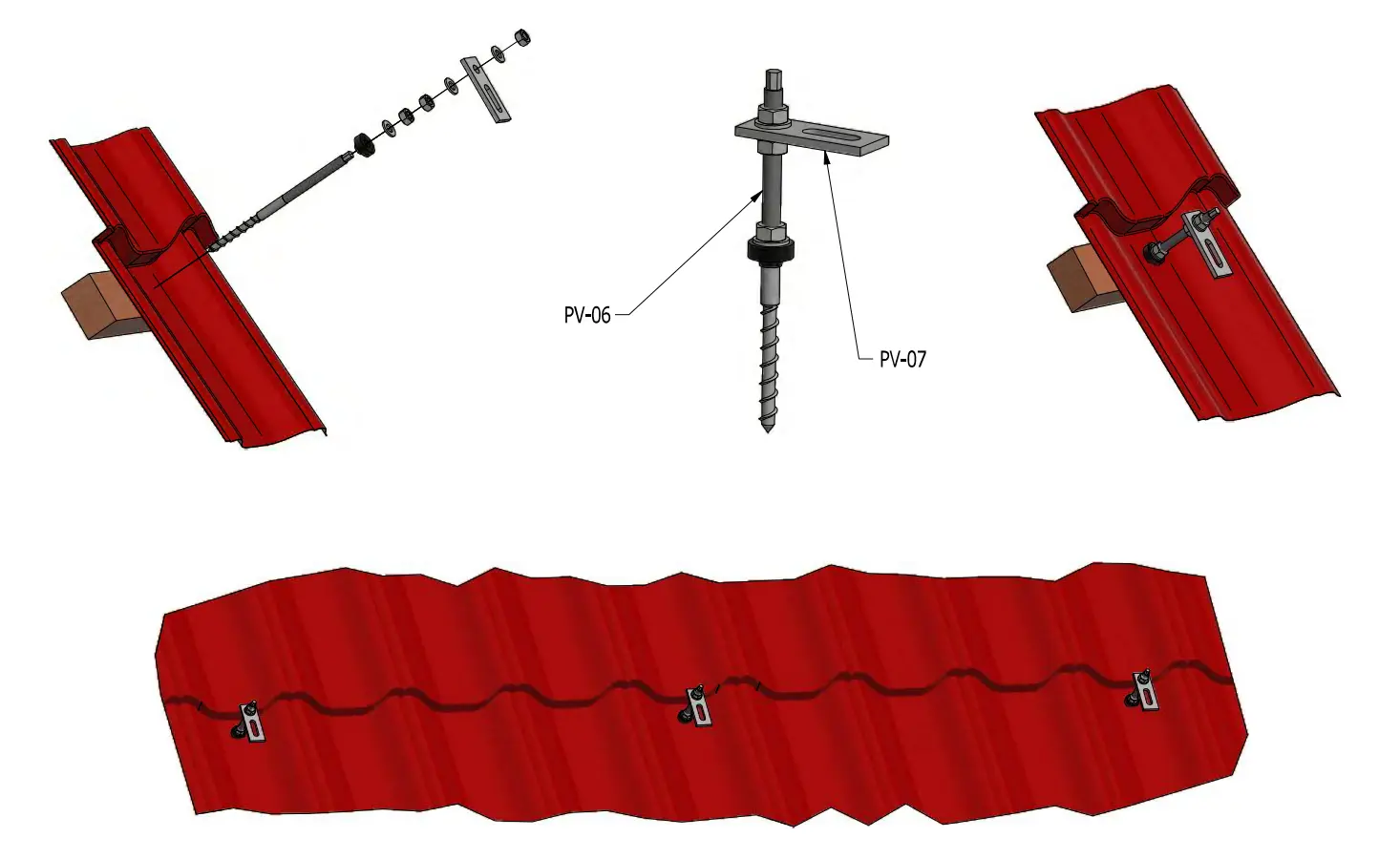

Double threaded screw, one of the many components necessary for the installation of photovoltaic equipment. The product is installed on roofing, sheet metal, shingles or felt. The element is characterized by two different strands at each end. The threaded end is screwed directly to the wooden roof structure. The other end is used to attach adapters with flange nuts.

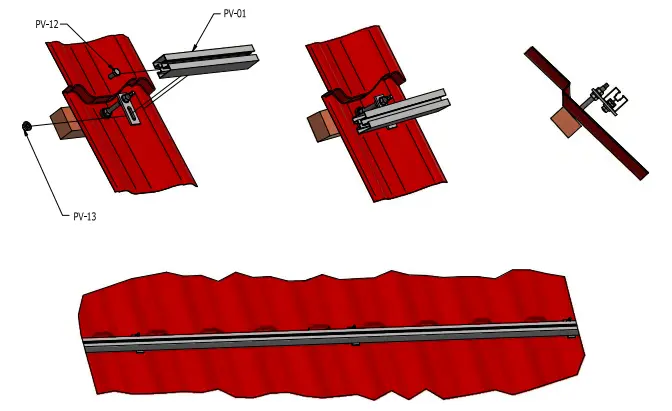

- The double-threaded screw is also used to fix triangles on flat roofs.
- The double-threaded bolt is sold with flange nuts and an EPDM washer.
- An integrated flange washer and EPDM gasket are used to seal the contact surface.
Properties of A2 steel - 1.4301 Grade 304
- Austenitic stainless steel (not magnetic), flexible and stress-resistant.
- Extremely strong corrosion resistance due to the addition of nickel to the alloy.
- Suitable for all environmental conditions.
Specification
- Complete set with EPDM washer and flange nuts
Available Sizes
Length [mm]
Diameter
200
M10
250
M10
300
M10
250
M12
300
M12
Technical data
| Product Type | Double-Ended Stud |
| Thread type | M10 |
| Length [mm] | 200 |
