3D Fence Panels 1230x2500 mm Wire 4 mm 51 Wires Graphite RAL 7016 (50 pcs.)
Description
3D-4 Galvanised and Powder-Coated Fence Panel – Height 1230 mm, Width 2500 mm
3D-4 fence panel with a height of 1230 mm and width of 2500 mm is a robust and attractive welded mesh panel featuring horizontal 3D profiling. It is designed to secure commercial, industrial and private properties. Thanks to innovative inverter welding technology and multi-layer anti-corrosion protection, the panels offer long-lasting durability and an excellent appearance with no maintenance required. Additional panel heights are also available, ranging from 1030 mm to 2430 mm, allowing the fencing to be tailored to any project.
Key advantages of 3D-4 panels
- High mechanical strength — horizontal 3D profiling increases panel rigidity and resistance to deformation
- Multi-layer anti-corrosion protection — steel core coated with a zinc layer, followed by passivation and a powder coat finish, effectively preventing oxidation
- Inverter welding — innovative wire-joining technology that does not damage the zinc coating, ensuring perfect panel geometry
- Single-cycle welding — guarantees perfect geometry and dimensional consistency in every panel
- Easy installation — quick fixing to posts using clamps, reducing installation time
- 4 standard colours — green, graphite, black and brown, with the option of powder coating in any RAL colour (availability may vary depending on the variant)

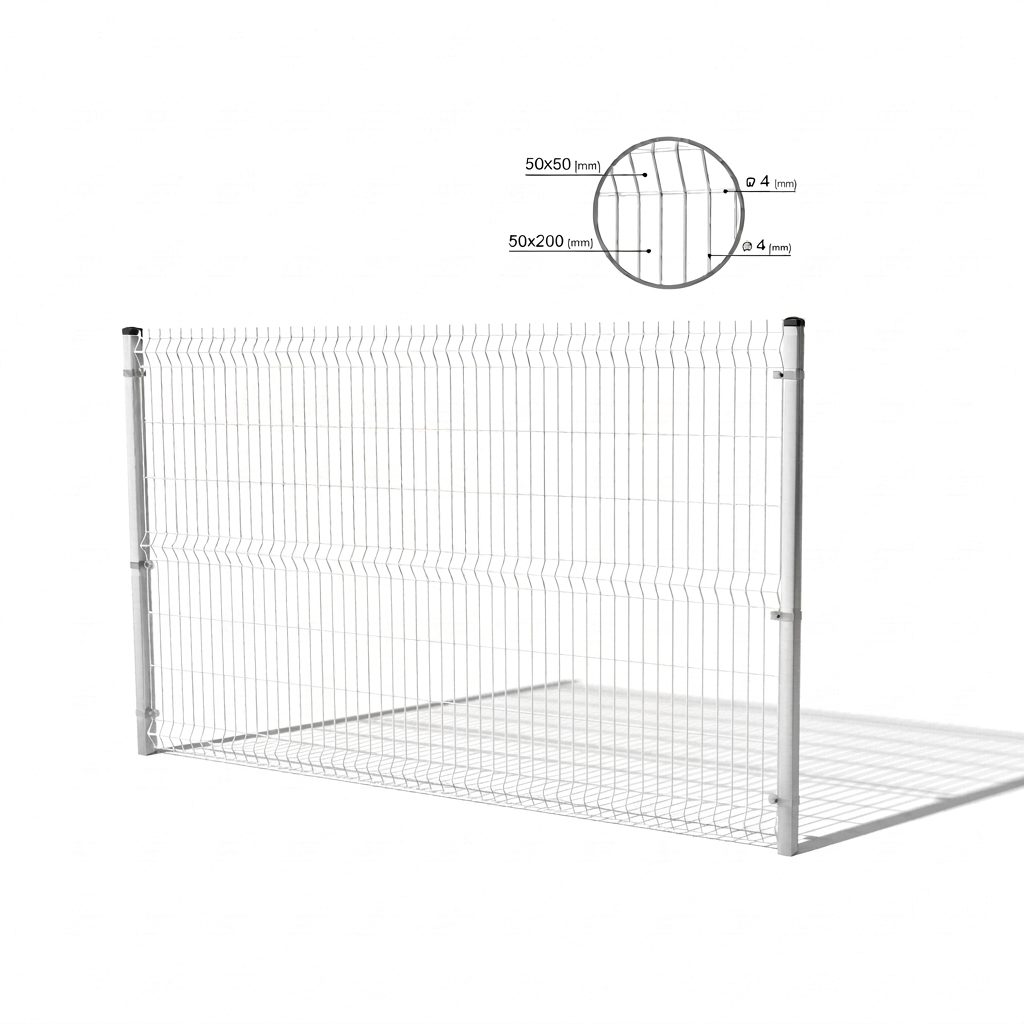

Technical specifications of the 3D-4 panel (1230 x 2500 mm)
- Panel width: 2500 mm
- Available heights: 1030 / 1230 / 1530 / 1730 / 2030 / 2230 / 2430 mm
- Wire diameter: 4.0 mm (tolerance ±0.3 mm)
- Standard aperture dimensions: 50 × 200 mm (tolerance ±5 mm)
- Profiled (small) aperture dimensions: 50 × 50 mm (tolerance ±5 mm)
- Number of vertical wires: 51 pcs
- Posts: 60 × 40 mm (tolerance ±3 mm), wall thickness 1.2–1.5 mm (tolerance ±0.35 mm)
Multi-layer anti-corrosion protection
The wires of 3D-4 panels feature a four-layer construction providing the highest level of corrosion resistance. The steel core is coated with a zinc layer, followed by passivation to protect the zinc from oxidation, with the whole finished in powder coat paint in the chosen colour. This solution guarantees long-lasting durability even in demanding weather conditions — the panels retain their full aesthetic appearance without the need for additional maintenance.
Panel cross-sections — available heights
3D-4 panels are available in seven heights from 1030 to 2430 mm, making them suitable for use as a low decorative fence or a tall barrier providing full site security. The distinctive horizontal profiling visible in the panel cross-section increases rigidity and gives the panel a modern, three-dimensional appearance. By selecting this specific product, you receive a panel with a height of 1230 mm.
Selecting posts and clamps for the 1230 x 2500 mm panel
For a panel with a height of 1230 mm and width of 2500 mm, the appropriate mounting post with a 60 × 40 mm profile and the correct number of fixing clamps should be selected. The table below shows the recommended components:
| Panel width | Panel height | Post height | Number of clamps |
|---|---|---|---|
| 2500 mm | 1030 mm | 60×40×1700 mm | 2 |
| 2500 mm | 1230 mm | 60×40×1700 mm | 2 |
| 2500 mm | 1530 mm | 60×40×2000 mm | 3 |
| 2500 mm | 1730 mm | 60×40×2300 mm | 3 |
| 2500 mm | 2030 mm | 60×40×2600 mm | 3 |
| 2500 mm | 2230 mm | 60×40×2800 mm | 4 |
| 2500 mm | 2430 mm | 60×40×3000 mm | 4 |
Comparison of 3D panel variants
The table below shows the differences between the individual 3D fence panel variants. The 3D-4 variant with a wire diameter of 4.0 mm and 51 vertical wires provides an optimal balance between strength and cost. This specific product is the 3D-4 variant with a height of 1230 mm.
| 3D 4 | 3D 5 | 3D 4 ECO | 3D 5 ECO | 3D 4 LIGHT | |
|---|---|---|---|---|---|
| Wire diameter | 4.0 mm | 5.0 mm | 4.0 mm | 5.0 mm | 4.0 mm |
| Standard aperture dimensions | 50×200 mm | 50×200 mm | 55×200 mm | 55×200 mm | 75×200 mm |
| Small aperture dimensions | 50×50 mm | 50×50 mm | 55×50 mm | 55×50 mm | 75×50 mm |
| Panel width | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| Number of vertical wires | 51 | 51 | 46 | 46 | 33 |
| Wire diameter tolerance | ±0.4 mm | ±0.4 mm | ±0.4 mm | ±0.4 mm | ±0.4 mm |

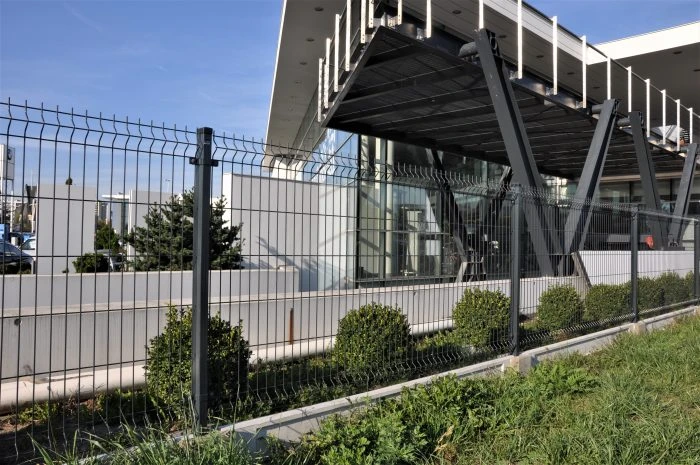

Applications
3D-4 fence panels are widely used in commercial and industrial facilities as well as on private properties. Their versatile nature makes them an excellent fencing solution for:
- Retail and service premises
- Production halls and warehouses
- Public utility buildings
- Parks, squares and gardens
- Residential estates
- Private plots and homes
Packaging and transport
Each pallet of panels is carefully secured with PP strapping and protected with PVC separators and corner pieces, which stabilise the load and protect the panels from shifting during loading and transit. The professional packaging system minimises the risk of damage to the powder coat finish during delivery.
Technical data
| Size | 1230x2500 |
| Colour | Graphite RAL 7016 |
| Accessory Type | 3D Fence Panel |
