Perforated plate timber connector PP 9 80x200x2.0
Description

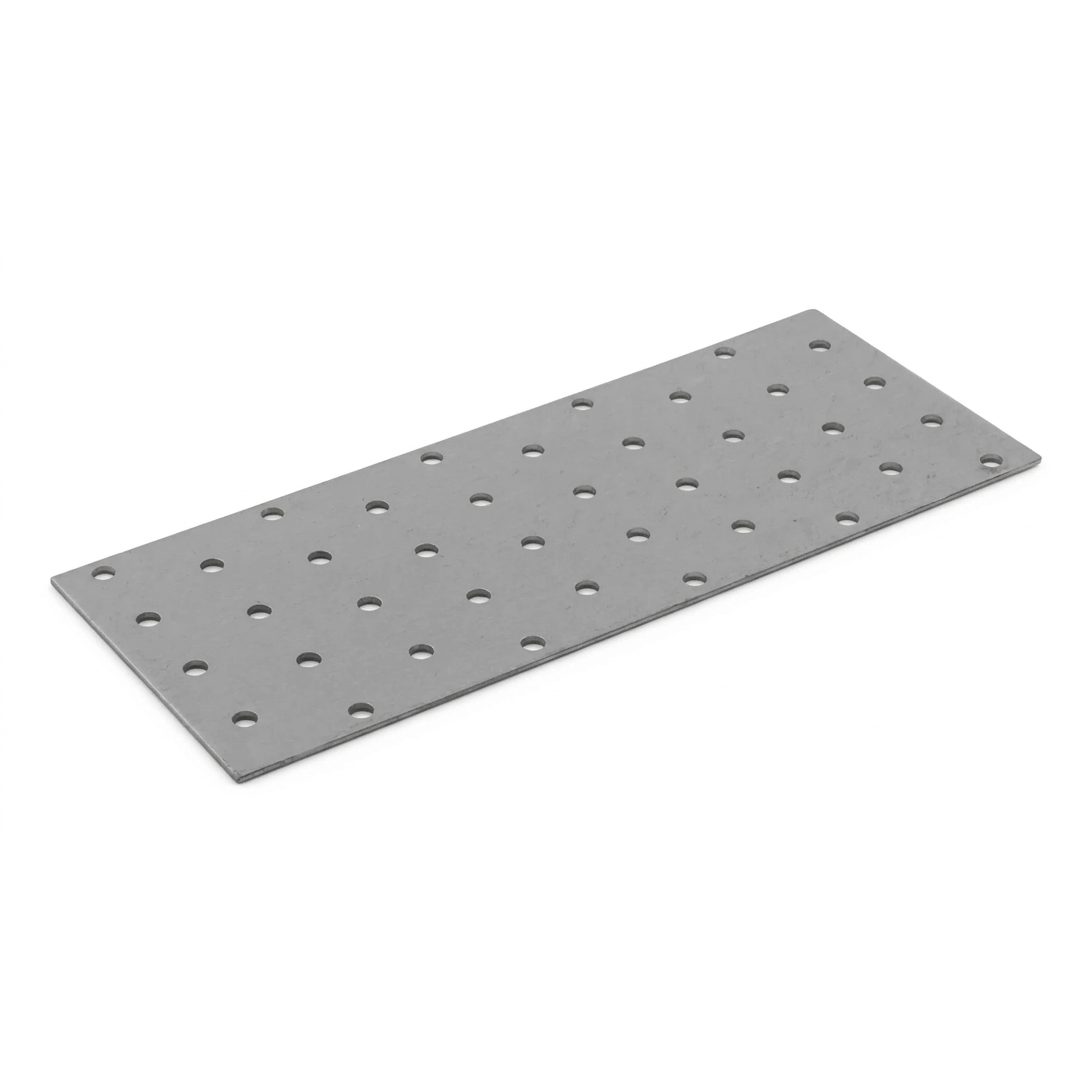

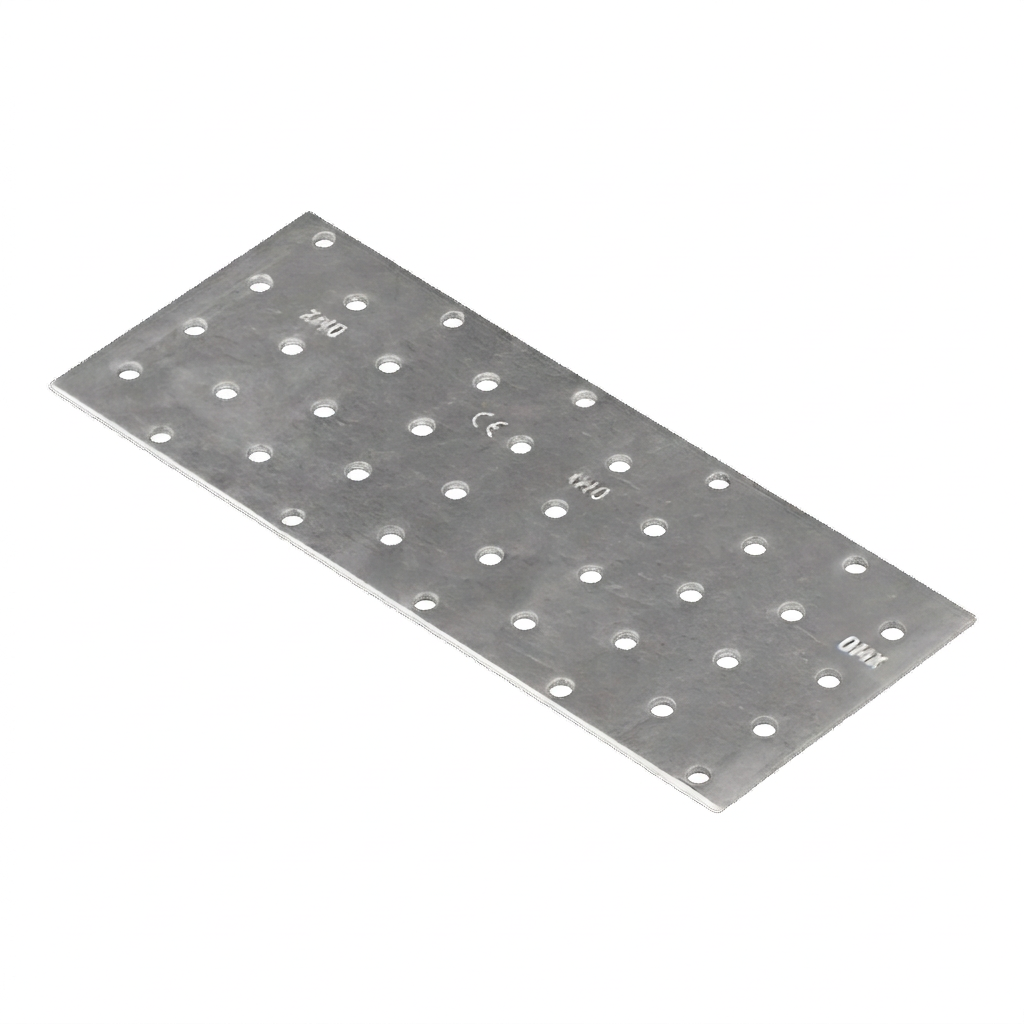

Perforated Steel Galvanised Plate PP 9 80x200 mm – Flat Timber Connector

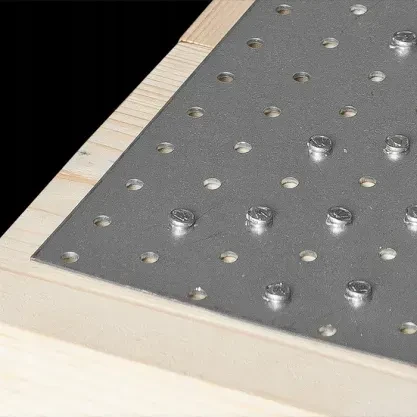

The perforated plate 80×200 mm is a versatile flat connector designed for joining timber structures where the lateral faces of the connected elements lie in the same plane. With 40 mounting holes of 5 mm diameter evenly distributed across the entire surface, the plate enables both simple and complex carpentry connections. The smooth surface finish allows the connector to be used on the inside and outside of the joint.

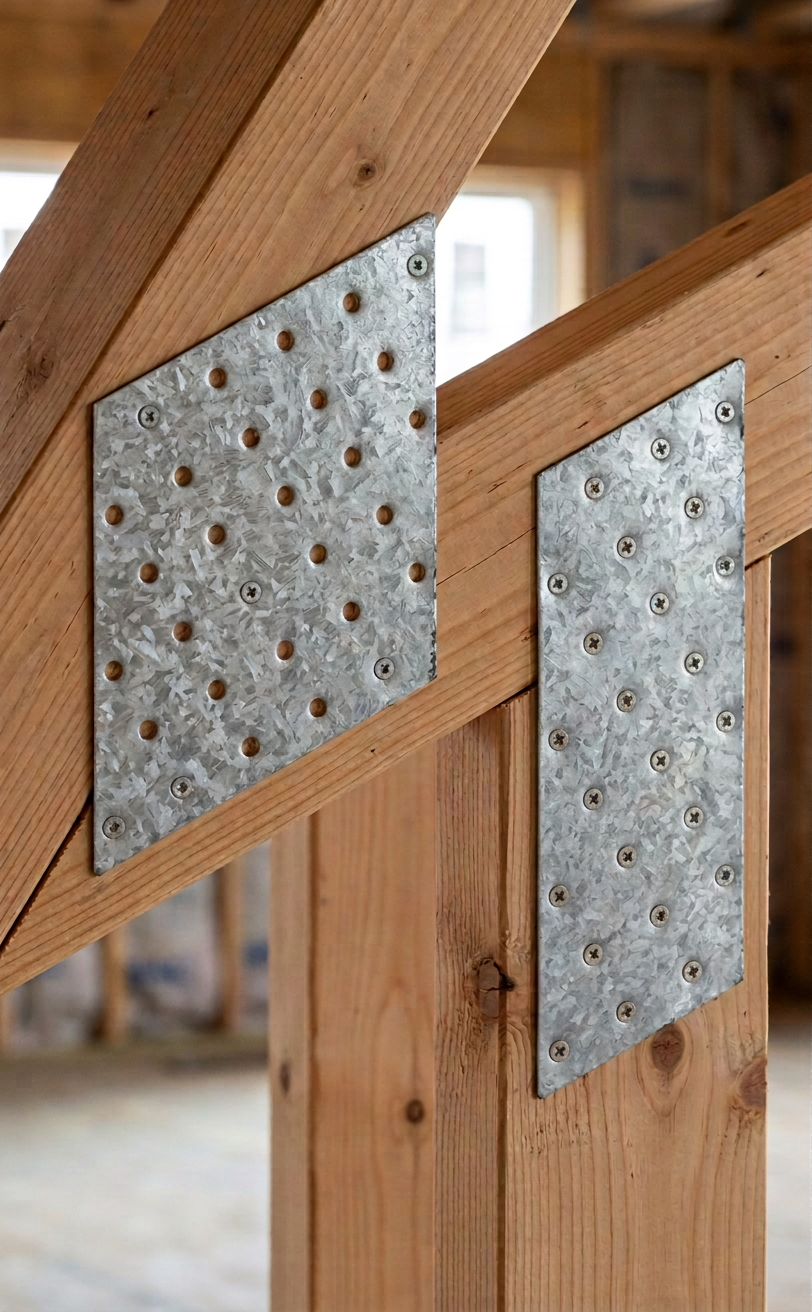

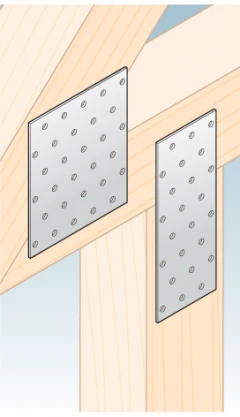

Perforated plates are typically used in pairs, fitted to both sides of the joint. They are an indispensable component when assembling roof trusses and all timber connections requiring reinforcement. Made from DX51D + Z275 steel sheet with a thickness of 2 mm, the plate delivers high mechanical strength whilst remaining lightweight. The Z275 zinc coating provides effective corrosion protection, making the connector suitable for both indoor and outdoor applications.
Technical Specifications

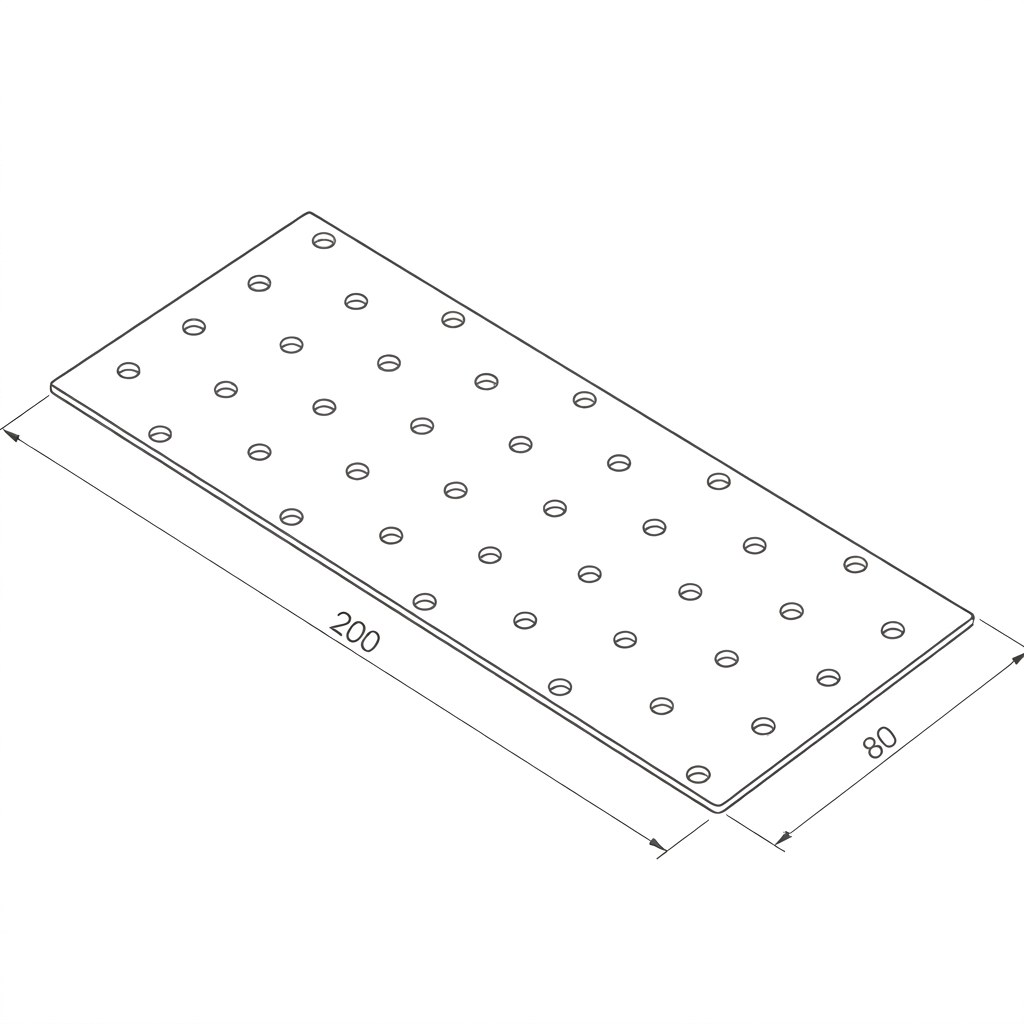

- Length (A): 200 mm
- Width (B): 80 mm
- Sheet thickness: 2.0 mm
- Material: DX51D + Z275
- Corrosion protection: hot-dip galvanised
- Number of holes: 40 pcs with diameter ø5 mm
- Surface area: 3.28 dm²
Application and Installation
The perforated plate is widely used in timber construction — from simple reinforcements to complex roof truss connections. Installation is carried out using the following fasteners:
- ANCHOR ring shank nails ø4 mm
- Timber connector screws
- Wood screws ø3–ø6 mm and ø10 mm
- Bolts M5, M10, M12
- Concrete anchors M5, M10, M12
Documentation
The product holds a Declaration of Performance, confirming compliance with applicable construction standards. Technical documentation is available for download below.
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Perforated Plate |
| Material | Steel |
