Perforated plate timber connector PP 8 60x240x2.0
Description

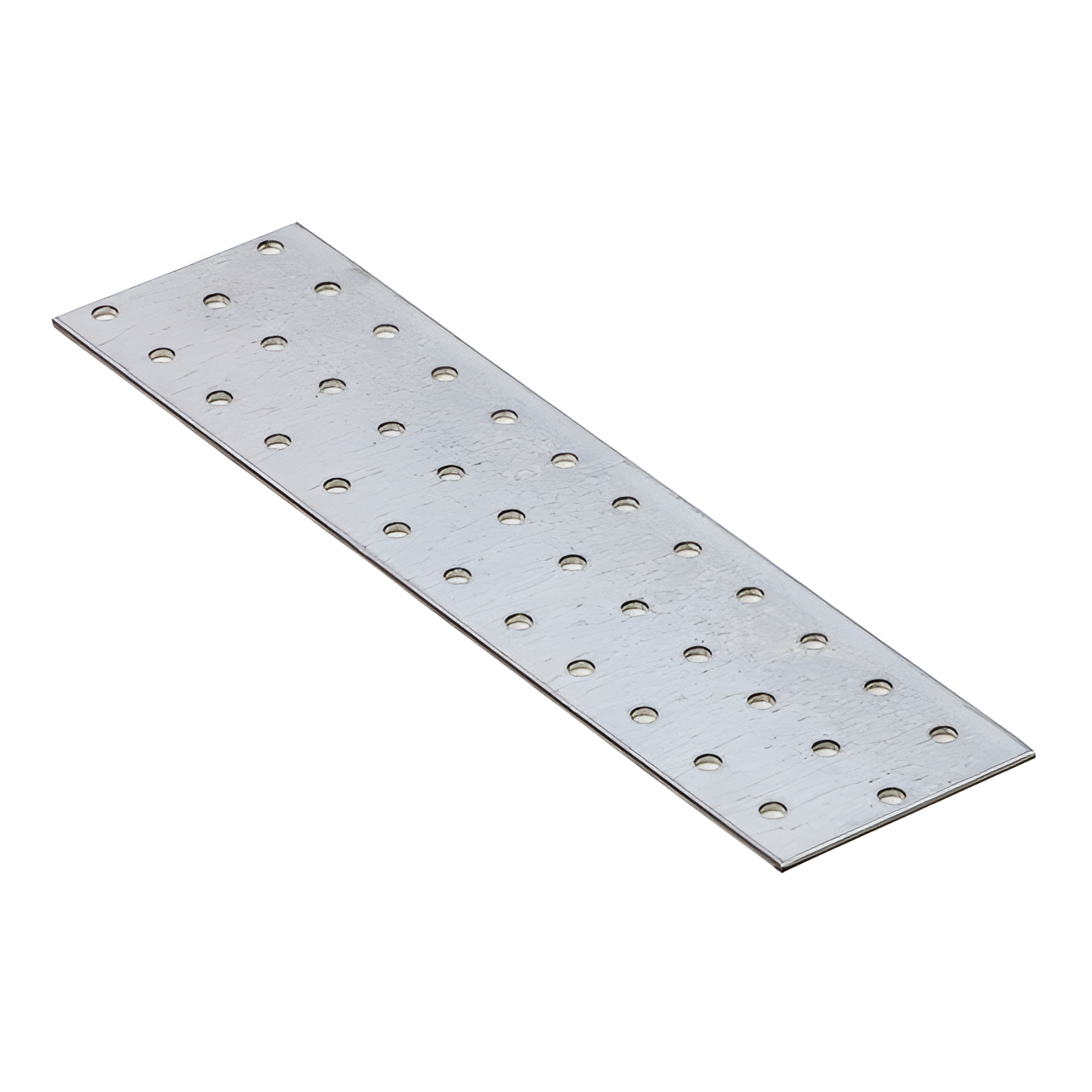

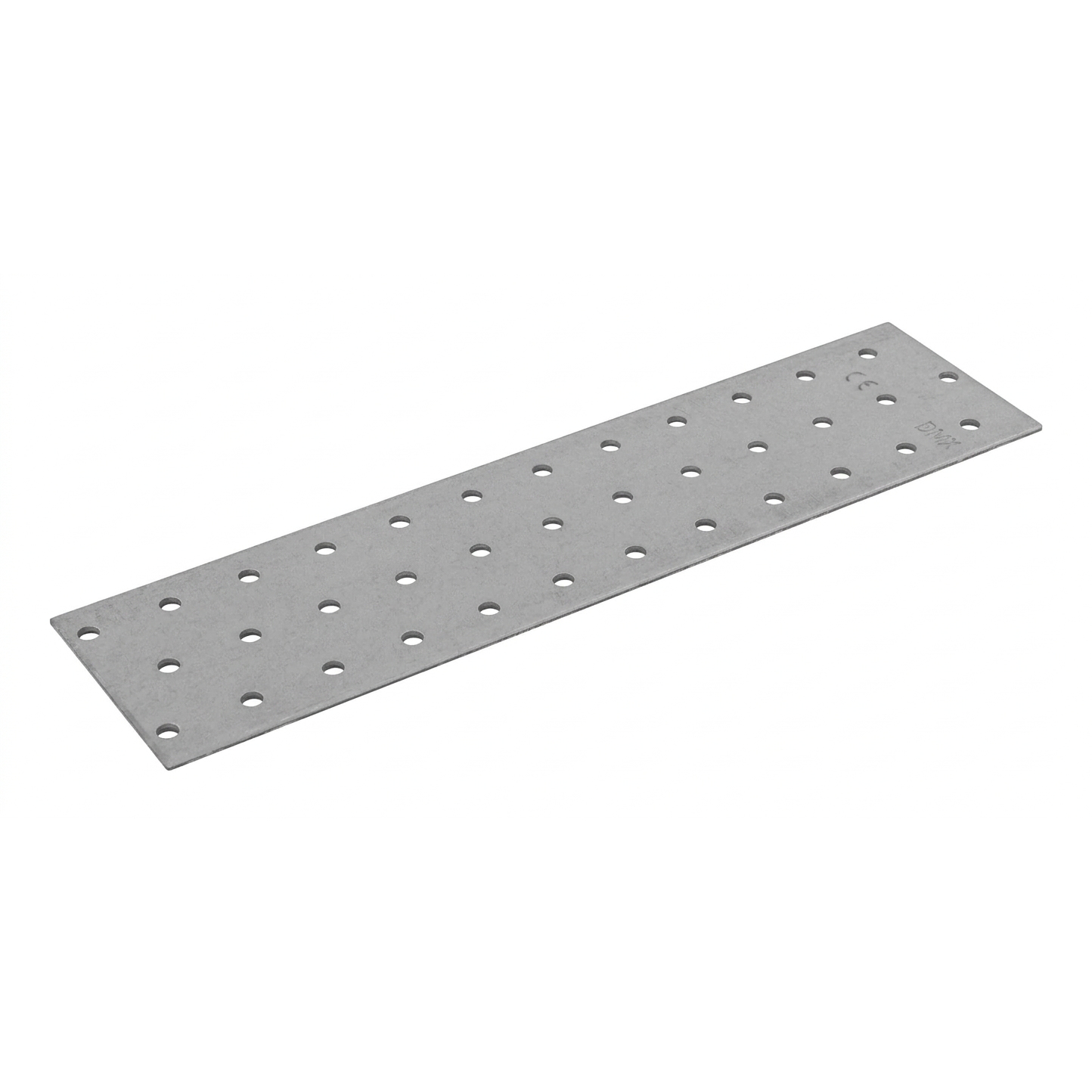

Perforated Mounting Plate PP 8 60×240×2.0 mm – Galvanised Steel Flat Connector
The perforated plate 60×240 mm is a versatile flat connector designed for joining timber elements that lie in the same plane. With 36 holes evenly distributed across the entire surface, the flat bar enables both simple and complex carpentry connections — including the installation of roof trusses.
The flat bar is manufactured from DX51D + Z275 steel sheet with a thickness of 2.0 mm, ensuring high mechanical strength of connections. The Z275 zinc coating provides effective corrosion protection, extending the service life of the connector even in conditions of elevated humidity. The product carries the CE marking and a Declaration of Performance, confirming compliance with applicable European standards.
Technical Specifications
- Length (A): 240 mm
- Width (B): 60 mm
- Sheet thickness: 2.0 mm
- Material: DX51D + Z275
- Corrosion protection: hot-dip galvanised
- Number of holes: 36 pcs ø5 mm
- Surface area: 2.97 dm²
- Weight: 220 g
Application and Installation

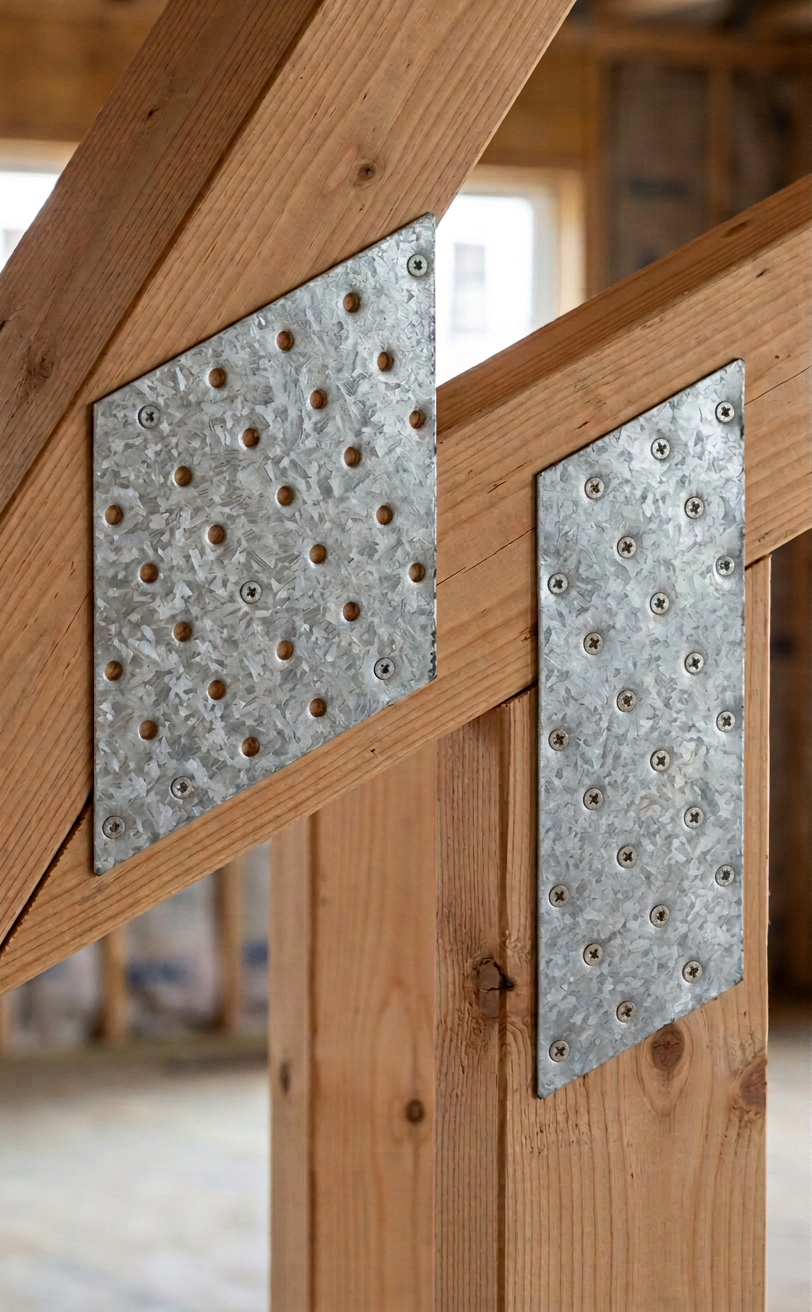

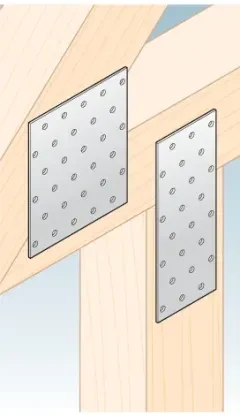

Perforated plates are used wherever the side faces of the timber elements being joined lie in the same plane. They are indispensable for installing roof trusses, reinforcing carpentry joints, and connecting beams and rafters. The universal perforation pattern allows flexible adaptation of the fixing arrangement to suit the specific requirements of each connection.
Recommended fasteners:
- ANCHOR ring shank nails ø4 mm
- Carpentry screws for connectors
Why choose this flat connector?
- Universal perforation pattern — 36 holes provide great flexibility when designing connections
- Durable Z275 zinc coating — effective protection against corrosion
- DX51D steel — material with high strength and ductility
- CE marking — compliance with European construction standards
- Compact dimensions 60×240 mm — ideal for typical joints in timber structures
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Perforated Plate |
| Material | Steel |
