Perforated plate timber connector PP 7 60x200x2.0
Description

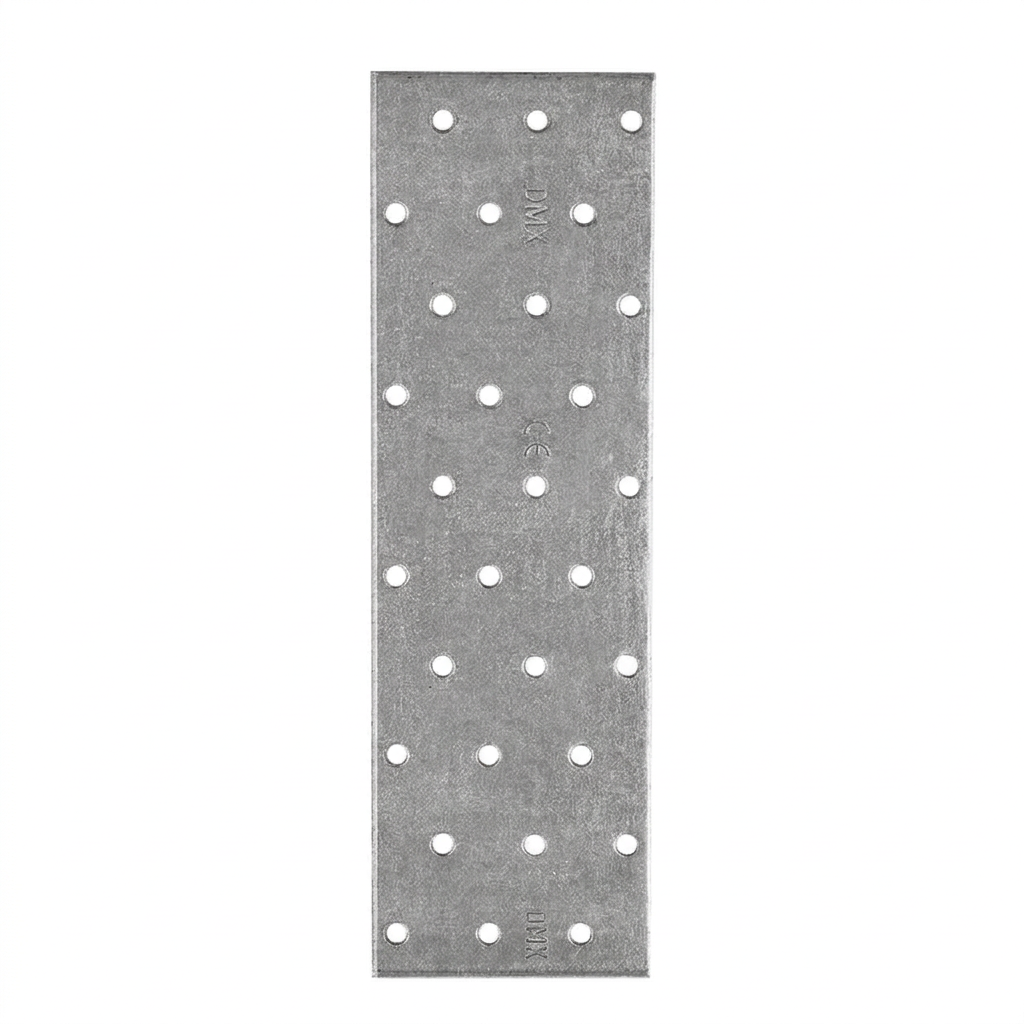

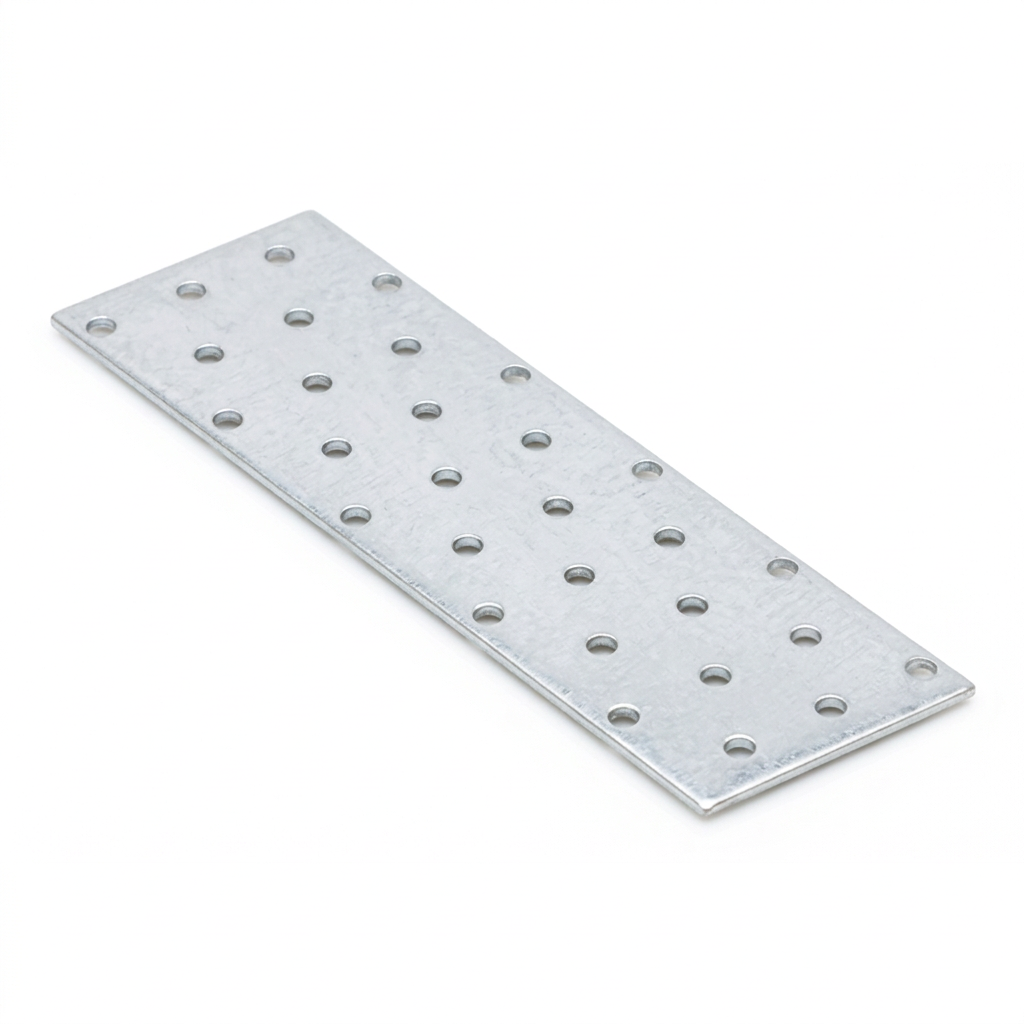

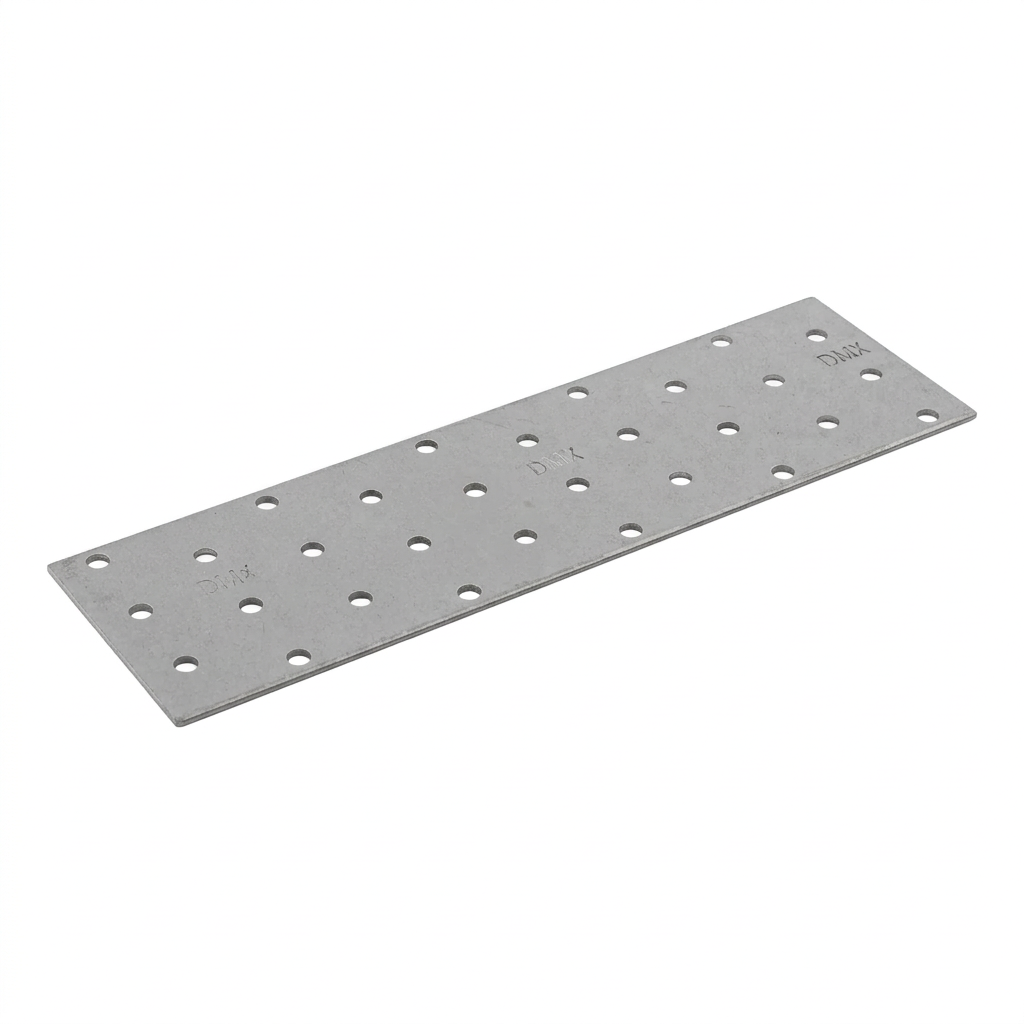

Perforated Plate PP 7 60×200×2 mm – Galvanised Timber Connector
Perforated plate 60×200 mm is a heavy-duty timber connector designed for professional joining of timber elements in structural applications. Made from 2 mm steel sheet with a zinc coating, it provides excellent corrosion resistance and long-lasting durability even in demanding weather conditions.
This flat connector (flat strap) is used in joints where the lateral surfaces of the connected elements lie in the same plane. With 30 mounting holes of 5 mm diameter evenly distributed across the entire surface, the plate enables both simple and complex structural connections. Professional installation companies will appreciate its versatility and ease of fitting — ring shank nails or timber screws are all that is required.

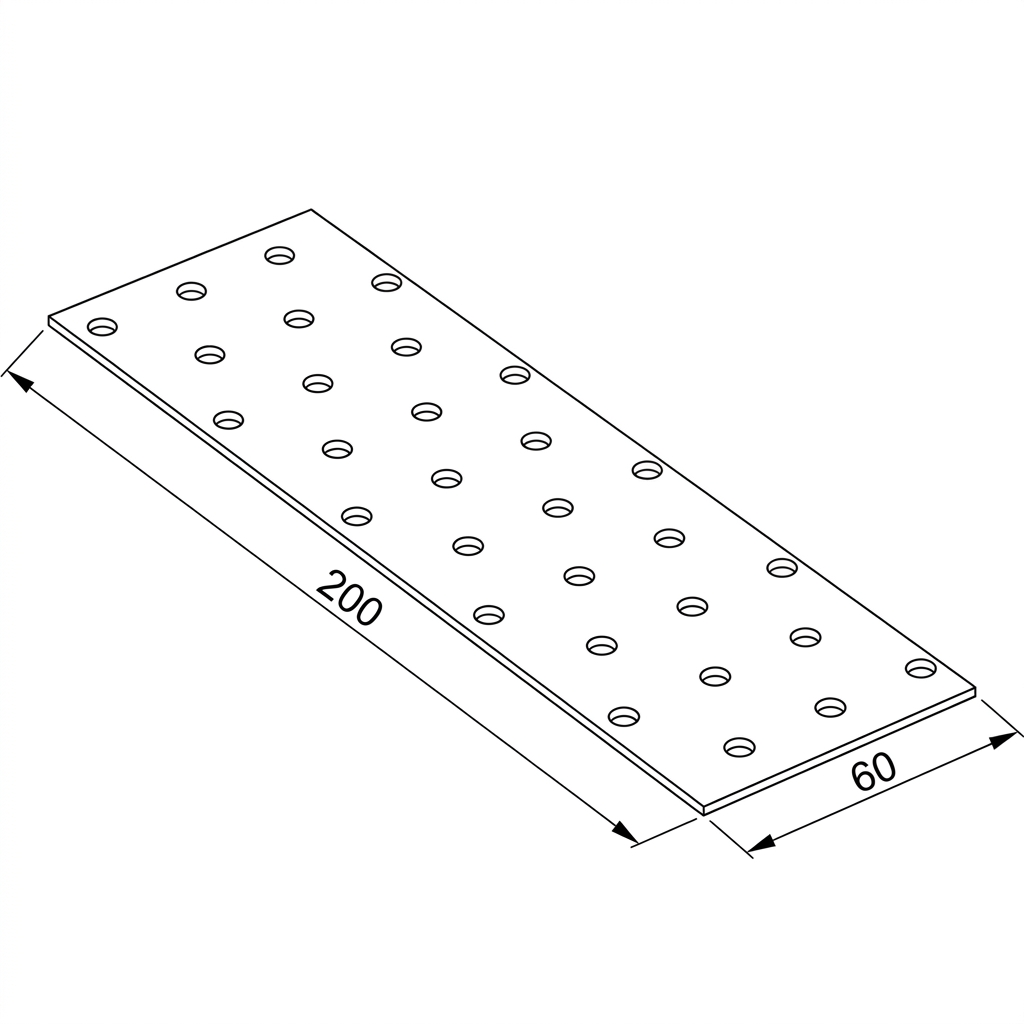

Technical Specifications
- Length: 200 mm
- Width: 60 mm
- Sheet thickness: 2 mm
- Material: steel DX51D + Z275
- Corrosion protection: hot-dip galvanised
- Number of holes: 30 pcs diameter ø5 mm
- Surface area: 2.48 dm²
Applications

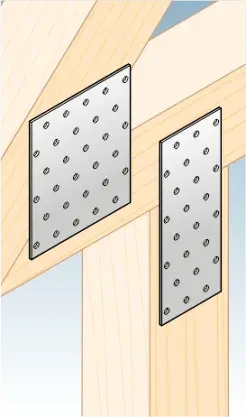

Perforated plates are widely used in timber construction. They are particularly valued for roof truss assembly, joining rafters, wall plates, posts and all elements of timber frame structures. They provide strong, neat and professional connections between various structural elements, primarily timber. The large number of mounting holes allows flexible positioning of fasteners to suit the specific requirements of each joint.
Installation and Certifications
- Fixing method: ANCHOR ring shank nails ø4 mm or timber screws
- Certificate: Declaration of Performance
- Marking: CE
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Perforated Plate |
| Material | Steel |
