Perforated plate timber connector PP 5 60x140x2.0
Description

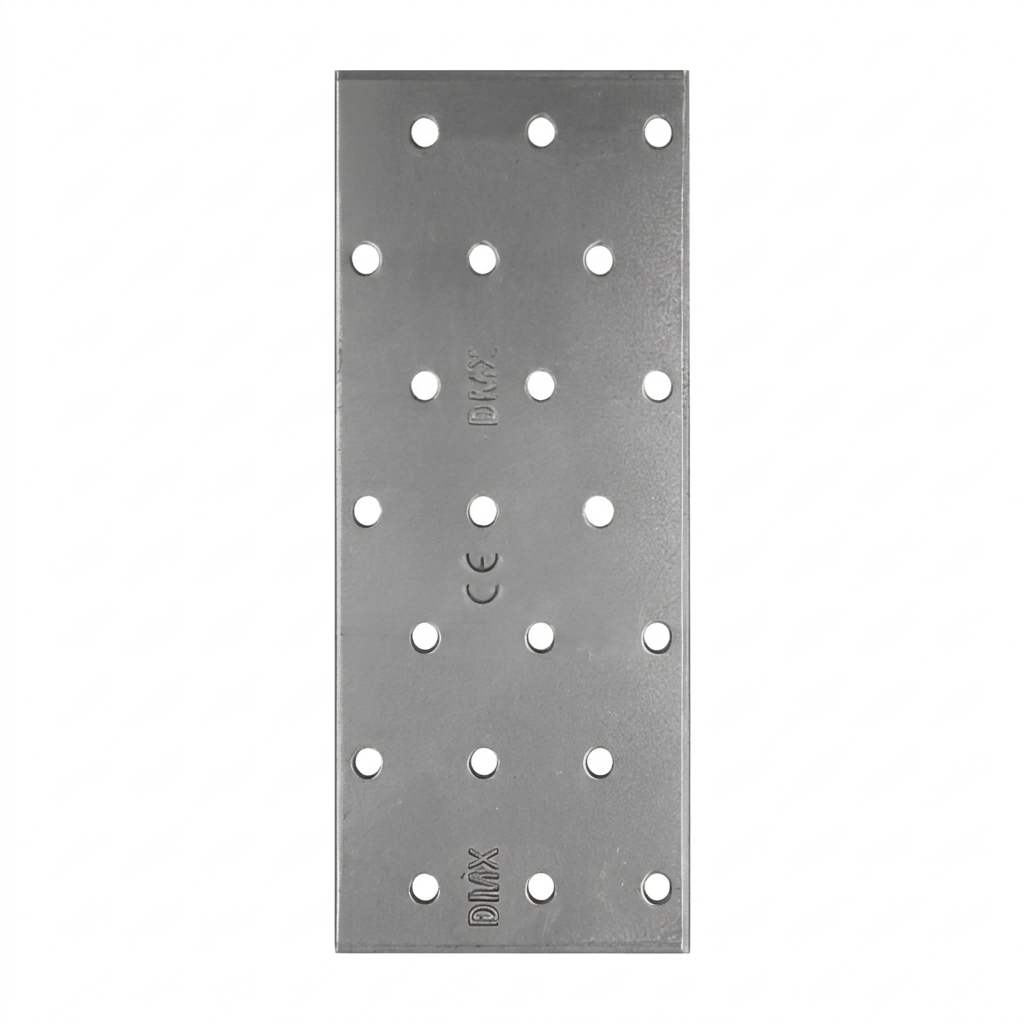

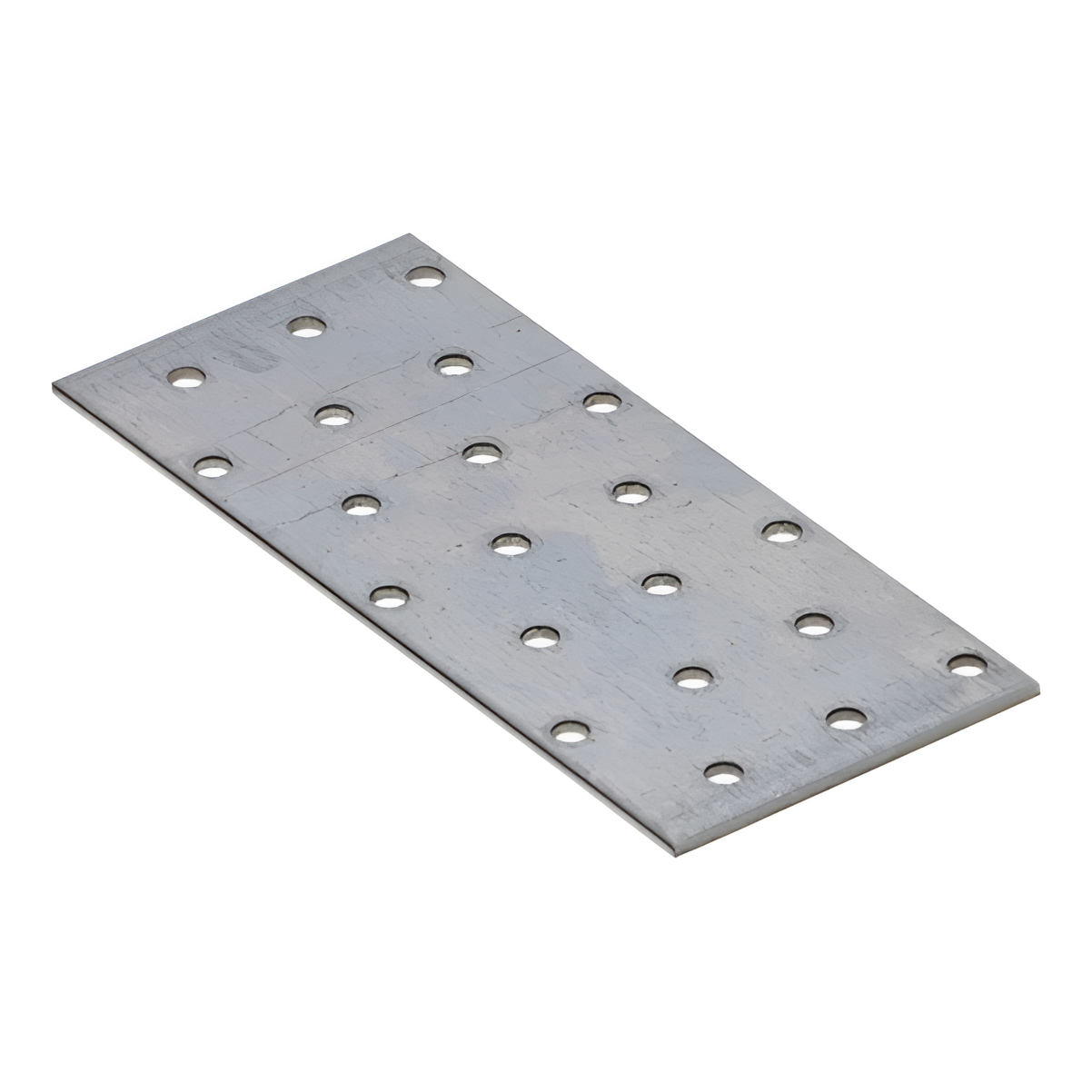

Perforated steel galvanised plate PP 5 140×60 mm – flat connector
The 140×60 mm perforated plate is a versatile flat connector designed for structural joints where the side faces of the connected elements lie in the same plane. With 21 holes evenly distributed across the entire surface, the plate enables both simple and complex connections in timber structures.
Manufactured from DX51D + Z275 steel sheet with a thickness of 2 mm, the plate delivers high mechanical strength and lasting corrosion protection thanks to its zinc coating. It is a reliable connecting element suited to professional construction and carpentry applications.
Technical Specifications
- Length (A): 140 mm
- Width (B): 60 mm
- Sheet thickness: 2 mm
- Material: DX51D + Z275
- Corrosion protection: hot-dip galvanised
- Number of holes: 21 pcs. with diameter ø5 mm
- Surface area: 1.75 dm²
Applications and Installation

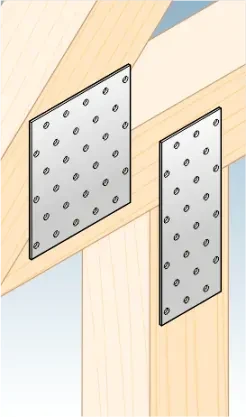

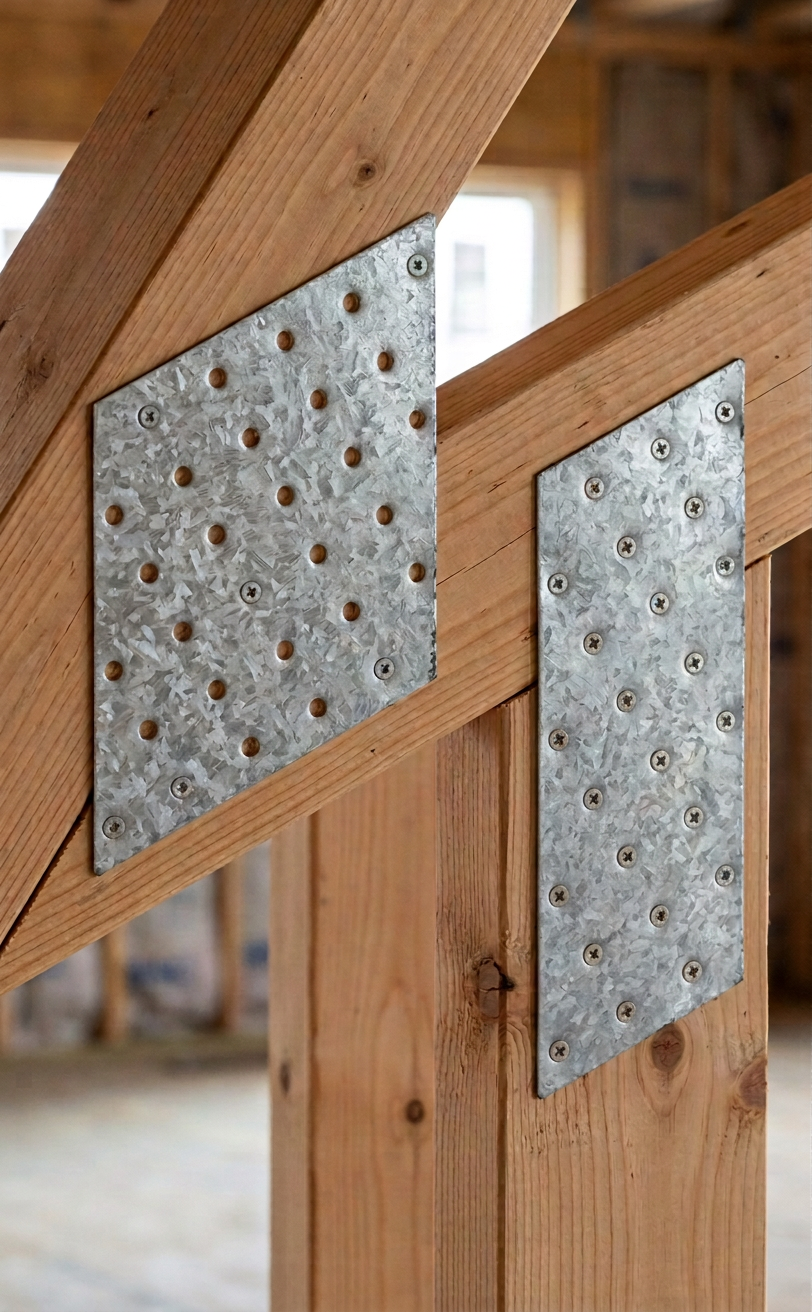

Perforated plates are widely used in timber construction — particularly for roof truss assembly, joining rafters, wall plates, posts and other roof structure members. They are suitable wherever a flat connection is required between two structural elements lying in the same plane.
- Fixed using ring shank nails ø4 mm
- Compatible with timber connector screws
- Certificate: Declaration of Performance (CE)
The plate carries the CE marking, confirming its compliance with applicable European standards. It is a dependable connecting element that speeds up work on site and ensures durable, stable structural joints.
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Perforated Plate |
| Material | Steel |
