Perforated plate flat connector PP 3 40x120x2.0
Description

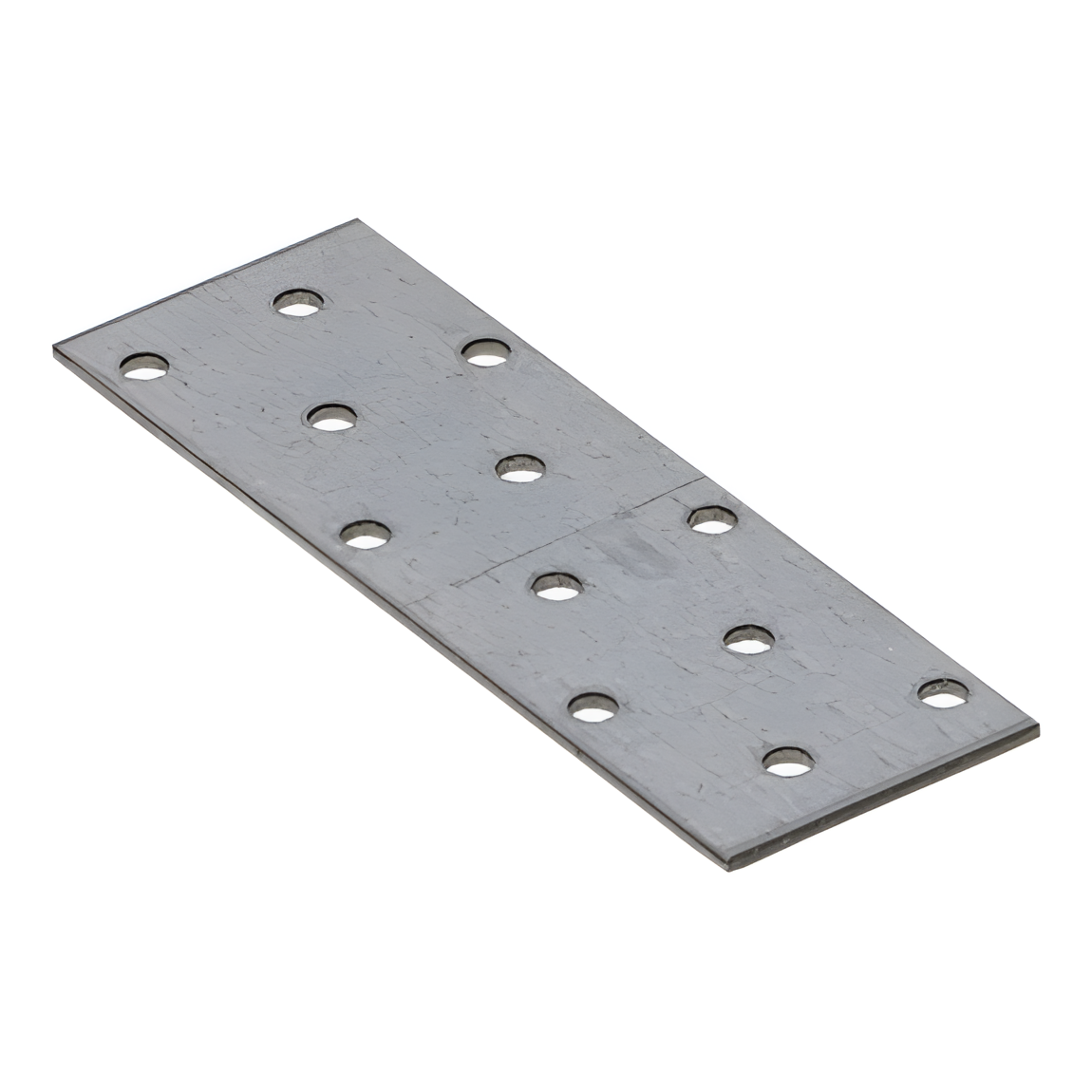

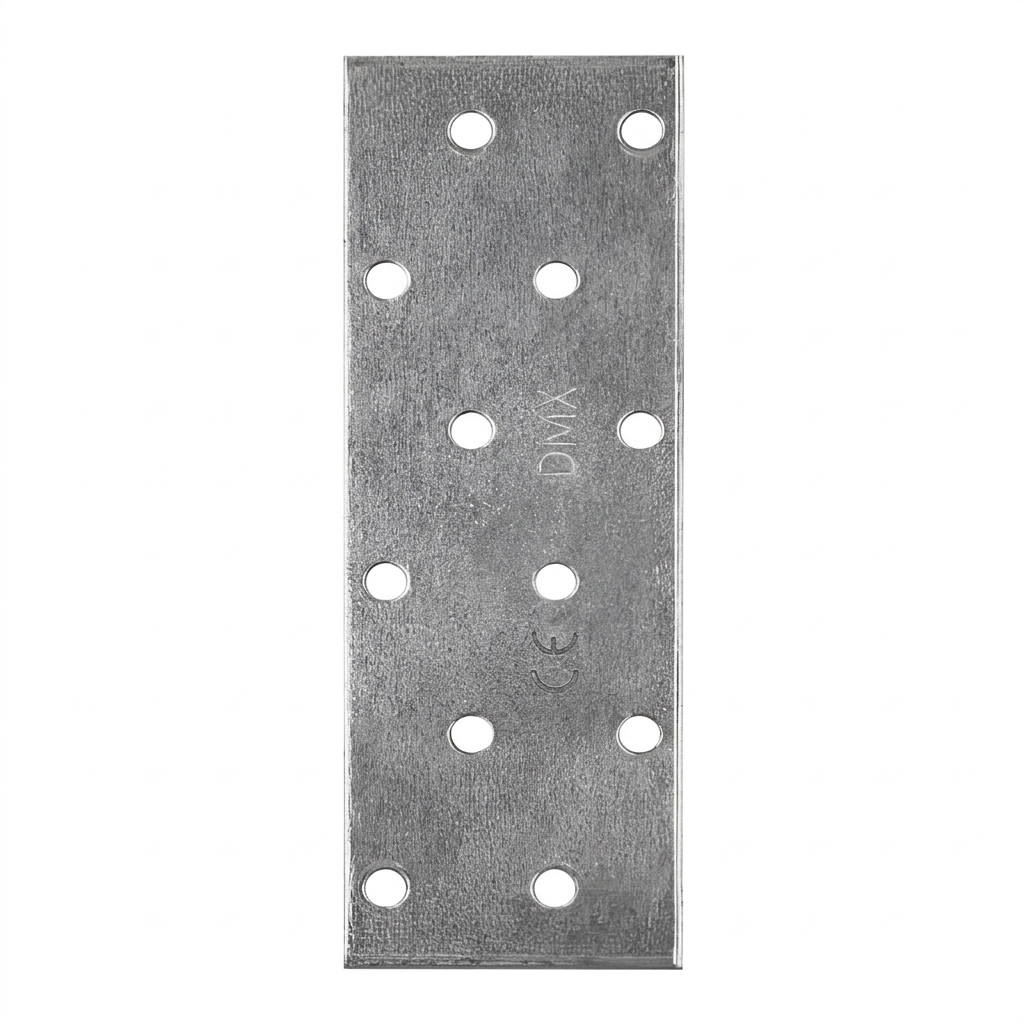

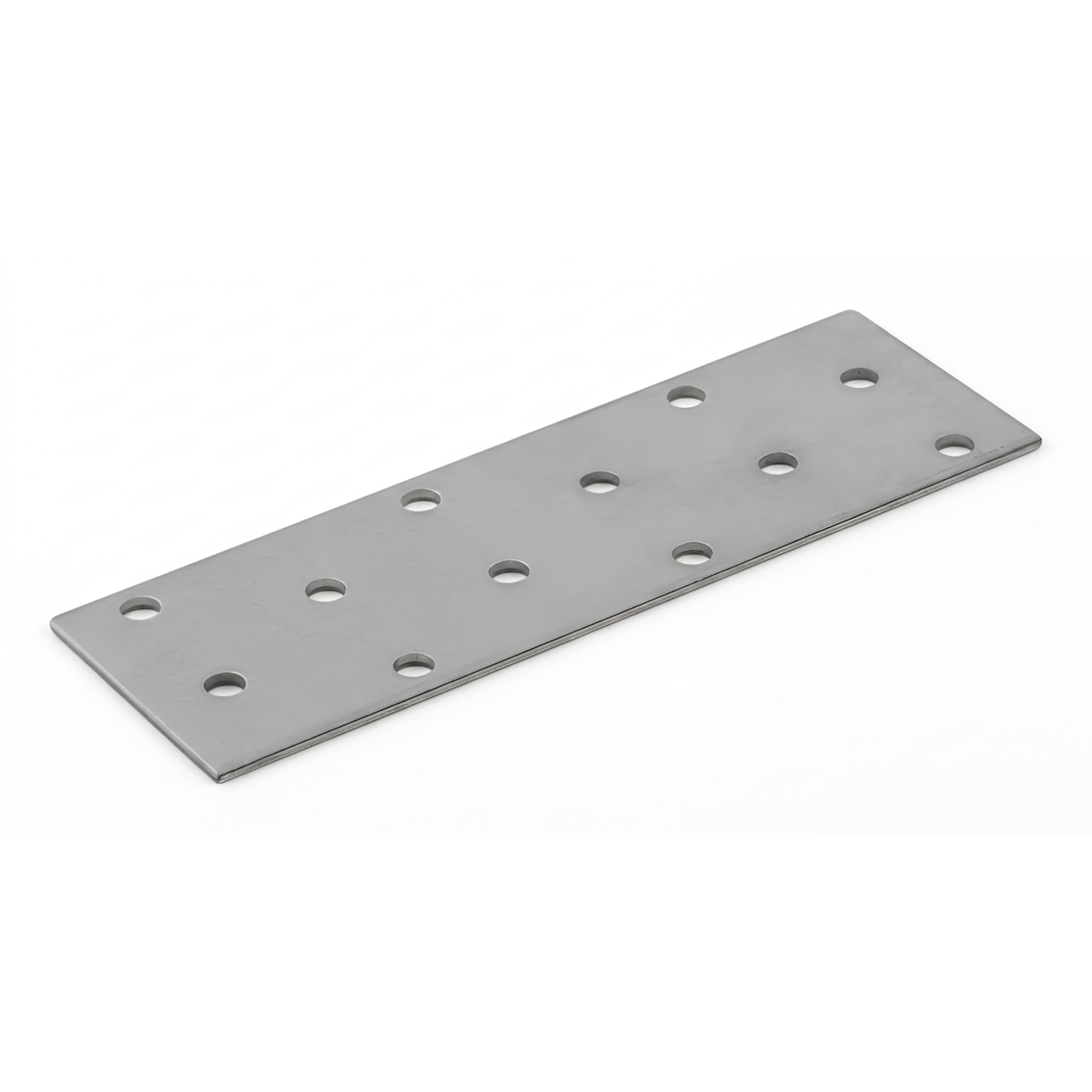

Perforated Plate PP 3 40×120×2 mm – Galvanised Timber Connector
The perforated plate 40×120 mm is a versatile timber connector designed for joining wooden elements within the same plane. With 12 holes distributed across the plate surface, it enables both simple and complex structural connections. Made from galvanised steel sheet 2 mm thick, it provides high mechanical strength and effective corrosion protection — ensuring durable connections even in demanding weather conditions.

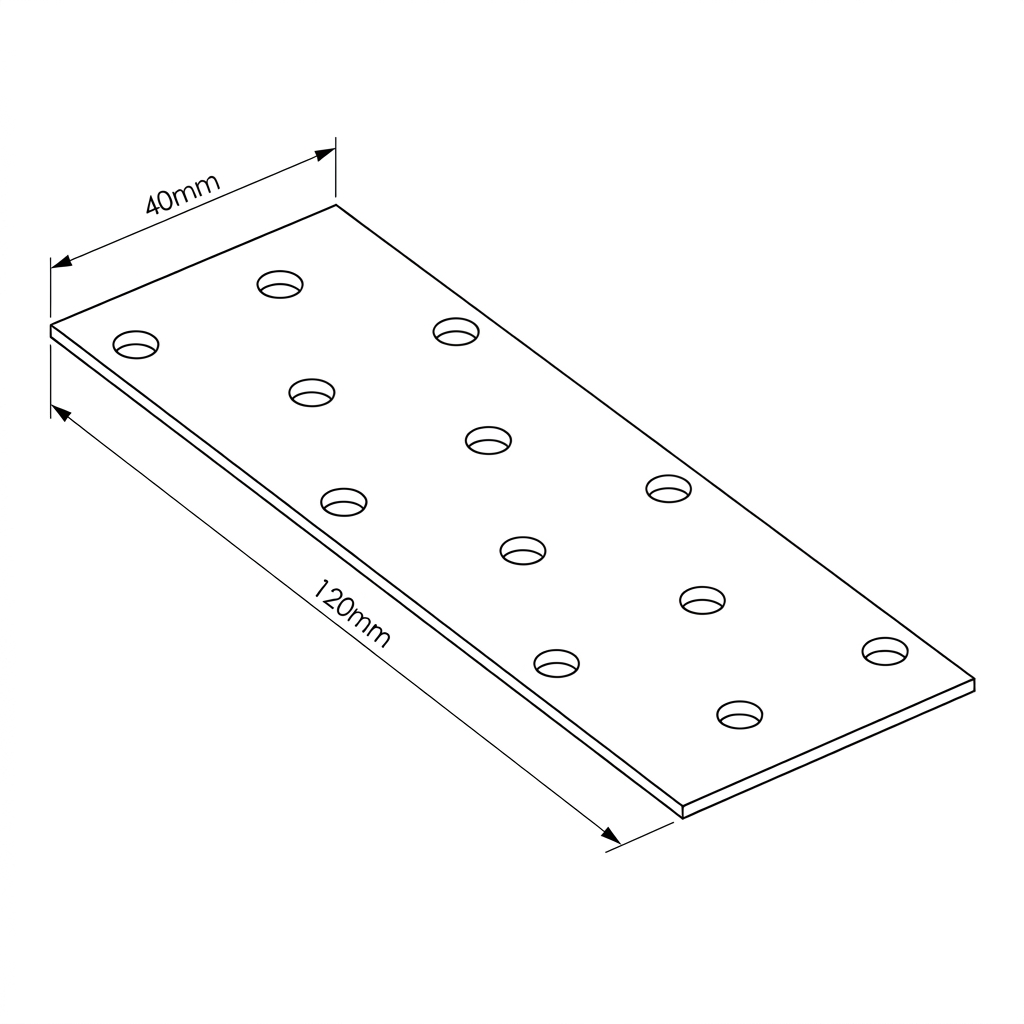

Technical Specifications
- Length: 120 mm
- Width: 40 mm
- Sheet thickness: 2 mm
- Material: DX51D + Z275
- Corrosion protection: hot-dip galvanised
- Number of holes: 12 pcs. with diameter ø5 mm
- Surface area: 1.02 dm²
Application and Installation

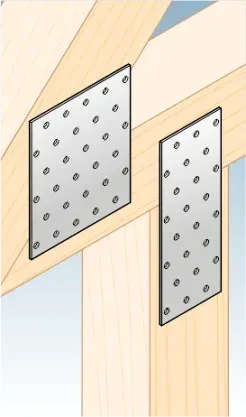

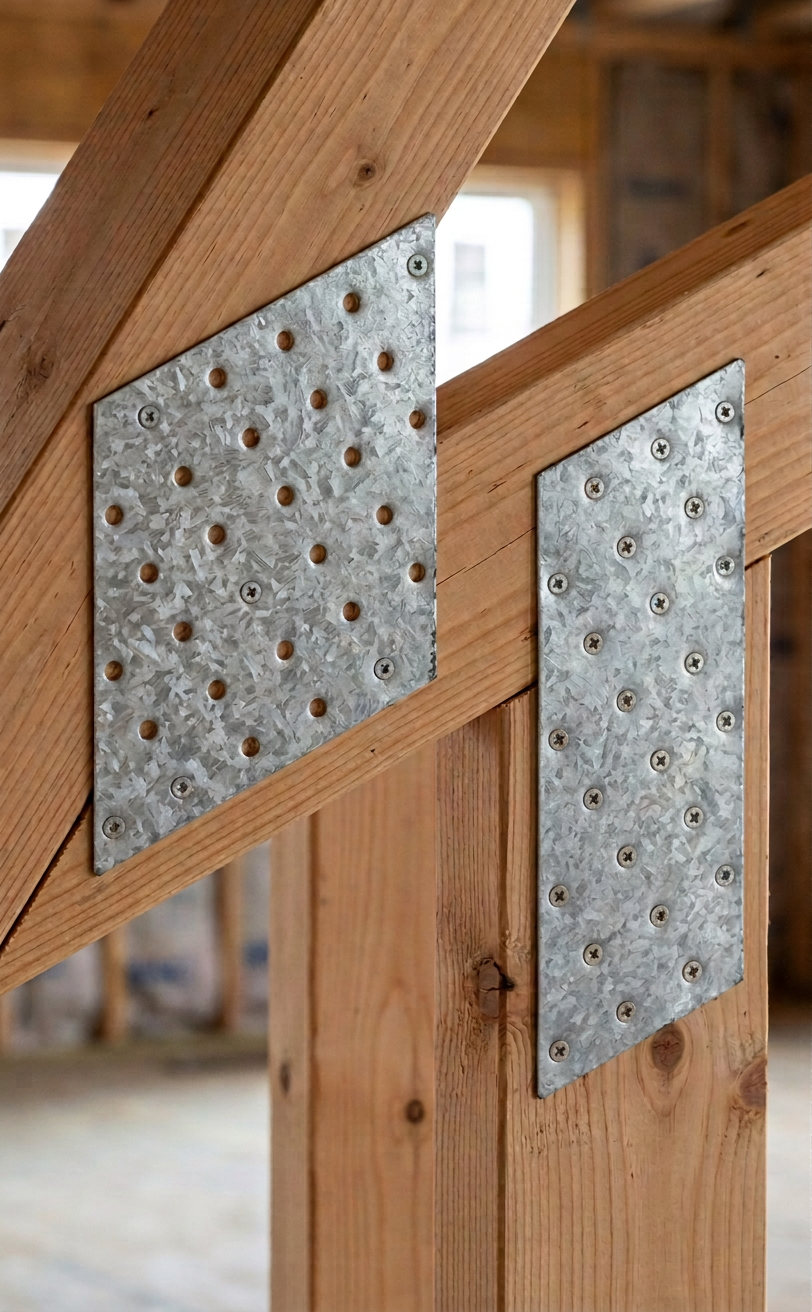

Perforated plates are used wherever the lateral faces of the timber elements being joined lie in the same plane. They are particularly common in roof truss assembly and timber frame connections. The versatile hole pattern allows flexible adaptation to a wide range of connection configurations.
Recommended fasteners:
- ANCHOR ring shank nails ø4 mm
- Timber connector screws
Certificates and Compliance
The product carries the CE marking and a Declaration of Performance, confirming compliance with European construction standards. For installation companies, this provides assurance that the connector meets all requirements for use in professional structural applications.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Connector Type | Perforated Plate |
| Material | Steel |
| Sheet metal thickness [mm] | 2 |
