Perforated plate flat connector PP 1 40x80x2.0
Description

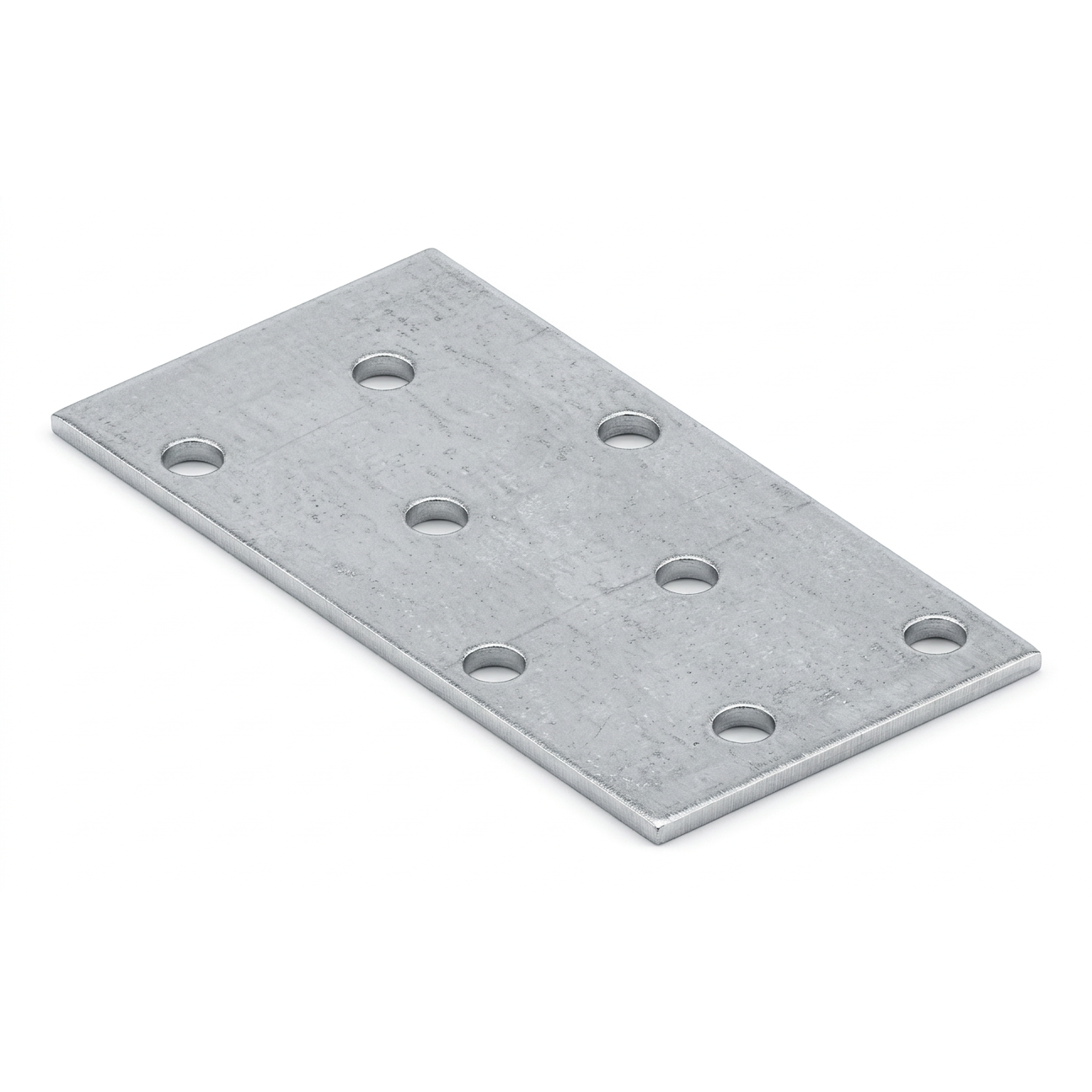

Perforated flat connector 40×80×2 mm – galvanised mounting plate
The flat connector 40×80 mm is a versatile perforated plate designed for structural connections where the lateral surfaces of the joined elements lie in the same plane. Thanks to 8 holes distributed symmetrically across the plate, this element enables both simple and more complex connections — particularly when assembling roof trusses and timber structures.
The plate is manufactured from 2 mm steel sheet with a zinc coating providing effective corrosion protection. The DX51D + Z275 material grade guarantees high mechanical strength and durability under exposure to varying weather conditions. The CE marking confirms the product's compliance with applicable European standards — a Declaration of Performance is included with the product.
The compact dimensions of 40×80 mm make the connector ideally suited for connections in confined installation spaces. The working surface area is 0.68 dm², allowing forces to be distributed evenly across the joint.
Technical Specifications

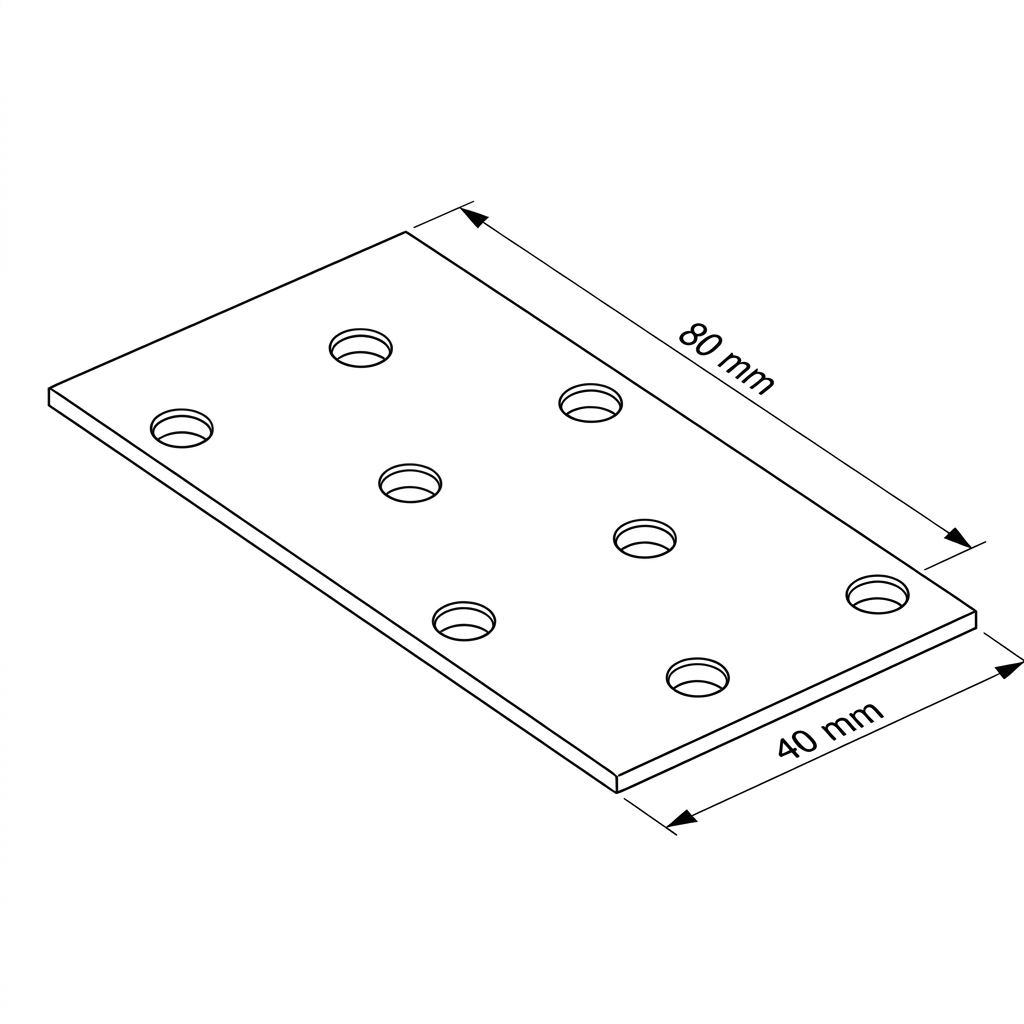

- Length: 80 mm
- Width: 40 mm
- Sheet thickness: 2 mm
- Material: DX51D + Z275
- Corrosion protection: zinc coating

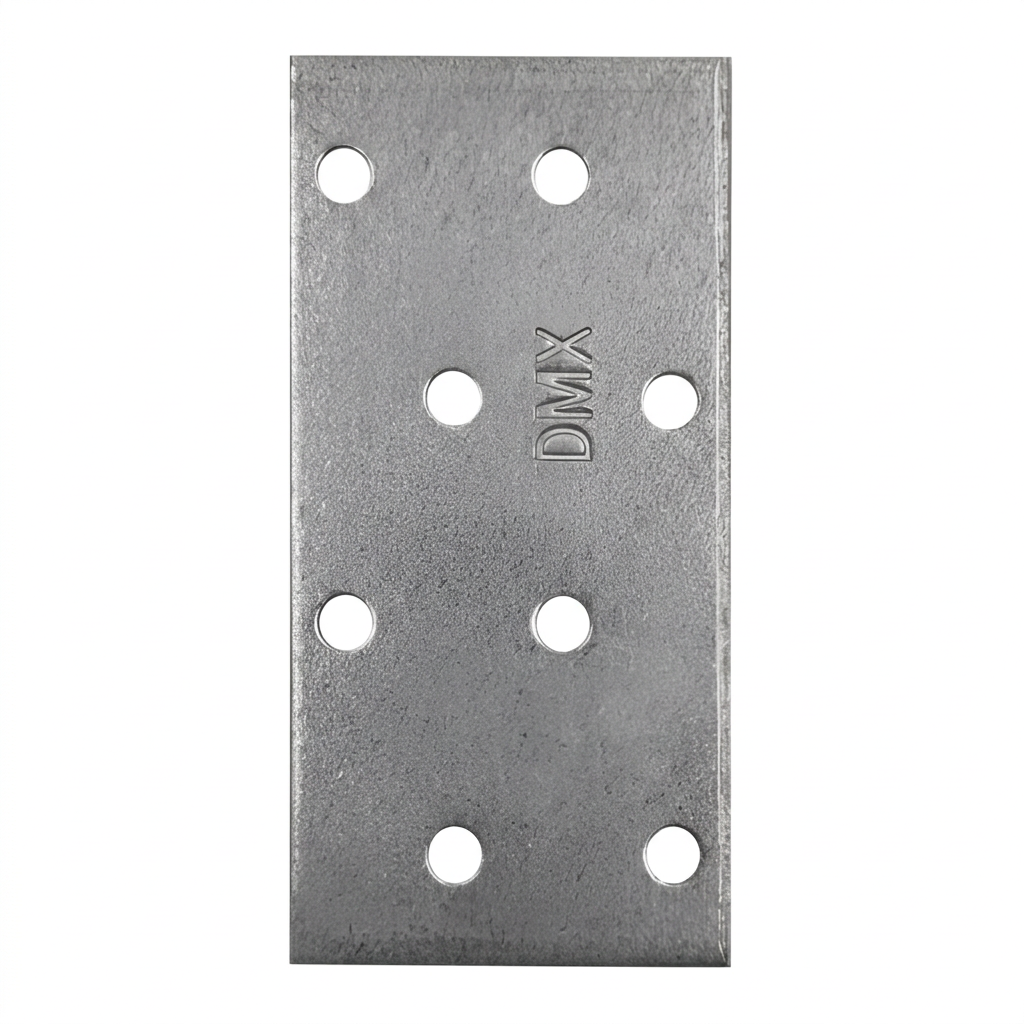

- Number of holes: 8
- Hole diameter: ø5 mm
- Surface area: 0.68 dm²
- Certification: CE — Declaration of Performance
Application and Installation

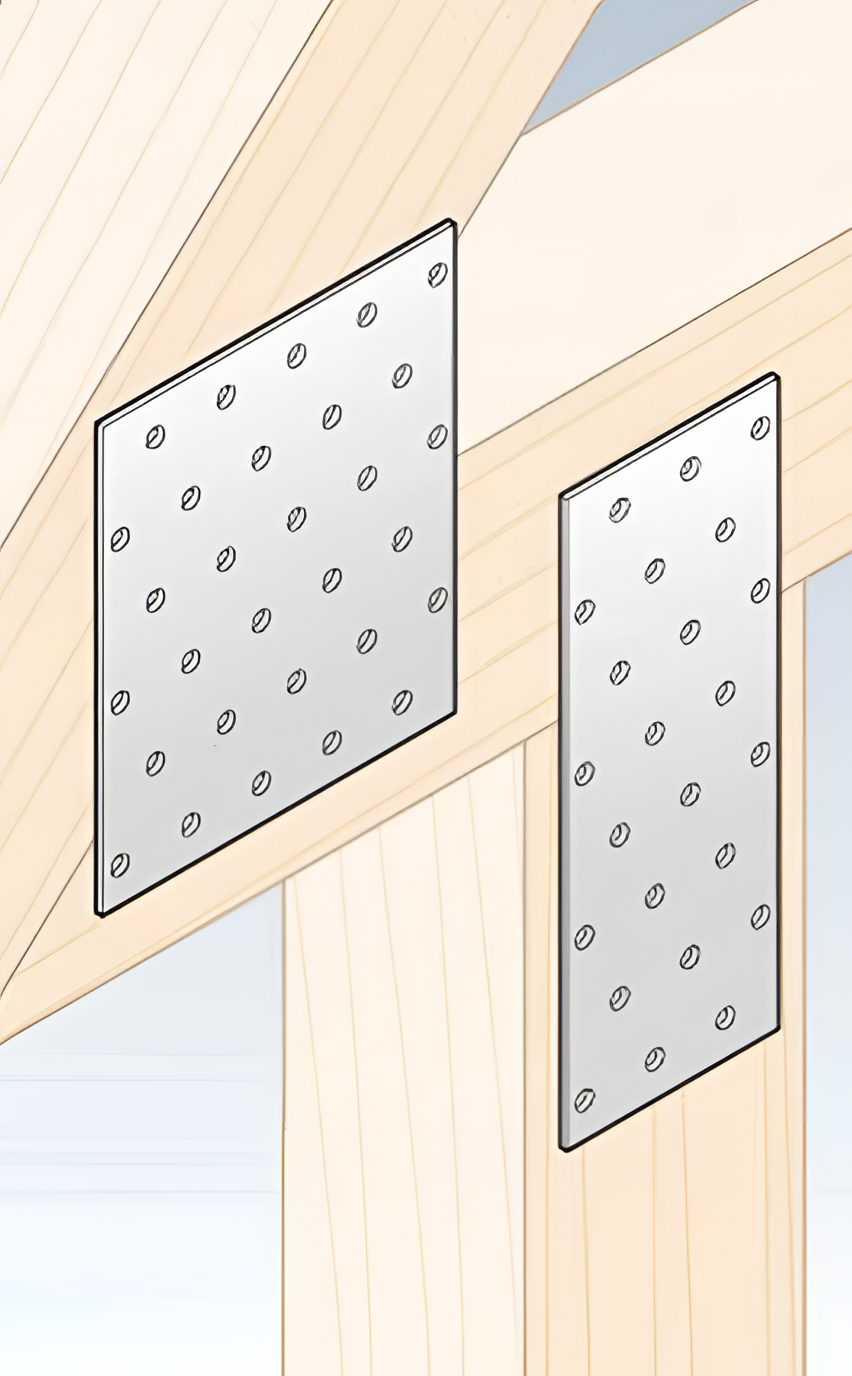

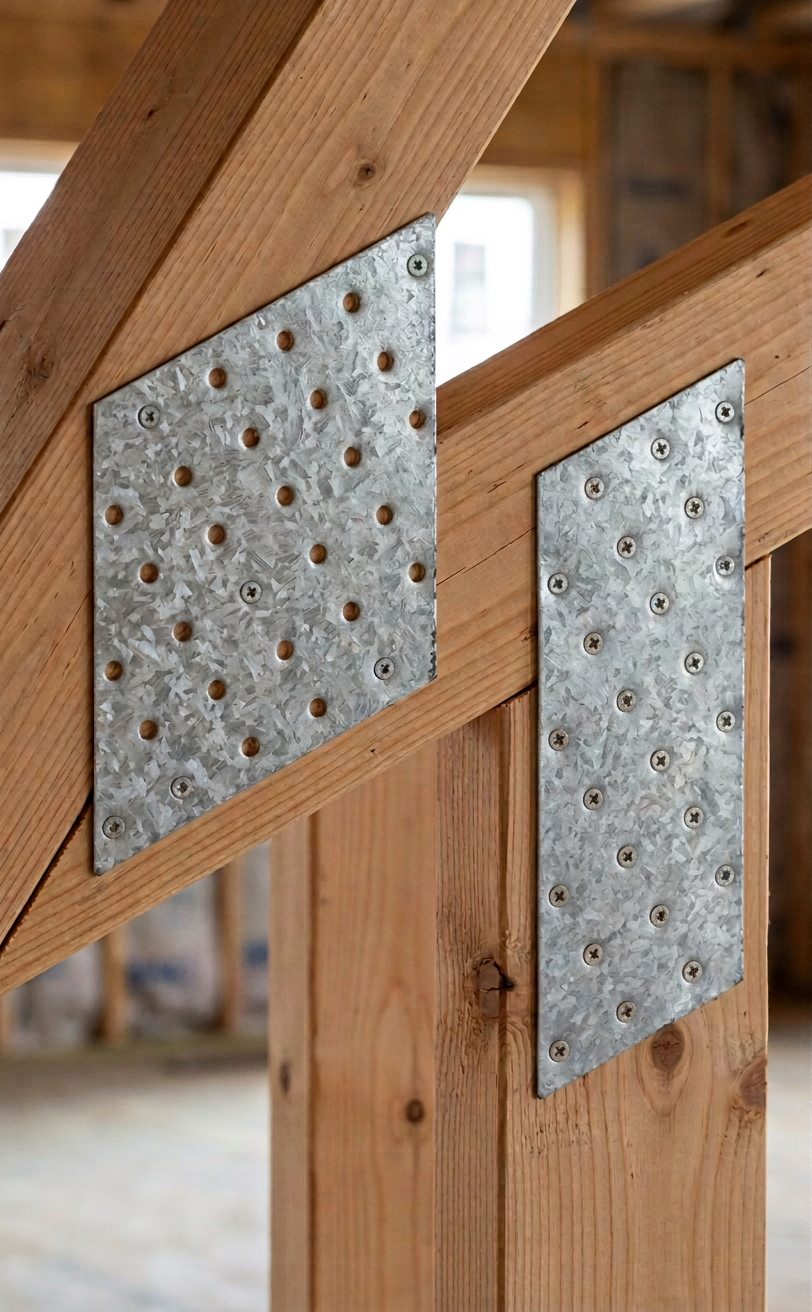

The flat connector is suitable wherever a strong, coplanar connection between timber or steel elements is required. The most common applications include the assembly of roof trusses, reinforcement of structural nodes, and joining beams and rafters. The 8 holes with a 5 mm diameter give the installer considerable flexibility in selecting the fastening pattern.
Recommended fasteners:
- ANCHOR ring-shank nails ø4 mm
- Timber screws specifically designed for connectors
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Perforated Plate |
| Material | Steel |
