M10×200 Double-Threaded Screw with 80×30 mm Adapter for PV Mounting
M10×200 double-threaded screw with 80×30×4 mm adapter for PV mounting. Screw made of stainless steel 1.4301 (A2), adapter made of stainless steel 1.4016 (H17). Includes EPDM washer and flange nuts. Adapter hole 10.5 mm. For pitched roofs (metal sheet, shingle, felt) and flat roofs.
PV-06-01-01Z Availability: In stock (large quantity)
Delivered within: 10 Business days
M10×300 mm A2 Double-Threaded Bolt for PV Adapters and Triangles with EPDM Washer
M10×300 mm double-threaded bolt made of A2 (1.4301) stainless steel. Dual thread — one end for screwing into timber, the other metric end for mounting roof adapters or triangles. Sold with flange nuts and an EPDM washer. Weight 0.155 kg. For installing PV structures on pitched roofs.
PV-06-03 Availability: In stock (large quantity)
Delivered within: 10 Business days
M12×250 Dual-Thread Bolt Stainless Steel A2 for PV Mounting with EPDM Seal
M12×250 dual-thread bolt made of A2 1.4301 stainless steel. Double thread: wood thread and metric M12. Weight 0.212 kg. For fixing PV adapters and triangles to timber roof structures. Supplied with flange nuts and EPDM washer.
PV-06-06 Availability: In stock (large quantity)
Delivered within: 10 Business days
Mounting plate for roofing 375x375mm CWL
375x375mm mounting plate for asphalt and plastic roof coverings, made of stainless steel H17 1.4016. Installation above or below membrane, without mechanical fastening. Compliant with EN 13707:2004+A2:2009 standard.
PV-27-02 Availability: In stock (large quantity)
Delivered within: 10 Business days
Mounting Screw and Seal Set 32mm for Mounting Plate and Z-Bracket CWL
32mm A2 stainless steel bolts | EPDM gaskets | Corrosion resistant. Mounting kit for photovoltaic systems including bolts, gaskets, nuts and washers. Weather-resistant components for outdoor PV installations. Compatible with CWL mounting plate and Z-bracket systems.
PV-27-03 Availability: In stock (large quantity)
Delivered within: 10 Business days
Roof Hook - Stainless Steel
Stainless steel H17 mounting hook for securing PV rails on pitched roofs. Provides high structural stability and durability, weather-resistant construction for photovoltaic installations.
PV-08-19 Availability: In stock (large quantity)
Delivered within: 10 Business days
Roof Hook for Pantile - SPEC - Stainless Steel H17
Stainless steel 1.4016 roof hook for interlocking tiles, dimensions 279x35x4mm, M10 mounting hole for rail profile. Designed for photovoltaic mounting systems, ensures structural stability and durability.
PV-08-37 Availability: In stock (large quantity)
Delivered within: 10 Business days
Roof Hook S450 Adjustable for pitched roofs
Adjustable roof hook S450 made of stainless steel 1.4016, dimensions 450x30x4mm, M10 hole for profile mounting. Designed for ceramic and concrete roof tiles up to 60mm thick, mounting of 40x40mm rails to battens up to 50mm. Compensates roof truss irregularities, elongated hole for position adjustment.
PV-08-07 Availability: In stock (large quantity)
Delivered within: 10 Business days

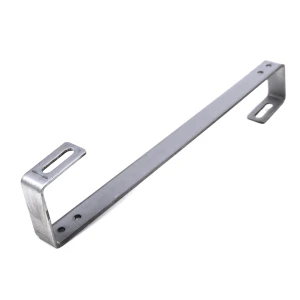

Roof Hook S450 for pitched roofs
Stainless steel 1.4016 roof hook, dimensions 450x30x4mm with M10 hole for photovoltaic profile. Designed for ceramic and concrete roof tiles up to 60mm thick, mounting 40x40mm rails to battens up to 50mm.
PV-08-01 Availability: In stock (large quantity)
Delivered within: 10 Business days

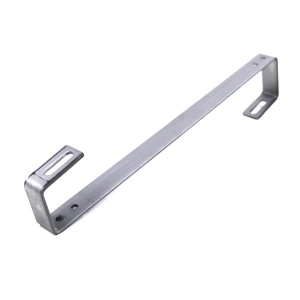

Roof Hook S470 for Pitched Roofs
Roof hook stainless steel 1.4016 | 470x30x4mm | M10 hole. Designed for ceramic and concrete roof tiles up to 60mm thick. Mounting of 40x40mm rails to battens up to 50mm. Compatible with standard PV mounting systems.
PV-08-24 Availability: In stock (large quantity)
Delivered within: 10 Business days

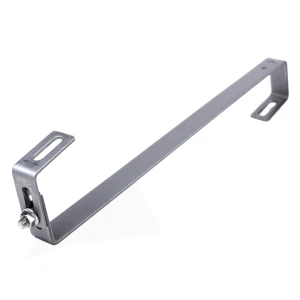

Roof Hook S500 Adjustable for Pitched Roofs
Adjustable roof hook 500x30x4mm made of stainless steel 1.4016 for mounting photovoltaic panels on pitched roofs. Designed for ceramic and concrete roof tiles with maximum thickness of 60mm. Enables installation of 40x40mm rails to battens up to 50mm. Slotted M10 hole allows for adjustment of the mounting structure position.
PV-08-09 Availability: In stock (large quantity)
Delivered within: 10 Business days

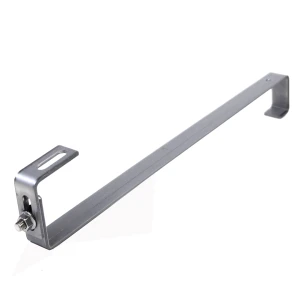

Roof Hook S520 Adjustable for Pitched Roofs
Adjustable roof hook 520x30x4mm made of stainless steel 1.4016 with M10 hole for mounting rail. Designed for installing PV panels on ceramic or concrete roof tiles max. 60mm thick. Allows compensation for roof truss irregularities.
PV-08-23 Availability: In stock (large quantity)
Delivered within: 10 Business days
Roof Hook S530 Adjustable for Pitched Roofs
Adjustable roof hook 530x30x4mm made of stainless steel 1.4016 with M10 hole for mounting rail. Designed for installing PV panels on pitched roofs with ceramic or concrete tiles up to 60mm thick. Allows compensation for roof truss irregularities.
PV-08-26 Availability: In stock (large quantity)
Delivered within: 10 Business days
Roof Hook S530 for Pitched Roofs
Stainless steel 1.4016 roof hook, dimensions 530x30x4mm, M10 hole for PV mounting rail. Installation on ceramic or concrete roof tiles max. 60mm thick, rails 40x40mm, batten max. 50mm.
PV-08-25 Availability: In stock (large quantity)
Delivered within: 10 Business days
S500 Roof Hook for Pitched Roofs 500x30x4mm M10 Stainless Steel
Stainless steel 1.4016 roof hook, dimensions 500x30x4mm, M10 hole for PV profile. Designed for ceramic and concrete roof tiles max. thickness 60mm. Mounting of 40x40mm rails to batten max. 50mm.
PV-08-03 Availability: In stock (large quantity)
Delivered within: 10 Business days

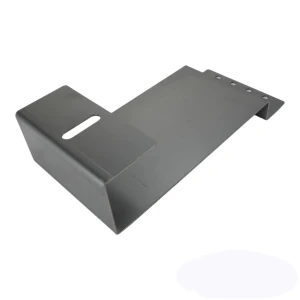

Stainless Steel Wide Pantile Hook 300mm
Tile roof hook 300x135x2mm made of stainless steel 1.4016 (H17) grade 430. Provides stable mounting for solar installations on tile roofs, corrosion resistant and weatherproof for long-term durability.
PV-08-27 Availability: In stock (large quantity)
Delivered within: 10 Business days

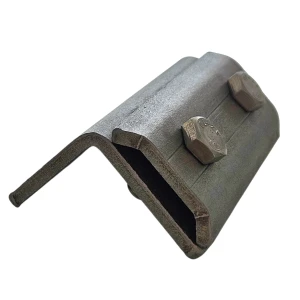

Standing seam mounting bracket H17 1.4016
Standing seam mounting bracket | Stainless steel 1.4016 | 44x90x44mm. Roof clamp for photovoltaic systems, designed for standing seam metal roofs. Non-penetrating installation preserves roof integrity and waterproofing. Compatible with standard PV rail mounting systems.
PV-08-21 Availability: In stock (large quantity)
Delivered within: 10 Business days
T-Hook 145mm (4-5-5) grade 1.4016 adjustable VARIO type 2
Adjustable VARIO roof hook type 4-5-5 | Stainless steel 1.4016 | 145x30x5/5mm/4mm. Mounting bracket with M10 hole for securing PV panel rails on ceramic and concrete roof tiles. Corrosion-resistant construction ensures long-term durability in outdoor installations.
PV-08-40 Availability: In stock (large quantity)
Delivered within: 10 Business days
