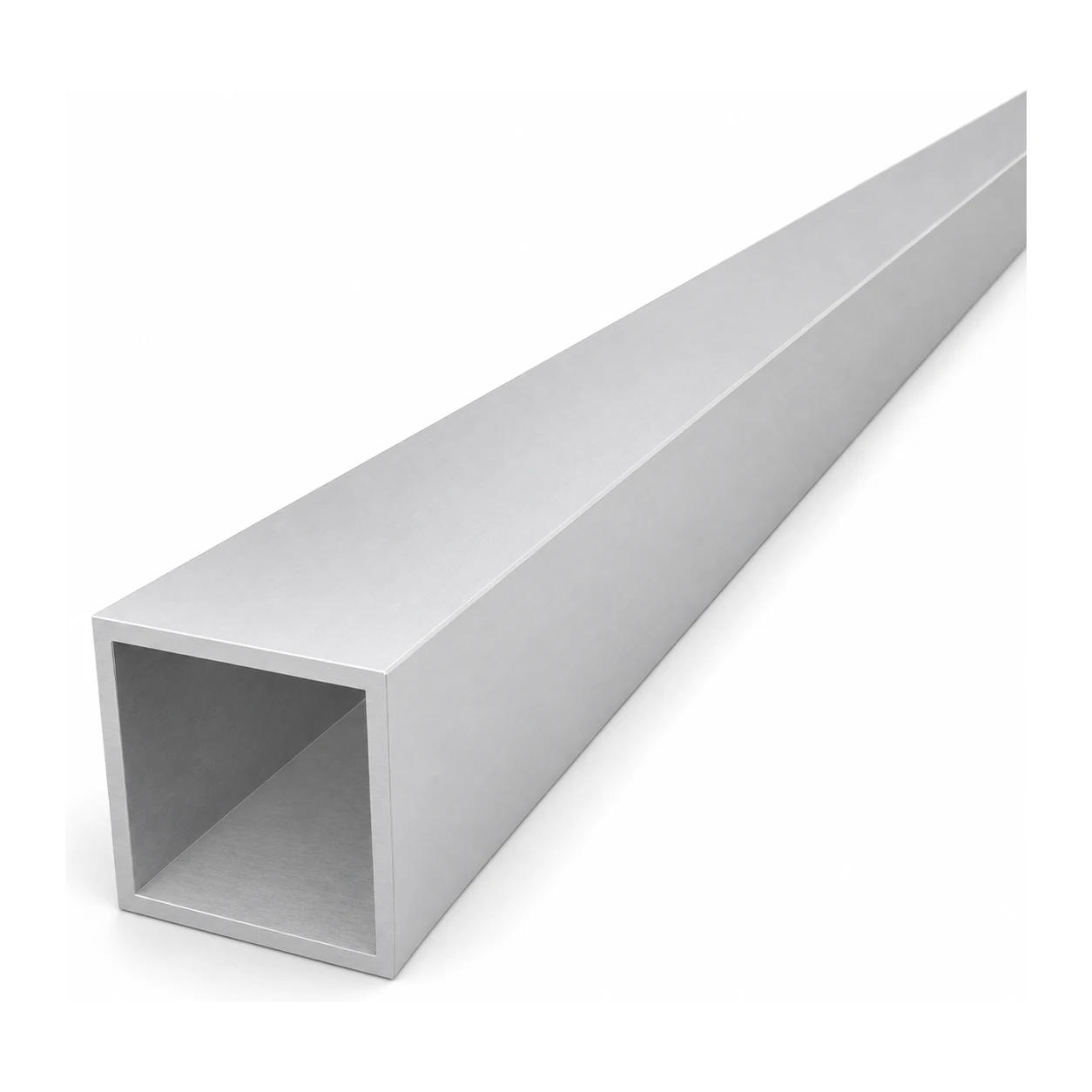

Square aluminium tube 40×40×3 mm – closed profile L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66, closed profile. External side 40 mm, wall thickness 3 mm, length 2000 mm. Weight 2.4 kg. Raw surface, non-anodised.
Product code: 001-676
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 3
- Length [mm] 2000
- Height [mm] 40
Description
Square aluminium tube 40×40×3 mm – closed profile L=2000 mm
Square aluminium tube 40×40×3 mm is a versatile closed profile with a length of 2000 mm, made of EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its favourable strength-to-weight ratio and high corrosion resistance, it is a reliable structural element in a wide range of applications — from frames and mounting frames, through balustrades and handrails, to aluminium structures, furniture components, and modelling and DIY projects.
The raw (non-anodised) profile gives complete freedom for further processing — it is easy to cut, drill, bend and join, which means shorter turnaround time and lower installation costs on site. The square closed section ensures high rigidity with relatively low weight.
Technical specification

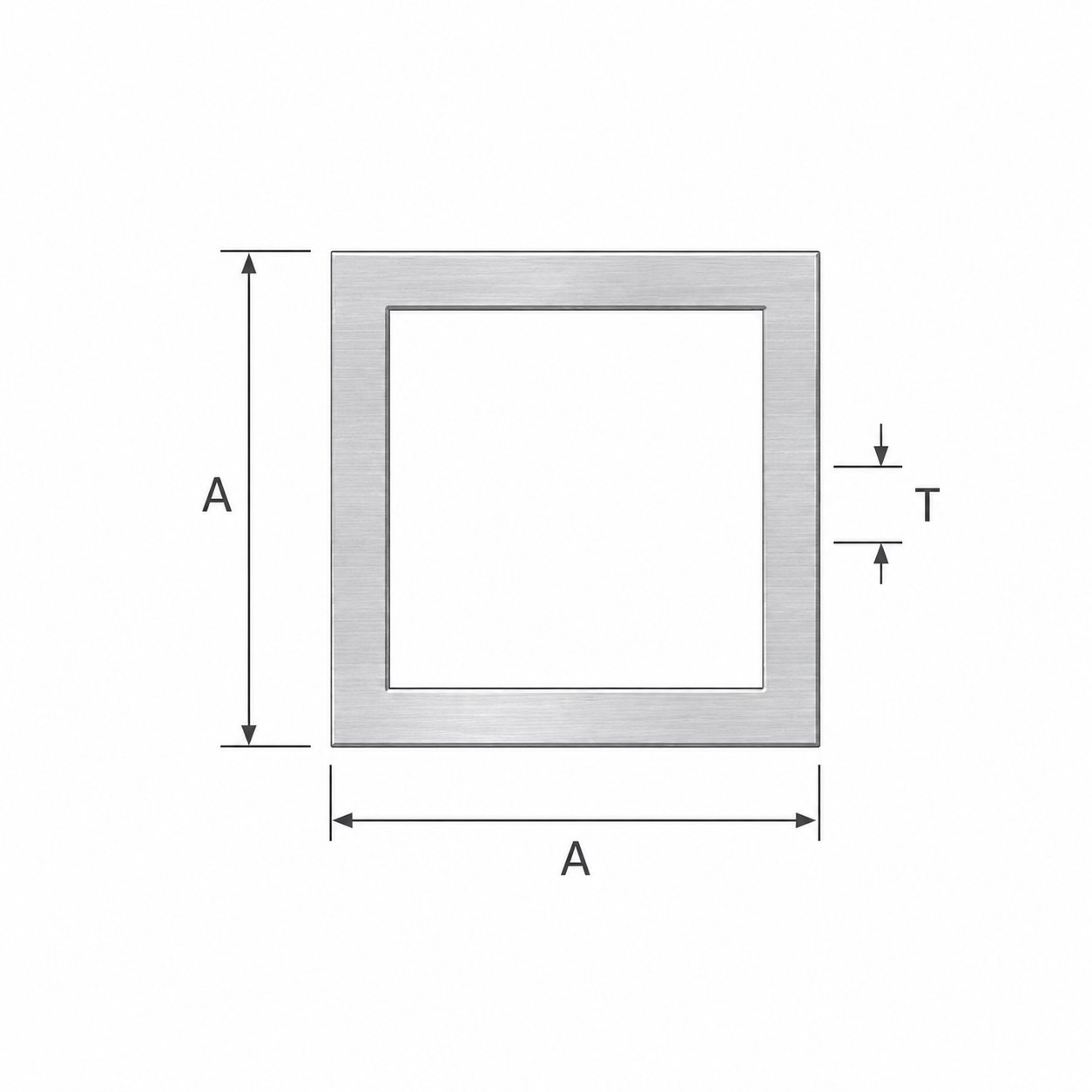

- Section: closed square tube
- Outer side (A): 40 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions: 40 × 40 × 2000 mm
- Weight: 2.4 kg (1.2 kg/m)
- Material: EN AW-6060 T6/T66 aluminium (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fences
- Mounting frames and supports
- Furniture and decorative elements
- Modelling and workshop projects
The profile is available in a range of cross-section sizes and wall thicknesses, allowing you to choose the optimum variant for the specific strength and dimensional requirements of your project.
The profile is supplied in fixed-length sections, which simplifies material planning when cutting to size and minimises waste on site.
