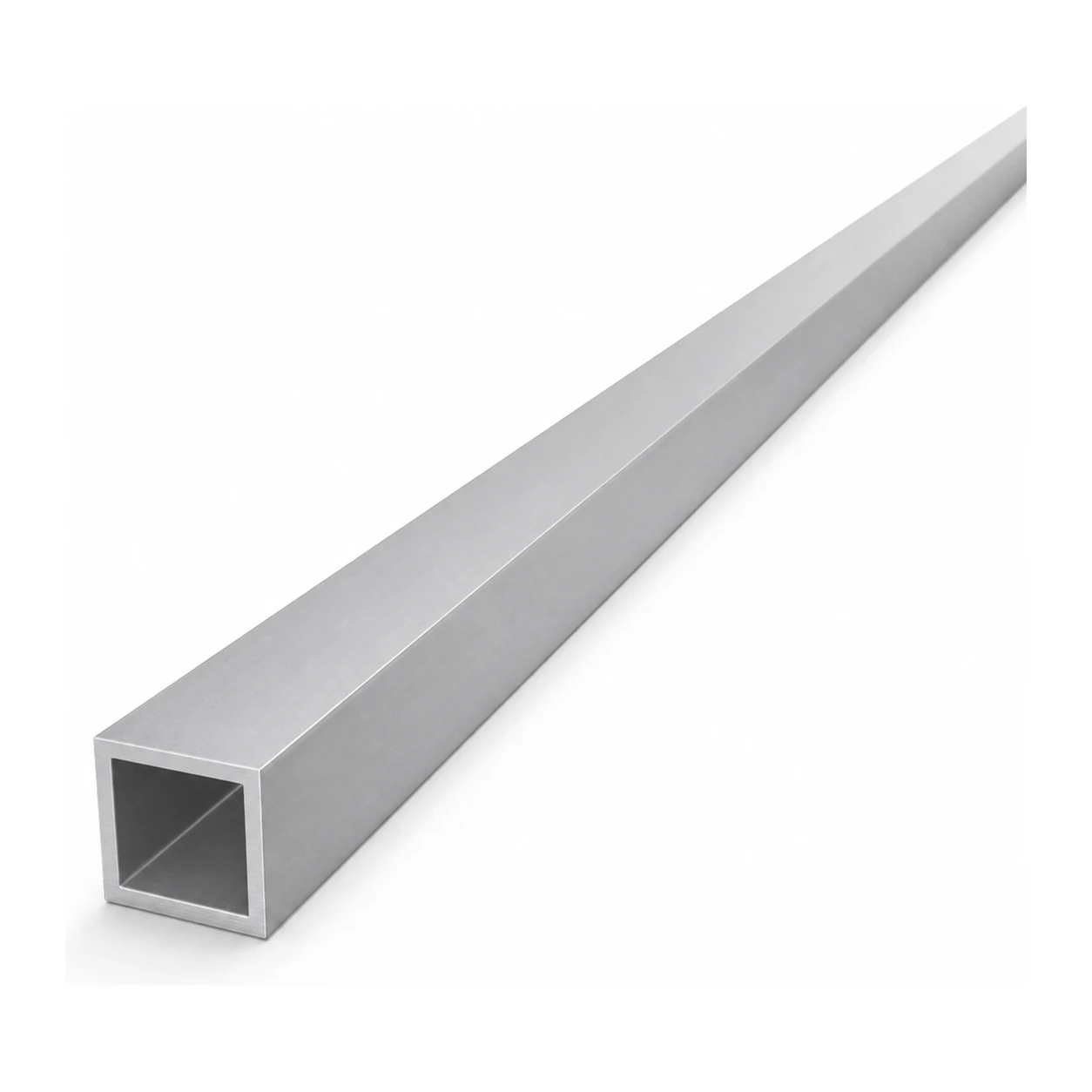

Square aluminium tube 20×20×2 mm – closed profile L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66, 20×20×2 mm, length 2000 mm. Weight 0.76 kg. Raw, non-anodised surface. For structures, balustrades, frames and racking.
Product code: 001-691
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 2
- Length [mm] 2000
- Height [mm] 20
Description
Square aluminium tube 20×20×2 mm – closed profile L=2000 mm
Square aluminium tube 20×20×2 mm with a length of 2000 mm is a versatile closed profile designed for constructing lightweight aluminium structures, racking, frames and balustrades. Thanks to the use of the EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), the profile combines low weight with high rigidity and natural corrosion resistance — without the need for additional surface protection.
The raw, non-anodised surface allows for further processing — anodising, powder coating or leaving in its factory state. The profile is easy to cut, drill, bend and join, resulting in fast installation and low labour costs on site.
Technical specification
- Cross-section: closed square tube
- External side (A): 20 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (side × side × length): 20 × 20 × 2000 mm
- Weight: 0.76 kg (0.38 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, no. 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frameworks
- Balustrades, handrails and fencing
- Frames and supports for equipment
- Furniture and decorative elements
- Scale modelling and DIY projects
The profile is available as part of a product range — in many cross-section size and wall thickness variants, allowing the optimum profile to be selected for the loads and requirements of a specific project.
