Square aluminium tube 150×150×3 mm – closed profile EN AW-6060, L=2000 mm
0
Description

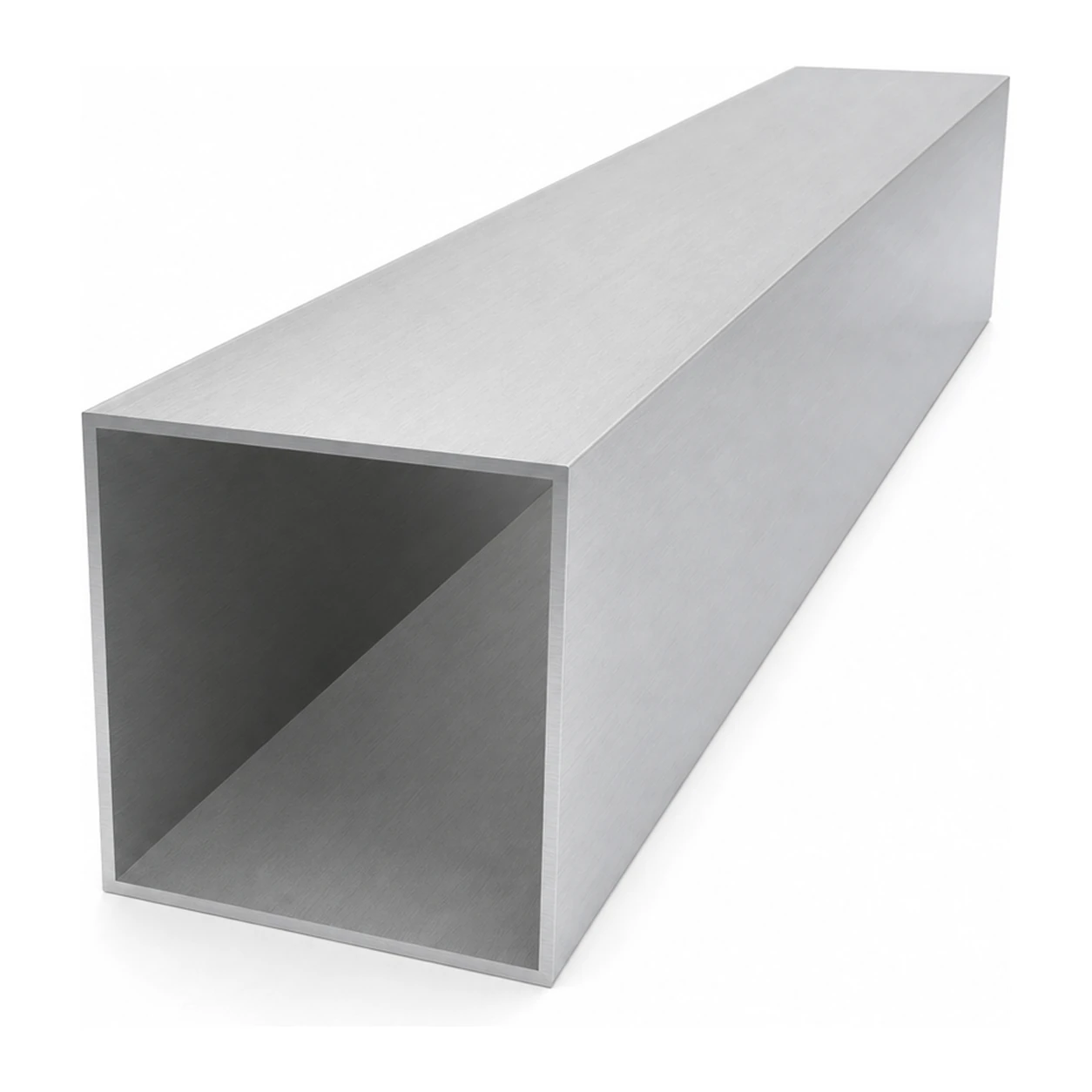

Square aluminium tube 150×150×3 mm – closed profile EN AW-6060, L=2000 mm
Square aluminium tube 150×150×3 mm is a robust closed profile with a square cross-section, made from aluminium alloy EN AW-6060 T64 (PA38 / AlMgSi0.5). Thanks to its large cross-section and 3 mm wall thickness, the profile provides high rigidity while remaining lightweight — just 9.52 kg per 2-metre length. The raw, non-anodised surface allows complete freedom for further processing — anodising, powder coating, or leaving in its natural state.
The 6060 series aluminium combines good mechanical strength with excellent resistance to atmospheric corrosion, making the profile suitable for both indoor and outdoor applications. It is easy to cut, drill, bend, and join — reducing assembly time on site and allowing components to be flexibly adapted to the project.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Frames and supports for equipment and installations
- Furniture structures and decorative elements
- Modelling, prototyping, and DIY projects
Technical specification
- Cross-section: closed square tube
- Outer side (A): 150 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (side × side × length): 150 × 150 × 2000 mm
- Weight: 9.52 kg (unit weight: 4.76 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
The profile is available in a standard range — in many cross-section sizes and wall thicknesses. This allows the optimum variant to be selected to meet the strength and weight requirements of a specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 150 |
