Square aluminium tube 100×100×5 mm – closed profile L=2000 mm
Leave feedback on the product
Square aluminium tube EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Cross-section 100×100 mm, wall thickness 5 mm, length 2000 mm. Weight 10.26 kg. Raw, non-anodised surface.
Product code: 001-828
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 5
- Length [mm] 2000
- Height [mm] 100
Description
Square aluminium tube 100×100×5 mm – closed profile L=2000 mm

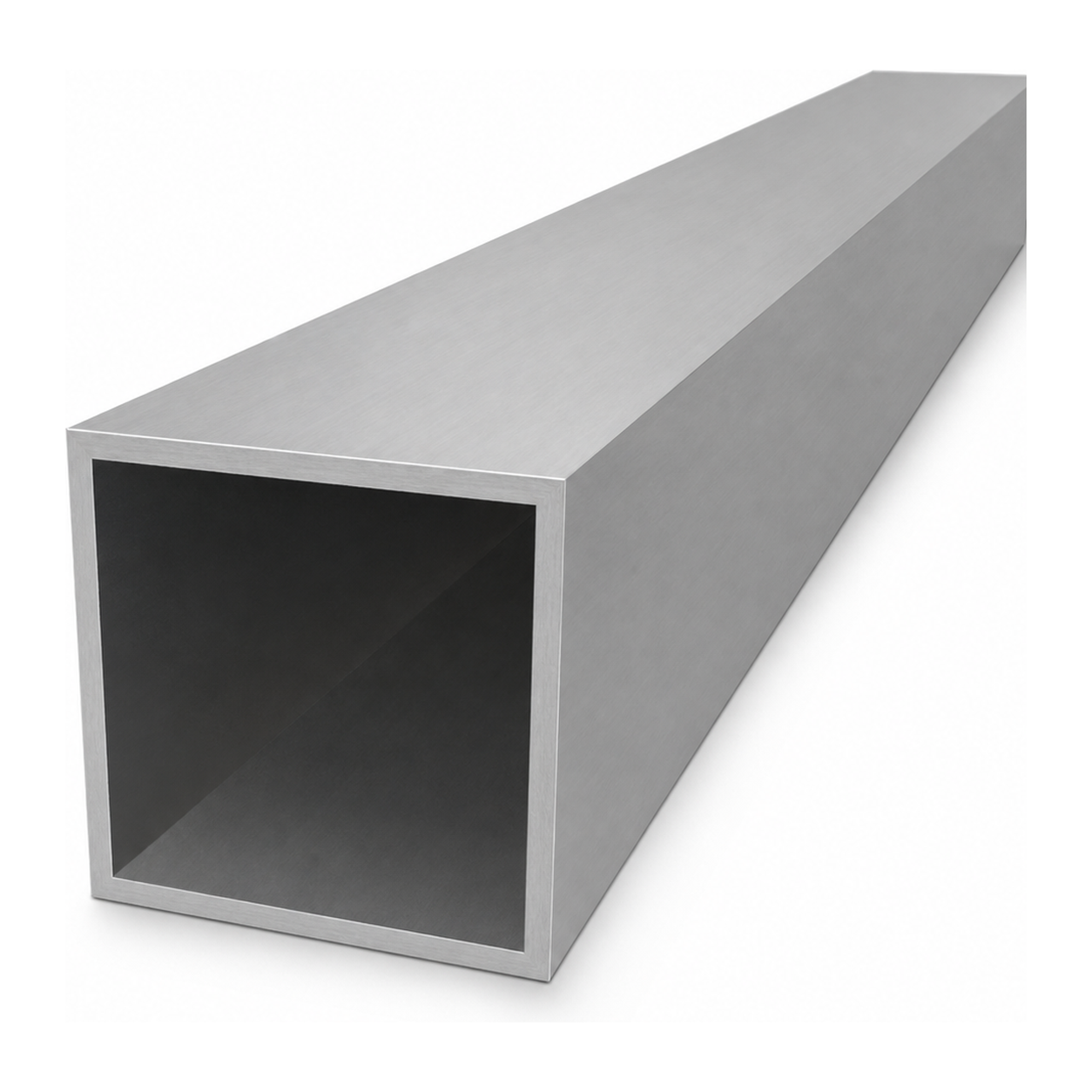

Square aluminium tube 100×100×5 mm is a sturdy closed profile with a square cross-section, made from aluminium alloy EN AW-6060 T6/T66 (PA38 / AlMgSi0.5). Combining lightness with high rigidity, it is ideally suited as a load-bearing element in aluminium structures, balustrades, frames and racks – wherever ease of machining and corrosion resistance are essential.
The profile, available in a length of 2000 mm, is ready for cutting, drilling, bending and mechanical joining. The raw (non-anodised) surface allows any finish to be applied – anodising, powder coating or leaving in its natural state.

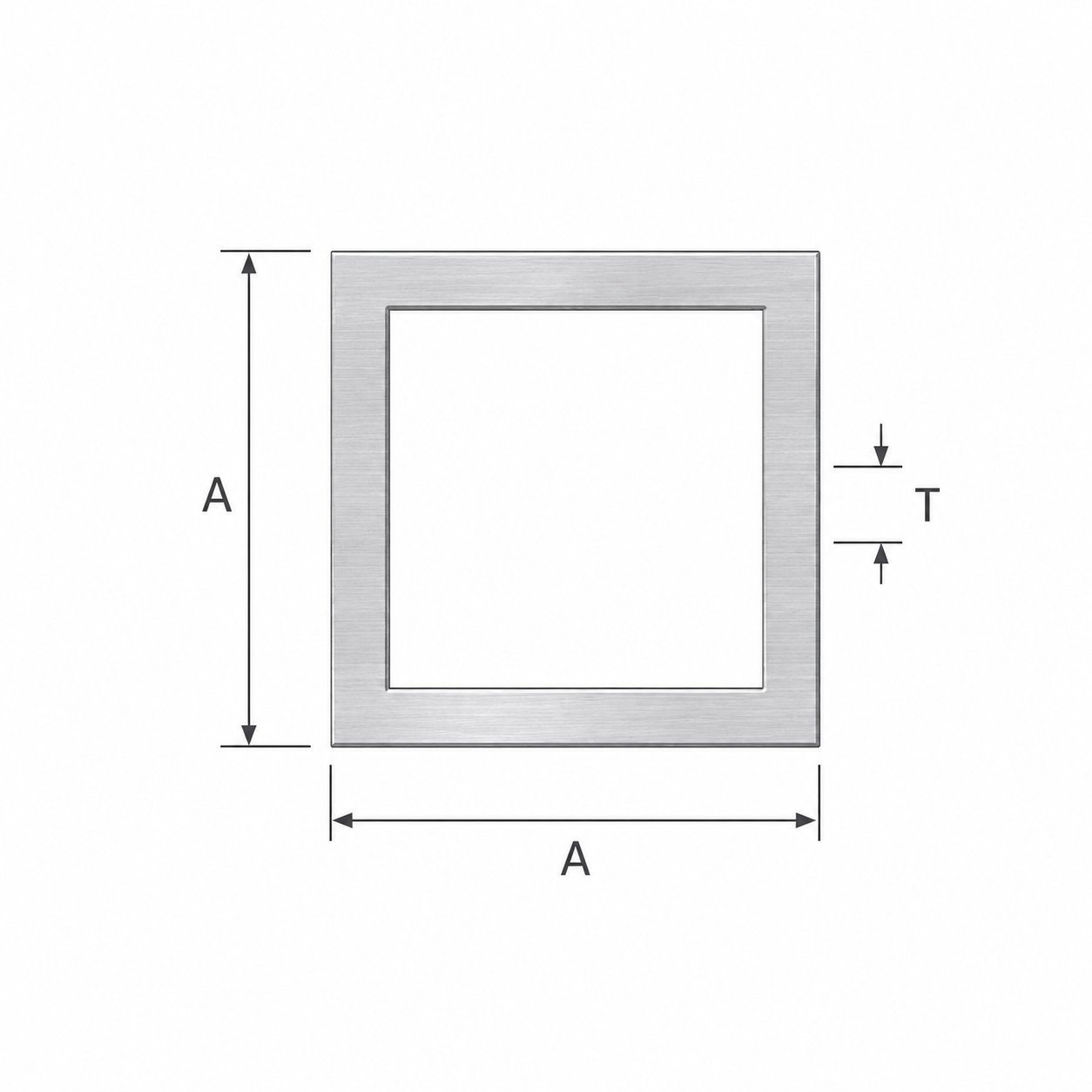

Technical specification
- Cross-section: closed square tube
- Outer side (A): 100 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Dimensions (side × side × length): 100 × 100 × 2000 mm
- Weight: 10.26 kg (5.13 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames, stands and shelving
- Aluminium furniture
- Decorative and finishing elements
- Modelling and DIY projects
The profile is available as part of a product range – other cross-section sizes and wall thicknesses are also offered, making it easy to select the optimum variant for any specific project.
