Square aluminium tube 100×100×2 mm – closed profile L=2000 mm
0
Description

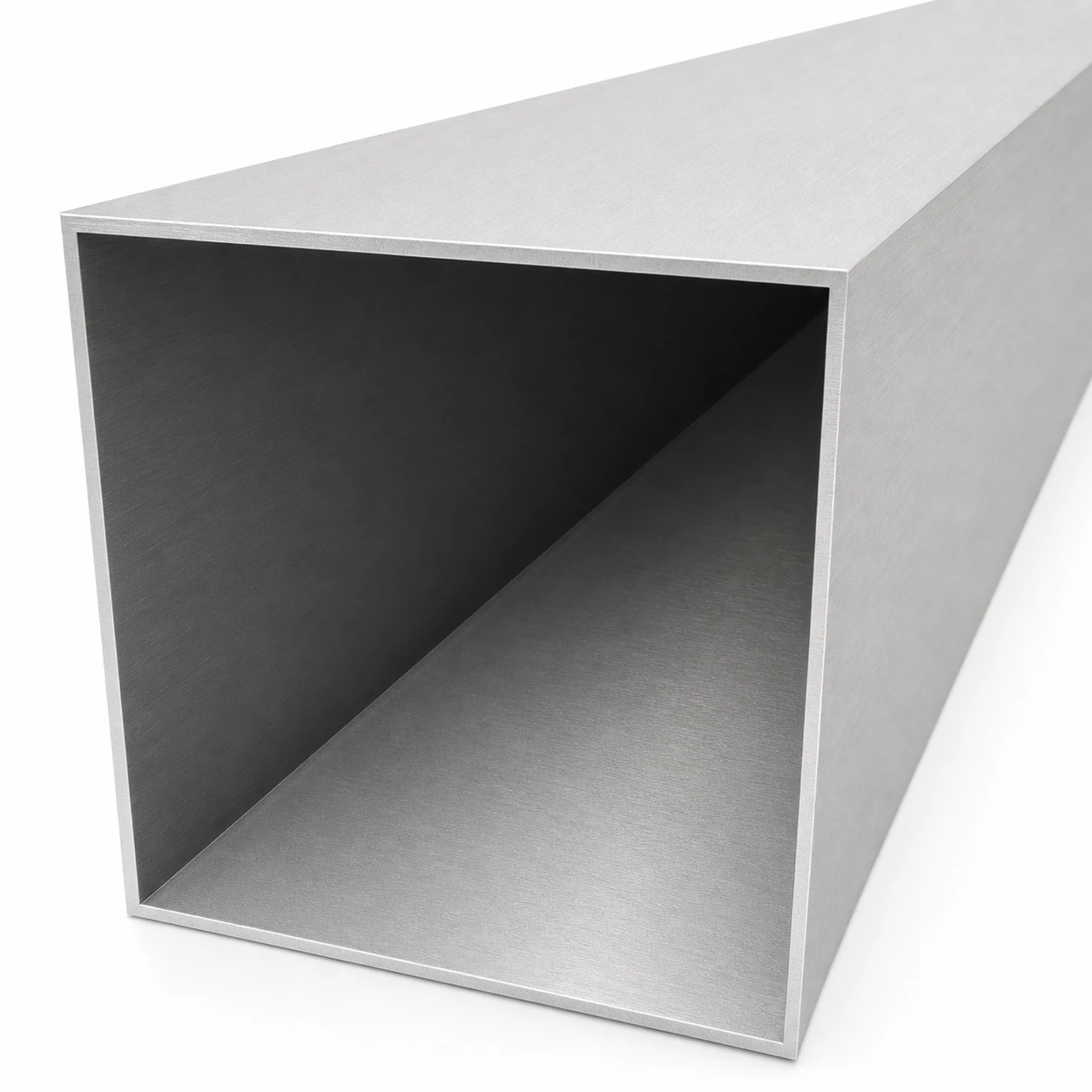

Square aluminium tube 100×100×2 mm – closed profile L=2000 mm
Square aluminium tube 100×100×2 mm with a length of 2000 mm is a robust closed profile made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). With a square cross-section of 100 mm per side and a wall thickness of 2 mm, it combines high rigidity with a low self-weight of just 4.23 kg per 2-metre length. The raw, non-anodised surface allows for further processing — painting, anodising, or powder coating in accordance with the requirements of each specific project.
The profile is easy to cut, drill, bend, and join, resulting in faster on-site installation and reduced labour costs. Aluminium alloy 6060 provides natural corrosion resistance, eliminating the need for additional surface protection in many indoor applications.
Technical specification

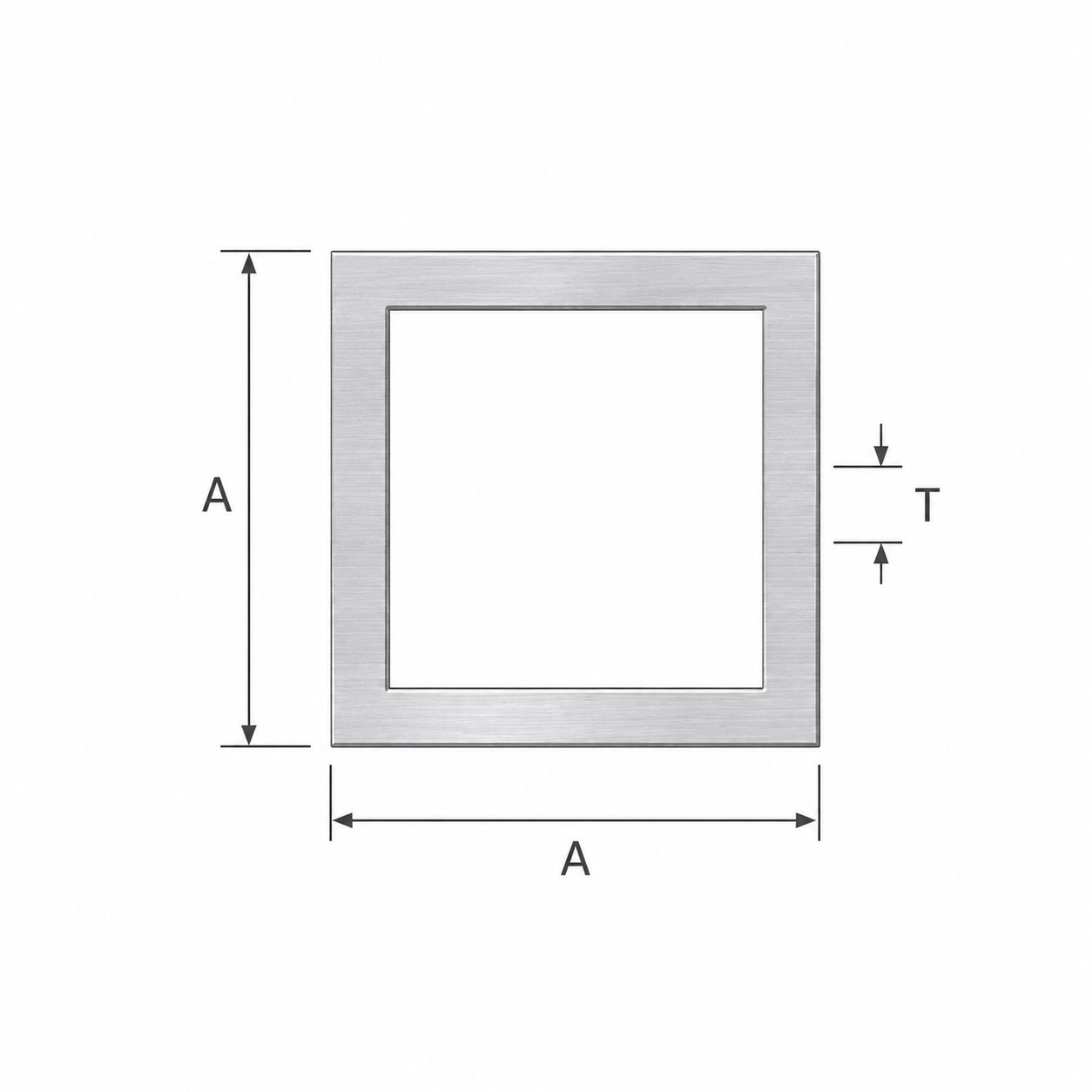

- Cross-section: closed square tube
- External side (A): 100 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (side × side × length): 100 × 100 × 2000 mm
- Weight: 4.23 kg (2.117 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frameworks
- Balustrades and handrails
- Mounting frames and brackets
- Furniture and decorative elements
- Scale modelling and DIY projects
The profile is available in a range covering many cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for the loads and design requirements of any project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
