Socket set screw DIN 913 M5x5 A2 – flat point, hexagon socket
Description

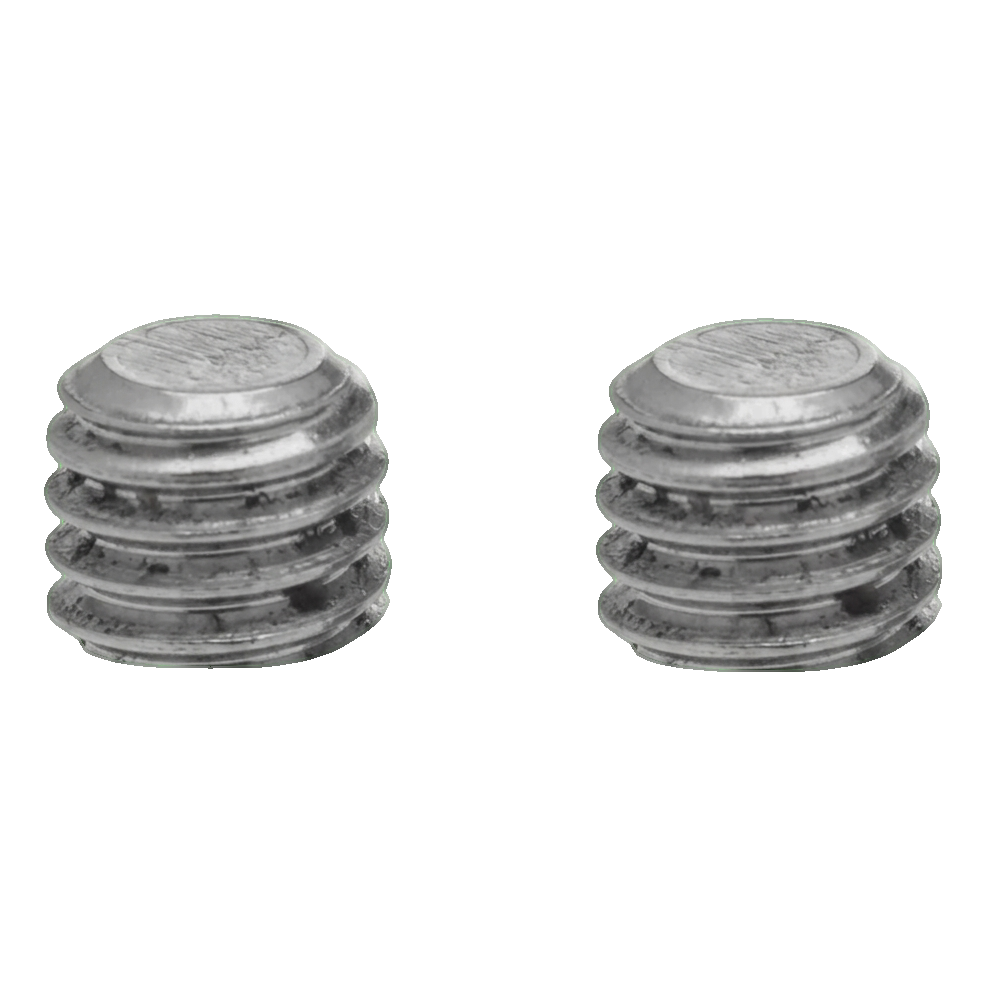

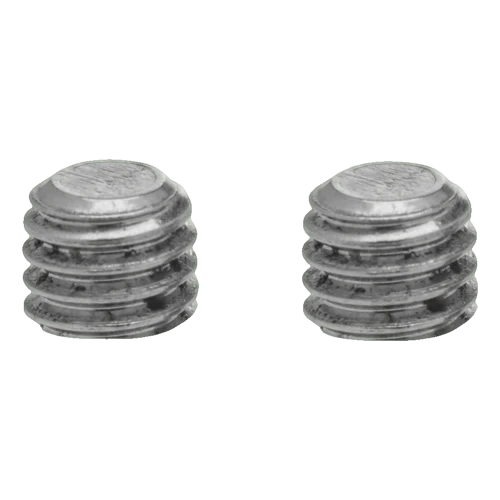

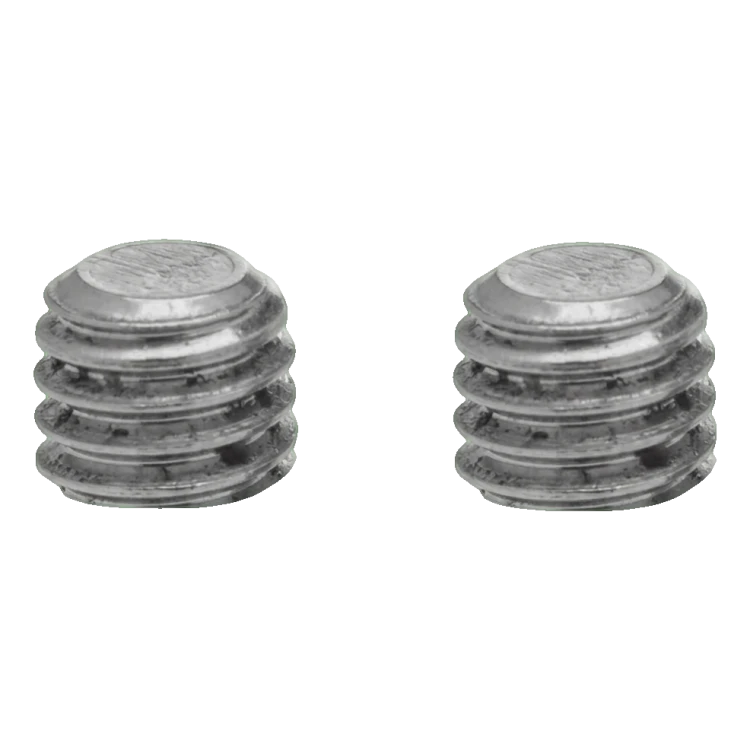

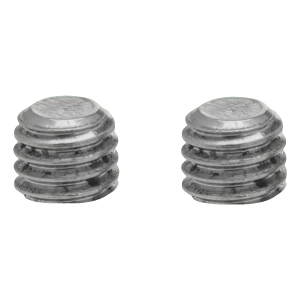

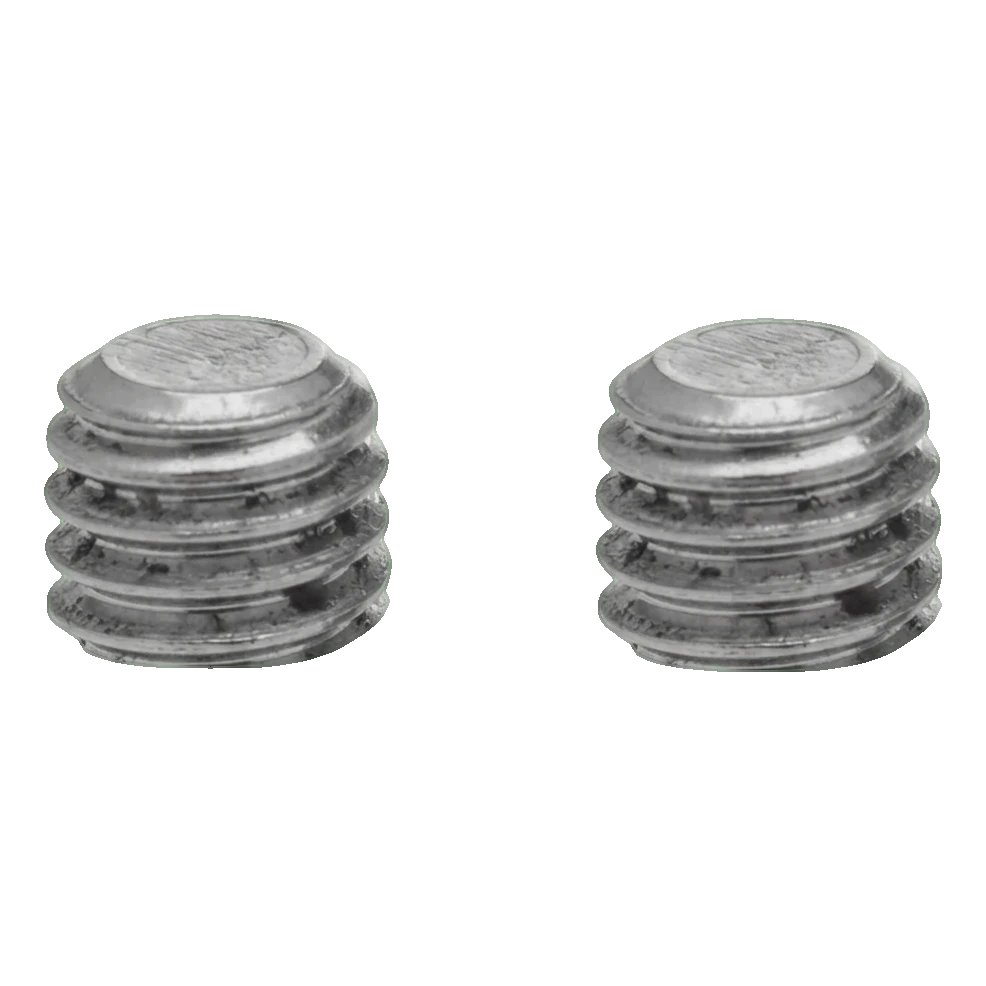

Socket set screw DIN 913 M5x5 A2 – flat point, hexagon socket
Socket set screw DIN 913 M5x5 made from A2 stainless steel (AISI 304) with hexagon socket and flat point. A reliable fastening component used in balustrade constructions, handrails and mounting systems — wherever precise clamping of elements is required without protruding screw head.
Construction from stainless steel A2 (AISI 304) guarantees high corrosion resistance, allowing the screw to be used both indoors and outdoors — without risk of rusting or loss of mechanical properties. The flat point ensures uniform pressure against the surface of the fastened element, minimising the risk of material damage.
Compact dimensions (M5x5 mm) and installation with 2.5 mm hex key enable convenient work even in hard-to-reach places. The screw complies with DIN 913 standard, confirming conformity with European dimensional and strength standards.
Technical parameters
- Type: socket set screw with flat point
- Standard: DIN 913
- Thread: M5
- Thread diameter: 5.0 mm
- Overall length: 5.0 mm
- Socket: hexagon (hex key)
- Hex key: 2.5 mm
- Material: stainless steel A2 (AISI 304)
- Corrosion resistance: high – suitable for indoor and outdoor applications
Application
The socket set screw is ideal as a fastening component in balustrade systems — for locking handrails, posts, connectors and other components. Thanks to the absence of a protruding head, it does not disturb the aesthetics of the connection and allows for concealed, invisible fastening. Also used in steel constructions, machines and equipment wherever clamping is required without transferring large axial forces.
Technical data
| Material | A2 - stainless steel |
| Thread type | M5 |
