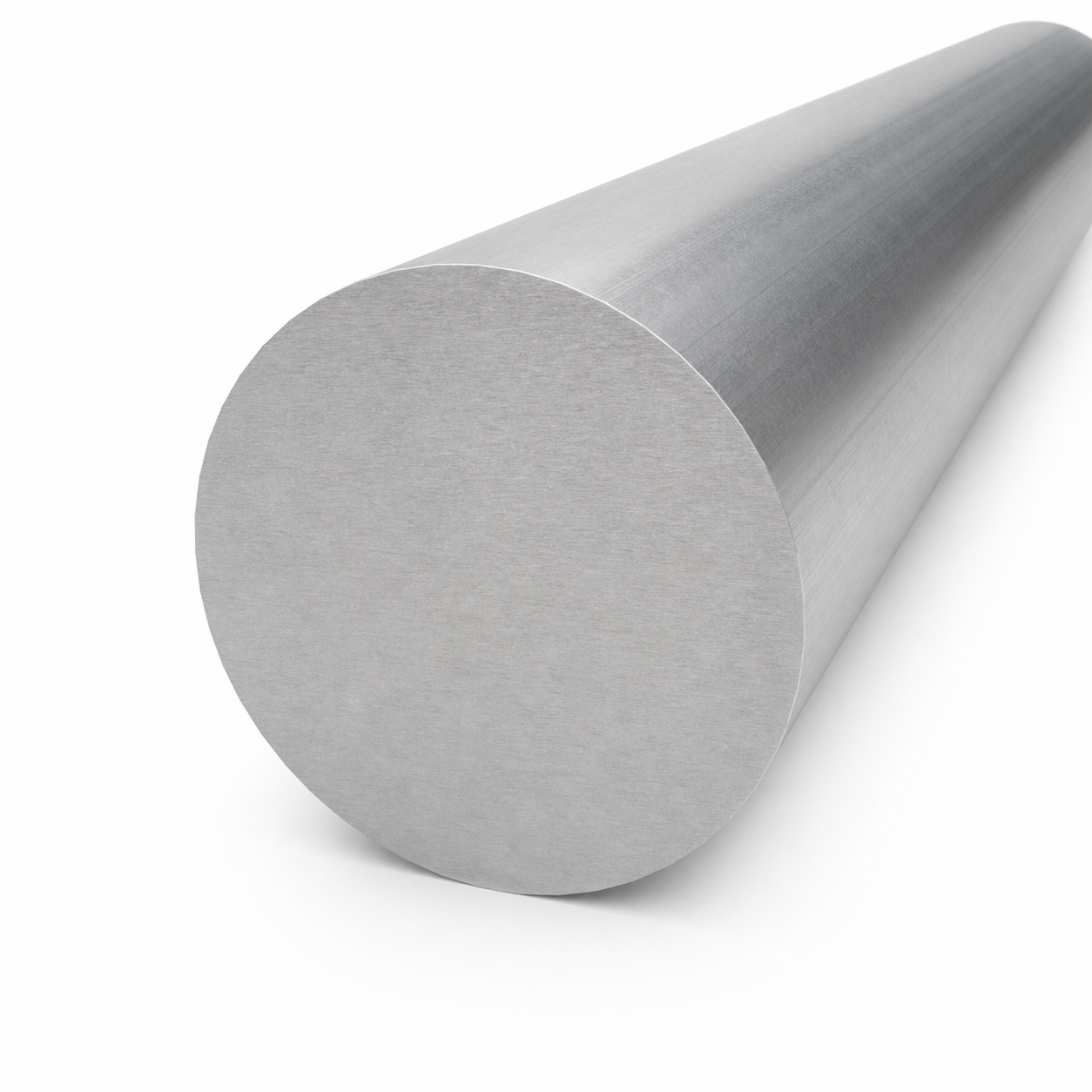

Round Solid Aluminium Bar Ø150 mm L=2000 mm – Duralumin 2017A T4
Leave feedback on the product
Round solid aluminium bar EN AW-2017A T4 (AlCu4MgSi, duralumin). Diameter Ø150 mm, length 2000 mm. Weight 98.96 kg. Raw, non-anodised surface.
Product code: 001-909
Product features
[PIM] prety-okragle #167
- Material Aluminium
- Diameter 150
- Length [mm] 2000
Description
Round Solid Aluminium Bar Ø150 mm L=2000 mm – Duralumin 2017A T4
Round solid aluminium bar Ø150 mm in EN AW-2017A T4 alloy (duralumin), length 2000 mm. A high-strength material with excellent machinability — the ideal choice wherever a reliable aluminium semi-finished product is required for precision CNC machining, turning, or milling.
The 2017A T4 alloy (AlCu4MgSi) belongs to the duralumin family — copper-based aluminium alloys characterised by strength comparable to structural steel whilst maintaining a significantly lower weight. This makes the bar well suited for the production of heavily loaded machine components, shafts, pins, bushings, and structural parts where the strength-to-weight ratio is paramount.
Technical Specification
- Cross-section: round solid bar

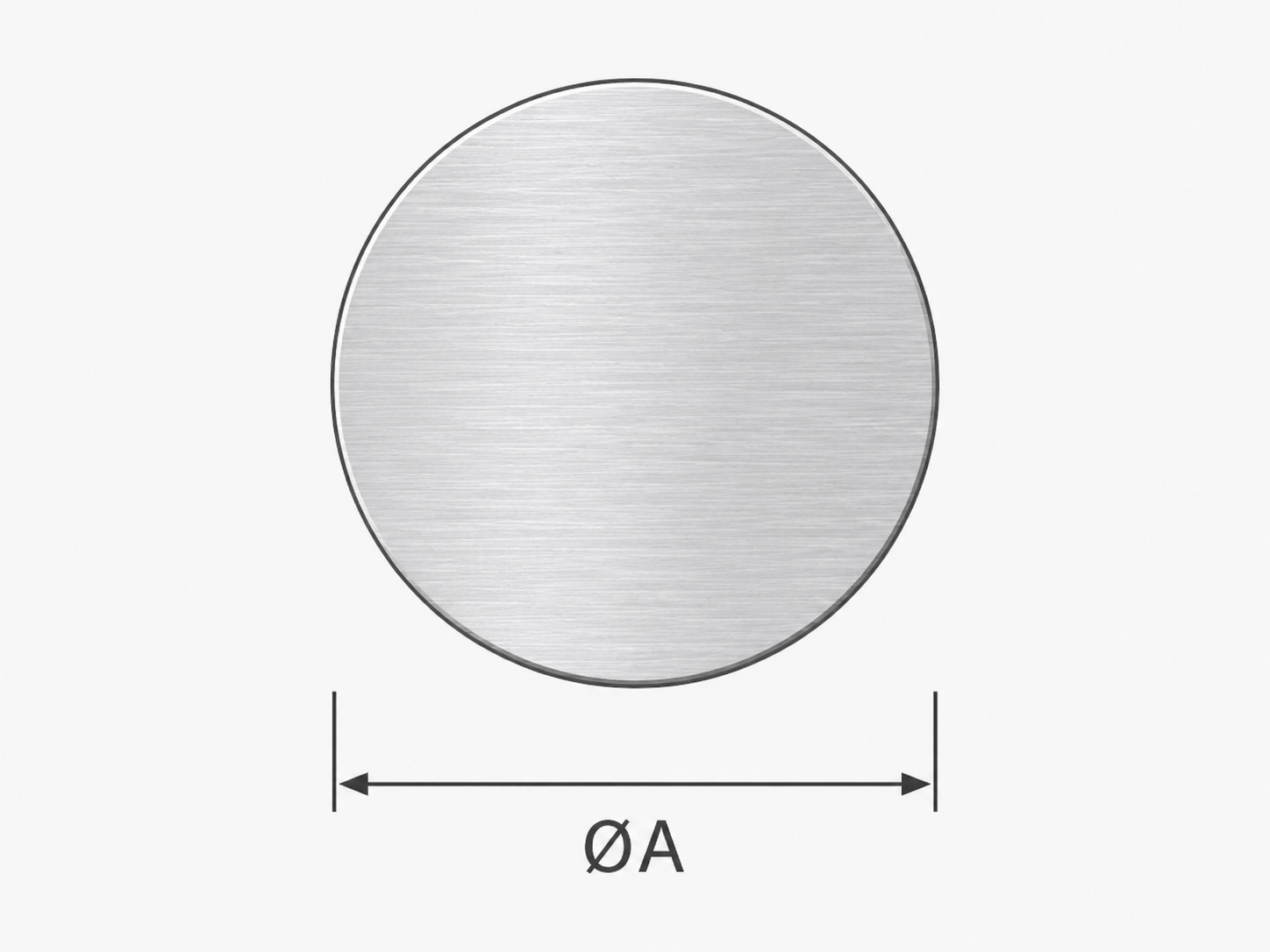

- Diameter (ØA): 150 mm
- Length: 2000 mm
- Dimensions (Ø × length): Ø150 × 2000 mm
- Weight: 98.96 kg (49.48 kg/m)
- Surface: raw (non-anodised)
Material
- Alloy: aluminium 2017A T4 (EN AW-2017A)
- Chemical composition: AlCu4MgSi
- Numerical designation: 3.1325
- Other names: PA6, duralumin
Applications
The bar is intended for further mechanical processing. Typical applications include:
- Turning and CNC machining — precision turned components, bushings, pins
- Shafts and axles — high strength at low weight
- Machine and equipment parts — mechanically loaded components
- Structures — load-bearing components requiring lightweight material
- Modelling and prototyping — easy to machine
