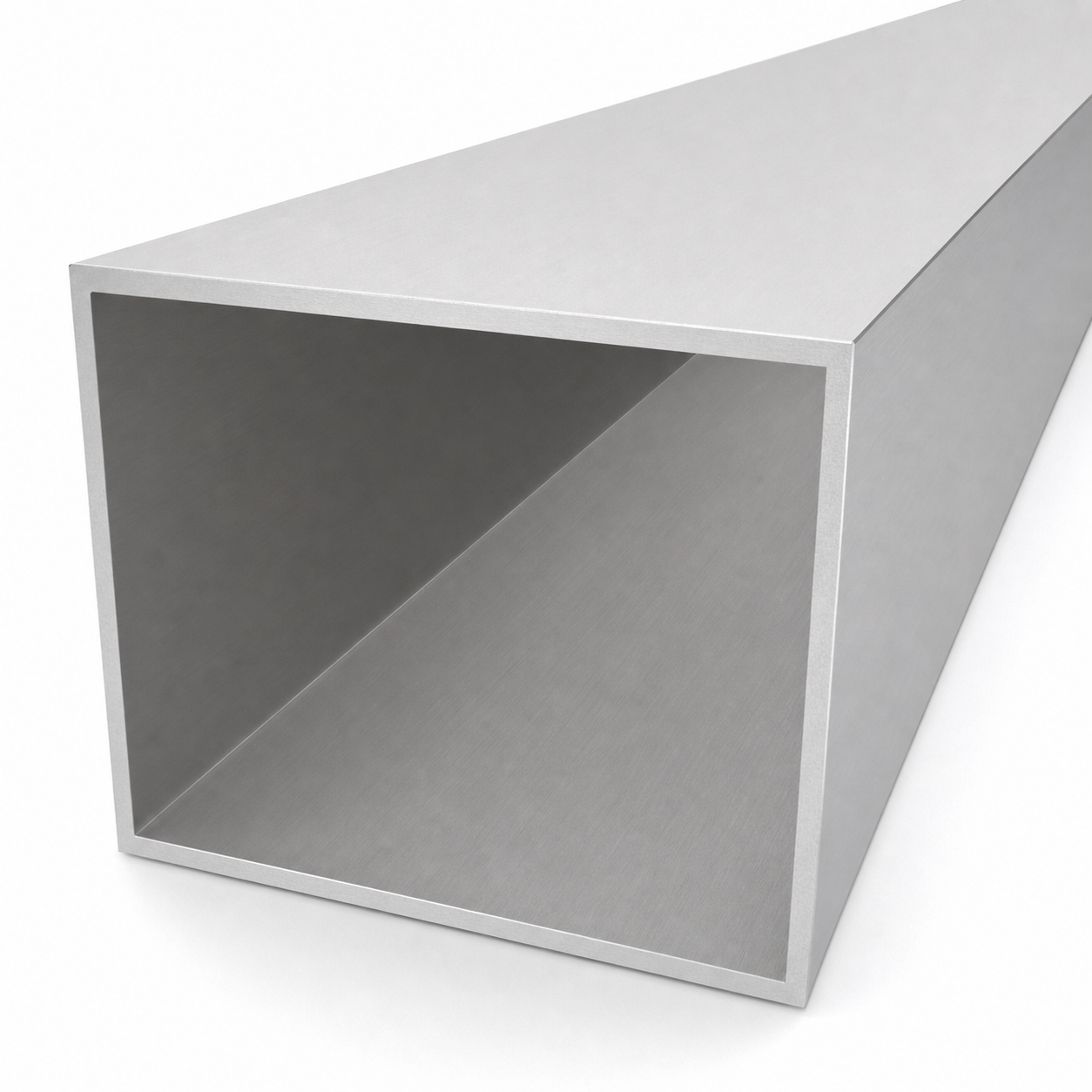

Rectangular aluminium tube 80×100×3 mm – closed profile L=2000 mm
0
Description
Rectangular aluminium tube 80×100×3 mm – closed profile L=2000 mm
Rectangular aluminium tube 80×100×3 mm is a robust closed profile with a length of 2000 mm, made from EN AW-6060 T64 aluminium alloy (PA38 / AlMgSi0.5). Thanks to its optimal combination of lightness and rigidity, it is ideal for aluminium structures, frameworks, load-bearing frames, and balustrades — wherever dimensional precision and corrosion resistance are essential.
The raw, non-anodised surface of the profile allows for any finishing treatment — anodising, powder coating, or painting — making it easy to adapt the component to the individual requirements of any project. PA38 aluminium is easy to cut, drill, bend, and mechanically join, ensuring quick and trouble-free installation on site.
Dimensions and technical parameters
- Section: closed rectangular tube
- External width (A): 80 mm
- External height (B): 100 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 80 × 100 × 2000 mm
- Weight: 5.64 kg (2.82 kg/m)
- Material: aluminium PA38 (EN AW-6060 T64), alloy AlMgSi0.5
- Surface: raw (non-anodised)
Applications
The 80×100 mm rectangular aluminium profile is widely used in professional installation and structural projects:
- Aluminium structures — frameworks, load-bearing frames, and enclosure skeletons
- Balustrades and handrails — post and rail elements
- Frames and supports — for equipment, machinery, and technical installations
- Furniture and decorative elements — table bases, shelving units, alcove fittings
- Modelling and prototyping — rapid construction of test structures
The profile is available in a range of cross-section variants and wall thicknesses, allowing the optimum size to be selected for the structural requirements of any project.
Technical data
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
| Material | Aluminium |
