Rectangular aluminium tube 30×100×3 mm – closed profile L=2000 mm
0
Description

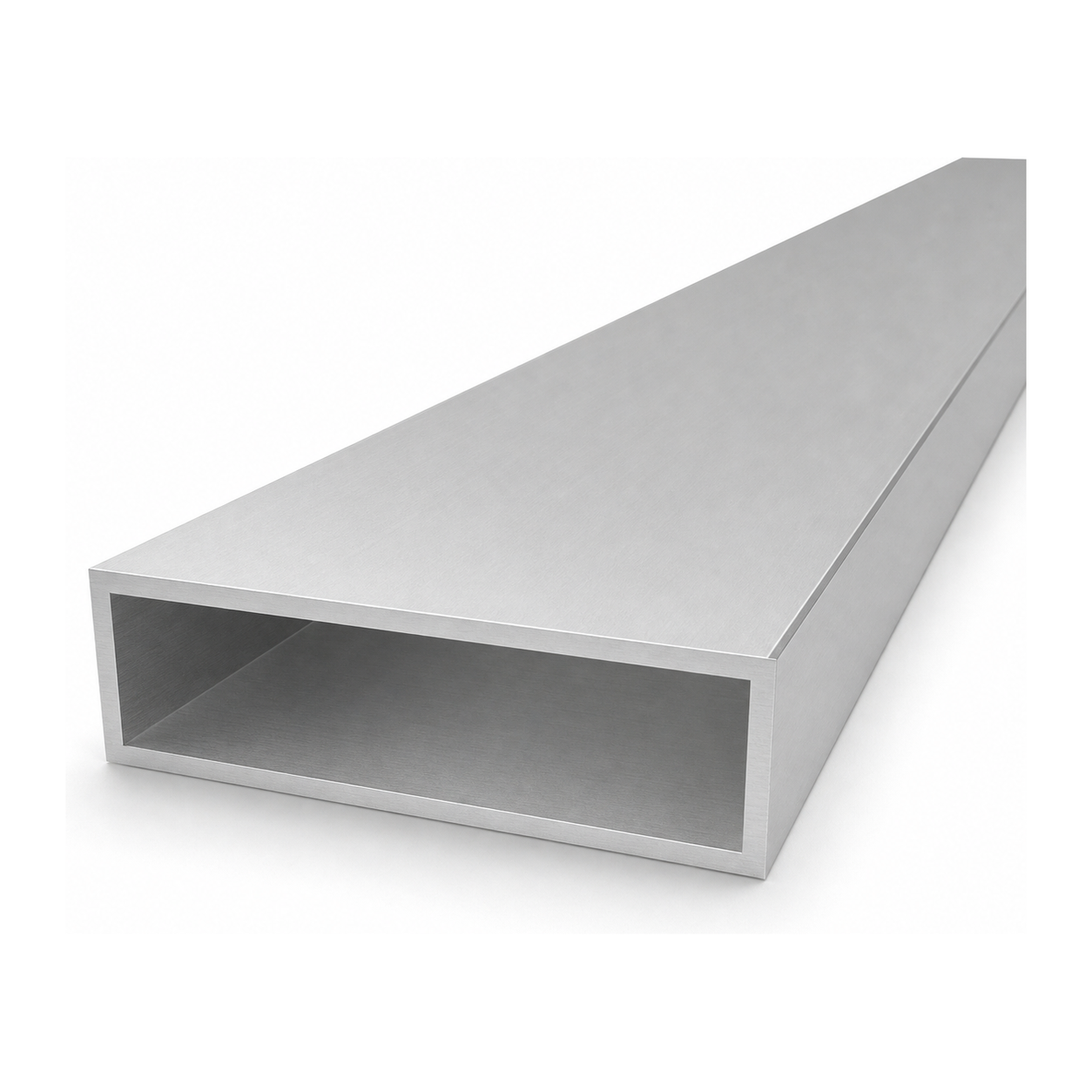

Rectangular aluminium tube 30×100×3 mm – closed profile L=2000 mm
Rectangular aluminium tube 30×100×3 mm is a robust closed profile with a length of 2000 mm, manufactured from EN AW-6060 T64 aluminium alloy (PA38, AlMgSi0.5). Thanks to its low weight of just 4.02 kg combined with high rigidity, this profile is an excellent load-bearing element for aluminium structures, frameworks, and mounting frames.
The 6060 series aluminium combines good mechanical strength with natural corrosion resistance, eliminating the need for additional anti-corrosion treatment in most applications. The raw (non-anodised) surface allows for further processing — anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend, and join, which speeds up assembly work on site.
Dimensions and technical parameters
- Section: closed rectangular tube
- External width (A): 30 mm
- External height (B): 100 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 100 × 2000 mm
- Weight: 4.02 kg (2.01 kg/m)
Material
- Alloy: aluminium EN AW-6060 T64 (PA38 / 3.3206)
- Composition: AlMgSi0.5
- Surface: raw (non-anodised)
Applications
This profile is widely used in professional aluminium structures — as an element of balustrades and handrails, frameworks, load-bearing frames, and substructures. It is also suitable for furniture construction, decorative elements, model making, and projects requiring a lightweight yet rigid structural material. Available in a range of cross-sectional dimensions and wall thicknesses, making it easy to match to a specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
