Rectangular aluminium tube 100×200×4 mm – closed profile L=2000 mm
0
Description

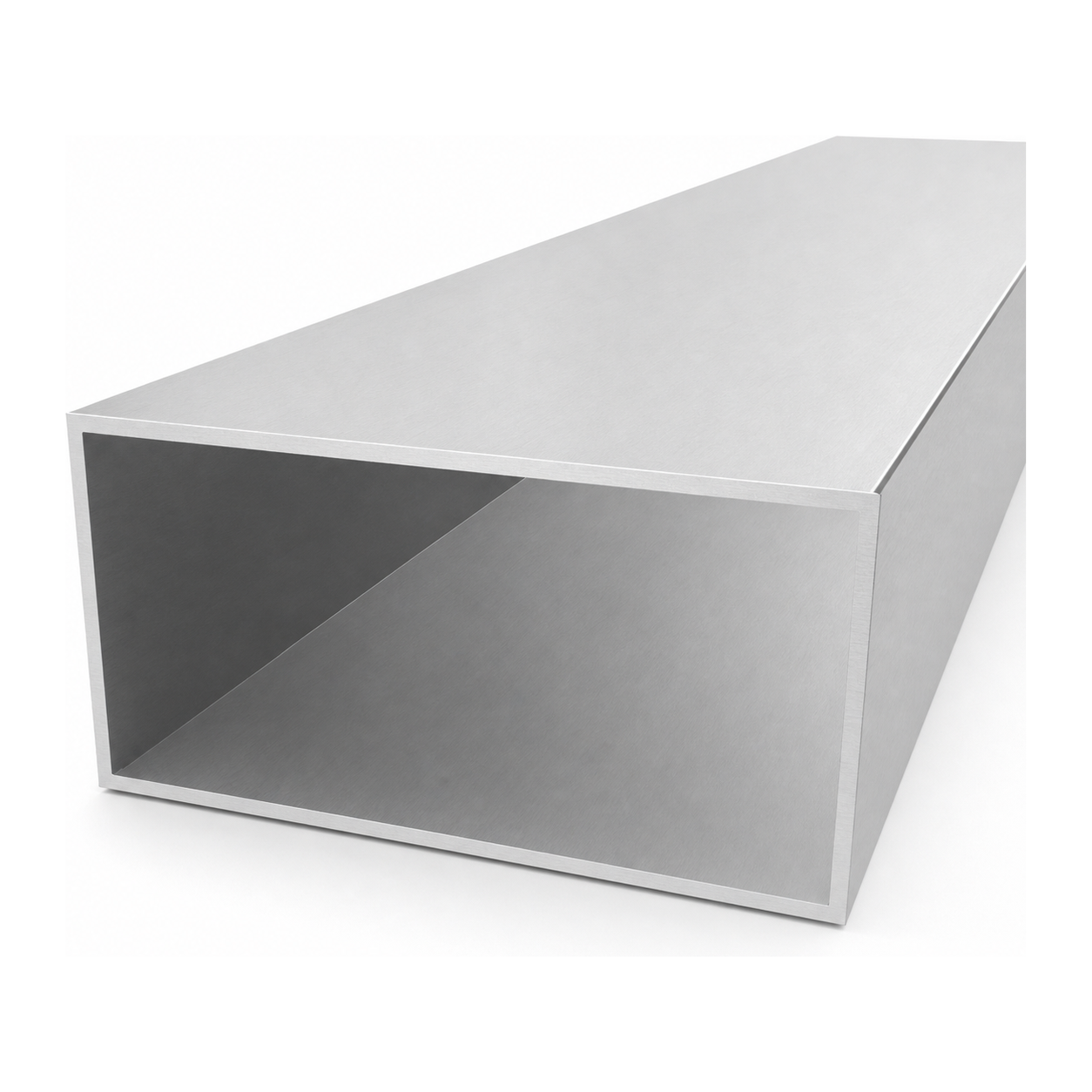

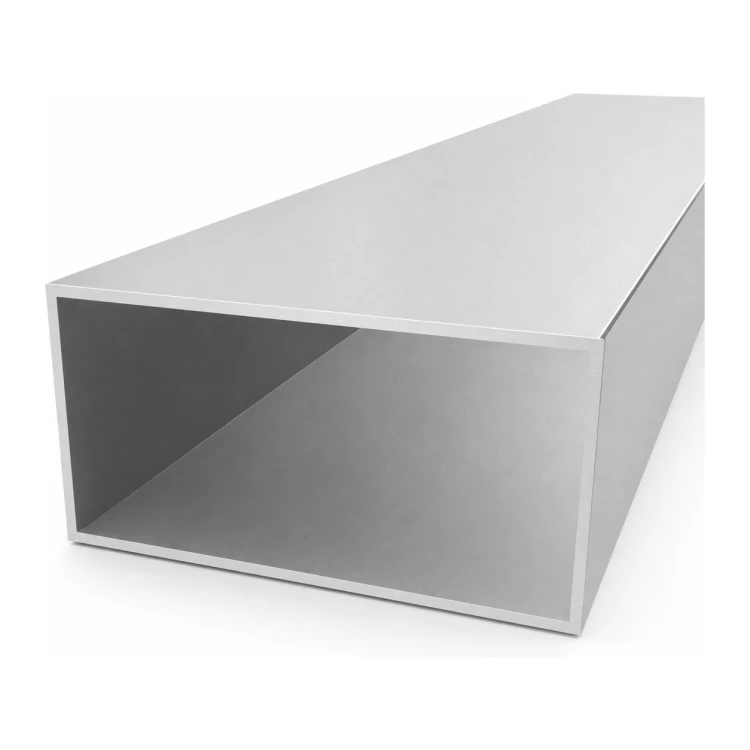

Rectangular aluminium tube 100×200×4 mm – closed profile L=2000 mm
Rectangular aluminium tube 100×200×4 mm is a robust closed profile with a rectangular cross-section, made from EN AW-6060 T64 aluminium (PA38, AlMgSi0.5). Combining low weight with high rigidity and natural corrosion resistance, this profile is ideal wherever structural durability is required whilst keeping overall weight to a minimum.
The raw (non-anodised) surface allows for further finishing — anodising, powder coating, or painting — in accordance with the requirements of a specific project. Aluminium from the 6060 series is easy to cut, drill, bend, and join, resulting in fast assembly and lower labour costs on site.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames, shelving, and sub-structures
- Furniture and decorative elements
- Modelling and DIY projects
Dimensions and technical parameters
- Cross-section: closed rectangular tube
- External width (A): 100 mm
- External height (B): 200 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 100 × 200 × 2000 mm
- Weight: 12.62 kg (6.31 kg/m)
Material
- Alloy: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The profile is available in a range of cross-section sizes and wall thicknesses, allowing it to be matched to various structural requirements.
Technical data
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 200 |
| Material | Aluminium |
