Rectangular aluminium tube 100×150×3 mm – closed profile L=2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Closed section 100×150 mm, wall thickness 3 mm, length 2000 mm. Weight 7.90 kg. Raw, non-anodised surface.
Product code: 001-796
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Wall Thickness [mm] 3
- Length [mm] 2000
- Height [mm] 150
Description

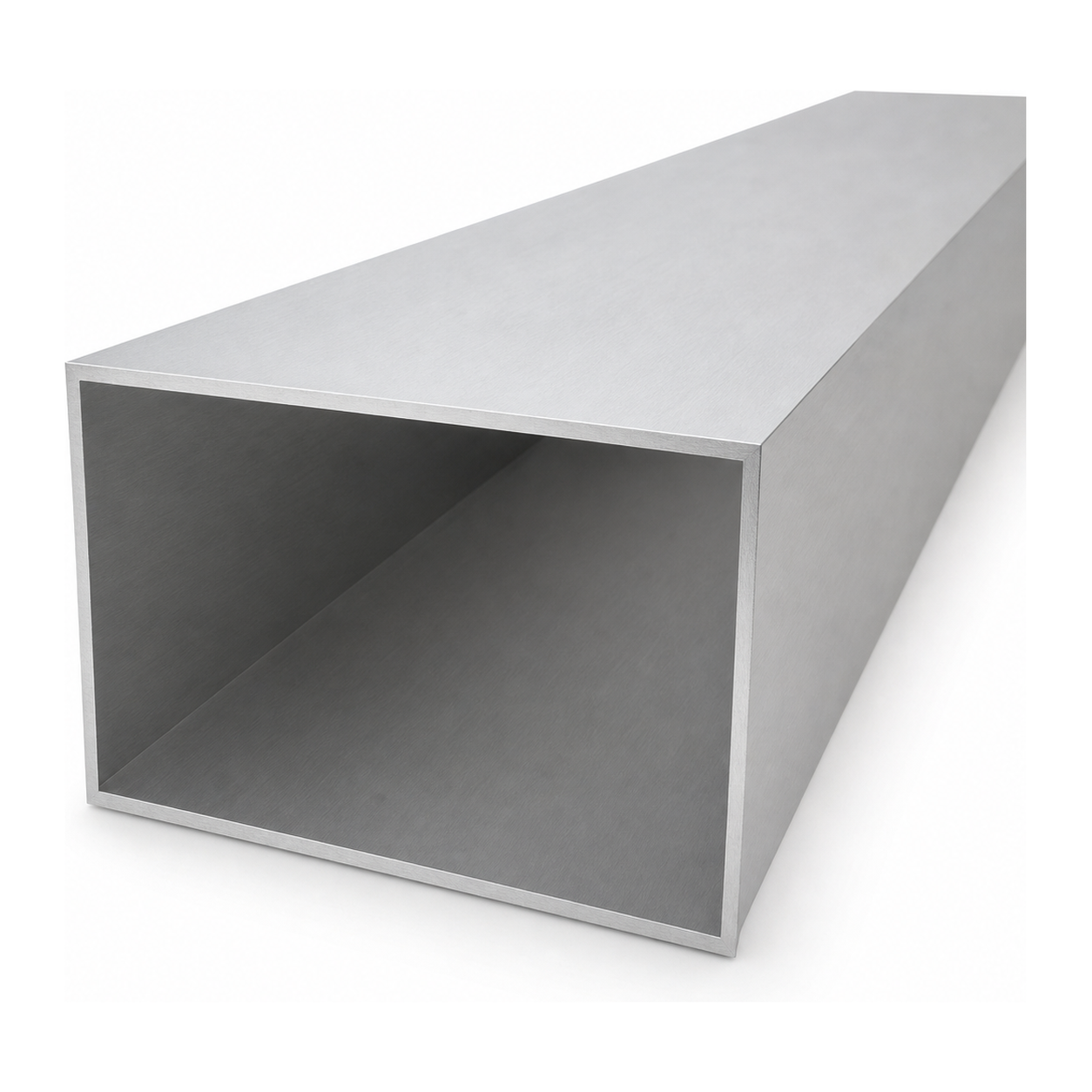

Rectangular aluminium tube 100×150×3 mm – closed profile L=2000 mm
Rectangular aluminium tube 100×150×3 mm is a robust closed rectangular-section profile manufactured from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and aluminium's natural corrosion resistance, this profile performs reliably wherever structural durability combined with low weight is essential — from frames and mounting structures to balustrades and load-bearing elements.
The raw, non-anodised surface allows complete freedom of finish — the profile can be anodised, powder-coated, or painted to suit project requirements. The material is easy to work with: cutting, drilling, bending, and joining, enabling fast assembly and short lead times on site.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Mounting frames and skeletons
- Furniture and decorative elements
- Scale modelling and DIY projects
Technical specification
- Section: closed rectangular tube
- External width (A): 100 mm
- External height (B): 150 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 100 × 150 × 2000 mm
- Weight: 7.90 kg (3.95 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38), alloy AlMgSi0.5
- Surface: raw (non-anodised)
The profile is available as part of a standard range — in many cross-section and wall thickness variants, allowing the optimum size to be selected for every project.
