PSG steel spare wheel FI 60 for gate running trolley – rail 70x70
Description
PSG steel spare wheel FI 60 for gate running trolley – rail 70x70
Steel spare wheel FI 60 designed for running trolleys of sliding gates, working with guide rail 70×70×4 mm. The wheel is a replacement component — it allows quick restoration of full trolley functionality without the need to purchase the entire mechanism. Made from steel, it ensures high load capacity and resistance to intensive operation typical of industrial and residential gates.

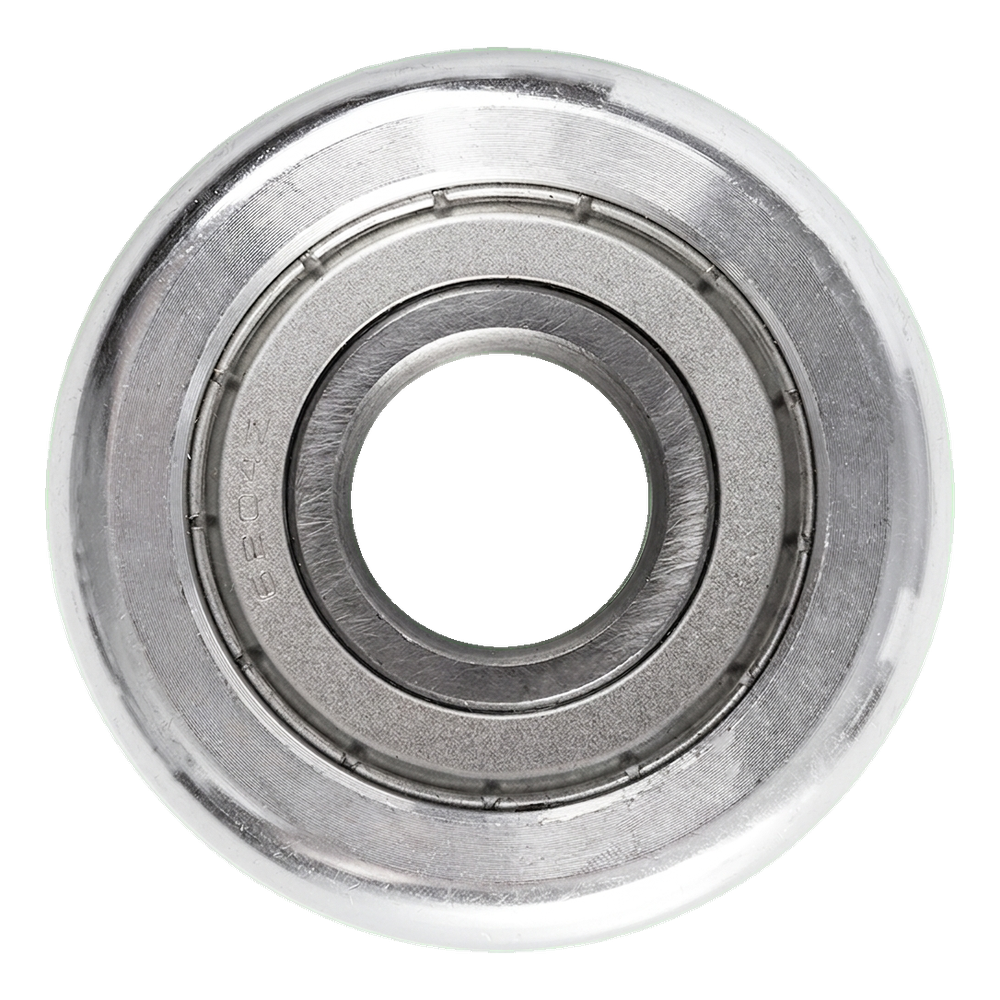

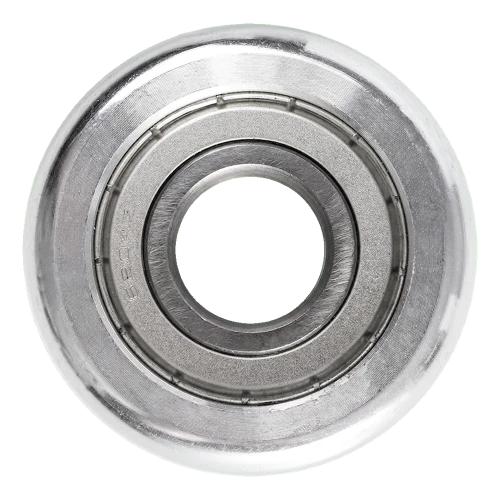

Inside the bore is fitted a ball bearing with ZZ shields, which guarantees smooth, quiet rotation and long service life without the need for frequent lubrication. A circlip (Seeger type) secures the bearing against displacement from its housing during operation.

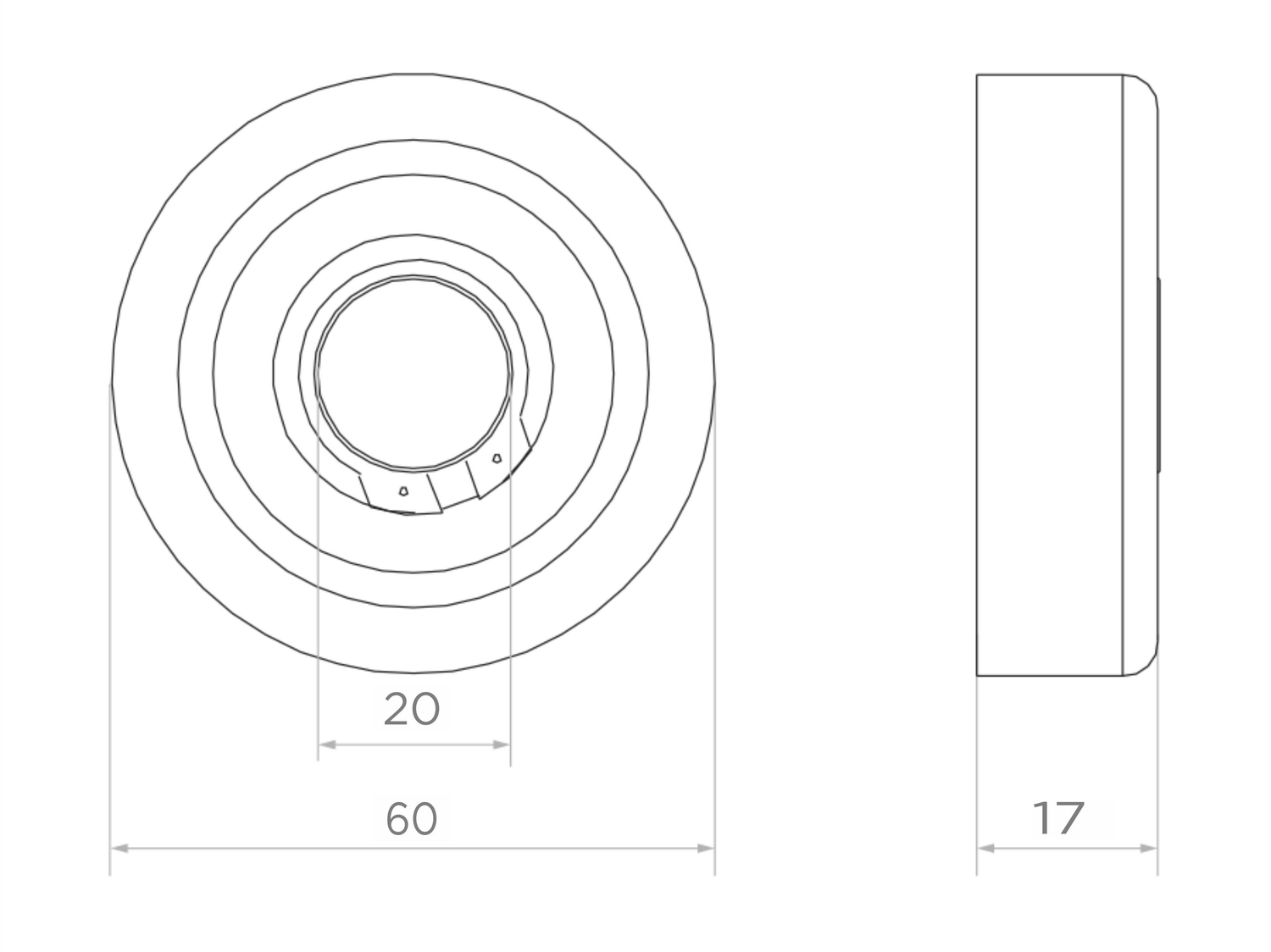

Dimensions and technical parameters
- External diameter: 60 mm
- Internal bore diameter: 20 mm
- Wheel width: 17 mm
- Compatible rail: 70×70×4 mm
- Material: steel
- Weight: 0.26 kg
- Manufacturer: PSG
- EAN: 5901289674690
Application
The wheel is a dedicated replacement component for running trolleys of sliding gates operating on 70×70 mm rail. Thanks to standard mounting dimensions (bore 20 mm), it can be quickly replaced on site — simply remove the worn wheel from the trolley axle and install the new one. This is a practical solution for service teams, which reduces repair time and avoids the costly replacement of the entire trolley.
