PSG steel running rail for sliding gates – channel section 50×50 mm, length 6000 mm
Description
PSG steel running rail for sliding gates – channel section 50×50 mm, length 6000 mm

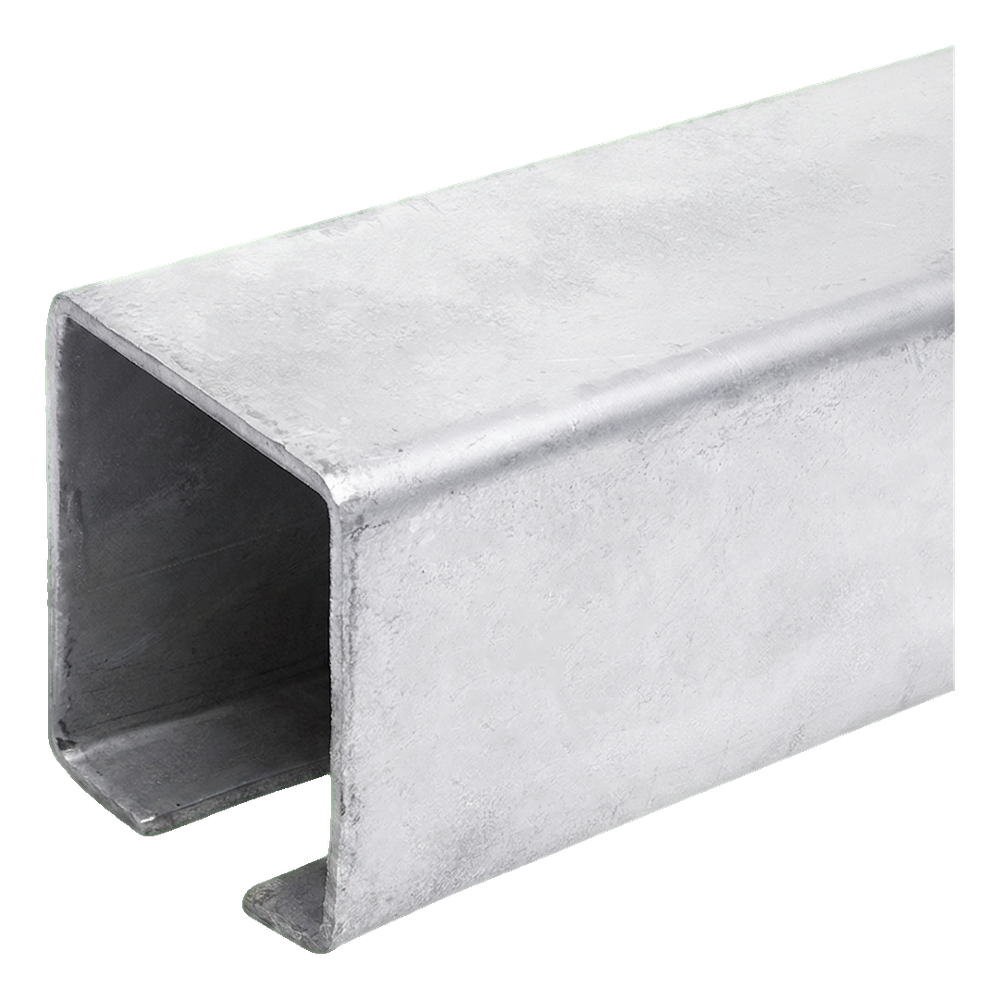

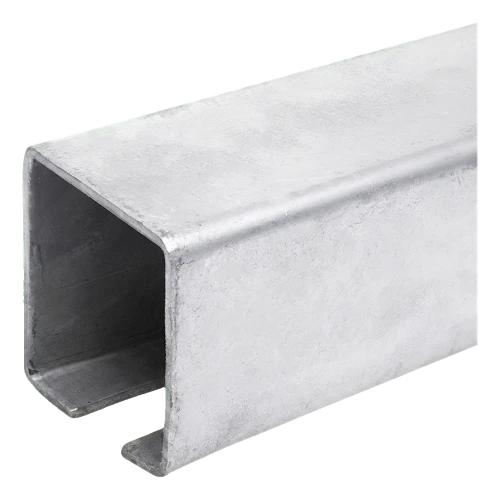

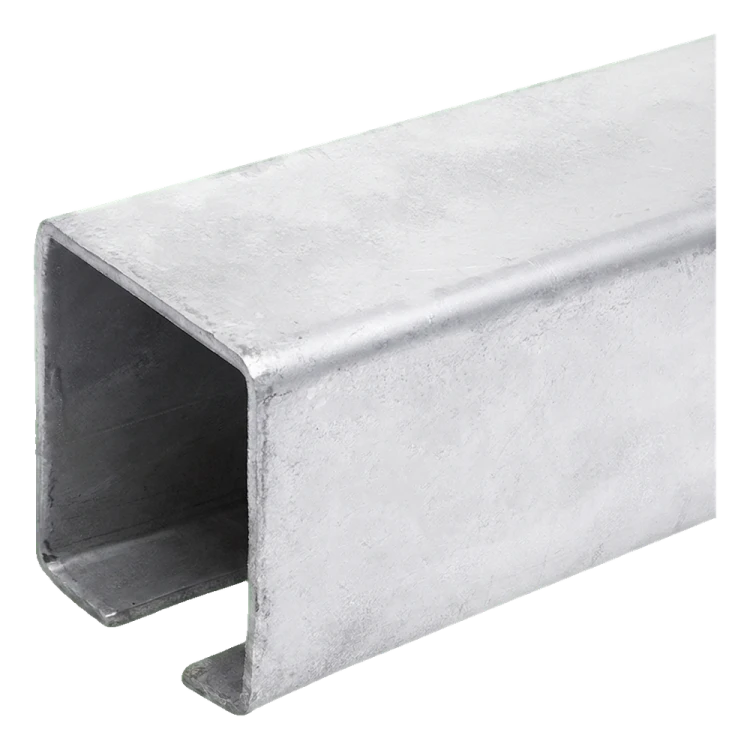

PSG steel running rail in the form of a channel section with 50×50 mm cross-section and 6 metres length is a durable guiding element for sliding gate systems. Thanks to its robust construction made from 3 mm thick sheet metal, the rail ensures stable and quiet gate operation even under intensive use — an ideal solution for industrial installations, logistics facilities and private properties.

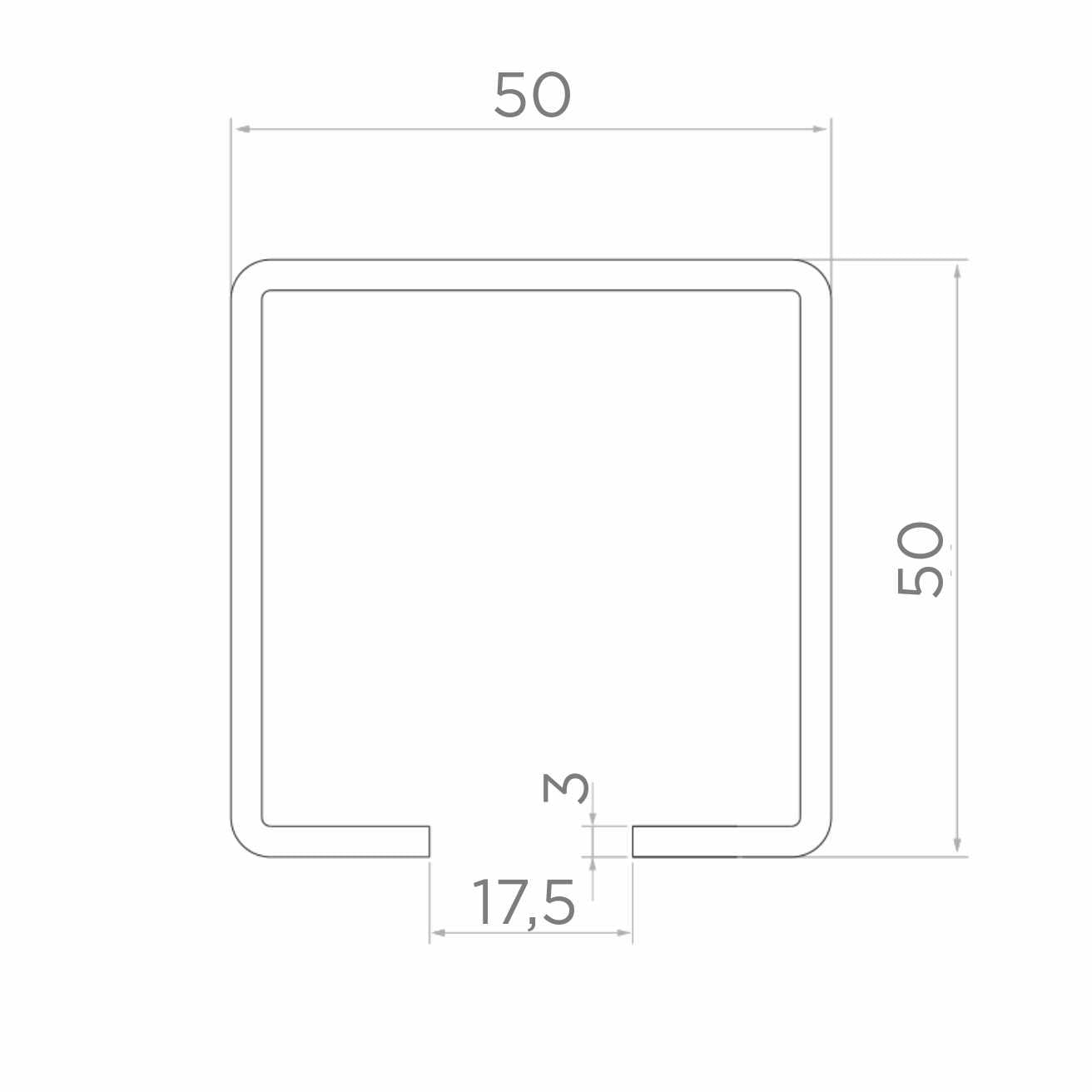

The channel profile features a lower running groove with a width of 17.5 mm, in which the gate running trolleys move. The precisely bent cross-section geometry eliminates rolling resistance and minimises roller wear, which translates into longer service life for the entire sliding system.
Dimensions and technical parameters
- Manufacturer: PSG
- Profile type: channel section (running rail)
- Length: 6000 mm
- External height: 50 mm
- External width: 50 mm
- Wall thickness: 3 mm
- Running groove width: 17.5 mm
- Material: steel
- Weight: 21.35 kg
Application and installation benefits
The rail is designed for top guidance of sliding gates — the channel section is mounted above the gate opening, and the gate leaf suspended on running trolleys slides within the groove. The six-metre length of the rail allows for handling gates with large spans without the need to join sections, which simplifies installation and ensures smooth gate travel along the entire track length.
- Compatibility with popular running trolleys with roller width up to 17.5 mm
- Steel construction resistant to mechanical loads and weather conditions
- Easy mounting to lintel or support structure using standard brackets
- Possibility of cutting to size directly on the construction site
