PSG rail profile end cap 100×89 mm – self-supporting sliding gate
Leave feedback on the product
Rail profile end cap PSG 100×89 mm made of galvanised steel. Dimensions: width 87.5 mm, height 100 mm, length 57 mm, thickness 3 mm. Insertion depth 40 mm. Weight 0.33 kg. For 89×100×5 mm profile of self-supporting sliding gates.
Product code: 001-242
Description
PSG rail profile end cap 100×89 mm – self-supporting sliding gate

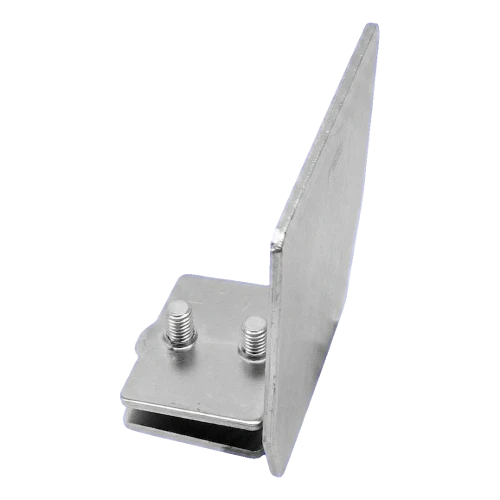

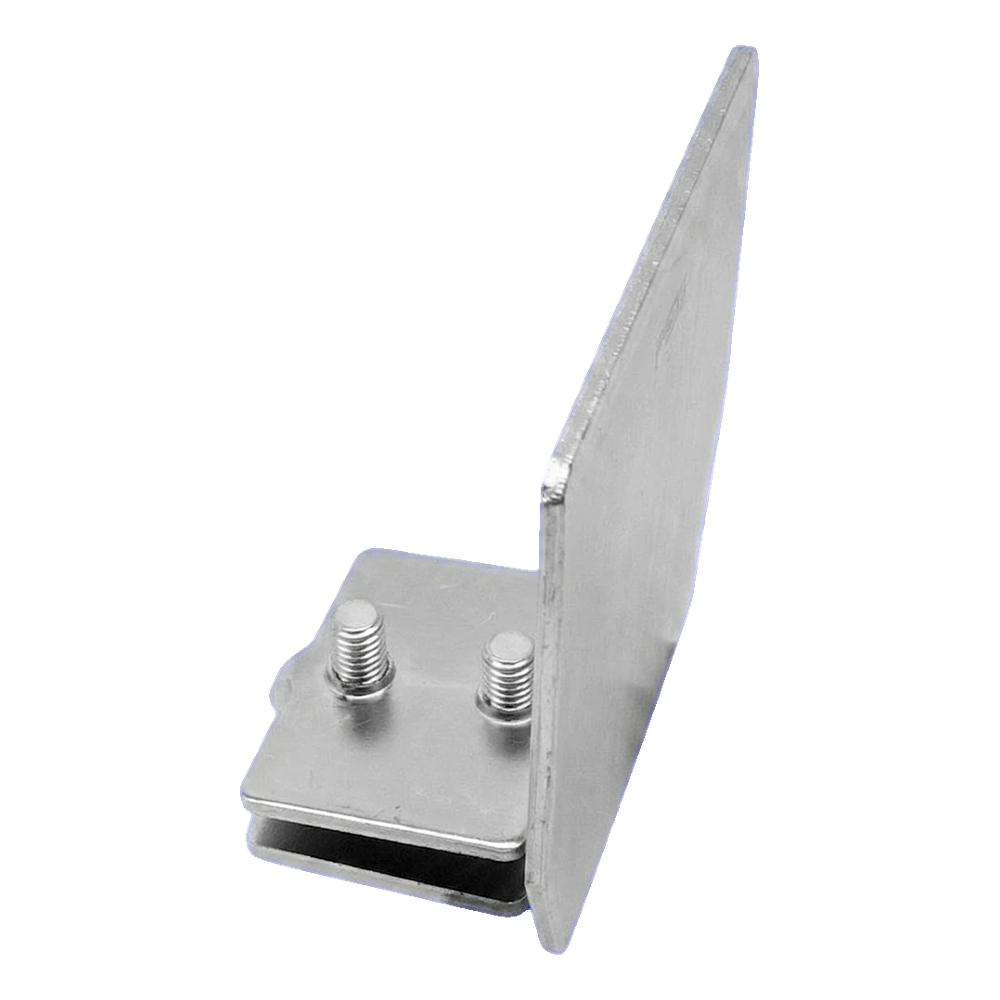

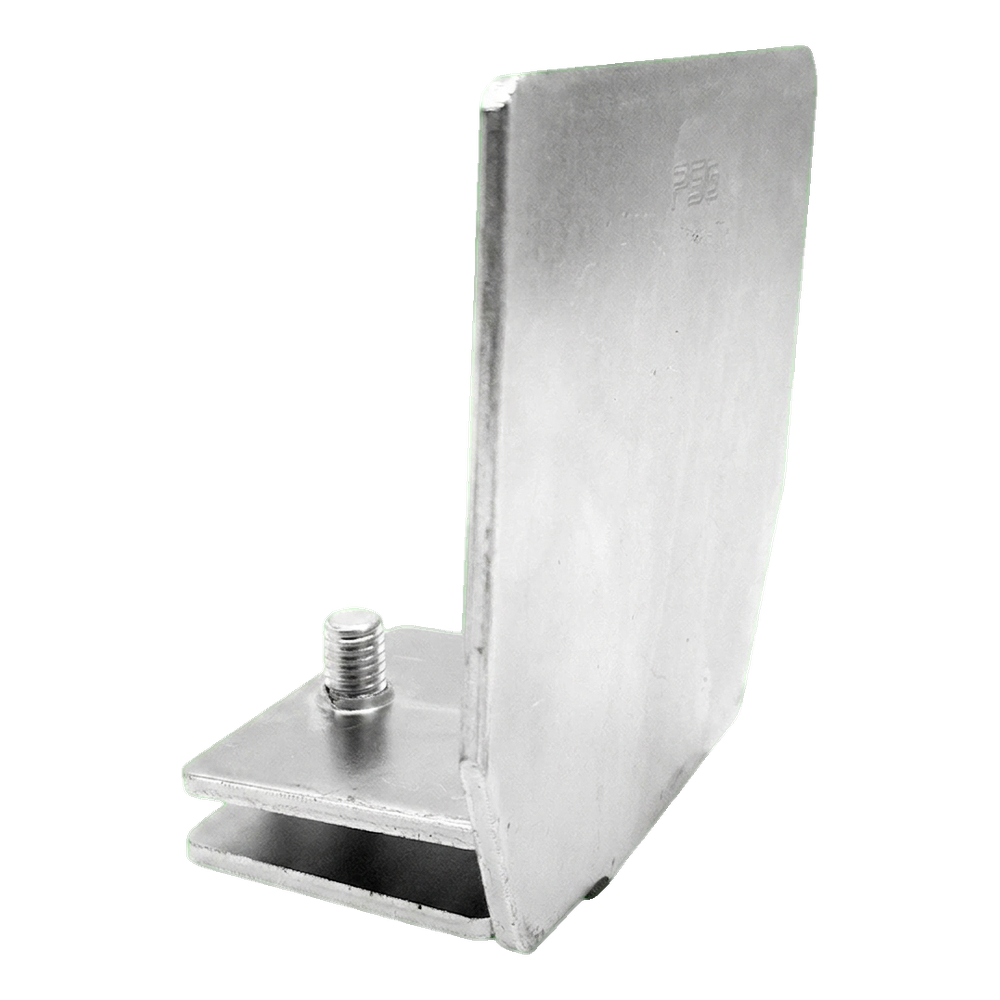

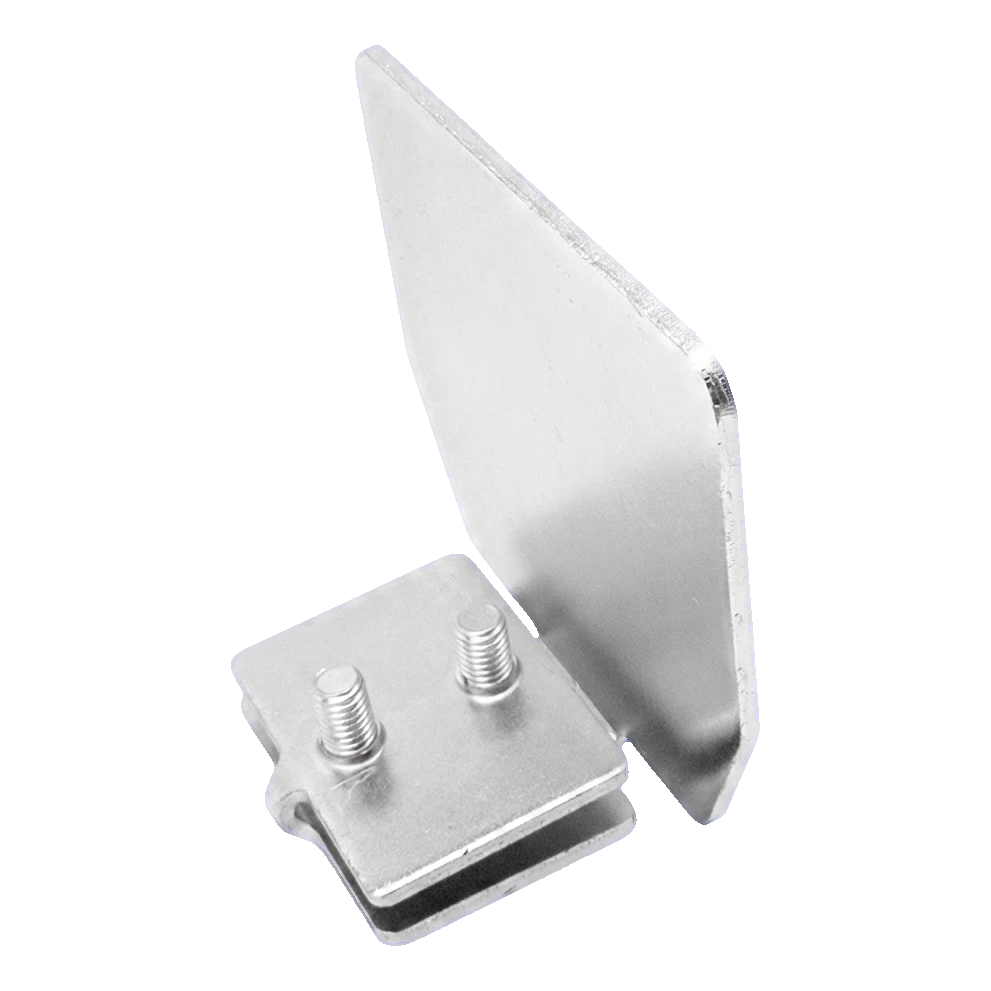

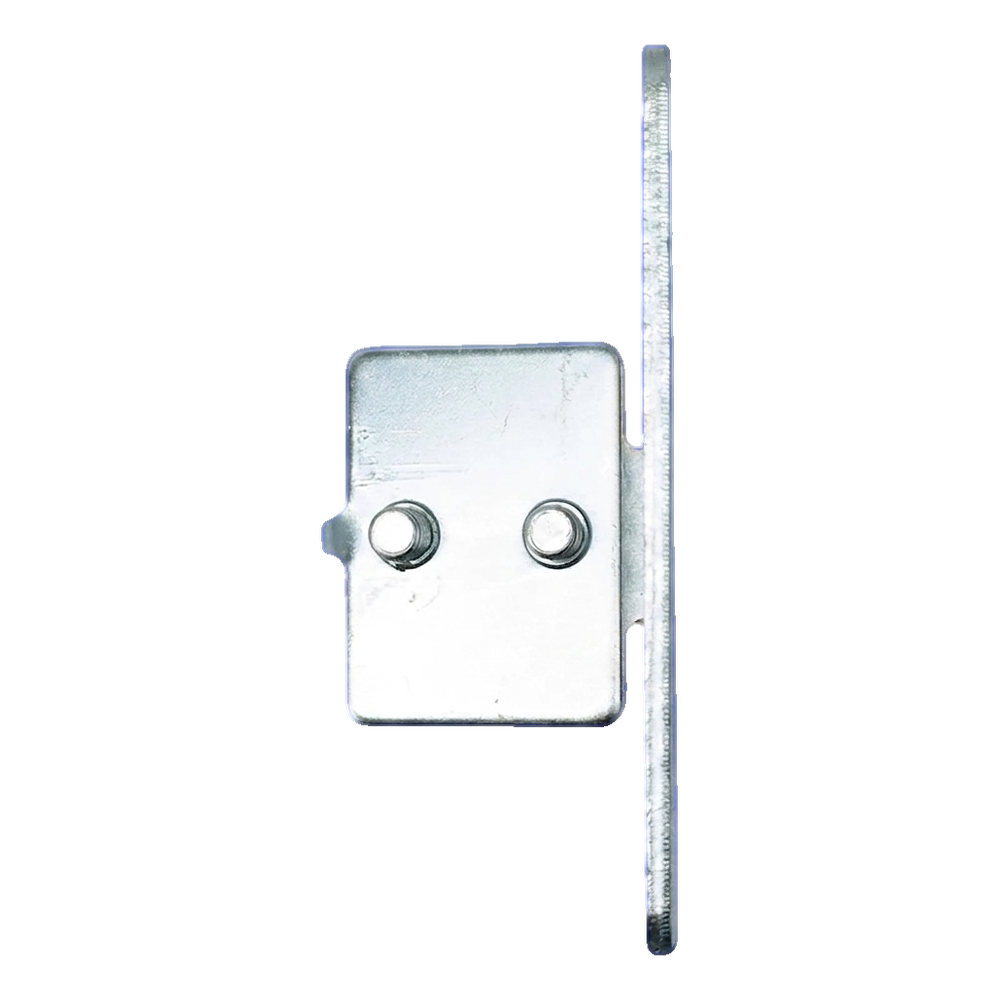

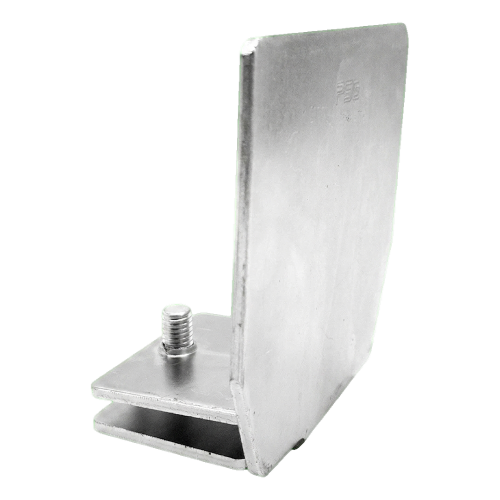

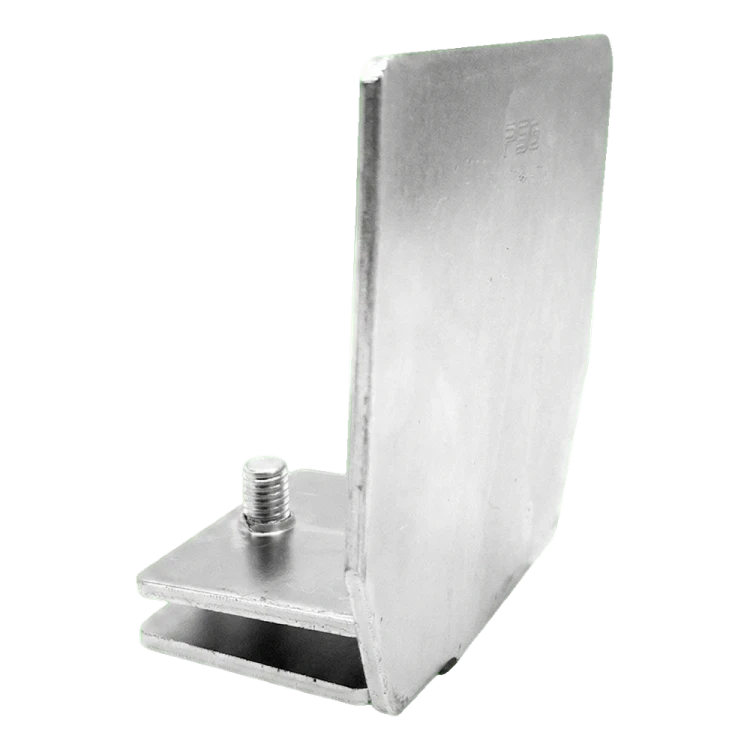

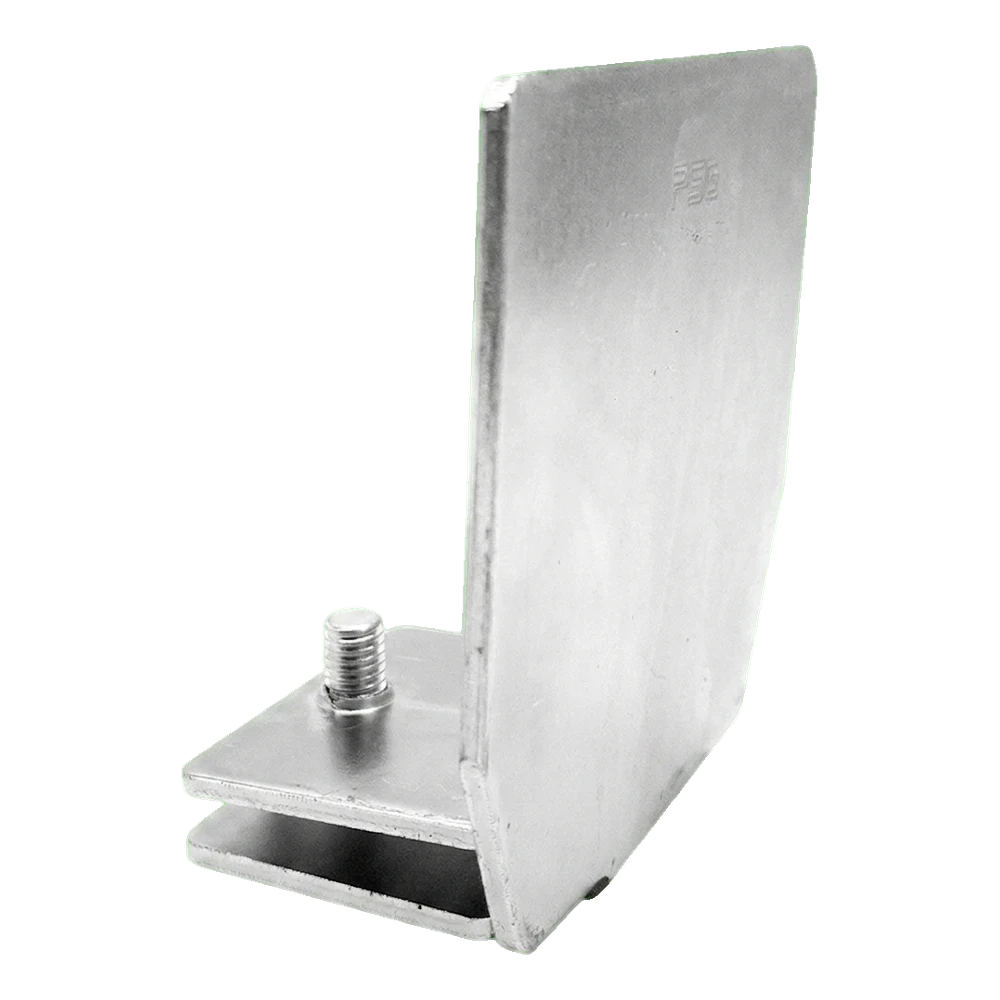

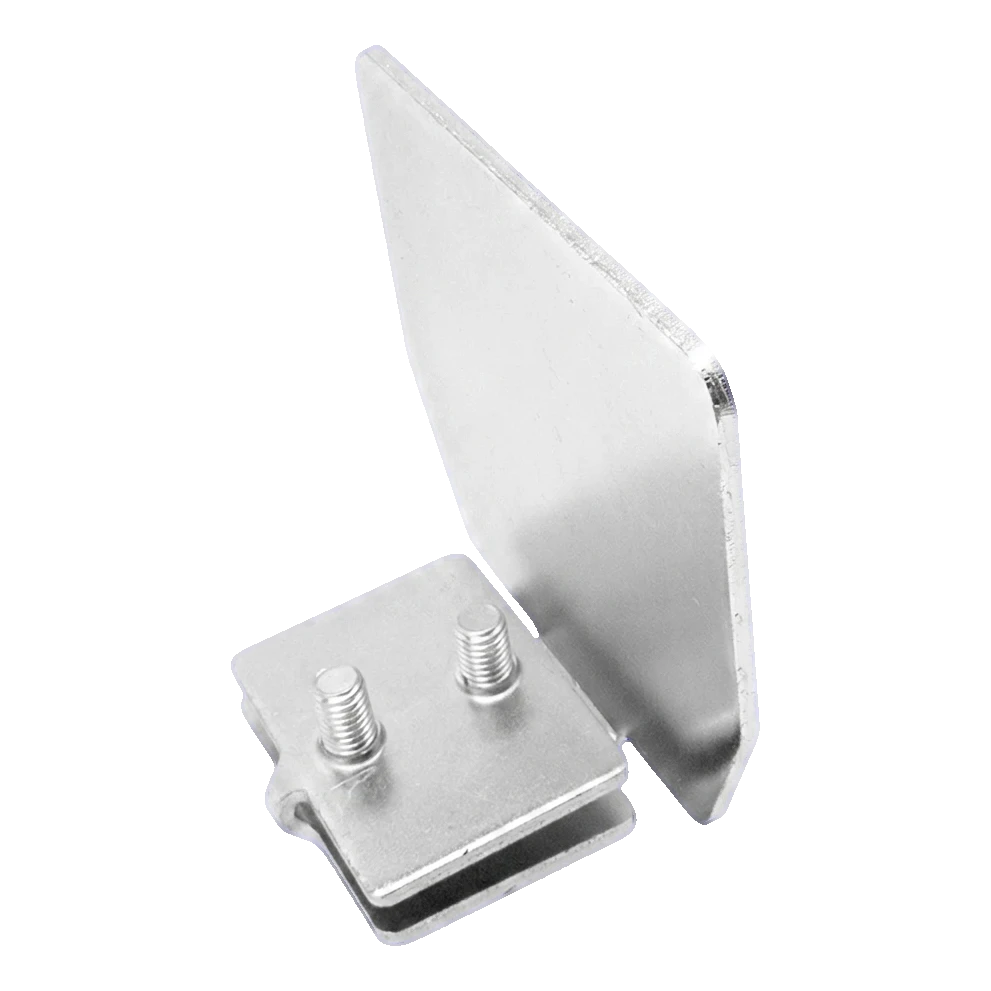

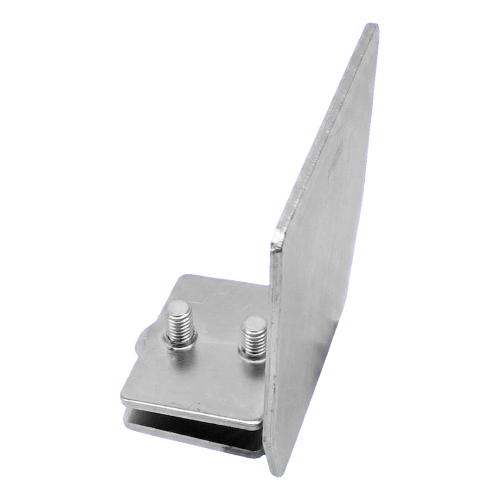

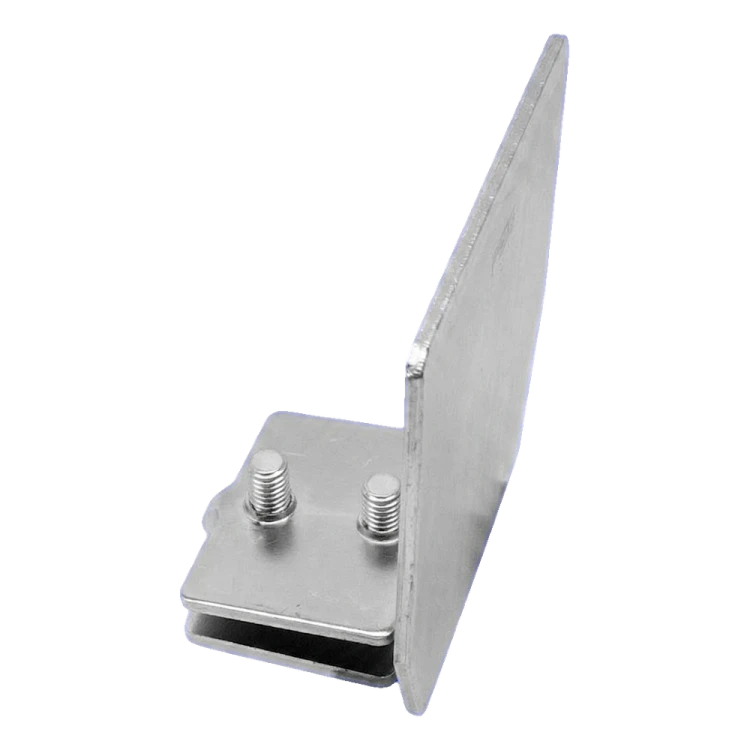

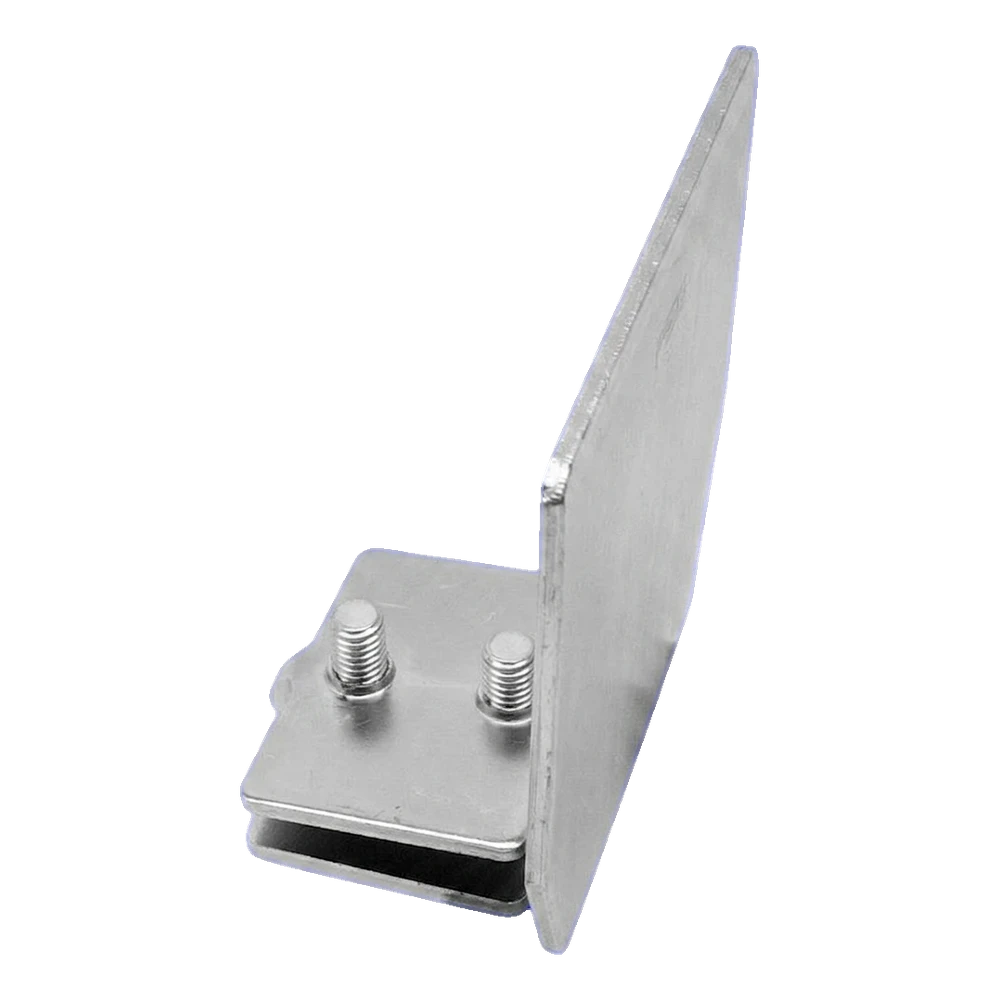

100×89 profile end cap is a steel, galvanised element that closes the rail of a self-supporting sliding gate. Mounted at the end of a profile with cross-section 89×100×5 mm, it protects the interior of the rail from contamination, moisture and foreign bodies, whilst providing an aesthetic finish to the construction. Mounting screws are included in the set, so installation requires no additional fastening elements.

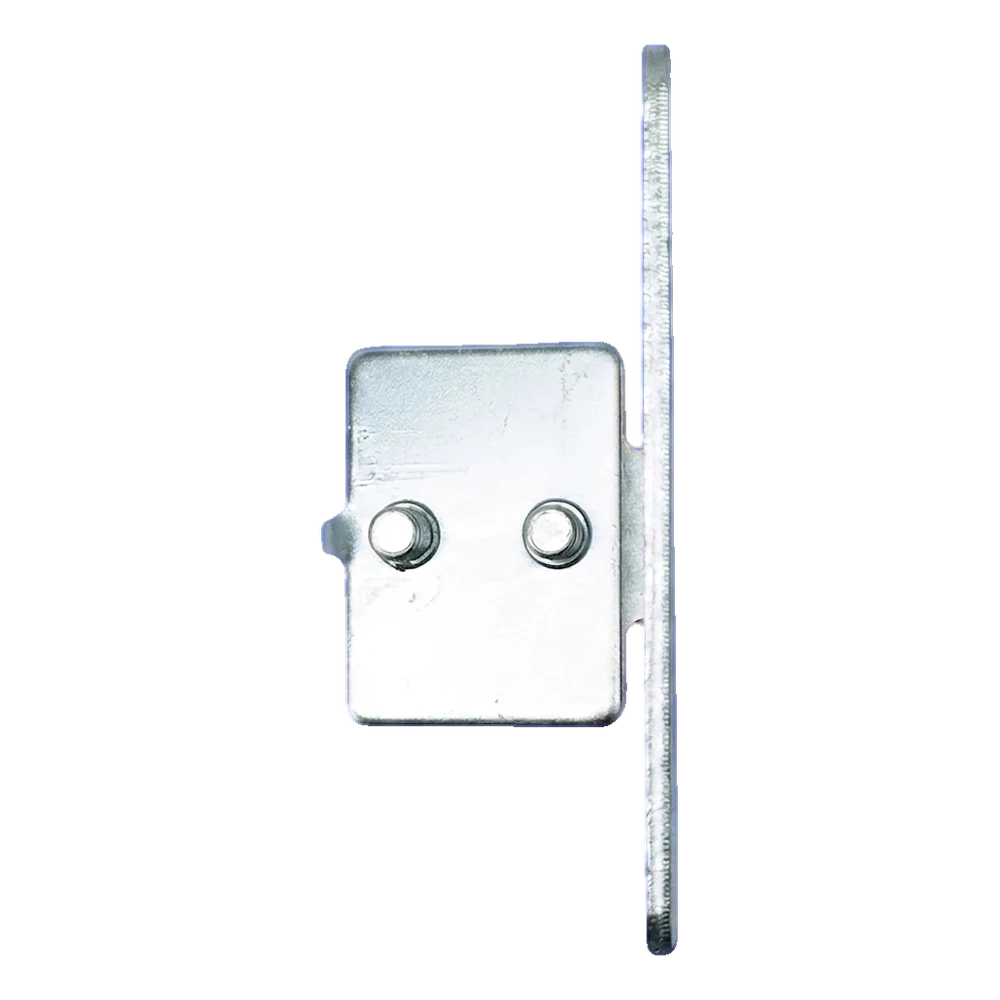

The element is pressed into the interior of the profile to a depth of 40 mm and secured using clamping screws, which ensures reliable, stable seating without the need for welding. Manufacture from galvanised steel guarantees high corrosion resistance and long-term durability in outdoor conditions.

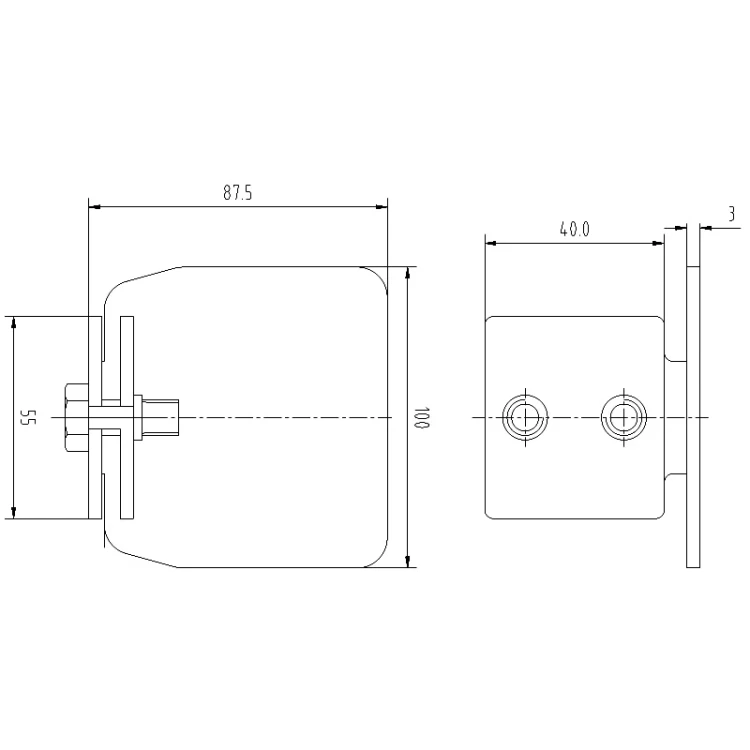

Dimensions and technical data
- Manufacturer: PSG
- Application: rail profile 89×100×5 mm
- Front plate width: 87.5 mm
- Front plate height: 100 mm
- Front plate thickness: 3 mm
- Insertion depth into profile: 40 mm
- Clamping plate height: 55 mm
- Total length (L): 57 mm
- Material: galvanised steel
- Mounting: clamping screws included
- Weight: 0.33 kg
- EAN: 5908297572499
Application and installation
The profile end cap is an essential finishing element for every rail of a self-supporting sliding gate based on the 89×100 mm profile. It protects the interior of the rail from the ingress of water, leaves, sand and other contaminants that could disrupt the operation of the running trolleys. Installation involves inserting the element into the interior of the rail and tightening the clamping screws — the entire operation takes only a few minutes and requires no additional tools other than a spanner.
