PSG – gate running roller type O Ø 88 mm for round rail
Leave feedback on the product
PSG gate running roller type O Ø 88 mm made of galvanised steel. Width 20 mm, load capacity 250 kg. For round rail Ø 16 mm. Weight 0.745 kg. Mounting screw included.
Product code: 001-306
Description
PSG – gate running roller type O Ø 88 mm for round rail

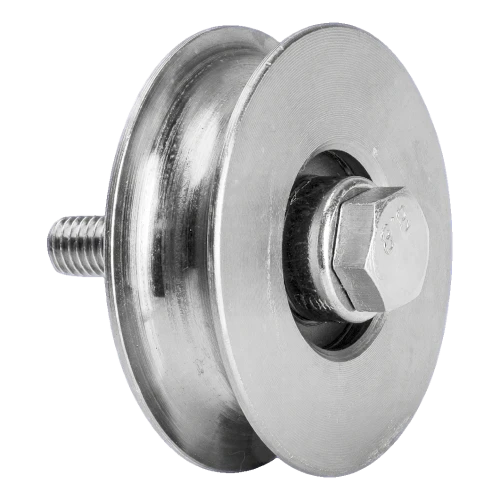

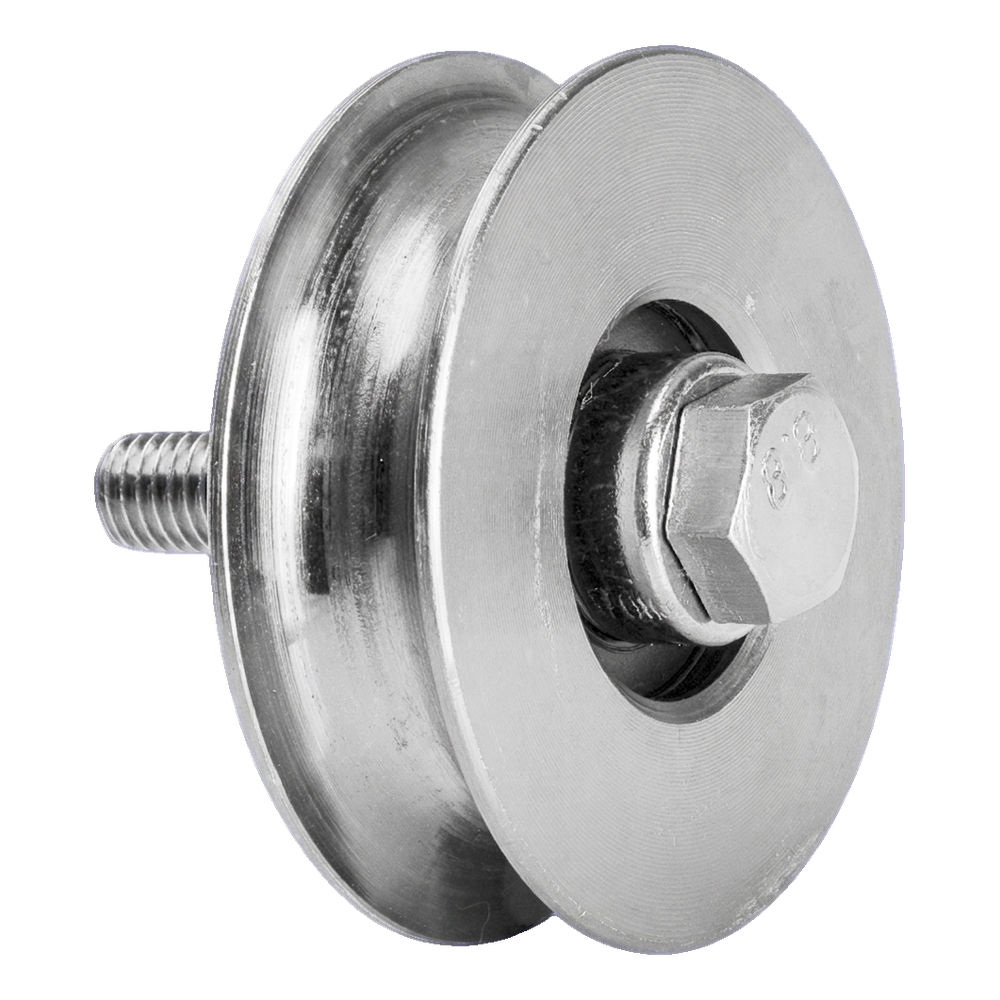

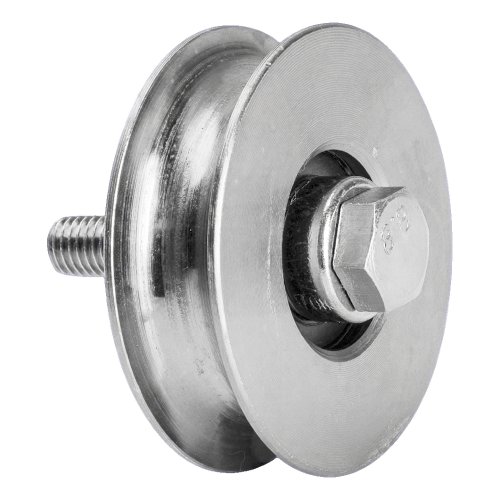

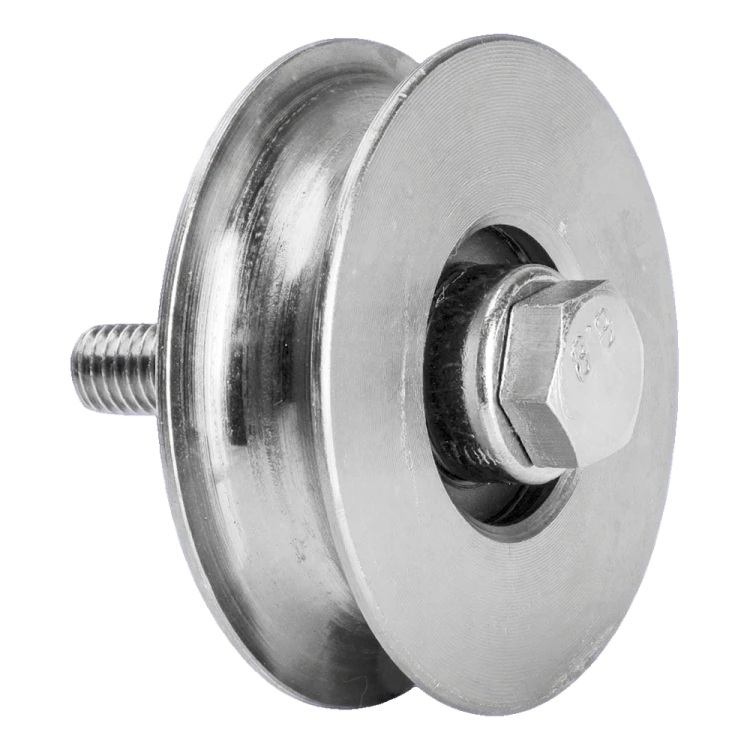

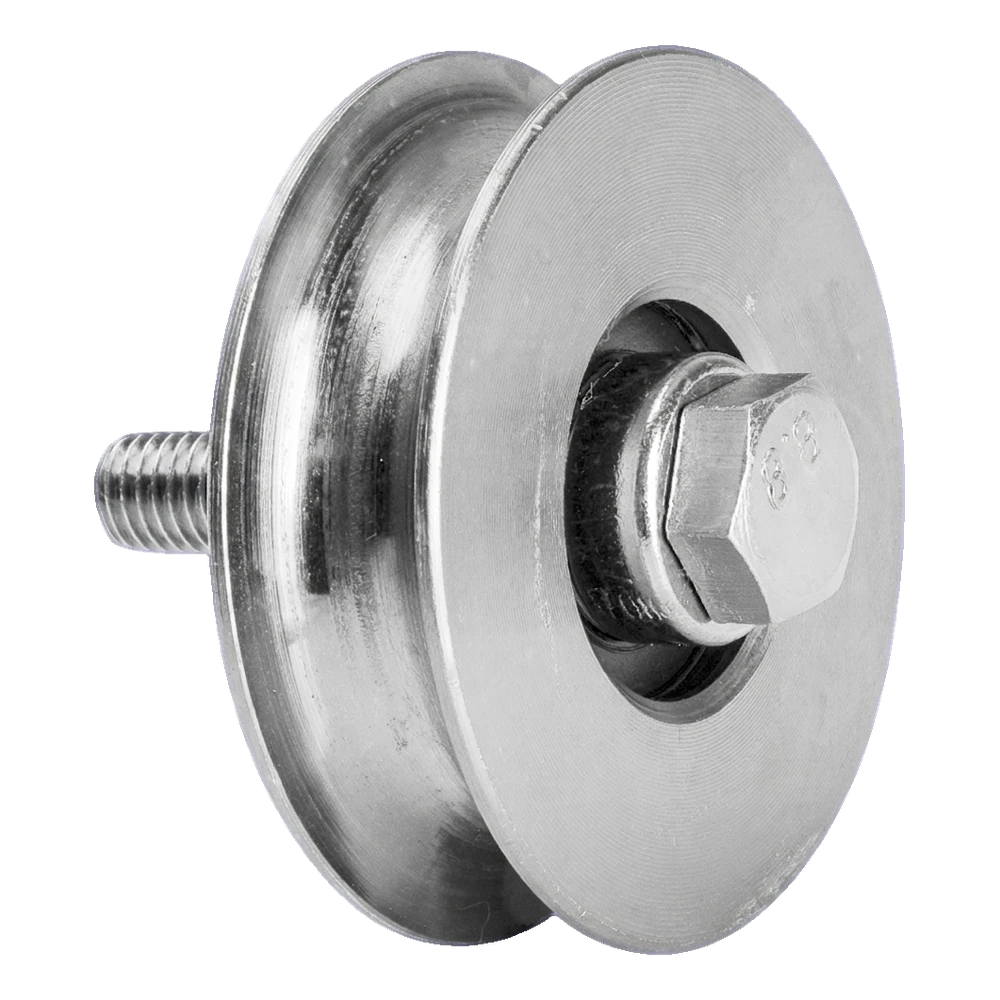

Steel running roller type "O" with diameter 88 mm designed for sliding rail gates. The O-shaped groove ensures stable guidance on round rail (tube) with diameter 16 mm, eliminating lateral deviations of the gate leaf during opening and closing. The roller is galvanised, which guarantees high corrosion resistance and long-lasting durability in outdoor conditions. A mounting screw is included, making the product ready for immediate installation — without the need to order additional fastening elements.
The maximum load capacity of the roller is 250 kg, allowing safe guidance of heavy gates typical for installations on private property and industrial facility fencing.

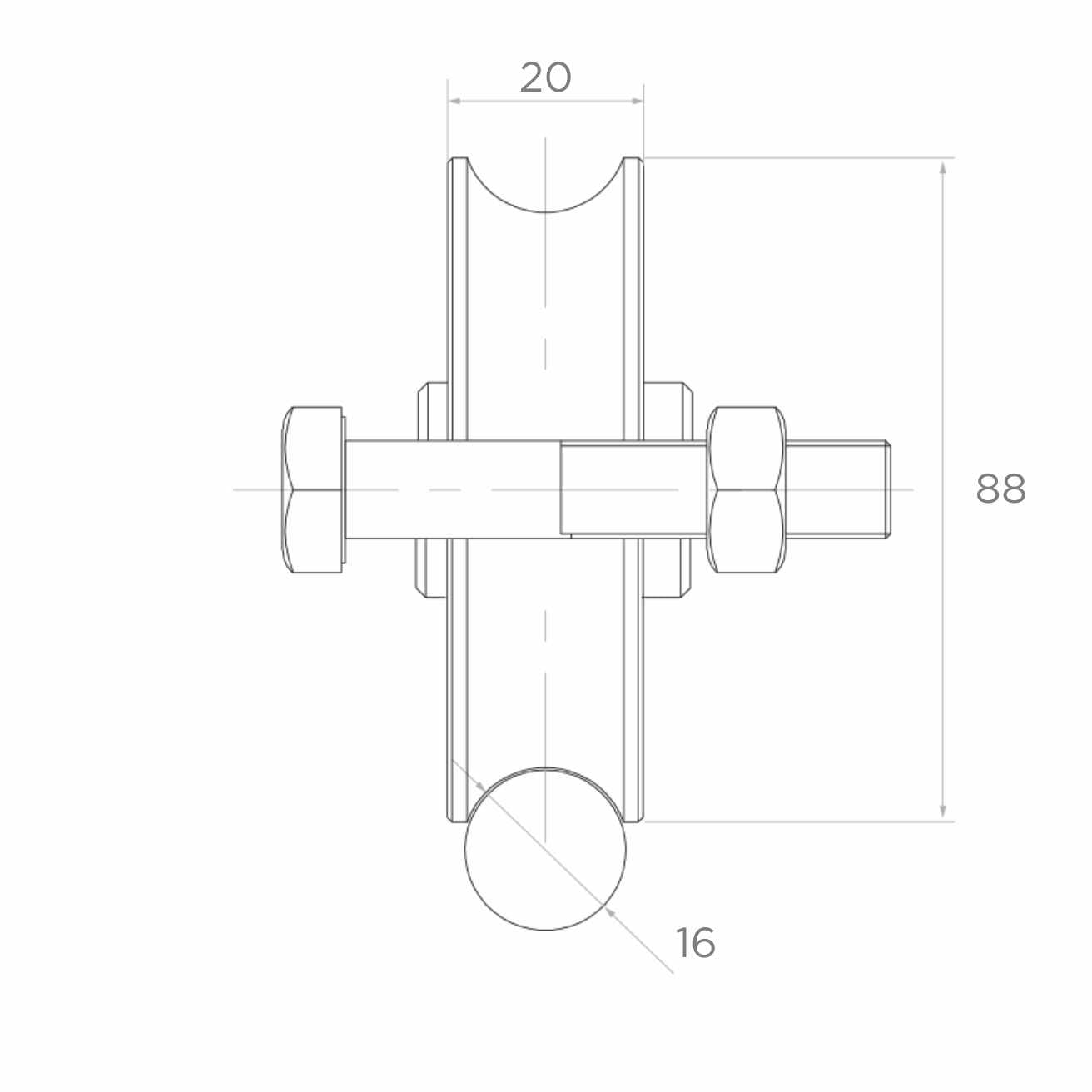

Technical specification
- Roller type: "O" – for round rail (tube)
- External diameter: 88 mm
- Roller width: 20 mm
- Compatible round rail diameter: 16 mm
- Maximum load capacity: 250 kg
- Material: galvanised steel
- Mounting screw: included
- Weight: 0.745 kg
- Manufacturer: PSG
- EAN: 5901289675321
Application and installation
The roller is dedicated to sliding rail gates moving on a round rail (tube) mounted on the substrate. The O-shaped groove profile ensures precise fitting to the guide tube, which translates into quiet and smooth gate operation. Thanks to the compact dimensions and included mounting screw, installation is quick and trouble-free — particularly important when completing multiple projects.
