PSG gate guide bracket H80 for self-supporting sliding gate – galvanised steel
Description
PSG gate guide bracket H80 for self-supporting sliding gate – galvanised steel

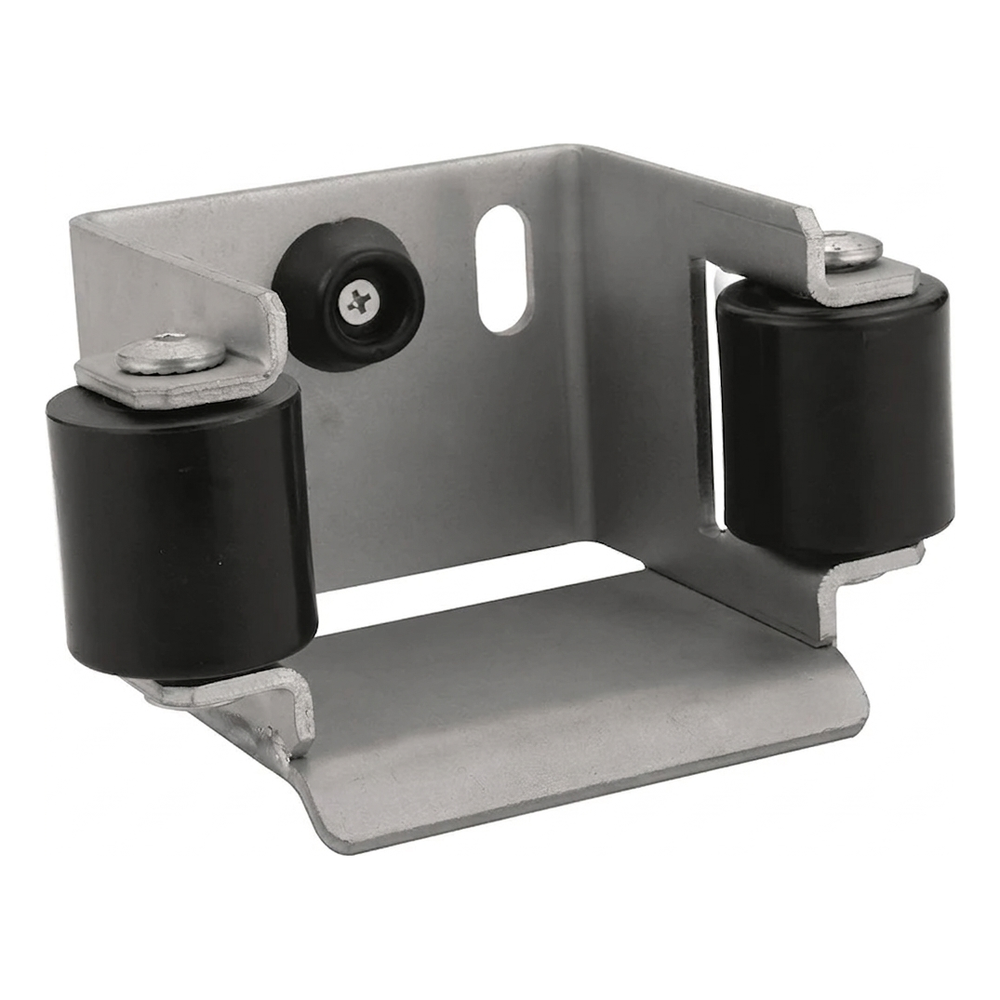

Gate guide bracket H80 by PSG is a galvanised steel mounting element designed for self-supporting sliding gates. It functions as a gate stabiliser when closed — guiding the gate leaf to the correct position and distributing the gate weight across more support points, which significantly extends the service life of gate carriages and the entire gate mechanism.
The bracket is compatible with guide rails with cross-sections of 80×80 mm and 70×70 mm. Two guide rollers made from plastic ensure quiet and smooth gate operation, minimising friction and rail wear. On the rear panel of the bracket there are two mounting holes (slotted) enabling precise position adjustment, and the built-in rubber buffer cushions the impact of the gate leaf in the closed position.

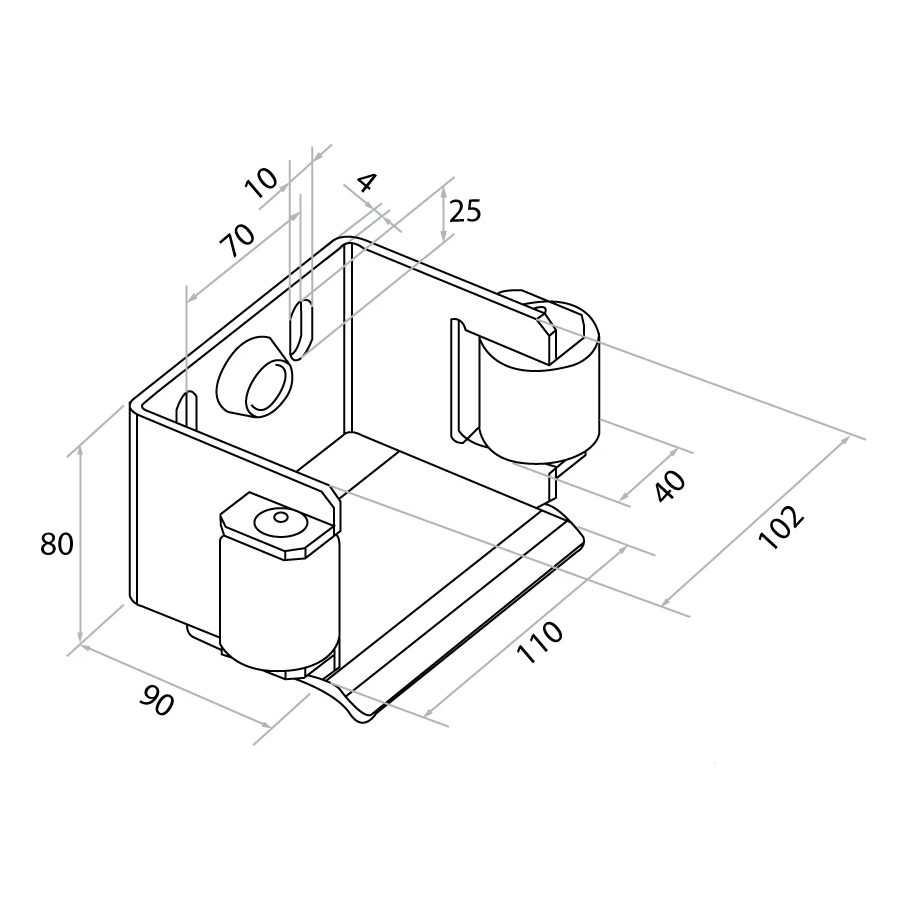

Dimensions and technical data
- Height (H): 80 mm
- Rear plate width: 90 mm
- Total depth: 110 mm
- External width (with roller brackets): 102 mm
- Distance between rollers: 90 mm
- Mounting hole spacing: 70 mm
- Mounting hole dimensions (slotted): 25 × 10 mm
- Sheet thickness: 4 mm
- Rail compatibility: 80×80 mm and 70×70 mm
- Body material: galvanised steel
- Roller material: plastic
- Weight: 1.12 kg
- EAN: 5901289674843
Benefits for the installer
- Extended carriage service life — distributing gate weight across additional support points reduces carriage load and wear
- Slotted holes — allow vertical adjustment of several millimetres, facilitating precise gate alignment without the need for re-drilling
- Rubber buffer — dampens impacts during gate closing, eliminating noise and protecting structural components from mechanical damage
- Galvanised coating — provides multi-year corrosion protection, ideal for outdoor use in varying weather conditions
- Universal compatibility — fits the two most popular rail sizes (80×80 mm and 70×70 mm), reducing stock variants
