PSG drive-on bracket 70/80 for self-supporting sliding gate with guide rollers
Leave feedback on the product
PSG drive-on bracket 70/80 made of galvanised steel with two plastic rollers. For self-supporting sliding gates on 70×70 mm and 80×80 mm rails. Width 226 mm, weight 1.5 kg. With rubber buffer.
Product code: 001-255
Description
PSG drive-on bracket 70/80 for self-supporting sliding gate with guide rollers
Drive-on bracket 70/80 PSG is a galvanised steel component designed for installation in self-supporting sliding gates running on 70×70 mm and 80×80 mm rails. Its main function is to stabilise the gate leaf when closed and distribute the gate weight across a greater number of support points — this significantly extends the service life of the running trolleys and the entire sliding mechanism.

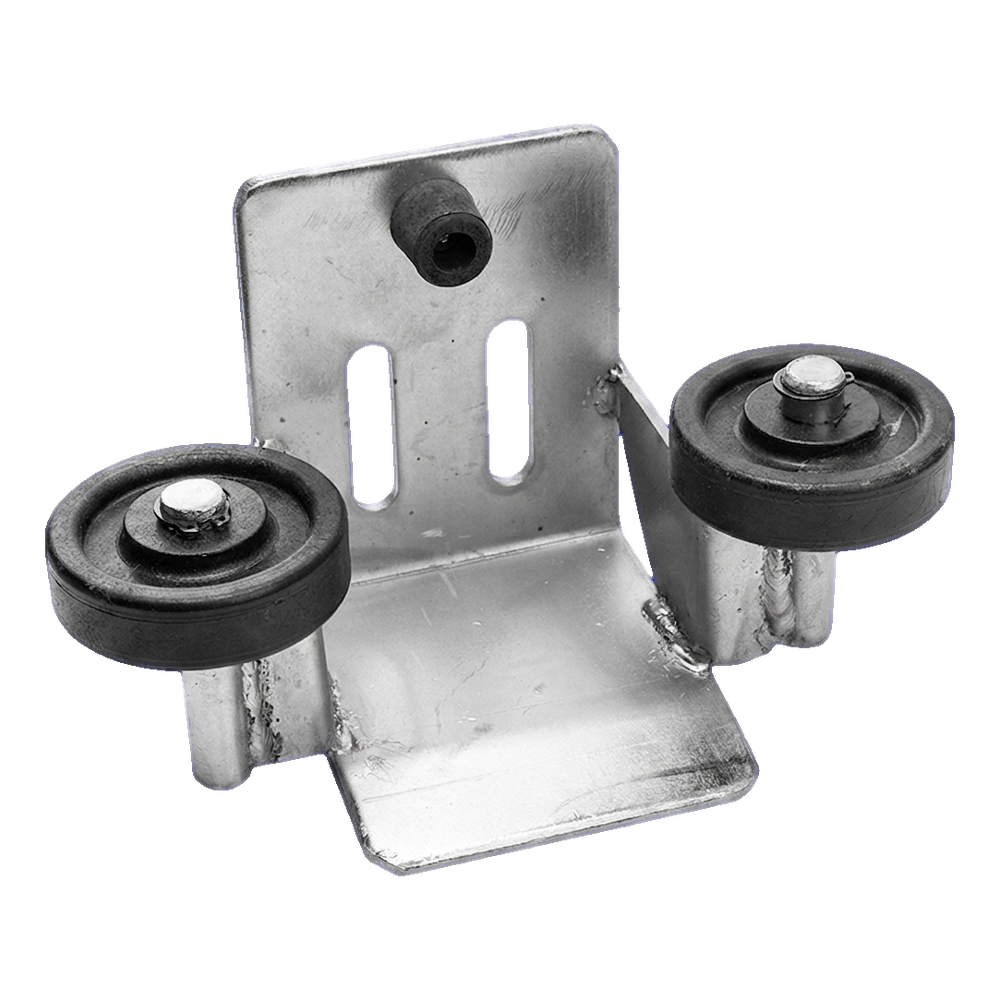

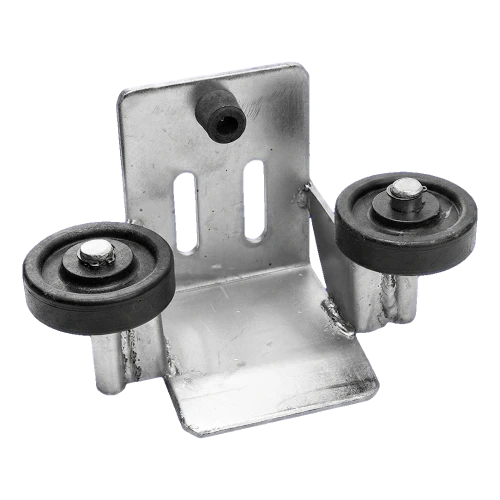

The bracket is equipped with two plastic guide rollers which precisely guide the gate during closing, eliminating excessive friction and lateral play. On the rear wall of the bracket there are two mounting holes (through slots) allowing position adjustment, and a centrally positioned rubber buffer dampens impacts of the leaf in the closed position, protecting both the gate and the post.
Technical specifications
- Manufacturer: PSG
- Rail compatibility: 70×70 mm and 80×80 mm
- Bracket material: galvanised steel
- Roller material: plastic
- Weight: 1.5 kg
- EAN: 5901289674867

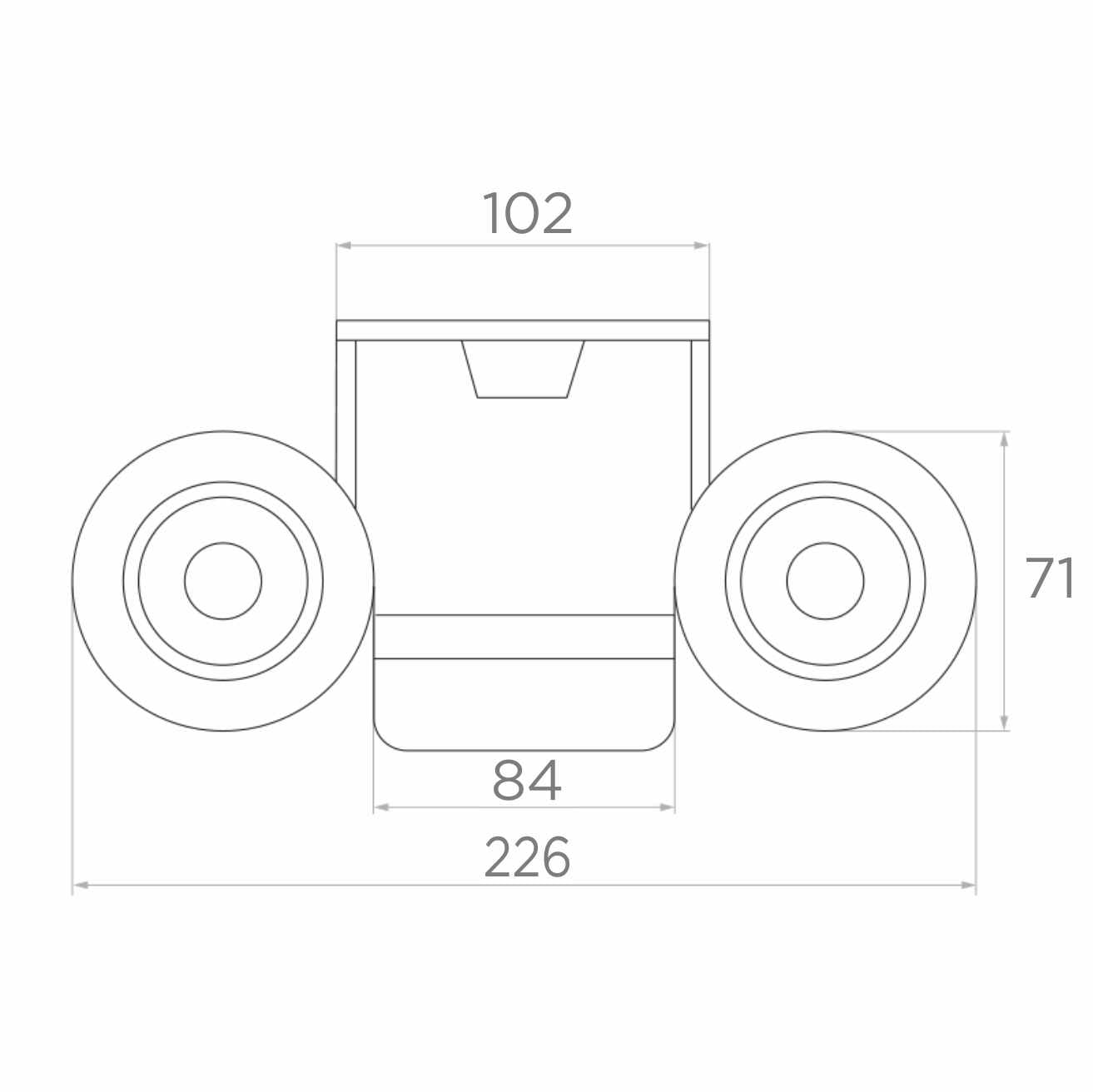

Dimensions
- Overall width (with rollers): 226 mm
- Bracket width (top): 102 mm
- Bracket width (bottom): 84 mm
- Guide roller diameter: 71 mm
Benefits for the installer
- Protection of running trolleys — distributes gate load across more components, reducing wear on key parts
- Precise guidance — plastic rollers ensure quiet and smooth leaf guidance during closing
- Adjustable mounting position — elongated mounting holes allow precise bracket positioning relative to the rail
- Impact dampening — rubber buffer protects the gate and structural components from mechanical damage
- Durability — surface galvanising provides corrosion resistance and years of trouble-free outdoor operation
