PSG adjustable roller hinge ø24 M12 with plate 150×40 mm and ball bearing – for gates and entrances
Description
PSG adjustable roller hinge ø24 M12 with plate 150×40 mm and ball bearing – for gates and entrances

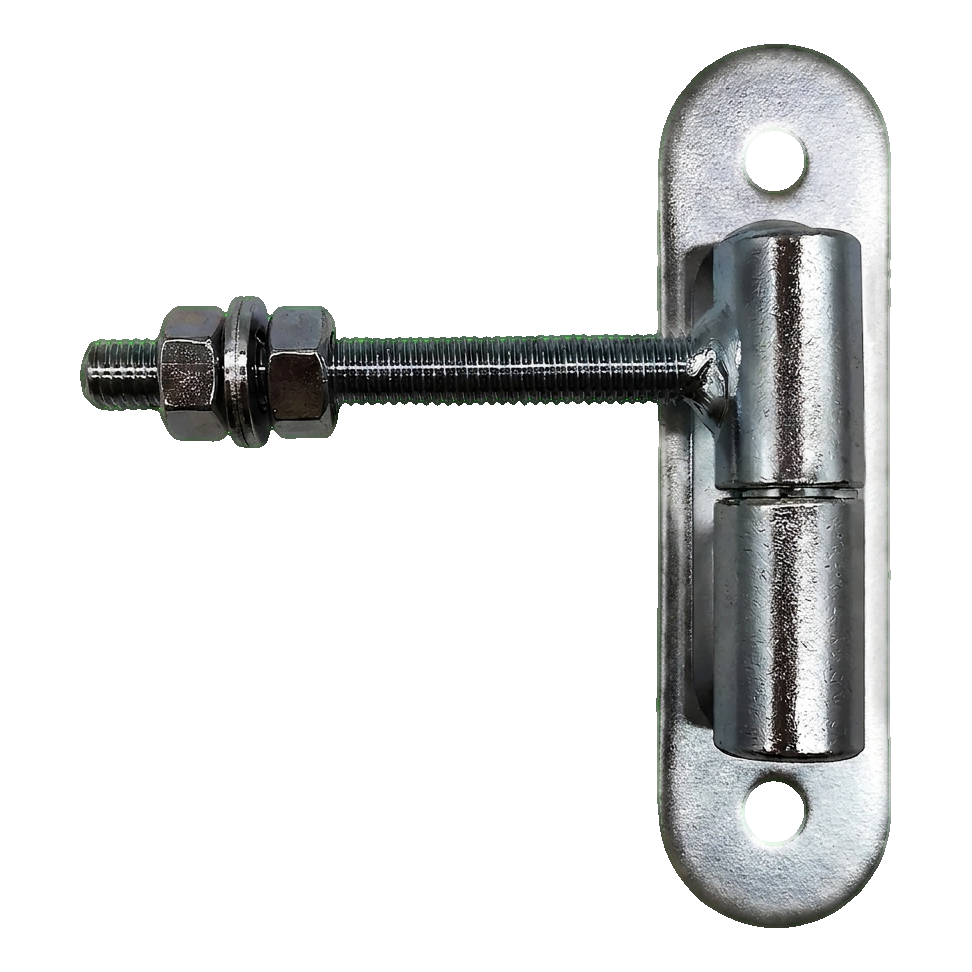

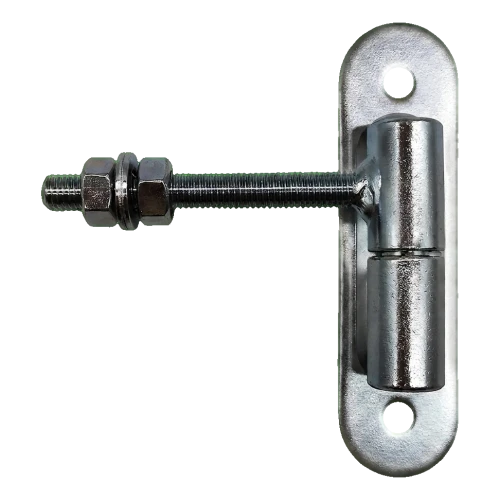

PSG adjustable roller hinge ø24 with M12 thread is a robust, galvanised steel hinge designed for mounting gates and entrances. Thanks to its threaded adjustment construction, it allows precise positioning of the leaf both during installation and subsequent operation — simply use the adjustment nut to correct sagging caused by load or temperature changes.
The plate measuring 150 × 40 mm with two mounting holes (ø10 mm, spacing 110 mm) ensures stable, secure attachment to the post. The ball bearing inside the hinge guarantees smooth leaf operation and minimises friction, which translates to user comfort and durability of the entire mechanism. The permissible load for a pair of hinges is 250 kg, making it suitable even for heavy steel constructions.
Galvanised coating protects the hinge against corrosion, making it an ideal solution for external applications — fencing, entrance gates and property gates. For installation companies, speed of installation and the possibility of subsequent adjustment without dismantling is crucial — this hinge provides both.

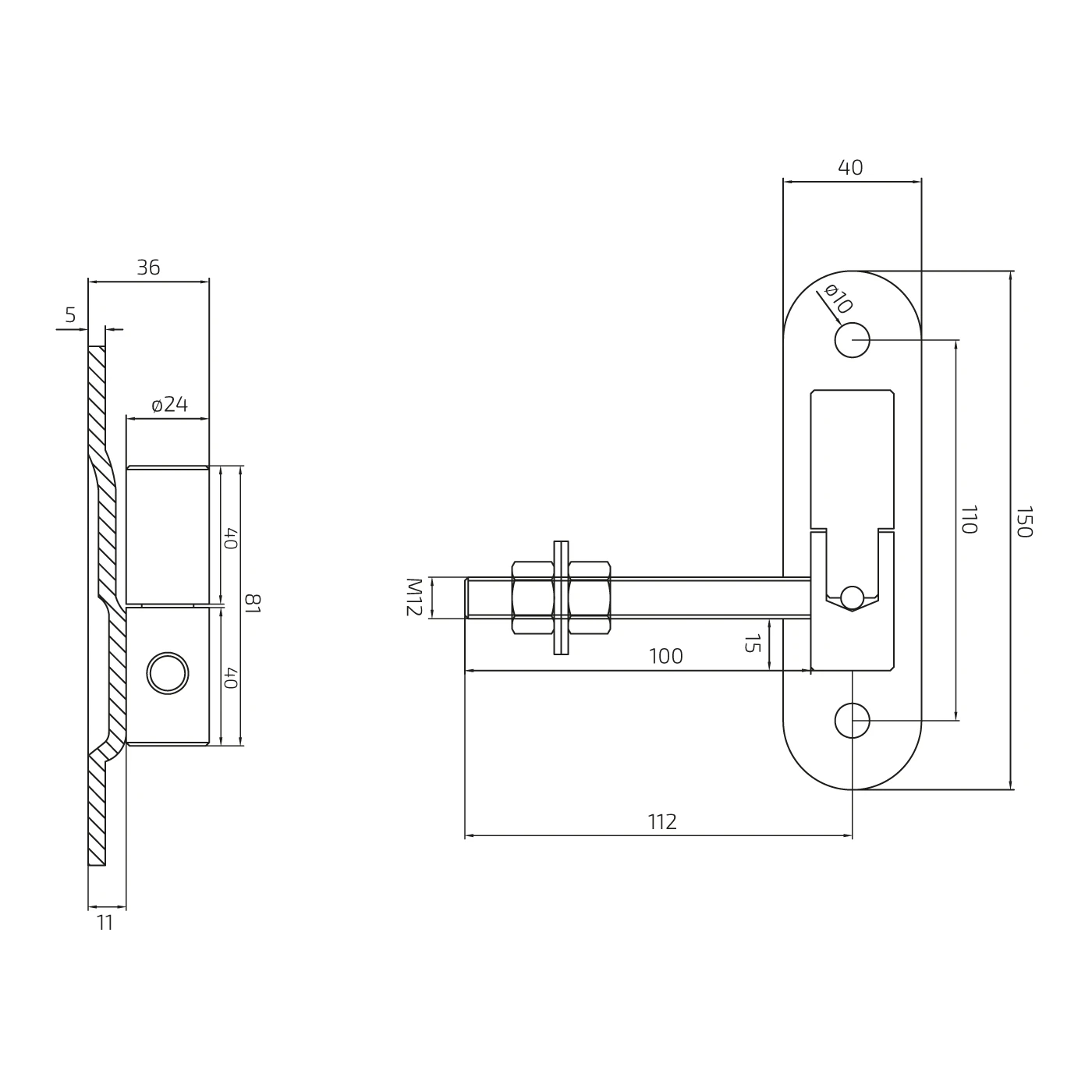

Dimensions and technical parameters
- Material: galvanised steel
- Hinge (sleeve) diameter: ø24 mm
- Adjustment pin thread: M12
- Threaded pin length: 100 mm
- Total hinge sleeve height: 81 mm (2 × 40 mm + clearance)
- Depth from mounting plane to hinge face: 36 mm
- Plate edge thickness: 5 mm
- Plate profile depth (pressing): 11 mm
- Plate dimensions: 150 × 40 mm
- Mounting hole diameter: ø10 mm
- Mounting hole spacing: 110 mm
- Permissible load for pair of hinges: 250 kg
- Corrosion protection: galvanised
- Weight: 0.62 kg
- EAN: 5901289676298
Installer advantages
- Nut adjustment — quick correction of leaf sag without dismantling
- Ball bearing in hinge — smooth operation and reduced wear
- Galvanised — multi-year corrosion protection in external conditions
- High load capacity — pair of hinges will support constructions up to 250 kg
- Simple, quick installation — two ø10 mm holes in plate, M12 threaded pin
Technical data
| Thread type | M12 |
| Diameter | 24 |
| Mounting Method | With Plate |
| Material | Steel |
