PSC adjustable gate hinge with plate M20 galvanised 100×100×4 mm
Leave feedback on the product

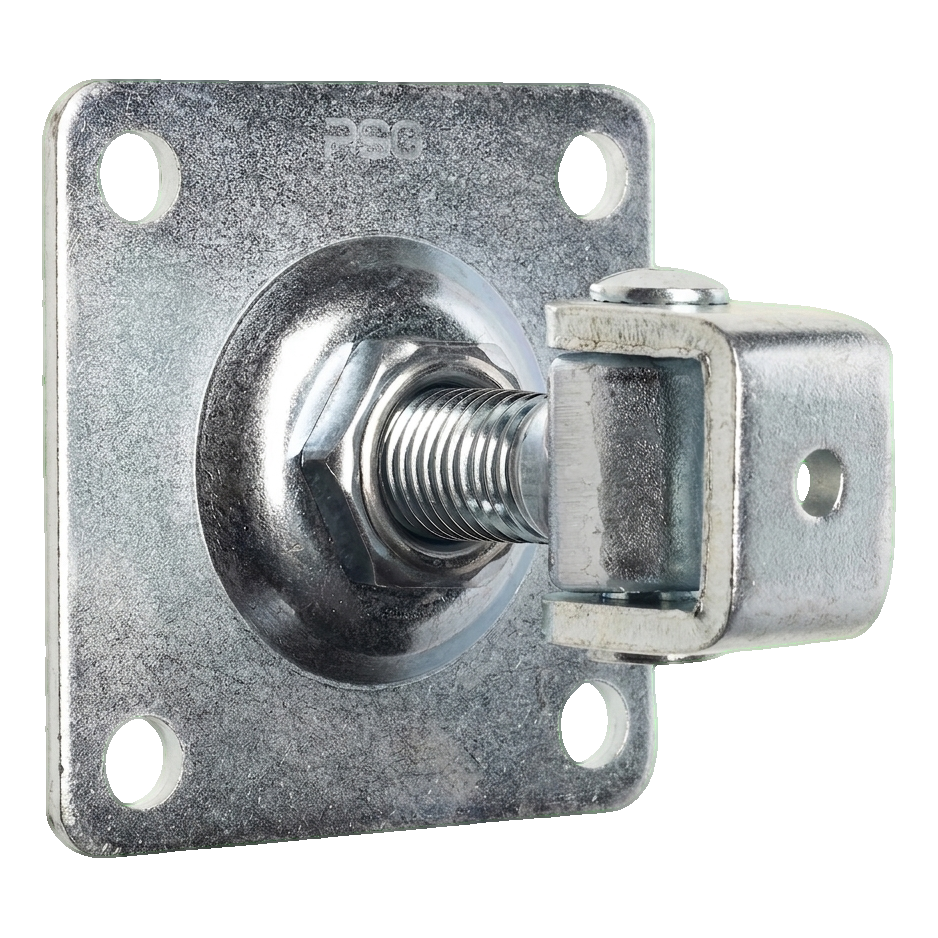

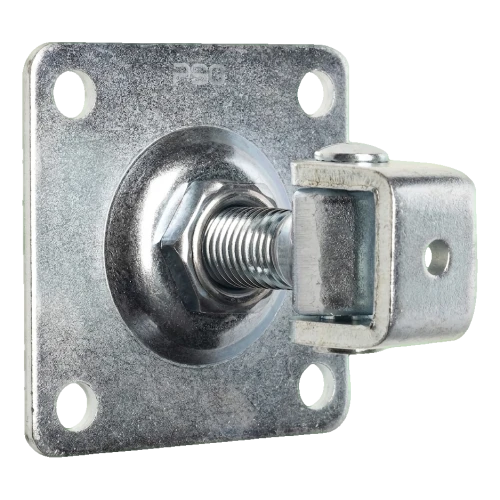

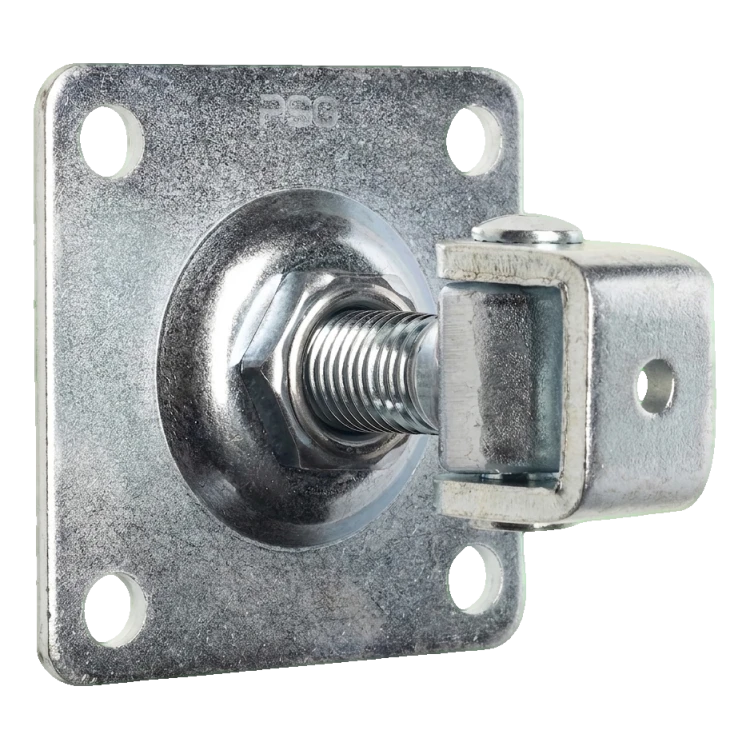

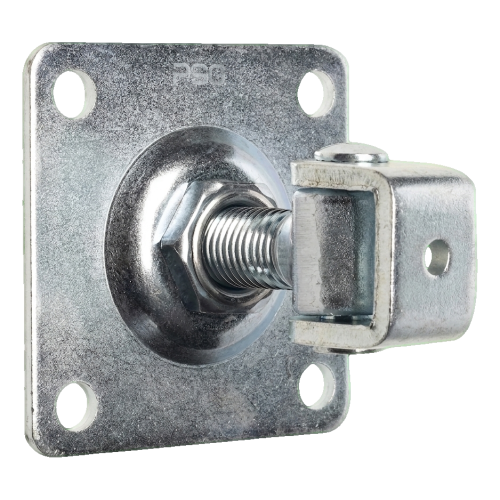

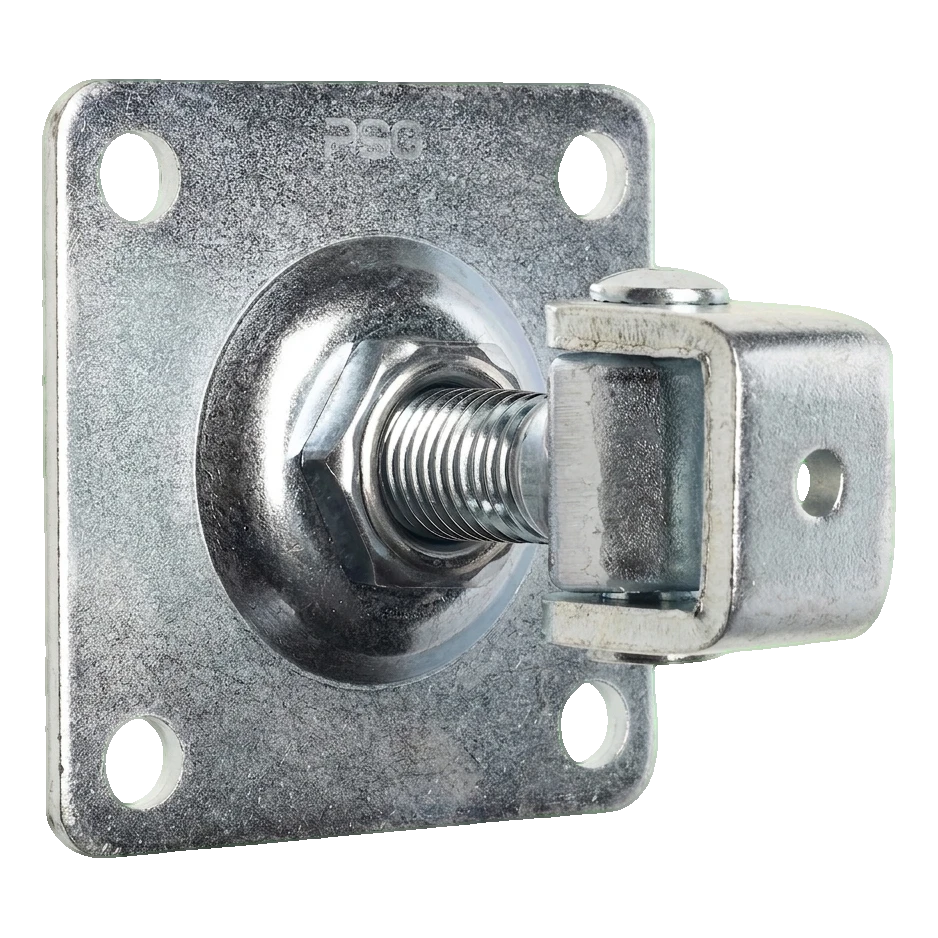

PSC adjustable gate hinge with plate M20, galvanised steel. Plate dimensions 100×100×4 mm, length 88 mm, thread M20. Load capacity of hinge pair up to 105 kg with 2 m gate leaf. Weight 0.8 kg. For leaf gates on fence posts.
Product code: 001-370
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method With Plate
- Material Steel
Description
PSC adjustable gate hinge with plate M20 galvanised 100×100×4 mm
Adjustable hinge with M20 plate is a durable gate hardware component designed for mounting leaf gates on fence posts. The plate with four mounting holes enables quick and secure fastening to the post, whilst the M20 thread with adjustable eye allows for precise gate leaf adjustment after installation is complete — without the need to dismantle the entire assembly.
PSC manufacturer has applied galvanising as corrosion protection for both the plate and hinge eye, guaranteeing long-lasting resistance to weather conditions. A pair of hinges can withstand loads up to 105 kg with a gate leaf 2 m long — this value is sufficient for most standard single-leaf gates in residential fencing.
Installer benefits
- Post-installation adjustment — ability to correct gate leaf positioning without dismantling the hinge, significantly speeding up finishing work
- Simple installation — plate with four holes allows direct fastening to fence post
- Double galvanising — both plate and eye are galvanised, providing high corrosion protection
- High build quality — steel construction resistant to mechanical damage and dynamic loads
Technical specification
- Material: steel
- Corrosion protection: galvanising
- Thread: M20
- Plate dimensions: 100 × 100 mm
- Plate thickness: 4 mm
- Length (L): 88 mm
- Permissible load of hinge pair (2 m leaf): 105 kg
- Weight: 0.8 kg
- EAN: 5903313205399
