Galvanised Steel Wire Rope Ø13.0 mm 6×37 with Fibre Core FC
0
Description
Galvanised Steel Wire Rope Ø13.0 mm 6×37 with Fibre Core FC
Galvanised steel wire rope Ø13.0 mm in 6×37 construction is the most flexible of the classic wire ropes — ideal wherever easy running over pulleys and repeated bending are required. Six strands of thirty-seven wires each provide a high number of contact points, resulting in exceptional flexibility and resistance to material fatigue. The rope is fitted with a fibre core (FC), which further increases flexibility and acts as a lubricant reservoir, supporting internal maintenance.
The wires are made in tensile strength grade 1770 N/mm², and the rope surface is protected against corrosion with a zinc (Zn) coating. This ensures the product maintains high durability even in outdoor conditions exposed to moisture and changing weather conditions. Manufactured in the European Union.

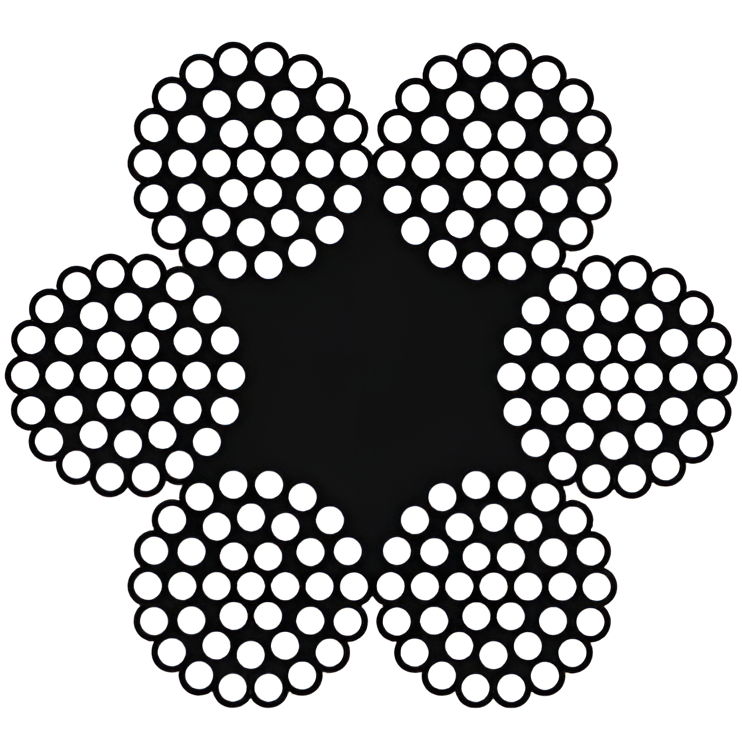

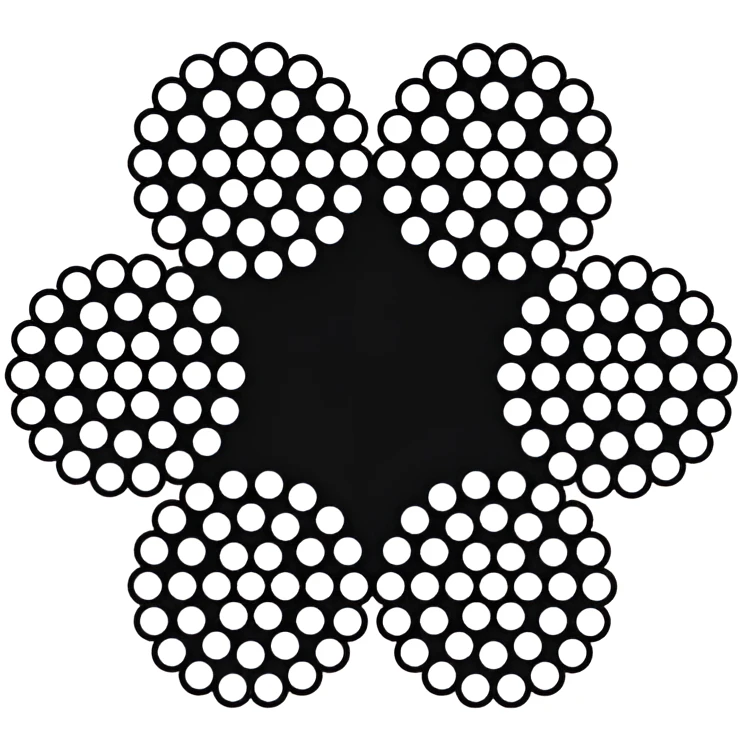

6×37 construction and cross-section
The 6×37 construction means the rope consists of six strands, each containing 37 wires, arranged around a central fibre core (FC). This design provides a significantly greater number of thin wires compared to 6×19 or 6×7 constructions, which directly translates into better flexibility and easier running over pulleys with smaller diameters. This construction is dedicated to dynamic applications where the rope is repeatedly bent and wound.
Typical applications
- Winches and hoists
- Davits and small cranes
- Pulley systems and pulley blocks
- Automotive and transport
- Anywhere rope flexibility and ease of running are essential
Technical parameters
- Rope diameter: 13.0 mm
- Construction: 6×37 (6 strands × 37 wires)
- Core: fibre (FC)
- Wire tensile strength grade: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.58 kg/m
- Factory reel length: 50 m
- EAN: 5907518663541
- Manufactured in: European Union
Sold by the running metre
The rope is sold by the metre — the ordered length is supplied as a single continuous piece. Order 50 m and you will receive a complete, originally packaged factory reel.
⚠️ Technical rope — not intended for lifting persons.
Technical data
| Diameter | 13 |
| Construction | 6×37 |
