Foxess DTSU666 3-Phase Energy Meter
Availability:
Temporarily unavailable
Weight:
0.3 kg
Description

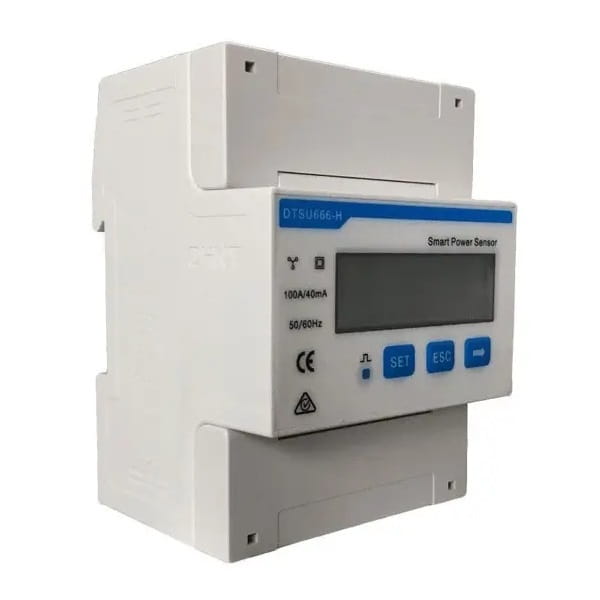

FoxESS 3-Phase Energy Meter DTSU666 FOXESS
The FoxESS 3-phase energy meter DTSU666 is an innovative bidirectional device, ideal for DIN rail mounting.
It features a spacious LCD display, providing quick and convenient reading of parameters. The meter is distinguished by its precision and minimal energy consumption, making it not only accurate but also economical in operation.
Technical Parameters
| Parameter | Value |
|---|---|
| series and type | FoxESS 3-Phase Energy Meter DTSU666 FOXESS |
| rated voltage (Un) | 3x220/380V; 3x57.7/100V |
| operating range | 0.7 Un ~ 1.2 Un |
| power consumption | ≤ 1W, 5VA |
| current | 5(80)A |
| frequency | 50 / 60 Hz |
| LCD display | 7 segments dimensions: 5.3 mm x 2.8 mm |
| communication: | RS485; Modbus and DL/T protocol |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Phases | 3 |
| Maximum current [A] | 80 |
| Voltage [V] | 380 |
| RS‑485 | Yes |
| MID Legalisation | Yes |
| DIN width [modules] | 4 |
| IP | 51 |
| Phases | 3 |
| Maximum current [A] | 80 |
| MID legalization (YES/NO) | Yes |
| Communication interface | RS-485 |
| Brand | FOXESS |
| Rated current [A] | 80A |
| Number of Phases | 3-fazowy |
| MID Certificate | Yes |
| Communication | RS-485 |
