Electric strike cassette H=280 mm
Description

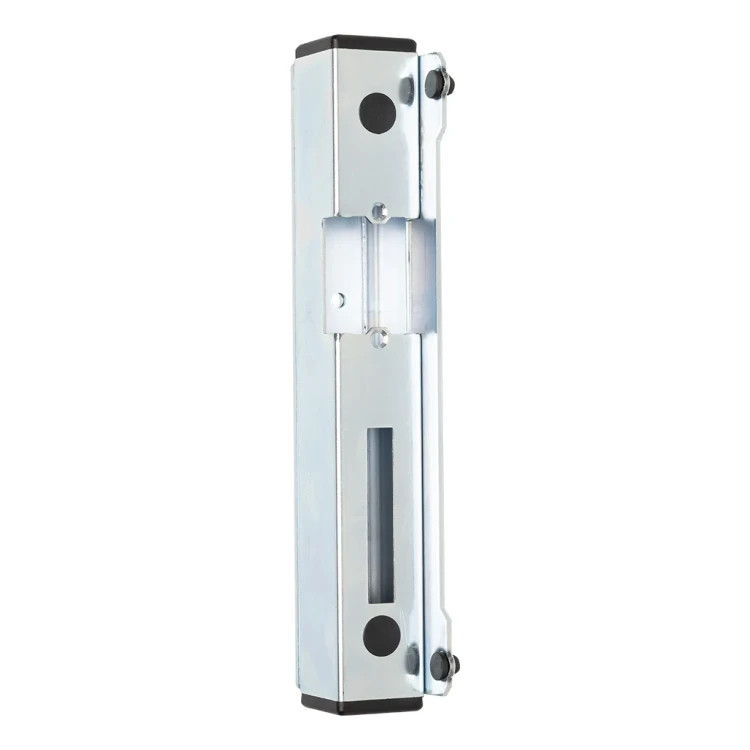

Electric Strike Cassette H=280 mm with Strike Plate for Gate
Electric strike cassette H=280 mm is a complete mounting kit designed for installing an electric strike on a gate post. Supplied complete with a strike plate, the cassette significantly speeds up the installation of access control systems — eliminating the need to fabricate additional components on site.

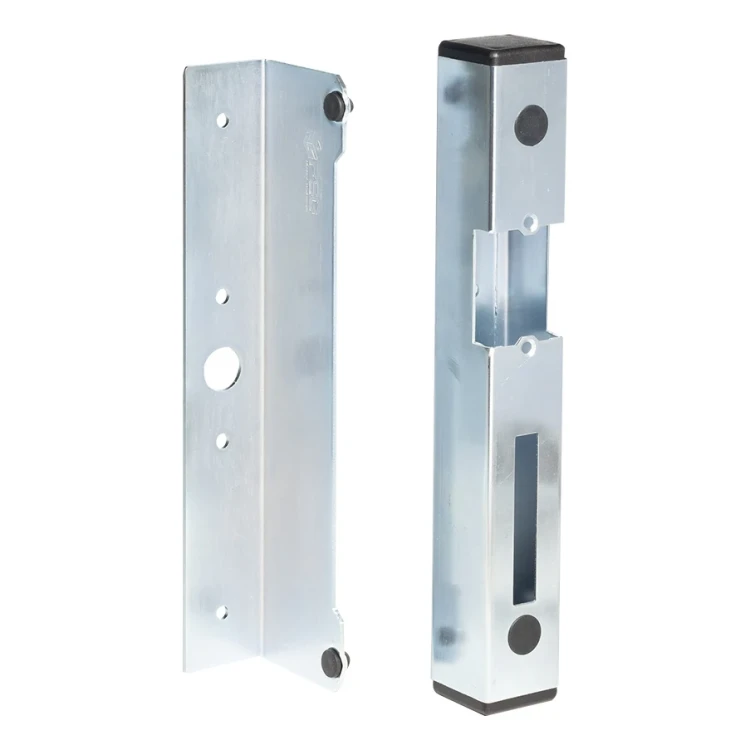

The cassette consists of two functional parts. The first houses the electric strike with its dedicated mounting, while the second conceals the lock bolt — effectively preventing unauthorised opening of the gate. The construction features a cable entry aperture for the electrical wiring, allowing the electric strike's power supply to be connected inside the cassette for a neat and secure installation.
Built-in rubber buffers on the surface of the strike plate effectively absorb kinetic energy when the gate closes, protecting both the mechanism and the gate structure from damage. The mounting holes at the ends of the cassette are factory-sealed, preventing water and debris from entering the profile.
This product is an ideal solution for installation companies carrying out fencing and gate projects with access control systems. The ready-to-install kit eliminates the need to fabricate individual housings, reducing project time and ensuring consistent installation quality.
Technical Specifications
- Cassette height: 280 mm
- Kit weight: 0.91 kg
- Material: galvanised steel
- Contents: electric strike cassette + strike plate
- Rubber buffers: built-in
- Cable entry aperture: yes
- Factory-sealed mounting holes: yes
- EAN: 5901289678605

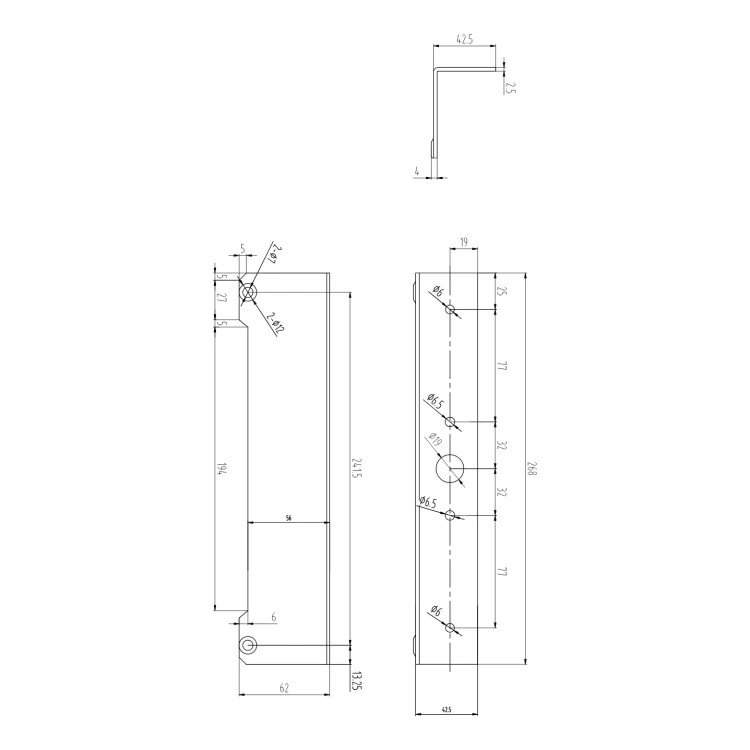

Cassette Dimensions (strike plate)
- Overall length: 268 mm
- Width: 42.5 mm
- Plate thickness: 2.5 mm
- Central aperture: ø19 mm
- Mounting holes: ø6 mm and ø6.5 mm

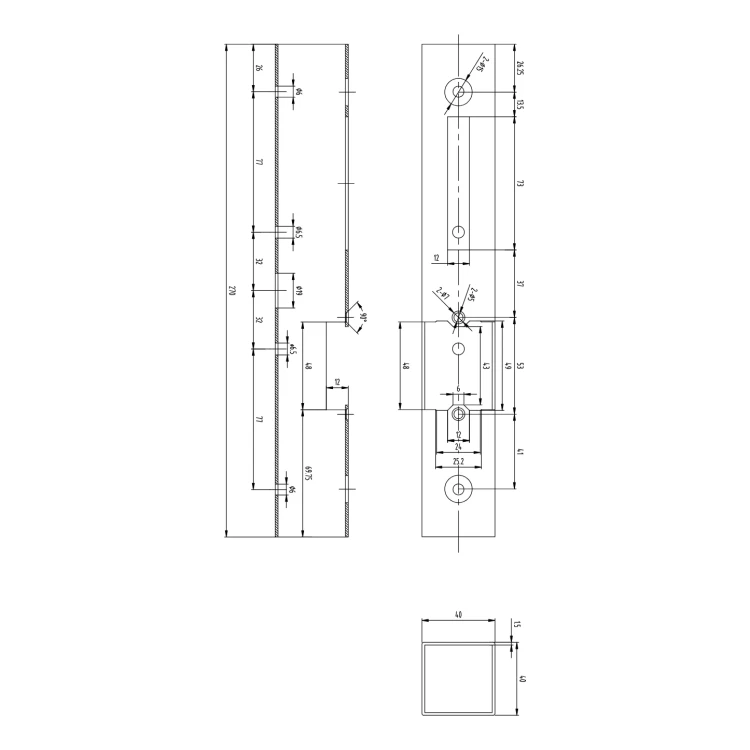

Cassette Dimensions (electric strike profile)
- Overall length: 270 mm
- Profile cross-section: 40 × 40 mm
- Profile wall thickness: 15 mm
- Central aperture: ø19 mm
- Mounting holes: ø6 mm and ø6.5 mm
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Steel |
| Finish | Electrolytic Zinc |
